Lilliput FA1210-NP/C 12.1" Industrial Monitor

  • New
  • LAST PIECE
SKU: FA1210-NP/C

The Lilliput FA1210-NP/C is a 12.1″ industrial monitor with 1024 × 768 resolution in a 4:3 aspect ratio. At 800 cd/m² it stays readable in direct light, and its 12–24 V DC supply and operating range from −30 to 80 °C take it where a standard monitor would not last. HDMI, VGA and AV inputs, two speakers and VESA 75 mm.

More information

313 € with VAT 258.68 € without VAT
Add to Compare Price history
Personal pickup within 90 minutes
Shipment day: Today
In stock 1 pcs
Praha 1 pcs
SKU:
FA1210-NP/C
Add to Compare Price history

Top accessories for Lilliput FA1210-NP/C 12.1" Industrial Monitor

PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum

  • SHOWROOM PRAHA
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

SmallRig Mount Plate for Monitor VESA for Camera Cart 6257

The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs

Manfrotto TetherGear VESA Monitor Mount

  • SHOWROOM PRAHA
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput FA1210-NP/C is a 12.1″ industrial monitor with 1024 × 768 resolution in a 4:3 aspect ratio. At 800 cd/m² it stays readable in direct light, and its 12–24 V DC supply and operating range from −30 to 80 °C take it where a standard monitor would not last. HDMI, VGA and AV inputs, two speakers and VESA 75 mm.

A 12.1" 4:3 monitor from −30 to 80 °C

A 1024 × 768 panel with 800 cd/m², HDMI 1.4, VGA and AV inputs and a 12–24 V supply. Built for industrial and outdoor use, not for the office.

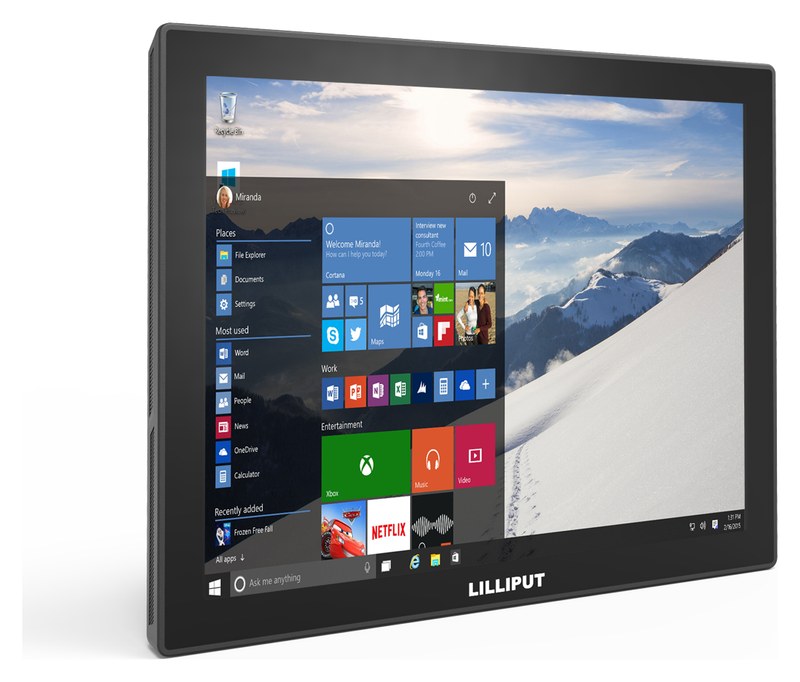

Lilliput FA1210-NP/C
12.1" 4:3 1024 × 768800 cd/m²HDMI · VGA · AV12–24 V DC−30 to 80 °C

−30 to 80 °C

An operating range no ordinary office monitor can handle – for unheated halls, machines and outdoor cabinets.

800 cd/m²

Several times the brightness of an office monitor; the image stays readable even in direct sunlight.

HDMI up to 2160p30

The monitor scales a 4K signal to its 1024 × 768 panel on its own – it fits even behind a 4K-only source.

Two speakers

Built-in speakers, audio via HDMI and a 3.5 mm headphone output.

VESA 75 mm

A mount on the back for a wall, an arm or a cabinet.

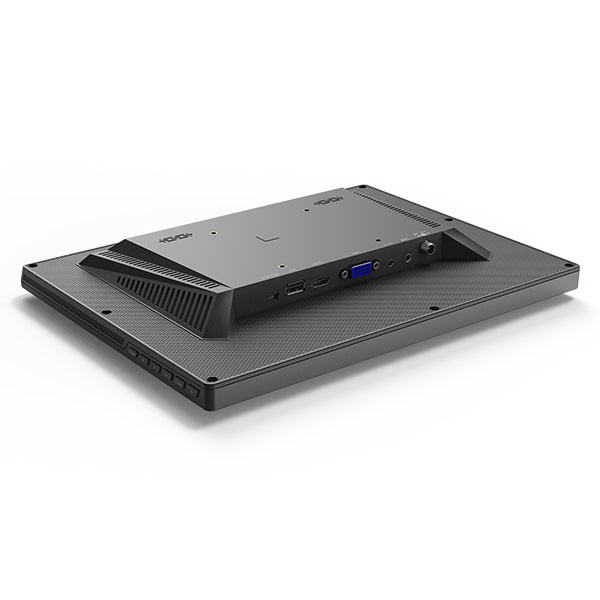

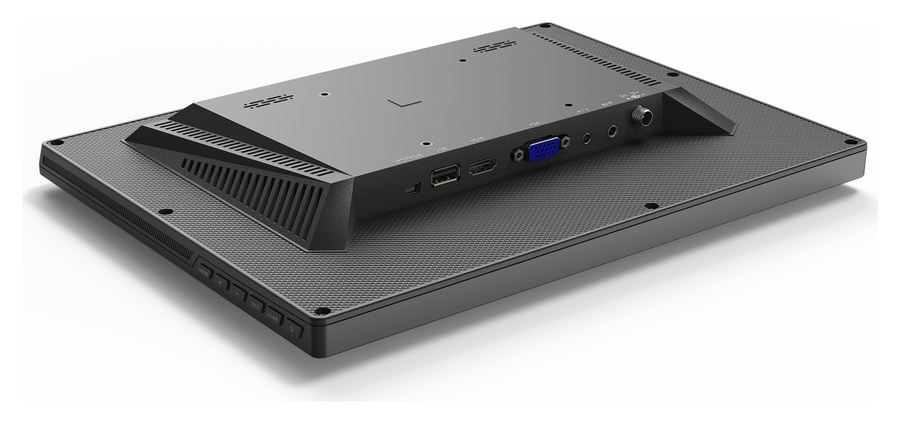

Lilliput FA1210-NP/C – Rear view

Rear view

Upgrade port, USB, HDMI, VGA, AV, headphone output and the 12–24 V power input sit recessed under the back.

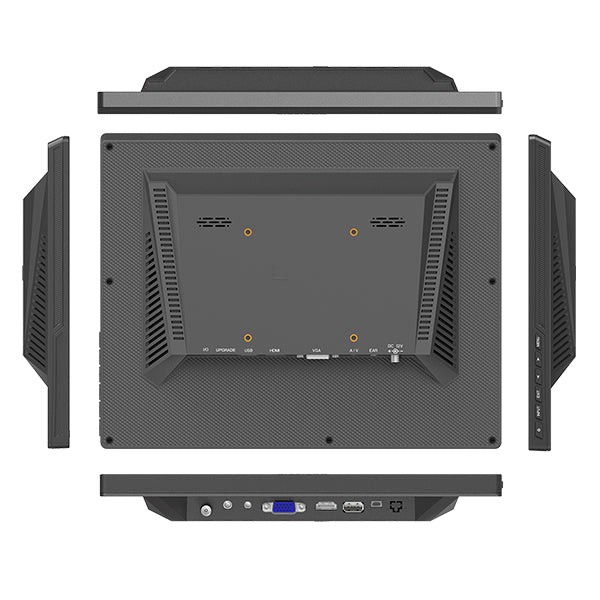

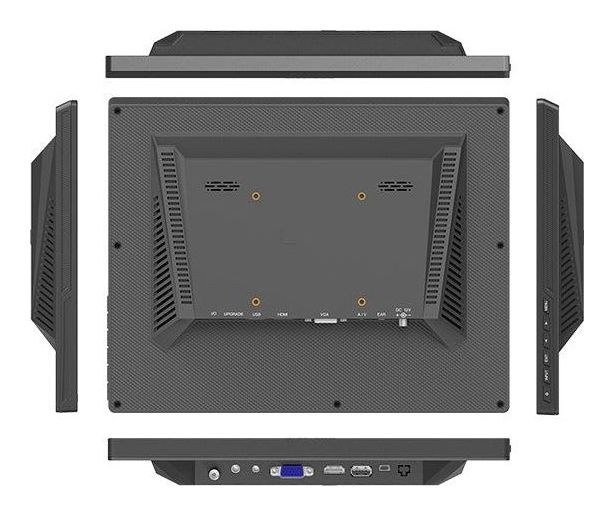

Lilliput FA1210-NP/C – Slim body

Slim body

Only 33.4 mm deep, with side control buttons for easy panel integration.

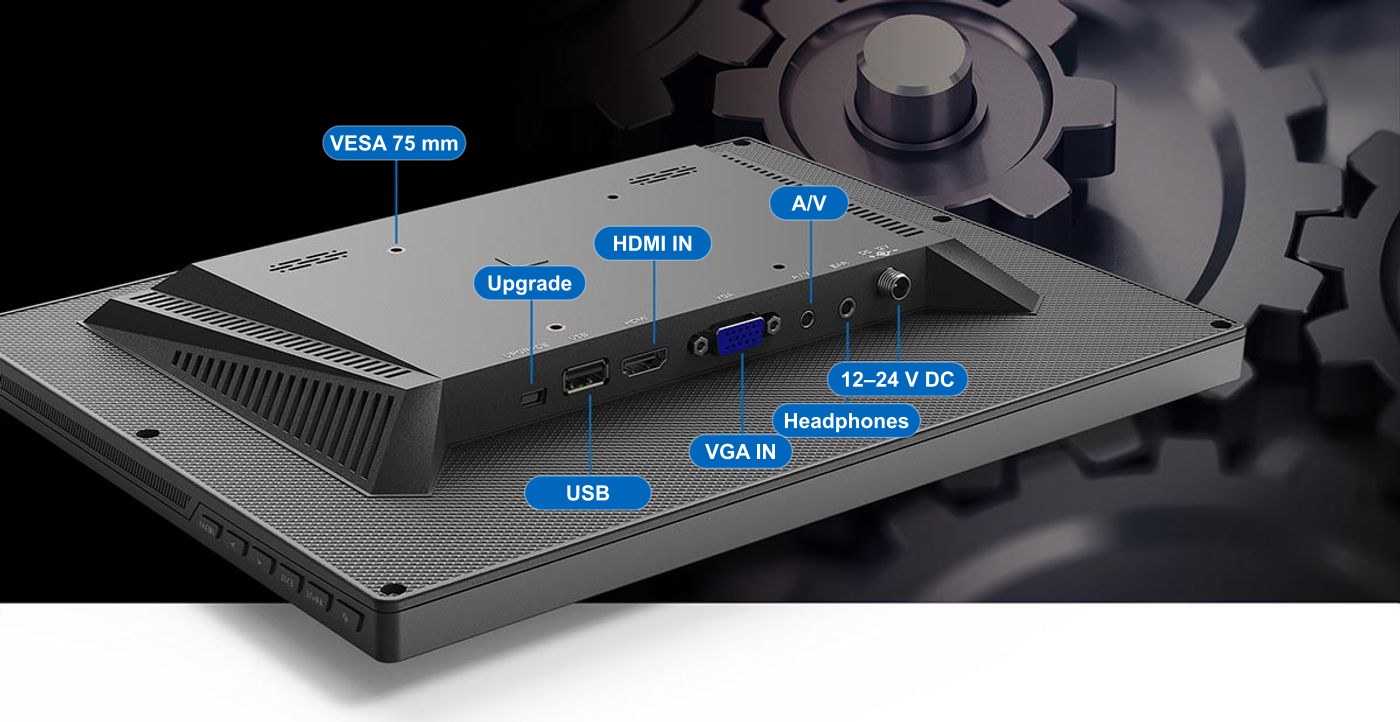

Rear connectors

Lilliput FA1210-NP/C – Rear connectors

More information

About the monitor

The FA1210 series monitor is designed for industrial and outdoor use, not for office use. The 12.1" panel has a resolution of 1024 × 768 with a 4:3 aspect ratio and a brightness of 800 cd/m² — several times that of a standard office monitor — so the image remains legible even in direct sunlight. Viewing angles of 170° both horizontally and vertically mean that the operator does not have to stand directly in front of the display. The contrast ratio is 900:1.

Input options include HDMI 1.4, VGA and composite AV. Via HDMI the monitor can even receive a 2160p signal, which it scales to the panel resolution on its own — so it can be integrated into a setup even when the source only supports 4K. Audio is provided by two built-in speakers or a 3.5 mm headphone jack. It accepts 12 to 24 V DC with power consumption of up to 13 W. On the back is a 75 × 75 mm VESA mount for wall or arm mounting.

PACKAGE CONTENT

  • 1× Lilliput FA1210-NP/C monitor

SPECIFICATIONS

  • Brand: Lilliput
  • Model: FA1210-NP/C
  • Display: 12.1" LCD, LED backlight
  • Resolution: 1024 × 768
  • Aspect ratio: 4:3
  • Brightness: 800 cd/m²
  • Contrast: 900:1
  • Viewing angles: 170°/170° (H/V)
  • Touch screen: none (non-touch)
  • Inputs: 1× HDMI 1.4, 1× VGA, 1× composite (AV), USB (firmware upgrade)
  • HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • Audio: 2× speaker, audio via HDMI, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
  • Power input: 12–24 V DC
  • Power consumption: ≤ 13 W
  • Operating temperature: −30 to 80 °C
  • Storage temperature: −30 to 85 °C
  • Mounting: VESA 75 mm
  • Dimensions (W × H × D): 284.4 × 224.1 × 33.4 mm

WE RECOMMEND

Recommended for the Lilliput FA1210-NP/C 12.1" Industrial Monitor monitor:

Cables – a longer HDMI run and a USB-C laptop connection

Mounting – on a stand, an arm or a desk

Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p · 4K UHD up to 30p
Size12.1"
Monitor inputsHDMI · Composite Video · VGA
Luminosity800cd/m2
Panel resolution1024x768
Monitor power supplyDC 12-24V
