Lilliput 719/C

Name: Lilliput 719/C
Brand: Lilliput
SKU: 719/C
Price: 229 EUR
Availability: OutOfStock

SKU: 719/C

The Lilliput 719/C is a 7" industrial monitor with 1280 × 800 resolution and 1000 cd/m² brightness that stays readable even in direct sunlight. It offers HDMI, VGA and USB-C inputs, a 9–36 V DC supply, automatic dimming based on ambient light and VESA 75 mm mounting – ideal for machines, control panels and vehicles.

More information

229 € with VAT 189.26 € without VAT

Price history

Availability

on request

SKU:
719/C

Price history

Top accessories for Lilliput 719/C

PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum

SHOWROOM PRAHA

This cable enables high-quality video and audio conversion from USB-C to HDMI connector

13 €

In stock 4 pcs

Canare HDMI Cable 5 m

Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.

20 €

In stock 4 pcs

SmallRig Mount Plate for Monitor VESA for Camera Cart 6257

The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand

330 €

Backordered > 5 pcs

Manfrotto TetherGear VESA Monitor Mount

SHOWROOM PRAHA

The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers

197 €

on request

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

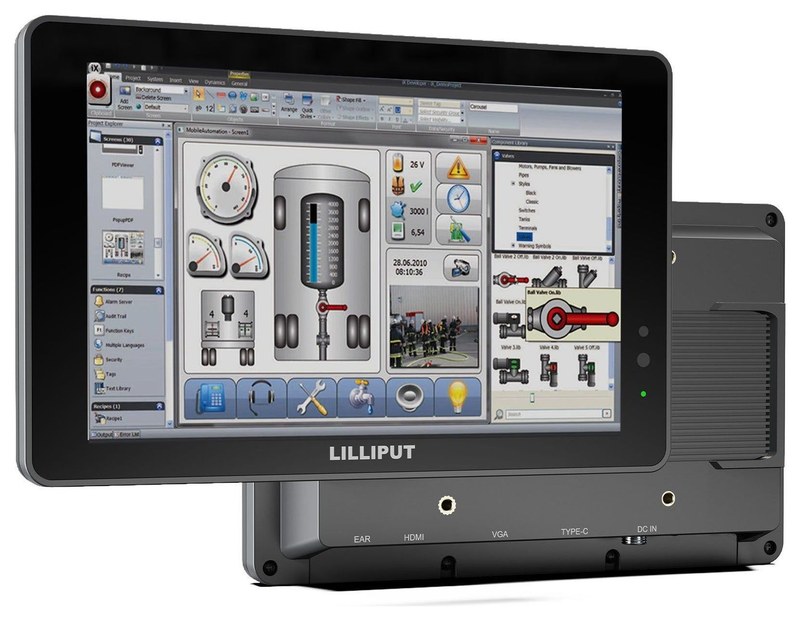

A bright 7" display for machines and vehicles

A 1280 × 800 panel with 1000 cd/m² brightness and a 50,000-hour life. HDMI, VGA and USB-C inputs, a wide 9–36 V power range and automatic dimming.

7" 1280 × 8001000 cd/m²HDMI · VGA · USB-C9–36 V DCVESA 75 mm

Readable in direct sunlight

At 1000 cd/m² the screen is several times brighter than a typical office monitor. An ambient light sensor lowers the brightness when it is not needed and saves power.

Three video inputs

HDMI up to 2160p30, USB-C up to 2160p60 and VGA up to 1080p60 – the image is scaled to the 1280 × 800 panel.

50,000 hours

An industrial LCD panel selected for a long life in continuous operation.

9–36 V power input

A wide input range for 12 V and 24 V machine and vehicle systems, with transient immunity to ISO 7637-2.

−20 to 60 °C

Copes with unheated halls and vehicle cabins; storage from −30 to 80 °C.

Connectors on the bottom edge

HDMI, VGA, USB-C, the headphone output and the power input exit at the bottom, so cables stay out of the way when the monitor is built into a panel.

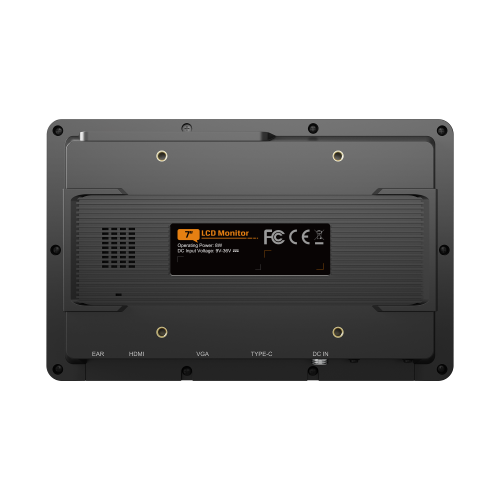

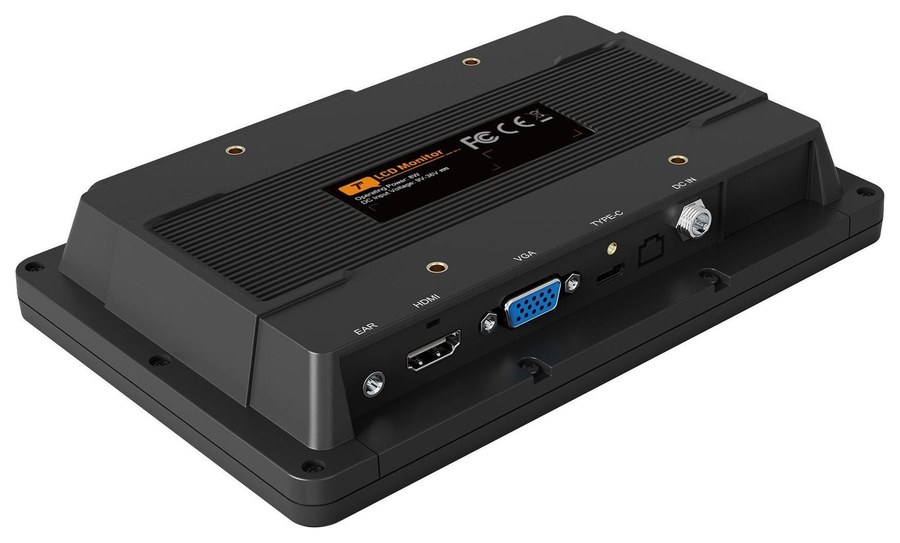

VESA 75 mm mounting

VESA 75 mm mounting points on the back take an arm, wall mount, desk stand or vehicle bracket.

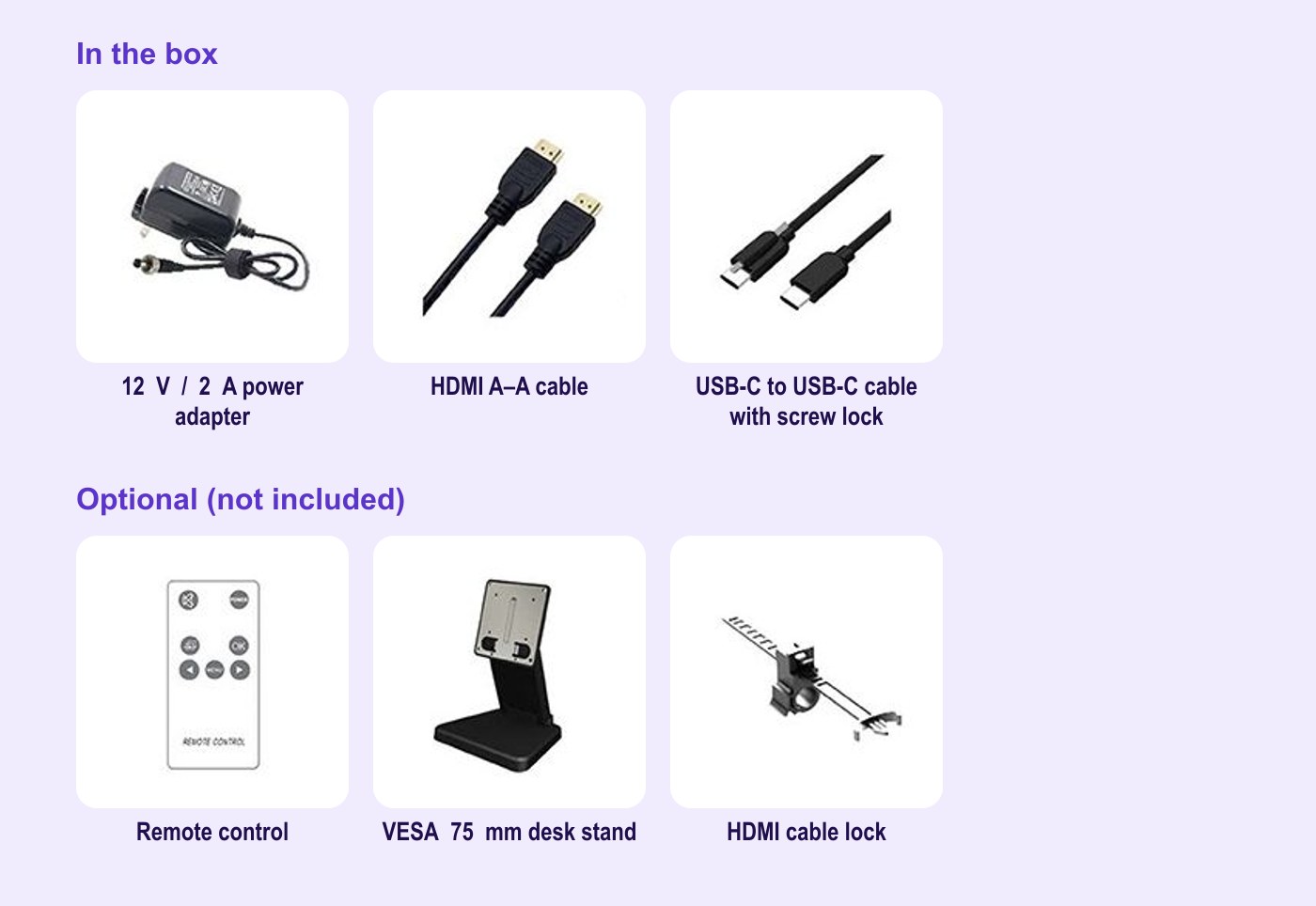

Box contents and optional accessories

More information

About the monitor

The Lilliput 719/C is a versatile and rugged display designed for demanding working environments. It is more durable and brighter than its predecessor, the 619A – a 1000 cd/m² screen and a 50,000-hour panel life make it excellent value for long-term operation.

The 719 series is available in a standard desktop/VESA version (this model) and in a version with an IP65 frame for outdoor use. It accepts video over USB-C (up to 2160p60) and HDMI (up to 2160p30), and the VGA input handles legacy sources up to 1080p. The monitor combines durability, performance and modern connectivity in one compact body.

PACKAGE CONTENT

1× Lilliput 719/C monitor
12 V / 2 A power adapter
HDMI A–A cable
USB-C to USB-C cable with screw lock

SPECIFICATIONS

Brand: Lilliput
Model: 719/C
Display: 7" LCD
Resolution: 1280 × 800
Aspect ratio: 16:10
Brightness: 1000 cd/m²
Contrast: 800:1
Viewing angles: 170°/170° (H/V)
Panel life: 50,000 h
Touch screen: none (non-touch)
Inputs: 1× HDMI, 1× VGA, 1× USB-C (video)
HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
USB-C formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
Audio: 1× speaker, audio via HDMI, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
Power input: 9–36 V DC
Power consumption: ≤ 8.5 W (at 12 V)
Operating temperature: −20 to 60 °C
Storage temperature: −30 to 80 °C
Features: automatic dimming based on ambient light, transient immunity to ISO 7637-2
Mounting: VESA 75 mm
Dimensions (W × H × D): 184.5 × 118.8 × 32 mm
Weight: 410 g

ARTICLES

Lilliput Industrial Monitors

WE RECOMMEND

Recommended for the Lilliput 719/C monitor:

Cables – a longer HDMI run and a USB-C laptop connection

Mounting – on a stand, an arm or a desk

Parameters

Manufacturer:	Lilliput
Category:	Camera monitors

Main parameters

Supported video signal modes (resolution / frame rate)	1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p
Size	7"
Monitor inputs	HDMI · VGA · USB-C
Luminosity	1000cd/m2
Panel resolution	1280x800
Monitor power supply	DC 9–36V
