Lilliput 779GL-70NP/C - 7" HDMI monitor
SKU: 779GL-70NP/C
The Lilliput 779GL-70NP/C is a 7″ 16:9 monitor with 1000 cd/m² brightness, a built-in VGA input and a smooth integrated front for a cleaner installation. It also offers HDMI and composite video inputs, an I/O control interface, a 7–24 V DC supply drawing just 4.5 W and VESA 75 mm mounting – for machines, vehicles and consoles.
229 € with VAT
189.26 € without VAT
Availability
14-30 days
Top accessories for Lilliput 779GL-70NP/C - 7" HDMI monitor
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 779GL-70NP/C is a 7″ 16:9 monitor with 1000 cd/m² brightness, a built-in VGA input and a smooth integrated front for a cleaner installation. It also offers HDMI and composite video inputs, an I/O control interface, a 7–24 V DC supply drawing just 4.5 W and VESA 75 mm mounting – for machines, vehicles and consoles.

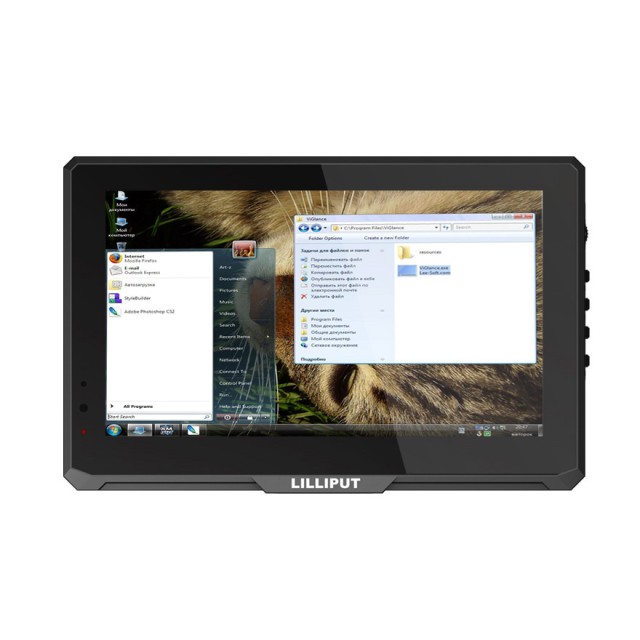

A bright 7" monitor with a smooth front
An 800 × 480 panel with 1000 cd/m², HDMI, VGA and AV inputs and an I/O interface. 7–24 V power input and up to 4.5 W consumption.
7" 800 × 4801000 cd/m²HDMI · VGA · AVI/O interface7–24 V DC
1000 cd/m² in a 7" body
Brightness that holds its own in a sunlit hall or behind a vehicle window, at no more than 4.5 W.
Built-in VGA
Unlike other Lilliput 7" models, VGA is built into the body – no adapters or cable looms.
Integrated front
A smooth front panel without seams resists dust and makes panel mounting easier.
I/O interface
Control from a host system through the I/O port, or with the remote control.
7–24 V power input
A wide power range, a car power adapter in the box and operation from −20 to 60 °C.

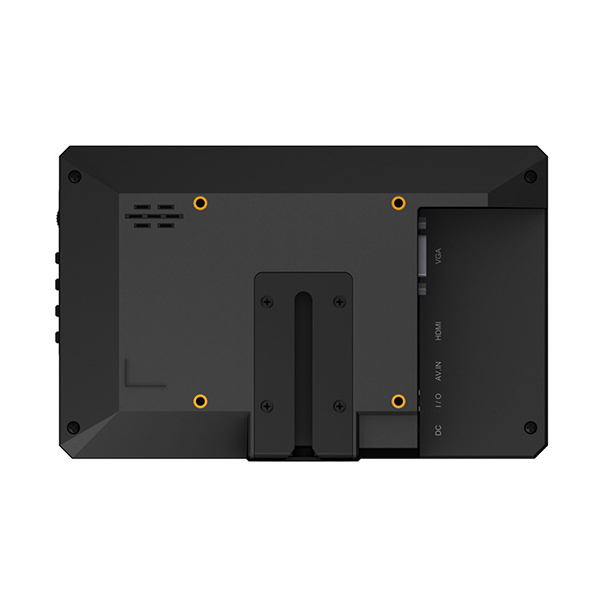

Rear and VESA 75 mm
VESA 75 mm mounting points and a slot for the supplied 589 bracket.

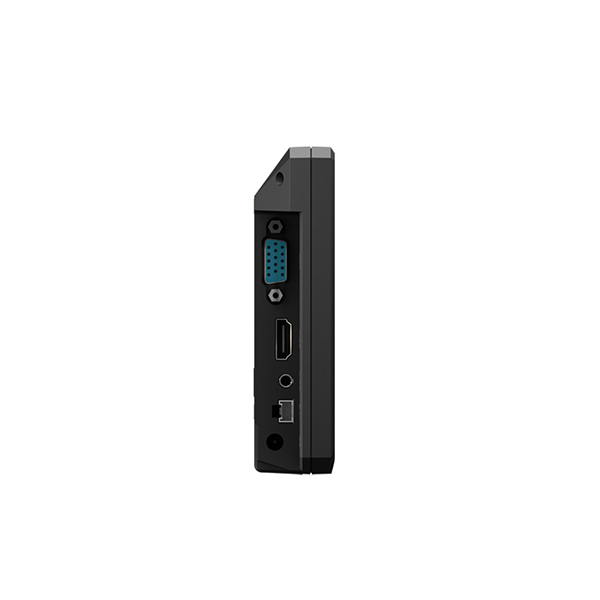

Side connectors
VGA, HDMI, the headphone output and power are on the side of the monitor.
Box contents and optional accessories
More information
About the monitor
The Lilliput 779GL-70NP/C is a 7-inch 16:9 LCD monitor with HDMI, VGA and composite video inputs (DVI via the optional HDMI–DVI cable), in the version without touch. Improving on other Lilliput 7" models, the 779GL has a built-in VGA port and a smooth front – making for a cleaner installation and great connectivity.
The integrated front panel is dustproof, and 1000 cd/m² keeps the image readable in bright surroundings.
PACKAGE CONTENT
- 1× Lilliput 779GL-70NP/C monitor
- 12 V DC power adapter
- 589 bracket
- remote control
- composite (AV) cable
- I/O control cable
- car power adapter
- user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: 779GL-70NP/C
- Display: 7" LCD, integrated dustproof front
- Resolution: 800 × 480
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angles: 140°/120° (H/V)
- Touch screen: none (non-touch)
- Inputs: 1× HDMI, 1× VGA, 1× composite (AV)
- HDMI formats: 1080p 50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Control: I/O interface, remote control
- Power input: 7–24 V DC
- Power consumption: ≤ 4.5 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Mounting: VESA 75 mm
- Dimensions (W × H × D): 185 × 118.5 × 29.5 mm
- Weight: 415 g
WE RECOMMEND
Recommended for the Lilliput 779GL-70NP/C - 7" HDMI monitor monitor:
Cables – a longer HDMI run and a USB-C laptop connection
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 7" |
| Monitor inputs | HDMI · Composite Video · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 800x480 |
| Monitor power supply | 12V · Car Power Adapter · DC 7-24V |
Other parameters
| High Brightness | Yes |
