Lilliput 779GL-70NP/C/T - 7" HDMI Capacitive Touchscreen monitor
SKU: 779GL-70NP/C/T
The Lilliput 779GL-70NP/C/T is a 7″ touch monitor with a 10-point capacitive layer, 1000 cd/m² brightness and an integrated dustproof front. It works natively with Windows, Linux and Android, has HDMI, VGA and AV inputs, an I/O control interface and a 7–24 V DC supply drawing just 4.5 W – for process control, access control and education.
241 € with VAT
199.17 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for Lilliput 779GL-70NP/C/T - 7" HDMI Capacitive Touchscreen monitor
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 779GL-70NP/C/T is a 7″ touch monitor with a 10-point capacitive layer, 1000 cd/m² brightness and an integrated dustproof front. It works natively with Windows, Linux and Android, has HDMI, VGA and AV inputs, an I/O control interface and a 7–24 V DC supply drawing just 4.5 W – for process control, access control and education.

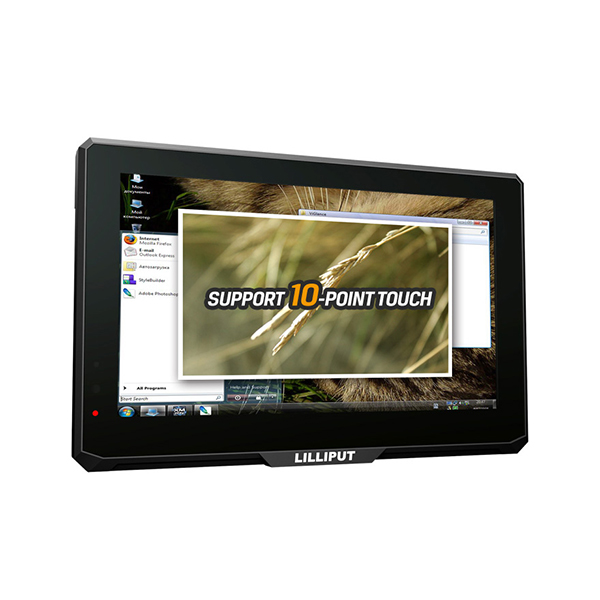

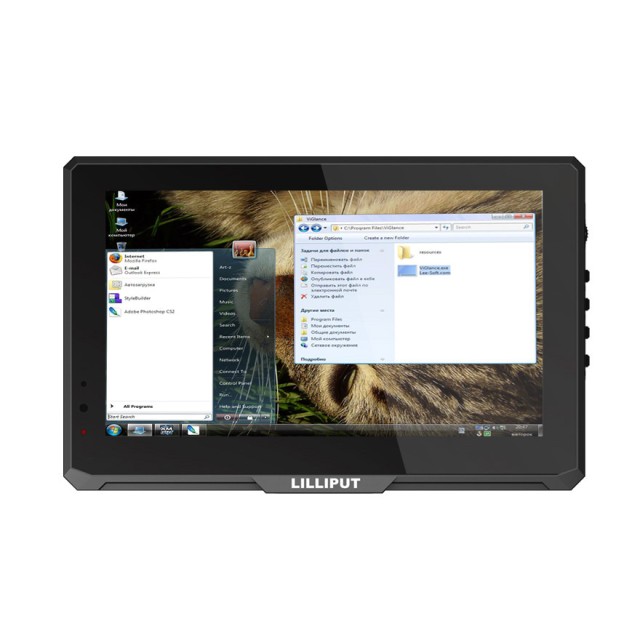

A bright 7" touch monitor for PC and Android
An 800 × 480 panel with 1000 cd/m², 10-point capacitive touch and HDMI, VGA and AV inputs. Touch connects over USB through the supplied HDMI or VGA cable.
7" 800 × 48010-point touch1000 cd/m²HDMI · VGA · AV7–24 V DC
1000 cd/m² in a 7" body
Brightness that holds its own in a sunlit hall or behind a vehicle window, at no more than 4.5 W.
Windows, Linux, Android
The capacitive touch works on the main operating systems without installing drivers.
Integrated front
A smooth front panel without seams resists dust and makes panel mounting easier.
I/O interface
Control from a host system through the I/O port, or with the remote control.
7–24 V power input
A wide power range, a car power adapter in the box and operation from −20 to 60 °C.
Rear and VESA 75 mm
VESA 75 mm mounting points and a slot for the supplied 589 bracket.

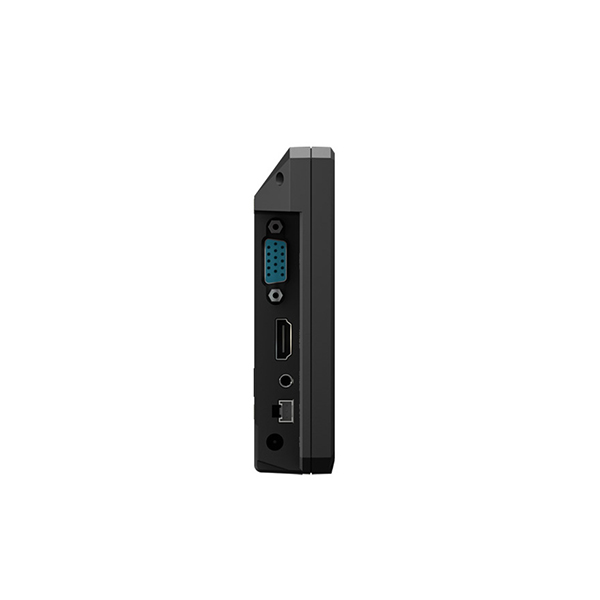

Side connectors
VGA, HDMI, the headphone output and power are on the side of the monitor.
Box contents and optional accessories
More information
About the monitor
The Lilliput 779GL-70NP/C/T is a 7-inch 16:9 LCD capacitive touchscreen monitor with HDMI, VGA and composite video inputs (DVI via the optional HDMI–DVI cable). Compatible with Windows, Linux and Android natively, this monitor is suited to many uses – such as education, process control and access control – as well as being a handy companion for the home coder.
Improving on other Lilliput 7" models, the 779GL has a built-in VGA port and a smooth front – making for a cleaner installation and great connectivity. The integrated front panel is dustproof.
PACKAGE CONTENT
- 1× Lilliput 779GL-70NP/C/T monitor
- 12 V DC power adapter
- 589 bracket
- remote control
- HDMI A–A cable with USB for touch
- VGA cable with USB for touch
- composite (AV) cable
- I/O control cable
- car power adapter
- user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: 779GL-70NP/C/T
- Display: 7" LCD, integrated dustproof front
- Resolution: 800 × 480
- Aspect ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000:1
- Viewing angles: 140°/120° (H/V)
- Touch screen: 10-point capacitive (PCAP)
- Inputs: 1× HDMI, 1× VGA, 1× composite (AV)
- HDMI formats: 1080p 50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Control: I/O interface, remote control
- Power input: 7–24 V DC
- Power consumption: ≤ 4.5 W
- Operating temperature: −20 to 60 °C
- Storage temperature: −30 to 70 °C
- Mounting: VESA 75 mm
- Dimensions (W × H × D): 185 × 118.5 × 29.5 mm
- Weight: 415 g
WE RECOMMEND
Recommended for the Lilliput 779GL-70NP/C/T - 7" HDMI Capacitive Touchscreen monitor monitor:
Cables – a longer HDMI run and a USB-C laptop connection
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 7" |
| Monitor inputs | HDMI · Composite Video · VGA |
| Luminosity | 1000cd/m2 |
| Panel resolution | 800x480 |
| Monitor power supply | 12V · Car Power Adapter · DC 7-24V |
Other parameters
| Other features | Touchscreen |
| High Brightness | Yes |
