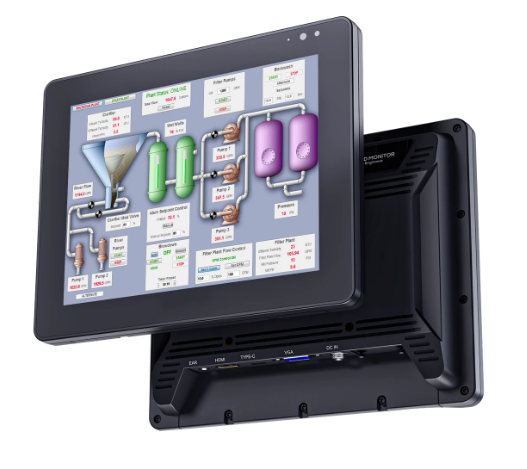

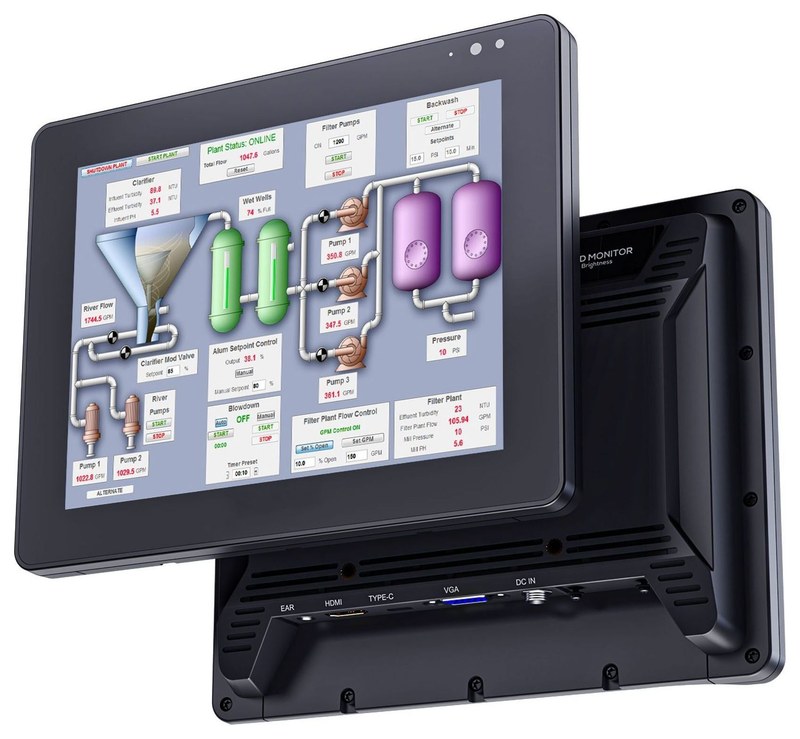

Lilliput 819/T Monitor
SKU: 819/T

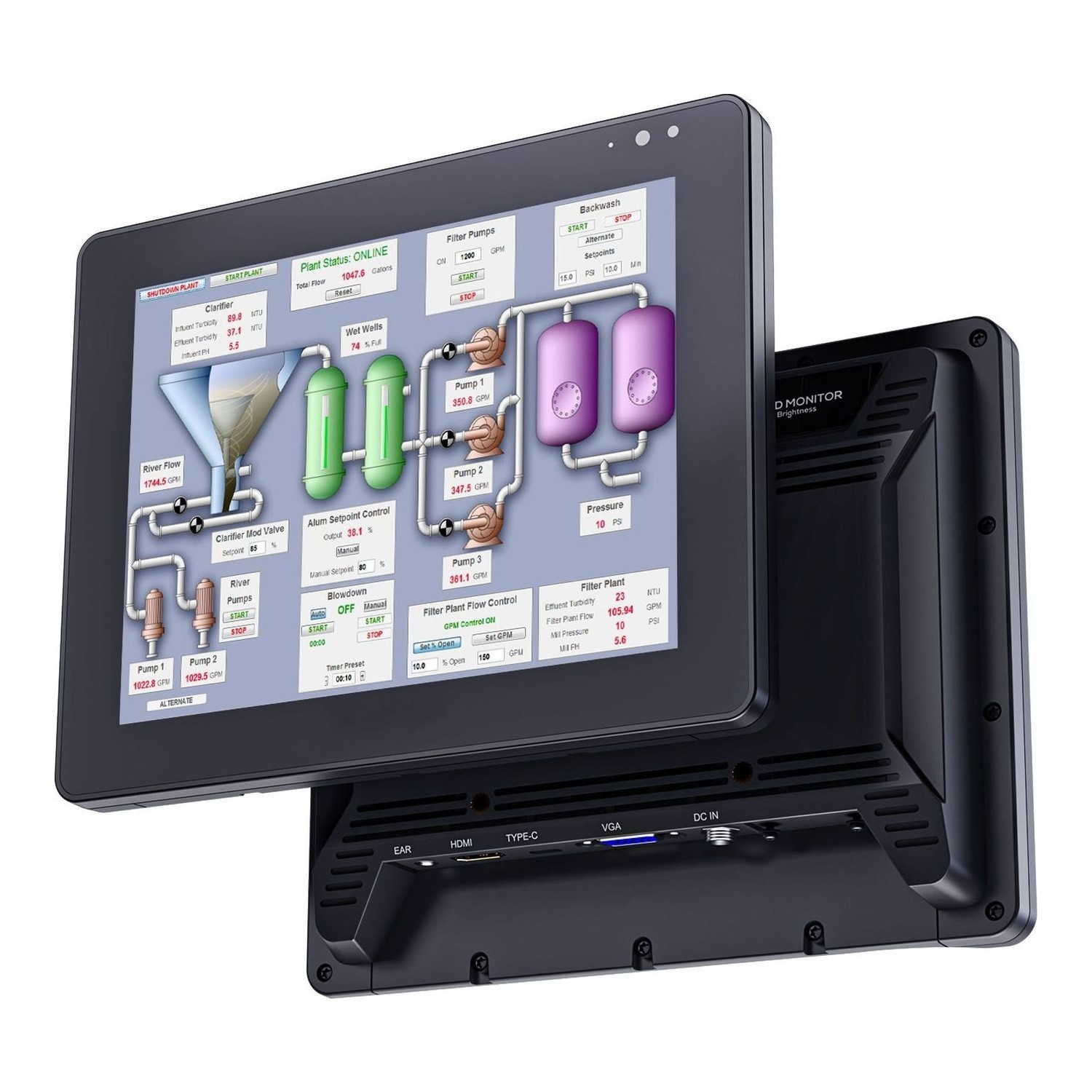

The Lilliput 819/T is an 8″ industrial touch monitor with a 4:3 aspect ratio, 1024 × 768 resolution and 1000 cd/m² brightness. Its 10-point capacitive layer works even with gloves, the front panel is IP65-rated and the monitor operates from −25 to 75 °C. HDMI, VGA and USB-C inputs and a 9–36 V DC supply.
301 € with VAT
248.76 € without VAT
Availability
on request
Top accessories for Lilliput 819/T Monitor
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 819/T is an 8″ industrial touch monitor with a 4:3 aspect ratio, 1024 × 768 resolution and 1000 cd/m² brightness. Its 10-point capacitive layer works even with gloves, the front panel is IP65-rated and the monitor operates from −25 to 75 °C. HDMI, VGA and USB-C inputs and a 9–36 V DC supply.

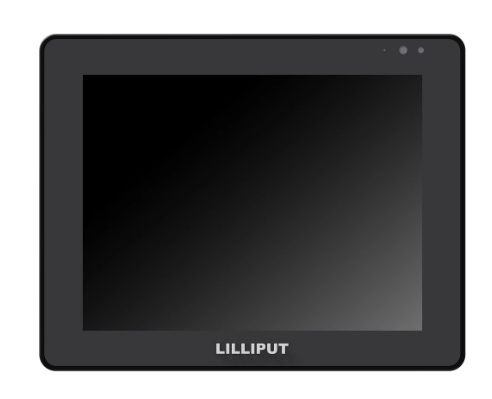

An 8" 4:3 touch panel for harsh conditions
A 1024 × 768 panel with 1000 cd/m², optical bonding, 10-point capacitive touch and an IP65-rated front. Video and touch over a single USB-C cable.
8" 4:3 1024 × 76810-point touch1000 cd/m²IP65 front9–36 V DC
−25 to 75 °C
Built for outdoor and heavy-duty use: it works in frost and heat, the front panel withstands dust and water jets (IP65, NEMA 4), and 1000 cd/m² keeps the image readable in the sun.
Touch with gloves
The sensitivity of the 10-point capacitive layer can be adjusted for rubber, latex or PVC gloves.
Optical bonding
There is no air gap between the panel and the cover glass for dust or moisture to enter, and the image has more contrast.
50,000 hours
An industrial LCD panel selected for a long life, with automatic dimming based on ambient light.
9–36 V power input
A wide input range for 12 V and 24 V systems on boats, vehicles and machines, drawing up to 11 W.

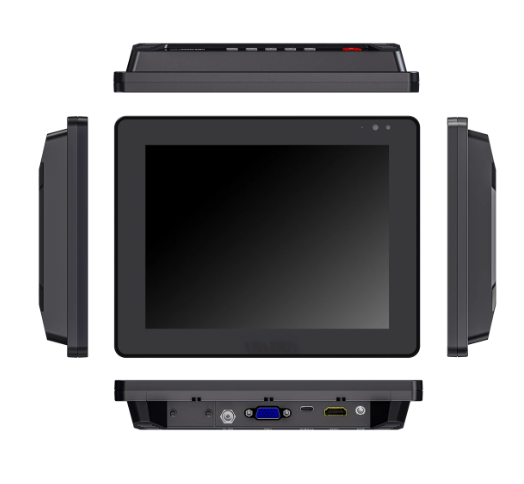

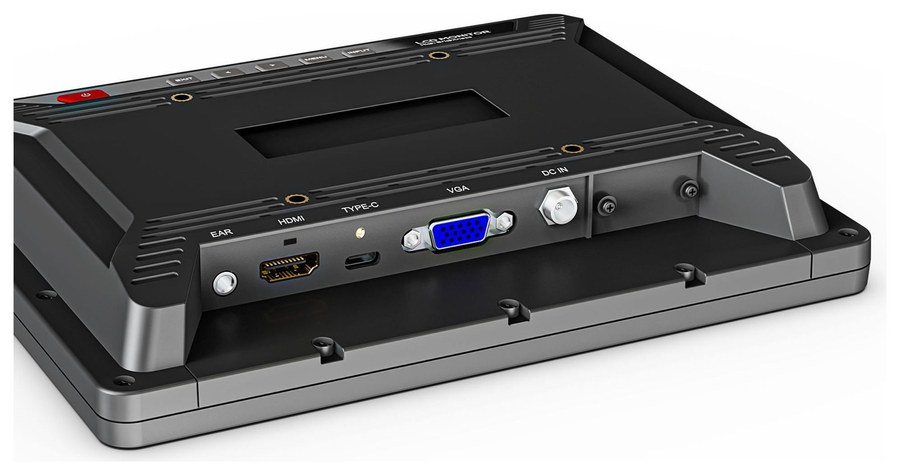

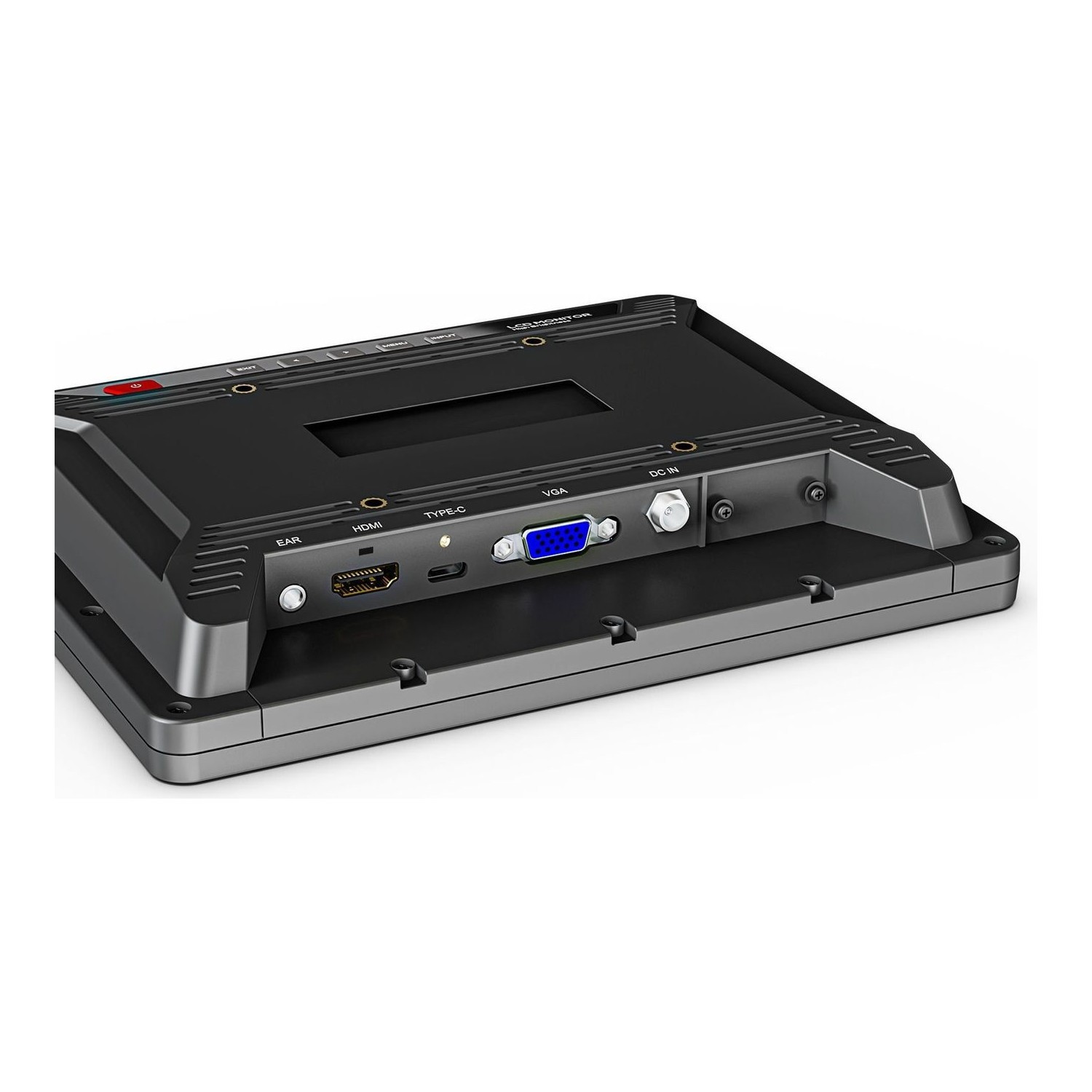

Connectors on the bottom edge
The headphone output, HDMI, USB-C, VGA and power input sit on the underside, sheltered from direct rain.

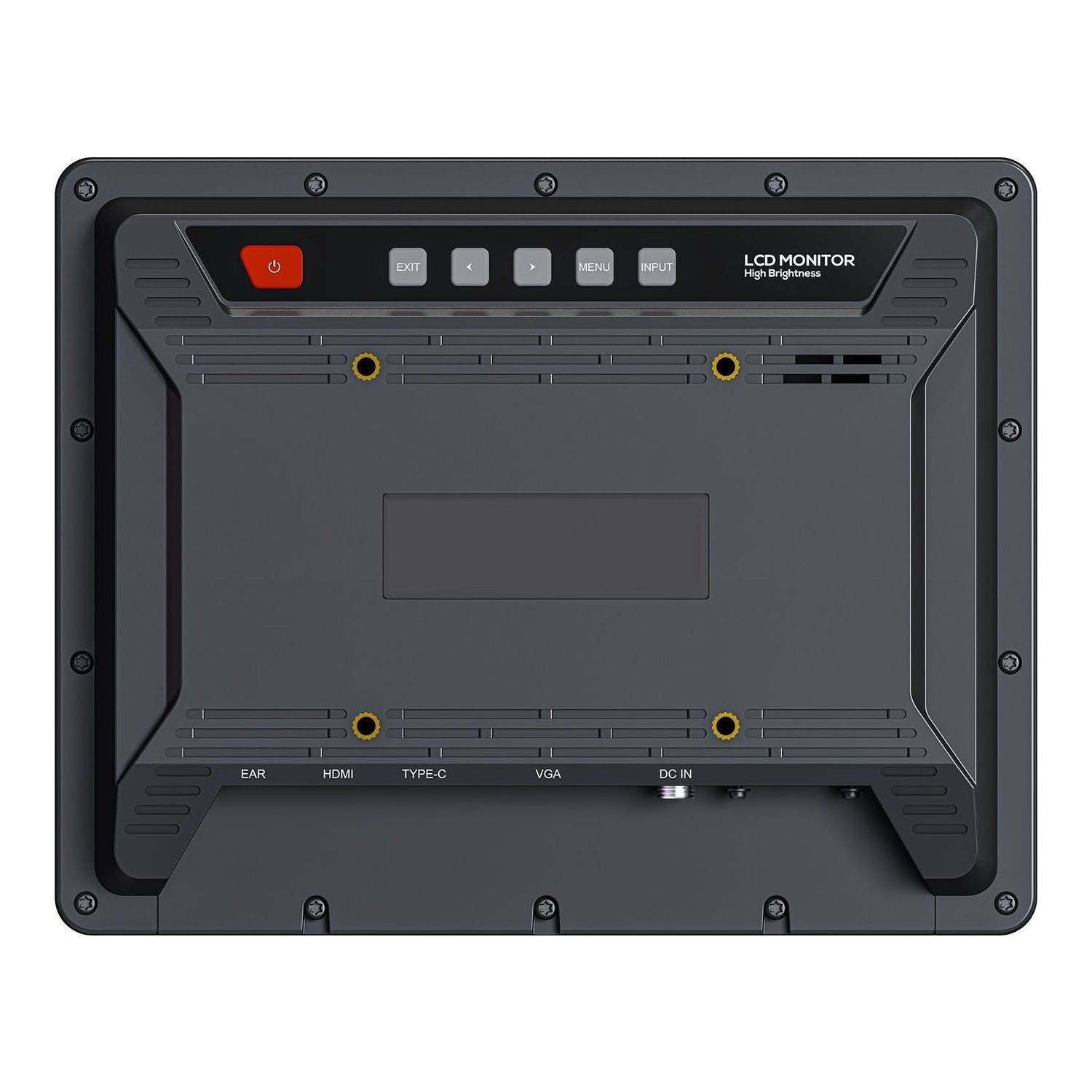

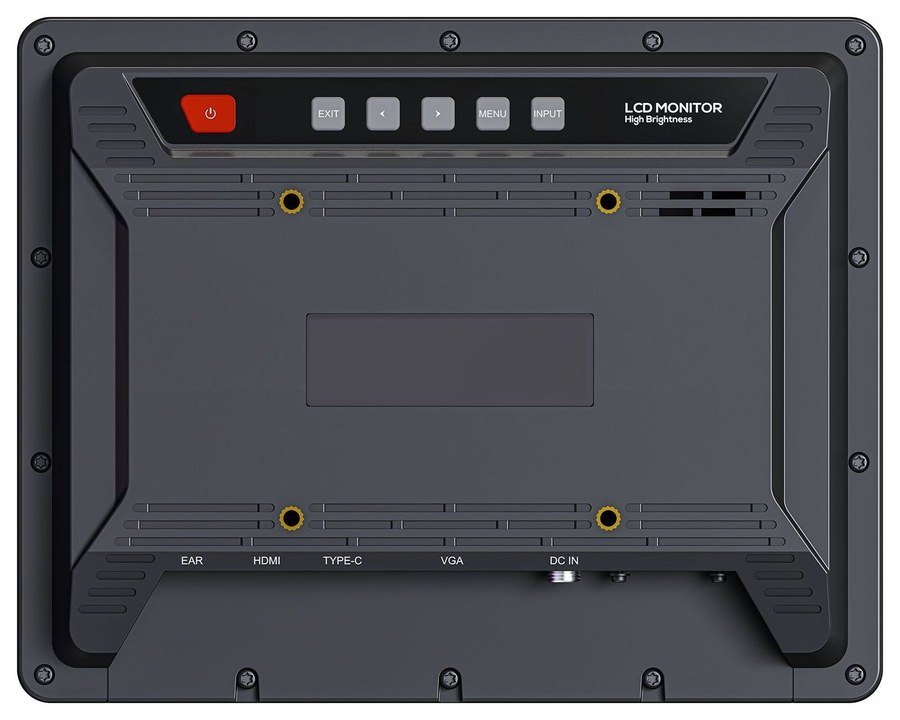

Controls and VESA 75 mm
The back carries the power button, menu and input buttons and VESA 75 mm mounting points.

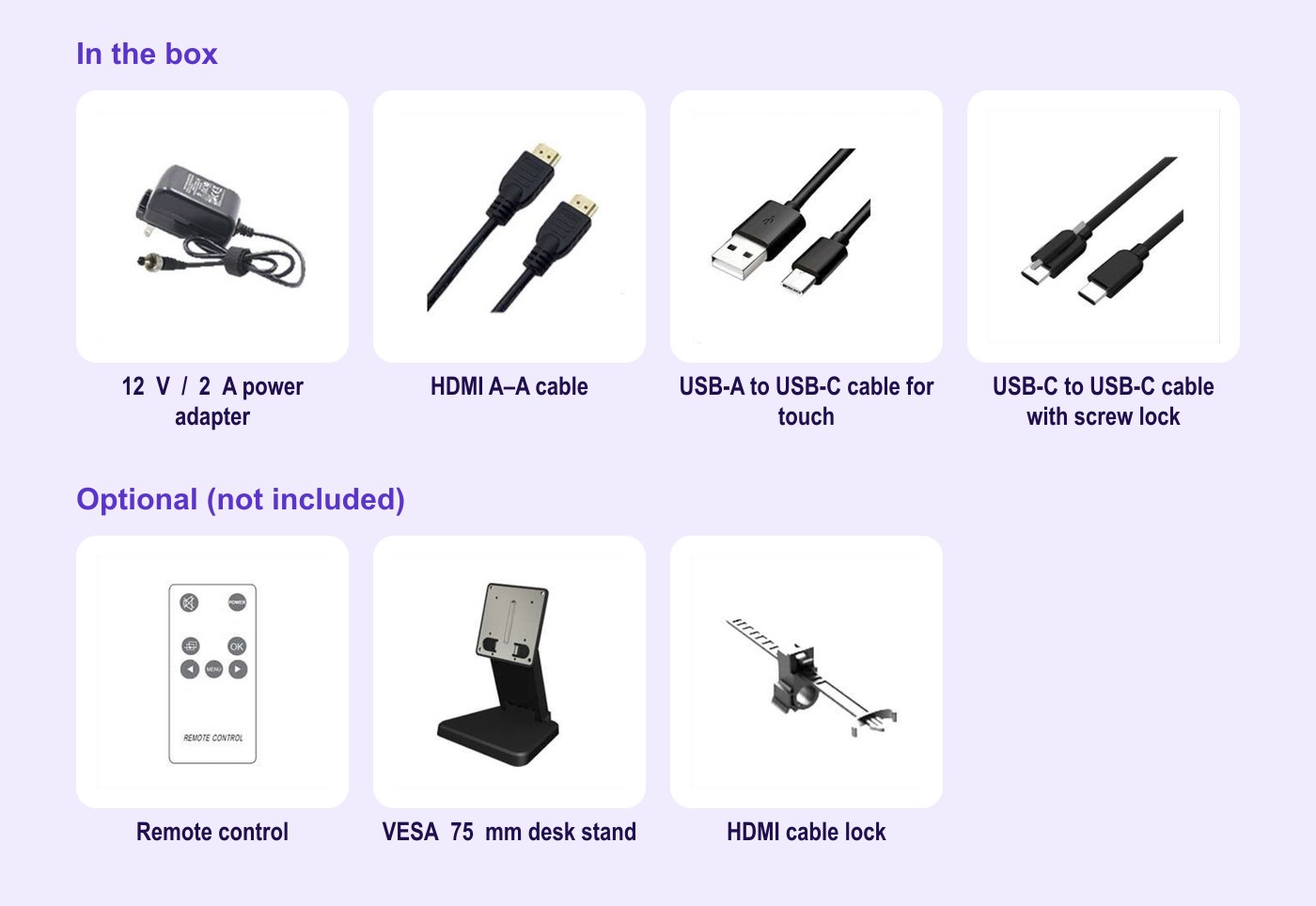

Box contents and optional accessories
More information
About the monitor
The Lilliput 819/T is an 8" touchscreen monitor designed for demanding industrial and professional environments where durability, visibility and flexibility are essential. Its 1024 × 768 panel with a 4:3 aspect ratio suits legacy systems and specialised applications. 1000 cd/m² brightness and 170° viewing angles keep the image readable outdoors. The touch layer connects to the computer over USB-C (which also carries video) or USB-A.
The IP65-rated front panel protects against dust and water, so the monitor holds up in industrial automation, kiosks and field installations. Optional anti-glare and anti-fingerprint coatings further improve usability. Signals up to 4K over HDMI and USB-C are scaled to the native resolution, and VGA accepts up to Full HD. A built-in speaker and a 3.5 mm headphone jack make audio monitoring easy.
A wide 9–36 V DC input range, low power consumption and tolerance of temperatures from −25 to 75 °C ensure stable performance across many uses – on boats, in vehicles, on robots and as an HMI. The plastic housing is rugged and light.
PACKAGE CONTENT
- 1× Lilliput 819/T monitor
- 12 V / 2 A power adapter
- HDMI A–A cable
- USB-A to USB-C cable for touch
- USB-C to USB-C cable with screw lock
SPECIFICATIONS
- Brand: Lilliput
- Model: 819/T
- Display: 8" LCD, optical bonding
- Resolution: 1024 × 768
- Aspect ratio: 4:3
- Brightness: 1000 cd/m²
- Contrast: 800:1
- Viewing angles: 170°/170° (H/V)
- Panel life: 50,000 h
- Touch screen: 10-point capacitive (PCAP)
- Optional coating: anti-glare, anti-fingerprint
- Inputs: 1× HDMI, 1× VGA, 1× USB-C (video and touch)
- HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- VGA formats: 1080p 24/25/30/50/60, 1080psF 24/25/30, 1080i 50/60, 720p 50/60
- USB-C formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
- Audio: 1× speaker, audio via HDMI, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
- Power input: 9–36 V DC
- Power consumption: ≤ 11 W (at 12 V)
- Operating temperature: −25 to 75 °C
- Storage temperature: −35 to 85 °C
- Protection rating: IP65 (front panel)
- Housing: plastic
- Mounting: VESA 75 mm
- Dimensions (W × H × D): 205 × 164.5 × 33 mm
- Weight: 750 g
WE RECOMMEND
Recommended for the Lilliput 819/T Monitor monitor:
Cables – a longer HDMI run and a USB-C laptop connection

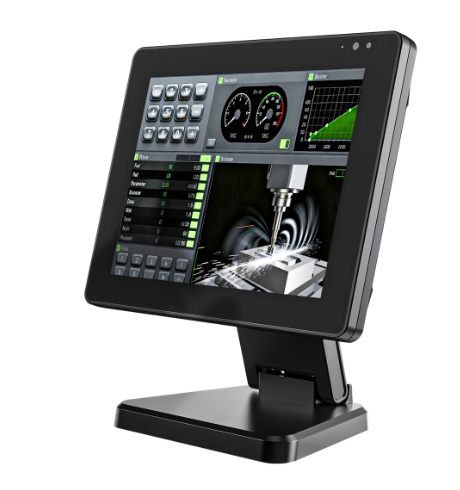

Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Camera monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 8" |
| Monitor inputs | HDMI · VGA · USB-C |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1024x768 |
| Monitor power supply | DC 9–36V |
Other parameters
| Other features | Touchscreen · Resilient · IP65 |
| High Brightness | Yes |
