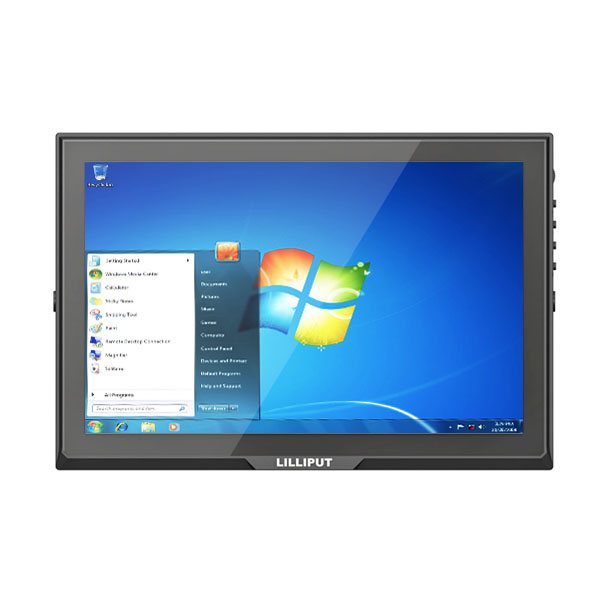

Lilliput FA1014-NP/C/T - 10.1" HDMI Capacitive Touchscreen monitor

The Lilliput FA1014-NP/C/T is a 10.1″ monitor with a 1280 × 800 IPS panel and 10-point capacitive touch that works with Windows 10 without installing drivers. It offers HDMI, VGA and composite video inputs, an I/O control interface, image flip and mirroring for teleprompters and a 7–24 V DC supply.

More information

338 € with VAT 279.34 € without VAT
-+
Availability
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput FA1014-NP/C/T is a 10.1″ monitor with a 1280 × 800 IPS panel and 10-point capacitive touch that works with Windows 10 without installing drivers. It offers HDMI, VGA and composite video inputs, an I/O control interface, image flip and mirroring for teleprompters and a 7–24 V DC supply.

A 10.1" IPS with 10-point touch

A 1280 × 800 IPS panel, capacitive touch for up to 10 fingers and HDMI, VGA and AV inputs. Touch connects to the computer via an HDMI or VGA cable with USB.

Lilliput FA1014-NP/C/T
10.1" IPS 1280 × 80010-point touchHDMI · VGA · AVI/O interface7–24 V DC

Integrated dustproof front

The front panel is made in one piece, so it resists dust and light droplets and the monitor can be used outdoors too.

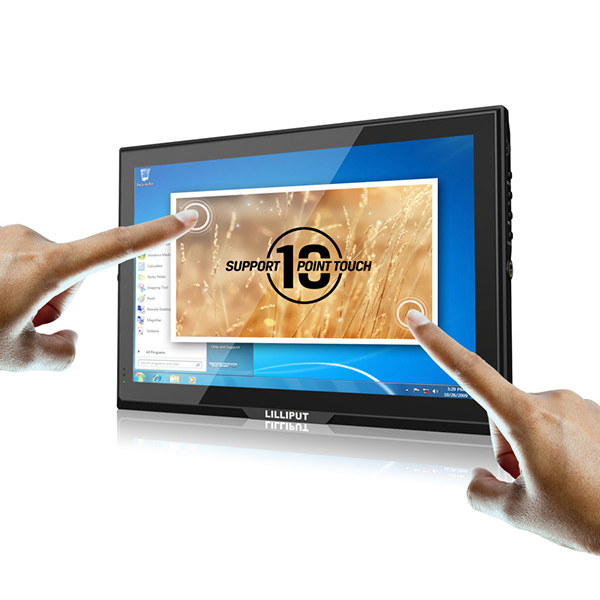

Tablet-style touch

The 10-point capacitive layer works with Windows 10 right out of the box, including Tablet mode.

I/O interface

Control the monitor through the dedicated I/O port and the supplied cable, or with the remote control.

For teleprompters

Horizontal and vertical image flip and mirroring of the input signal.

Automatic brightness

An optional ambient light sensor adapts the panel brightness and saves power.

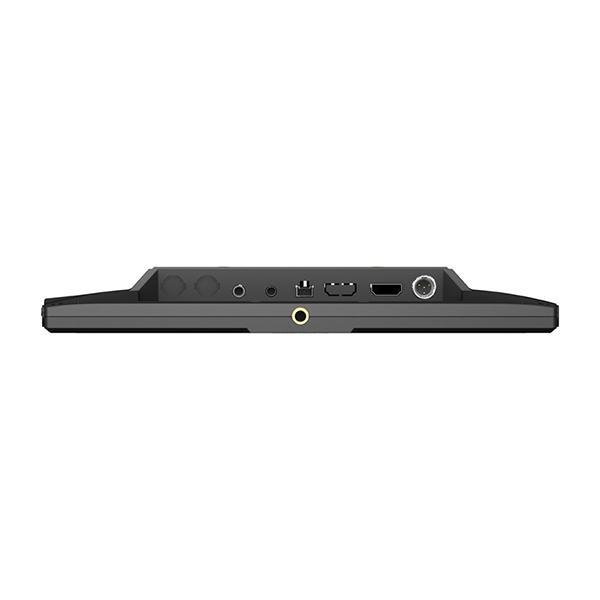

Lilliput FA1014-NP/C/T – Connectors on the bottom edge

Connectors on the bottom edge

HDMI, VGA and AV inputs, headphone output, I/O port and power; a mounting thread in the centre.

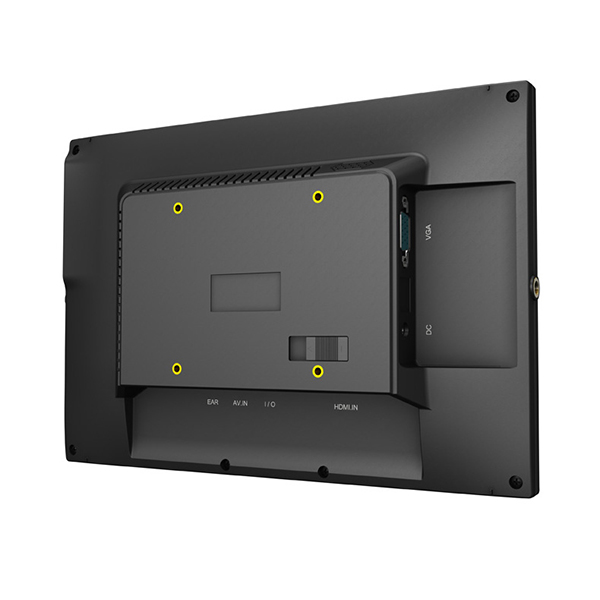

Lilliput FA1014-NP/C/T – Rear view

Rear view

Mounting holes on the back for the optional folding stand, yoke bracket or VESA mounting plate.

Box contents and optional accessories

Lilliput FA1014-NP/C/T – Box contents and optional accessories

More information

About the monitor

The Lilliput FA1014-NP/C/T is a 10.1 inch LCD capacitive touchscreen monitor with HDMI, VGA and composite. With the use of multiple touch points, this monitor is compatible with Windows 10 right out of the box, allowing full integration with Tablet mode for touch control.

Looking for a monitor to use in a teleprompter? No problem – this model features both X/Y flip and mirroring of the input image, making it an ideal tool for the job. The integrated front panel is dustproof.

PACKAGE CONTENT

  • 1× Lilliput FA1014-NP/C/T monitor
  • 12 V DC power adapter
  • remote control
  • HDMI A–A cable with USB for touch
  • VGA cable with USB for touch
  • composite (AV) cable
  • I/O control cable
  • user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: FA1014-NP/C/T
  • Display: 10.1" IPS LCD
  • Resolution: 1280 × 800
  • Aspect ratio: 16:10
  • Brightness: 350 cd/m²
  • Viewing angles: 170°/170° (H/V)
  • Touch screen: 10-point capacitive (PCAP)
  • Inputs: 1× HDMI, 1× VGA, 1× composite (AV)
  • HDMI formats: 1080p 50/60, 1080i 50/60, 720p 50/60
  • Audio: 1× speaker, 3.5 mm headphone output (2 ch, 48 kHz, 24-bit)
  • Control: I/O interface, remote control
  • Power input: 7–24 V DC
  • Power consumption: ≤ 10 W
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Features: ambient light sensor (optional), integrated dustproof front panel, image flip and mirror
  • Dimensions (W × H × D): 250 × 170 × 32.3 mm
  • Weight: 560 g

WE RECOMMEND

Recommended for the Lilliput FA1014-NP/C/T - 10.1" HDMI Capacitive Touchscreen monitor monitor:

Cables – a longer HDMI run and a USB-C laptop connection

Mounting – on a stand, an arm or a desk

Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 720p up to 60p
Size10.1"
Monitor inputsComposite Video · HDMI · VGA
Luminosity350cd/m2
Panel resolution1280x800
Monitor power supply12V · DC 7-24V

Other parameters

Other featuresTouchscreen
