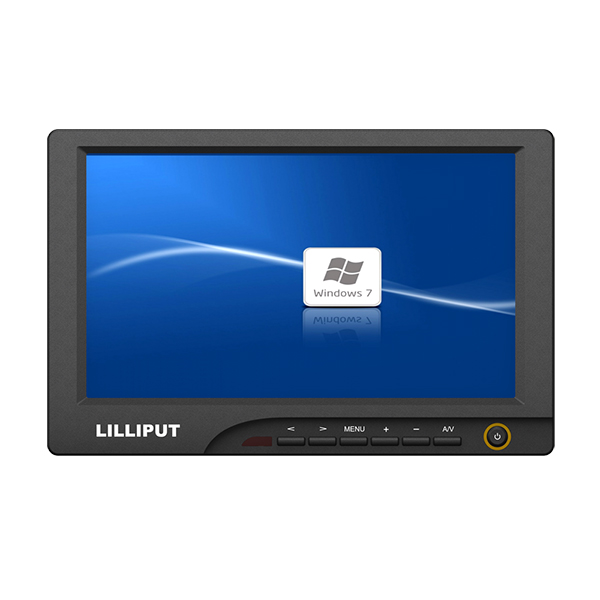

Lilliput 869GL-80NP/C - 8" HDMI monitor

The Lilliput 869GL-80NP/C is an 8″ 16:9 widescreen monitor with an 800 × 480 panel, 450 cd/m² brightness and HDMI, VGA and two composite inputs. Connect a computer, a player or a CCTV system; it runs on 12 V and mounts via VESA 75 mm, a 1/4″ thread or a slot mount – for checkouts, vehicles and machines.

More information

204 € with VAT 168.6 € without VAT
-+
Availability
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput 869GL-80NP/C is an 8″ 16:9 widescreen monitor with an 800 × 480 panel, 450 cd/m² brightness and HDMI, VGA and two composite inputs. Connect a computer, a player or a CCTV system; it runs on 12 V and mounts via VESA 75 mm, a 1/4″ thread or a slot mount – for checkouts, vehicles and machines.

An 8" widescreen monitor for tight spaces

An 800 × 480 panel with 450 cd/m² and four video inputs – HDMI, VGA and two composite. 12 V power input and up to 8 W consumption.

Lilliput 869GL-80NP/C
8" 16:9 800 × 480450 cd/m²HDMI · VGA · 2× AVVESA 75 + 1/4"12 V DC

Lilliput's only 8" 16:9 model

The widescreen format fits where space is tight yet offers a larger picture – typically at points of sale.

Complete AV inputs

HDMI/DVI, VGA and composite video: computer, Blu-ray player, CCTV camera or DSLR.

For cars and PCs

HDMI and AV for an in-car player, VGA for connecting a computer directly.

Three mounting options

VESA 75 mm, a 1/4" BSW thread and a vertical slot for the supplied 589 bracket.

−20 to 60 °C

12 V DC power, up to 8 W consumption and a car power adapter in the box.

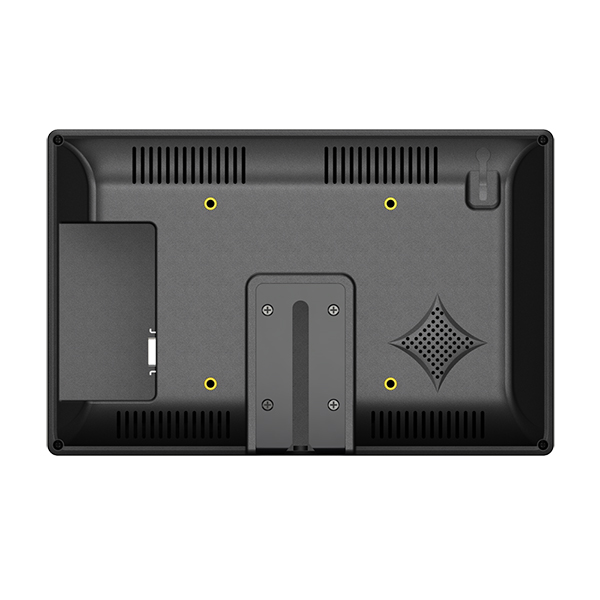

Lilliput 869GL-80NP/C – Rear view

Rear view

VESA 75 mm mounting points, a vertical bracket slot and the built-in speaker.

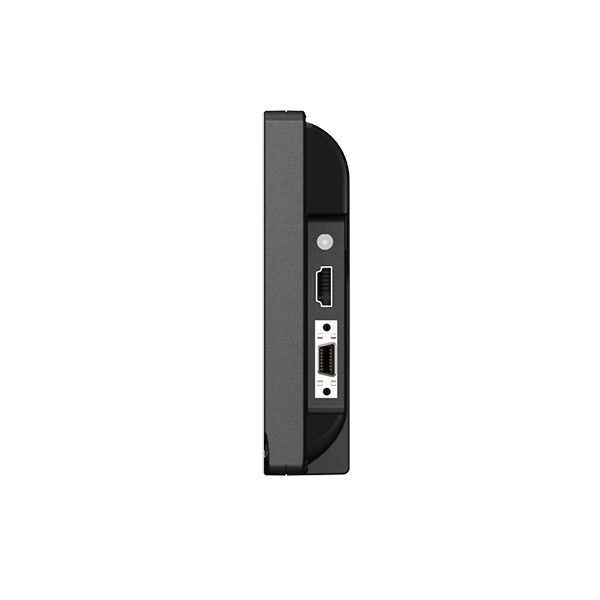

Lilliput 869GL-80NP/C – Side connectors

Side connectors

HDMI, VGA and power are on the side of the monitor, the control buttons on the lower edge of the front.

Box contents and optional accessories

Lilliput 869GL-80NP/C – Box contents and optional accessories

More information

About the monitor

The Lilliput 869GL-80NP/C is an 8" 16:9 widescreen TFT LCD monitor with HDMI, VGA and composite inputs, in the version without touch. HDMI and AV inputs connect directly to a DVD player as a car entertainment system, and the VGA input connects directly to a PC; YPbPr and DVI inputs are optional.

The 869GL is Lilliput's only eight-inch monitor with a widescreen 16:9 aspect ratio, ideal where space is tight but a larger screen is still needed – points of sale, for example. With VESA 75, a 1/4" BSW thread and a vertical slot mount, there is a mounting option for every application.

PACKAGE CONTENT

  • 1× Lilliput 869GL-80NP/C monitor
  • 12 V DC power adapter
  • 589 bracket
  • remote control
  • SKS cable (14-pin)
  • car power adapter
  • driver CD
  • user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: 869GL-80NP/C
  • Display: 8" TFT LCD
  • Resolution: 800 × 480
  • Aspect ratio: 16:9
  • Brightness: 450 cd/m²
  • Contrast: 300:1
  • Viewing angles: 130°/110° (H/V)
  • Touch screen: none (non-touch)
  • Inputs: 1× HDMI, 1× VGA, 2× composite (AV)
  • HDMI formats: 1080p 50/60, 1080i 50/60, 720p 50/60
  • Audio: 1× speaker, 3.5 mm headphone output
  • Power input: 12 V DC
  • Power consumption: ≤ 8 W
  • Operating temperature: −20 to 60 °C
  • Storage temperature: −30 to 70 °C
  • Mounting: VESA 75 mm, 1/4" BSW thread, vertical slot mount
  • Dimensions (W × H × D): 211 × 136 × 30.5 mm
  • Weight: 504 g

WE RECOMMEND

Recommended for the Lilliput 869GL-80NP/C - 8" HDMI monitor monitor:

Cables – a longer HDMI run and a USB-C laptop connection

Mounting – on a stand, an arm or a desk

Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 720p up to 60p
Size8"
Monitor inputsComposite Video · HDMI · VGA
Luminosity450cd/m2
Panel resolution800x480
Monitor power supply12V · Car Power Adapter · DC 12V
