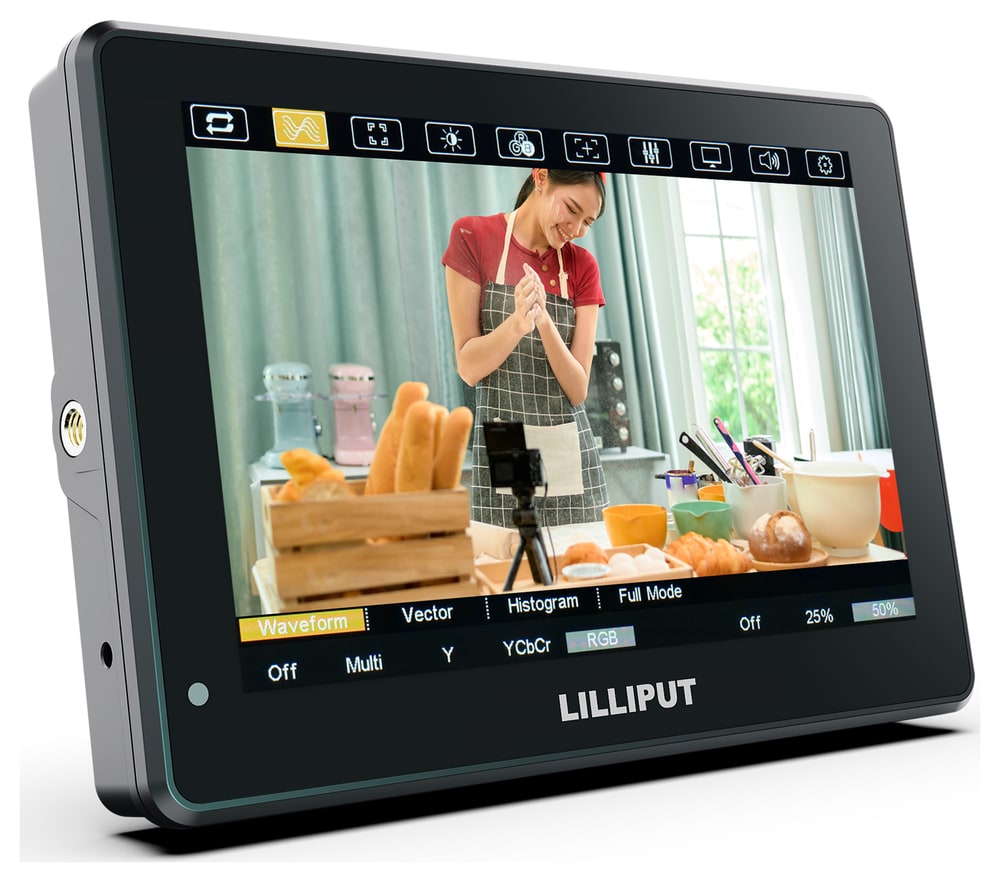

Lilliput HT7S 7" On-Camera Control Monitor with LANC

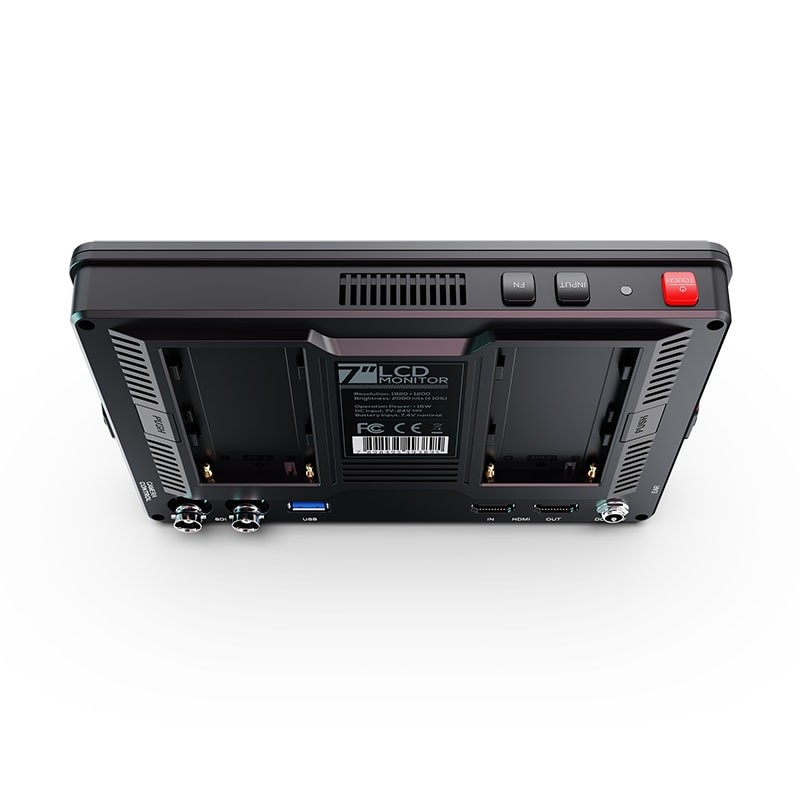

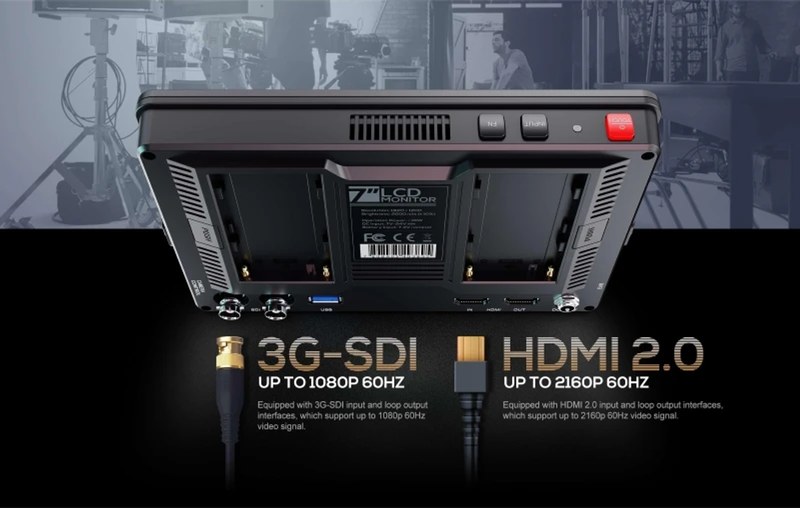

Monitor your 4K camera images with the Lilliput HT7S 7″ on-camera control monitor with LANC camera control. Its 3G-SDI and HDMI 2.0 inputs make it suitable for 4K filmmaking and photography, and with the included LANC cable you can control a variety of Sony camcorder functions from the touchscreen. The 16:10 display with 2000 cd/m² and a 1200:1 contrast ratio shows a native 1920 × 1200 image and scales higher resolutions; 3G-SDI and HDMI loop-through outputs pass the signal on to other devices.

7" touchscreen monitor with 2000 cd/m²

The HT7S combines sunlight-readable brightness, touch control and Sony camera control via LANC in a 520 g body. HDR and 3D LUTs help with log footage.

7" 1920 × 12002000 cd/m²Touch controlLANC camera control3G-SDI and HDMI 2.0

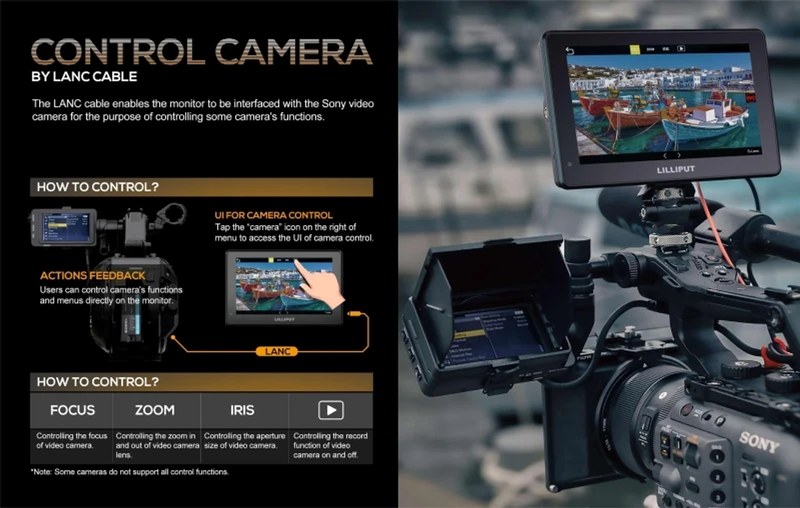

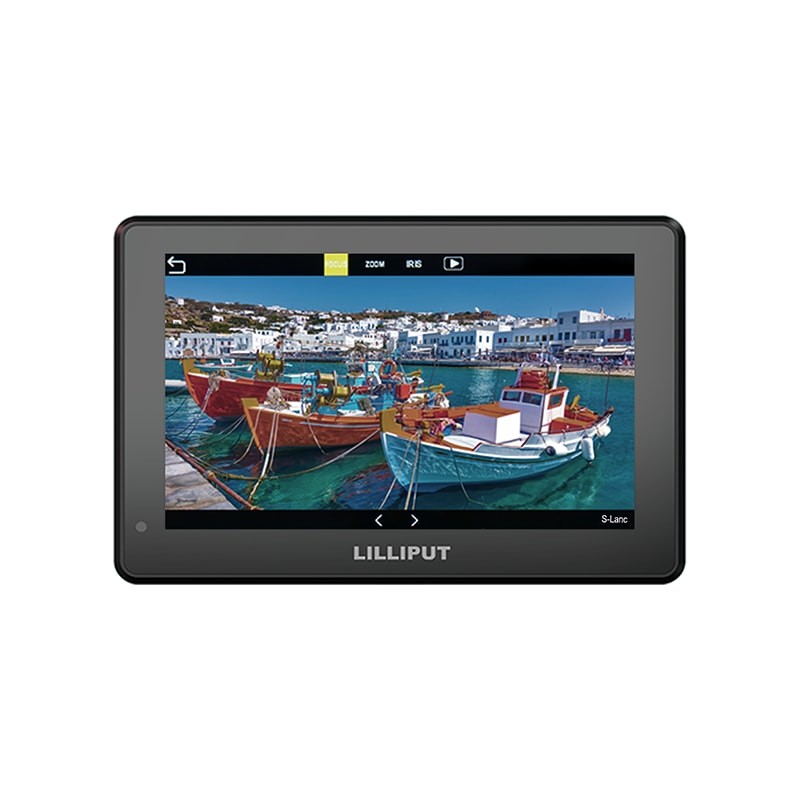

Control the camera from the monitor

Connect the HT7S to a Sony camcorder with a LANC cable and control focus, zoom, iris, recording and the camera menu by touching the monitor. Changes reach the camera instantly, so the assistant never has to touch the camera body.

2000 cd/m²

Auto dimming and readability even in direct sunlight.

HDR and 3D LUT

ST2084 300/1000/10000 and HLG, 17 default and 6 user log curves.

Calibrated color

Factory-calibrated to 100% BT.709, ColourSpace CMS calibration by Light Illusion.

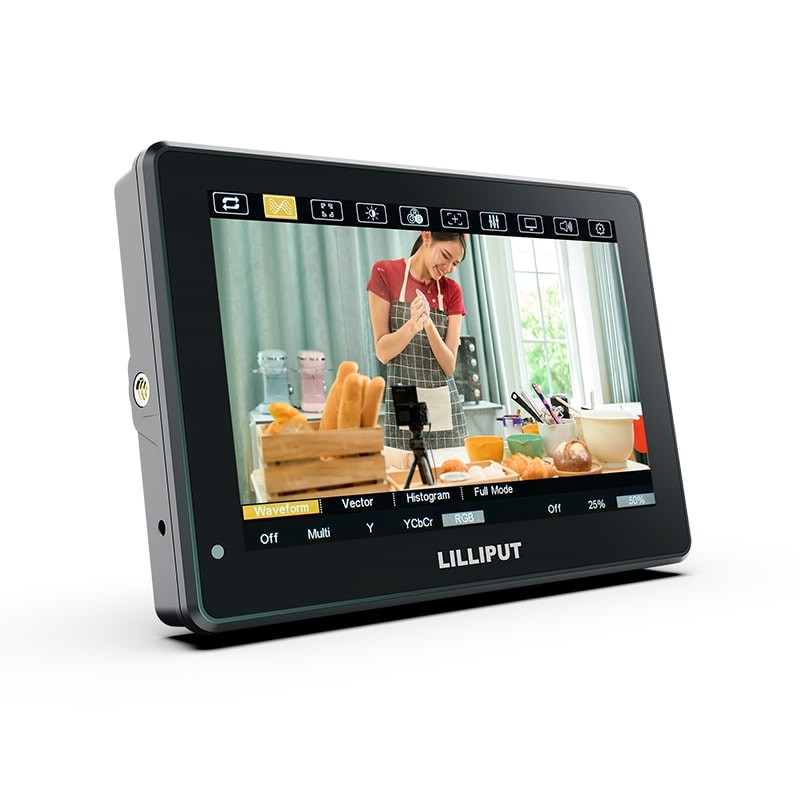

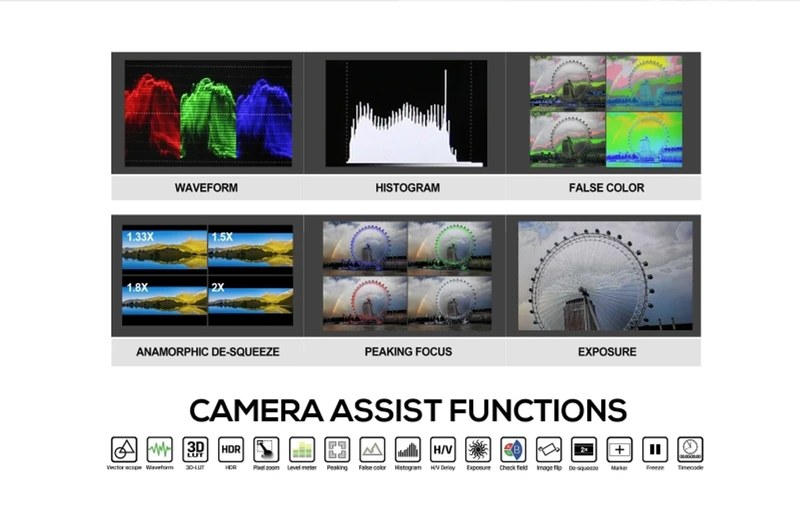

Image analysis

Waveform, histogram, false color, anamorphic de-squeeze and more.
