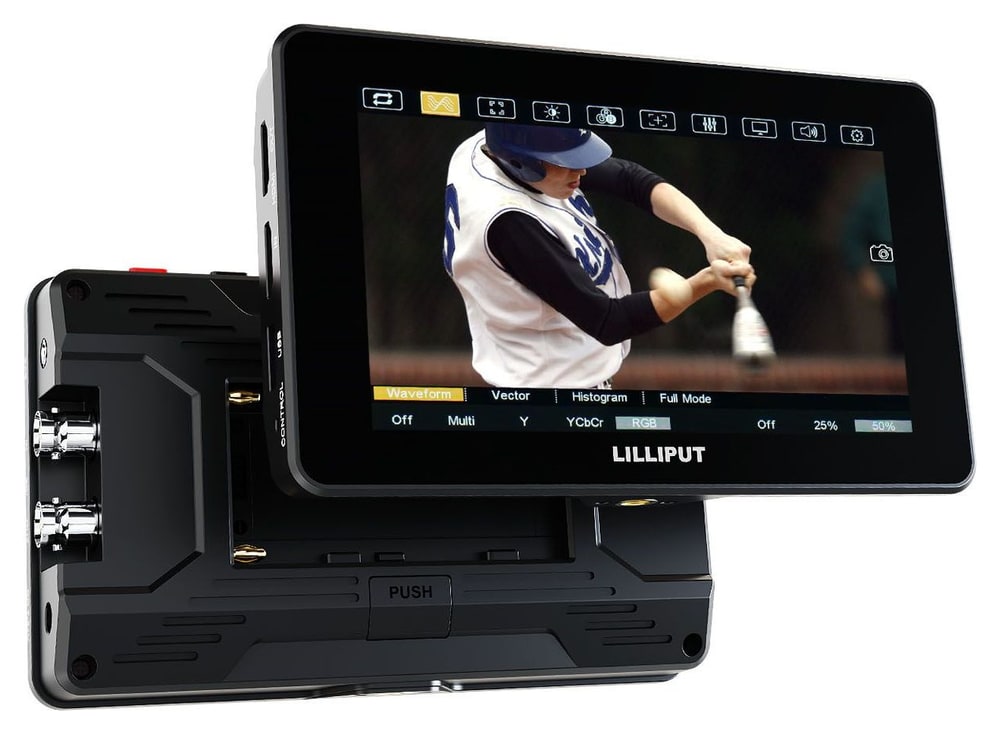

Lilliput HT5S

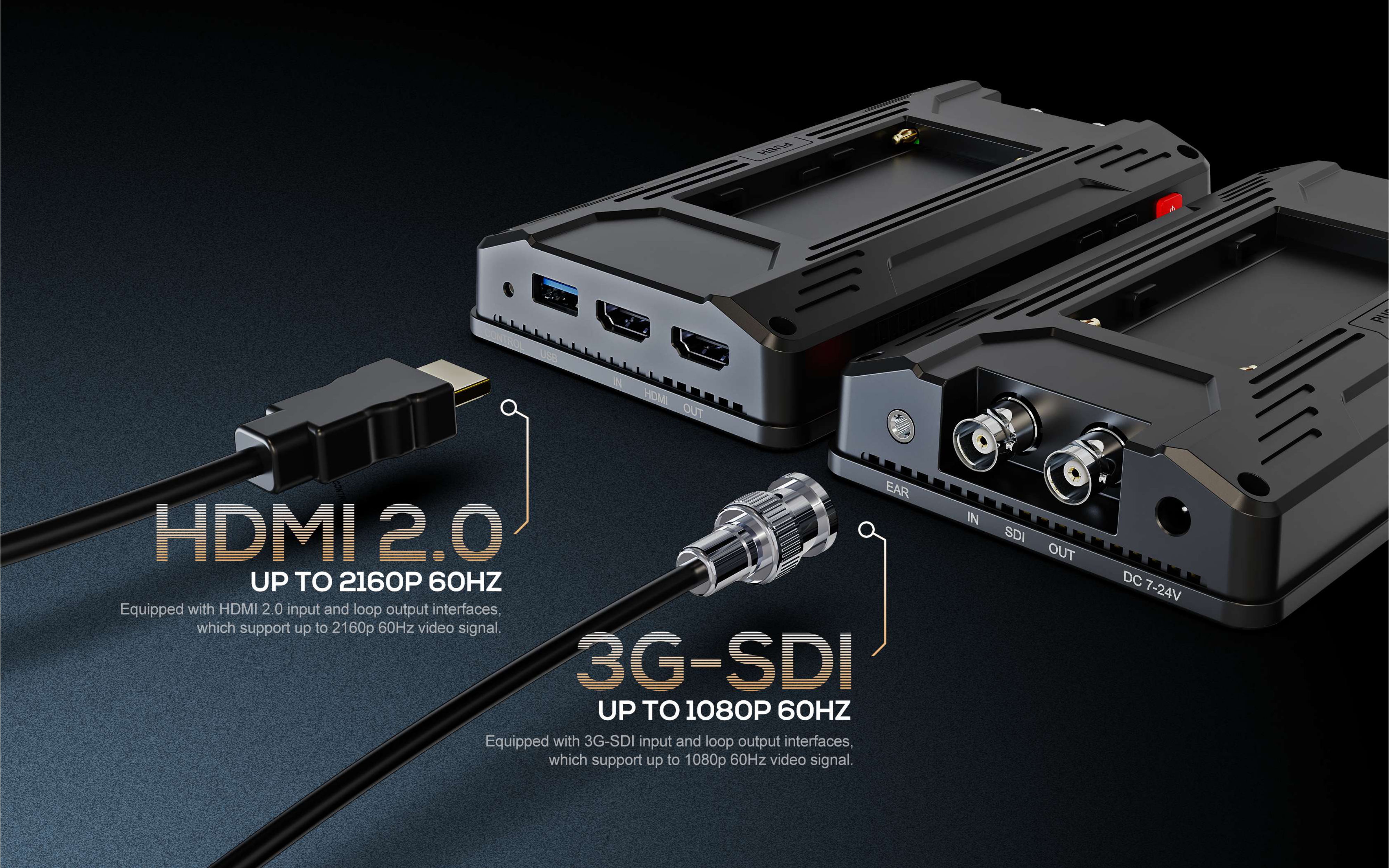

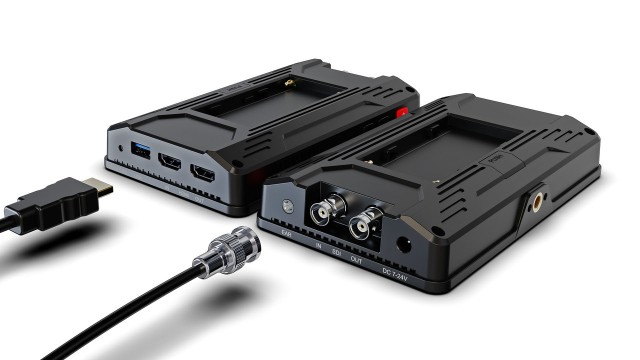

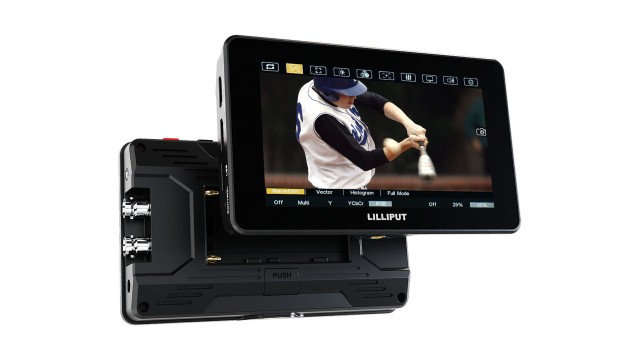

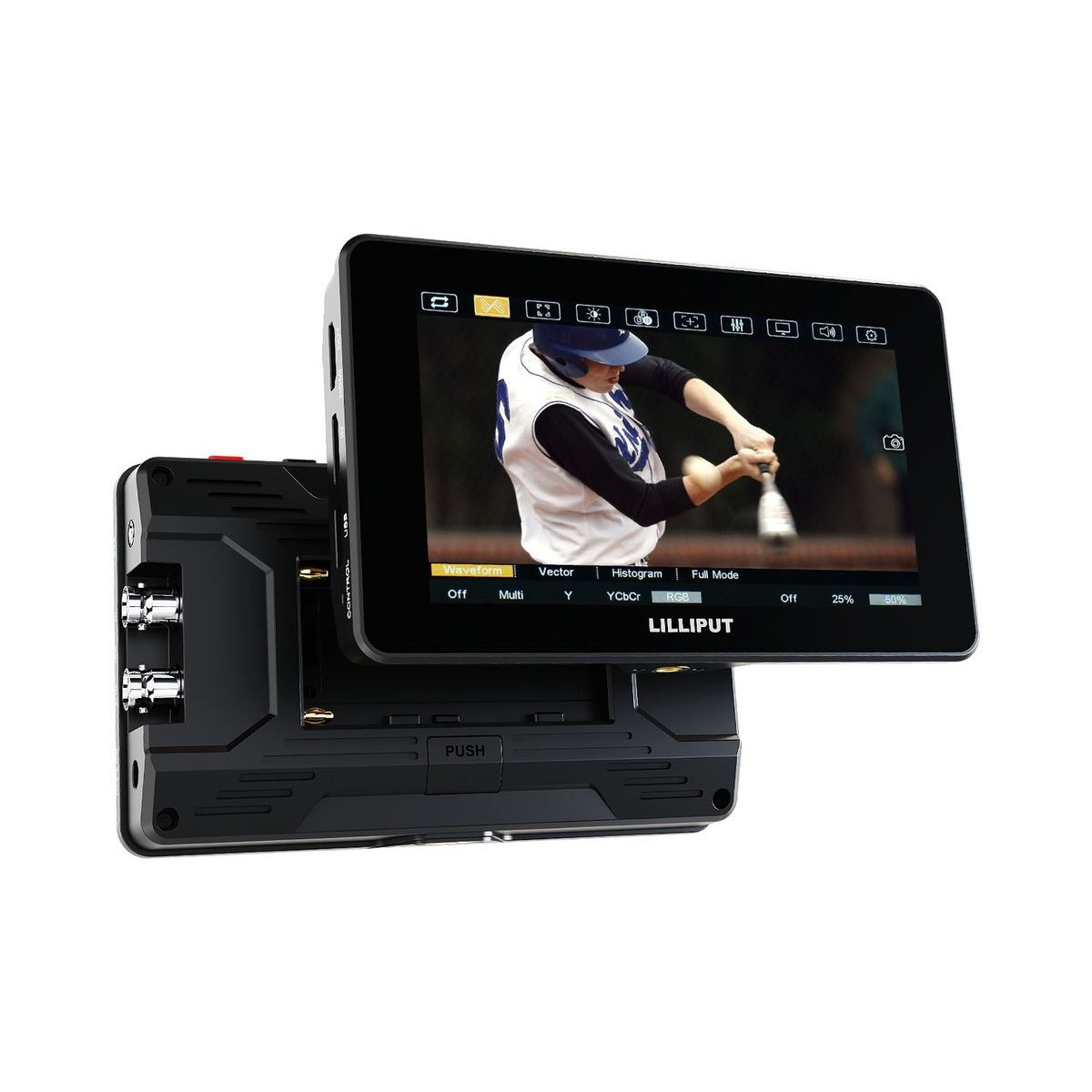

The Lilliput HT5S is a 5.5″ touchscreen on-camera control monitor with an ultra-high 2000 cd/m² brightness. The 1920 × 1080 Full HD panel with auto dimming stays readable even in direct sunlight, the 3G-SDI and HDMI 2.0 inputs accept up to 4K60 and both signals loop through to other devices. Via a LANC cable it controls Sony camcorders – focus, zoom, iris and recording – straight from the touchscreen.

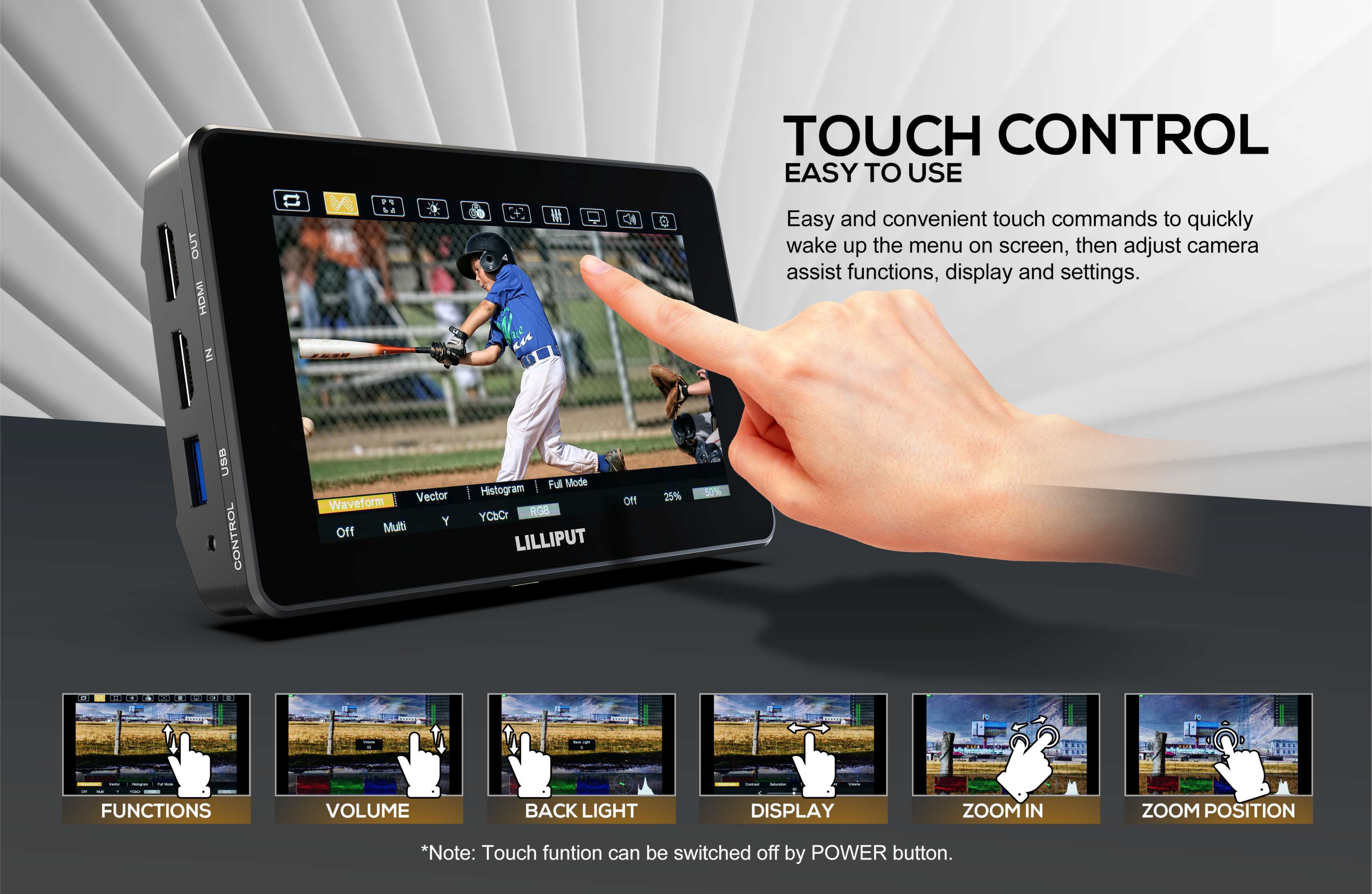

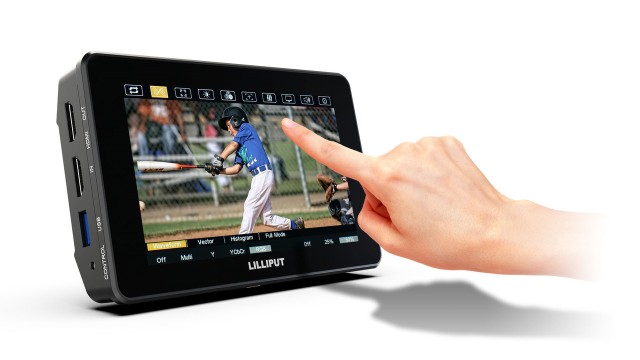

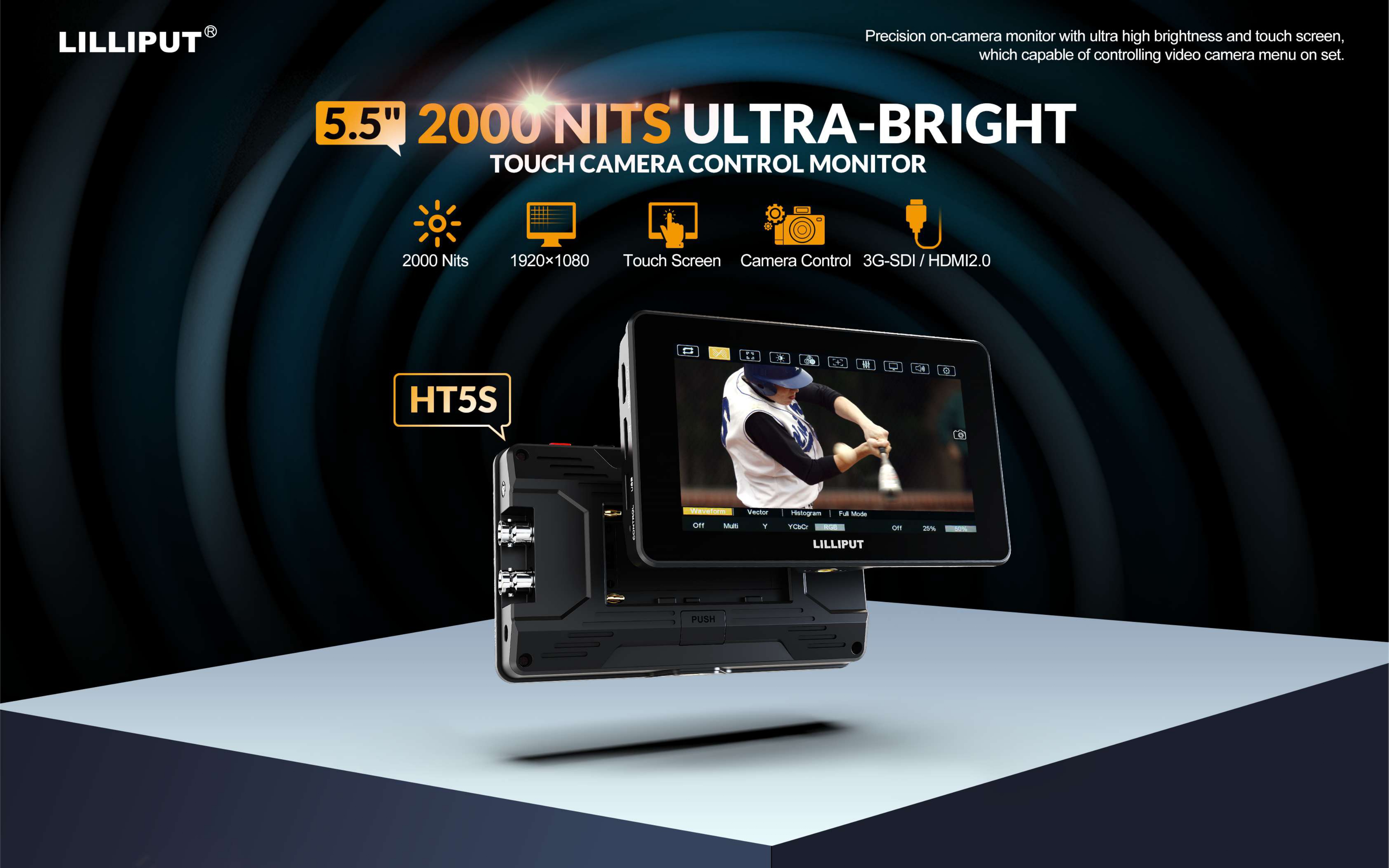

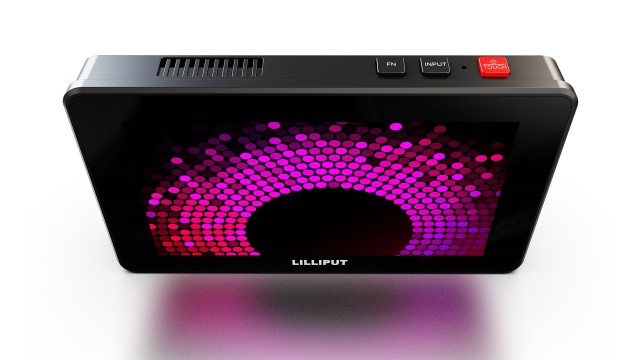

5.5" touchscreen monitor with 2000 cd/m²

The HT5S combines sunlight-readable brightness, touch control and Sony camera control via LANC in a 310 g body. HDR and 3D LUTs help with log footage.

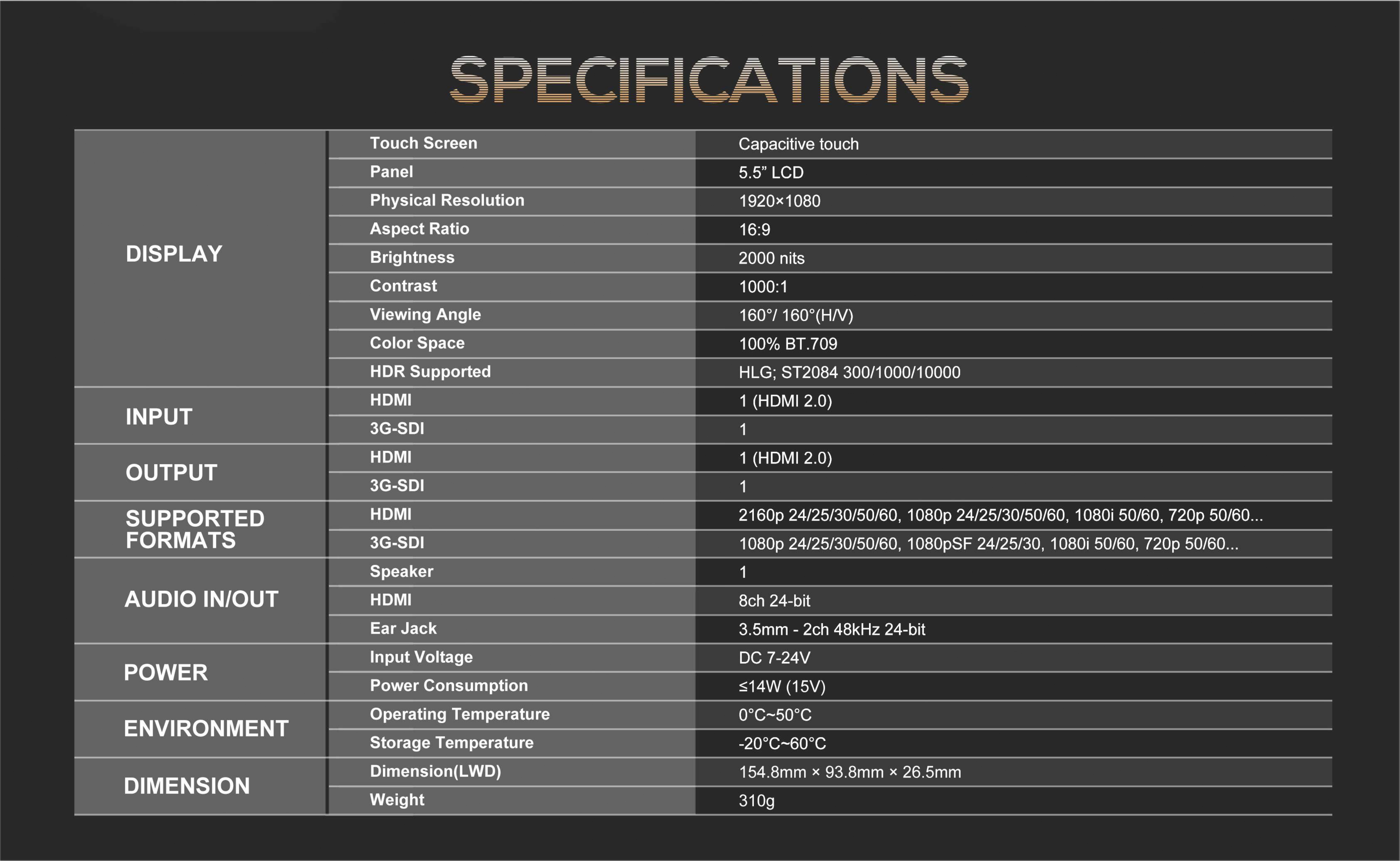

5.5" 1920 × 10802000 cd/m²Touch controlLANC camera control3G-SDI and HDMI 2.0

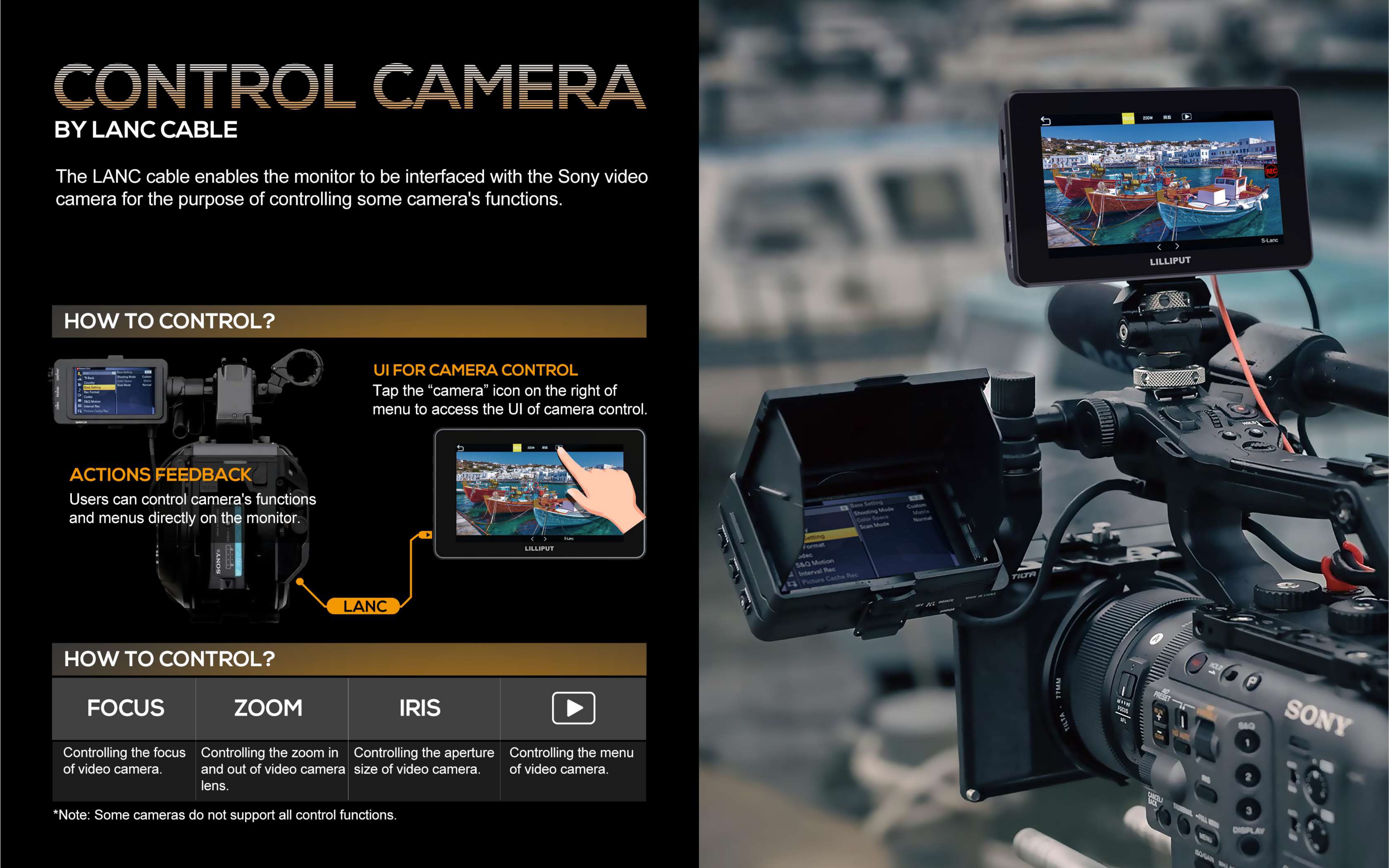

Control the camera from the monitor

Connect the HT5S to a Sony camcorder with a LANC cable and control focus, zoom, iris, recording and the camera menu by touching the monitor. Changes reach the camera instantly, so the assistant never has to touch the camera body.

2000 cd/m²

Auto dimming and readability even in direct sunlight.

HDR and 3D LUT

ST2084 300/1000/10000 and HLG, 17 default and 6 user log curves.

Calibrated color

Factory-calibrated to 100% BT.709, ColourSpace CMS calibration by Light Illusion.

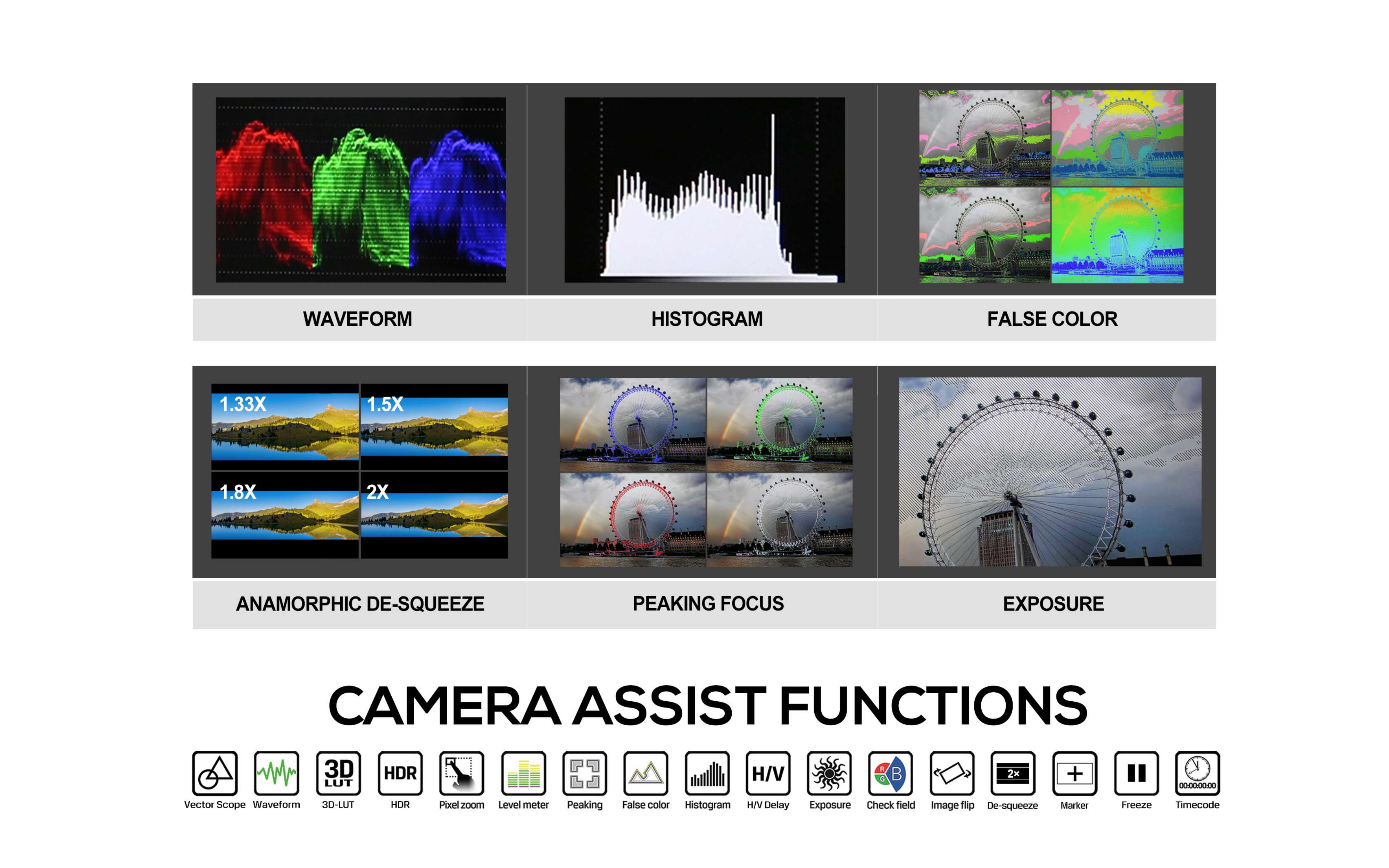

Image analysis

Waveform, histogram, false color, anamorphic de-squeeze and more.
