Lilliput A11 10.1" 4K HDMI & 3G-SDI On-Camera Monitor

  • -3 %
SKU: A11

The Lilliput A11 10.1″ 4K HDMI and 3G-SDI monitor is a field monitor designed for on-camera use with camcorders, DSLRs and mirrorless cameras. The 1920 × 1200 Full HD panel offers 4K-capable HDMI input and loop-through output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast and 320 cd/m² brightness.

More information

Promotion: -3%
398.09 € 385.78 € with VAT 318.83 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs
SKU:
A11
Add to Compare Price history

Top accessories for Lilliput A11 10.1" 4K HDMI & 3G-SDI On-Camera Monitor

SmallRig NP-F970 Battery and Charger Kit 3823

Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)

  • SHOWROOM PRAHA
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Atomos twisted cable Micro HDMI (refracted) - Mini HDMI

Atomos PRO HDMI spiral cable - more designs to choose from
28 €
To be sent 3 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput A11 10.1″ 4K HDMI and 3G-SDI monitor is a field monitor designed for on-camera use with camcorders, DSLRs and mirrorless cameras. The 1920 × 1200 Full HD panel offers 4K-capable HDMI input and loop-through output, 3G/HD/SD-SDI input and output, a VGA input, 1000:1 contrast and 320 cd/m² brightness.

A large 10.1" view for SDI and HDMI

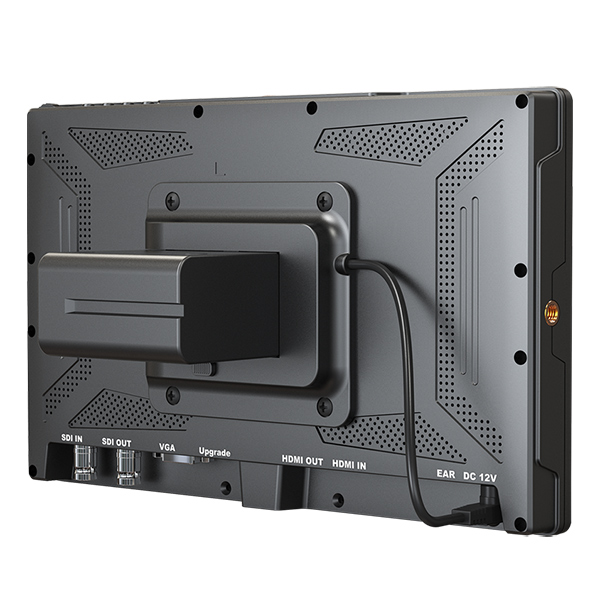

The A11 accepts 3G-SDI, HDMI and VGA and loops out SDI and HDMI. The 550 g metal body runs on a Sony NP-F battery and mounts to a stand via VESA 75 mm.

Lilliput A11
10.1" IPS 1920 × 12003G-SDI in and outHDMI 1.4 up to 4K 30pVGA input550 g

A director’s view a camera can carry

The 10.1" screen gives directing and focus pulling plenty of room, yet the monitor weighs only 550 g. Three inputs including VGA make it a versatile monitor on set and in a small edit suite.

Assist functions

Level meter, histogram, exposure, focus peaking, aspect markers, false color and zoom.

F1 and F2

Two user buttons for the functions you use most.

Sunshade included

Together with an NP-F battery plate, VESA plate, HDMI A/C cable and hot shoe mount.

7–24 V power

Sony NP-F battery or the included 12 V adapter.

Lilliput A11 – infographic 1Lilliput A11 – infographic 2Lilliput A11 – infographic 3

PACKAGE CONTENT

  • 1× Lilliput monitor A11
  • 1× 12 V DC power adapter
  • 1× sunshade
  • 1× HDMI A/C cable (HDMI – mini HDMI)
  • 1× hot shoe ball mount
  • 1× Sony NP-F battery plate
  • 1× VESA mounting plate
  • 1× user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: A11
  • Display: 10.1" IPS
  • Resolution: 1920 × 1200
  • Aspect ratio: 16:10
  • Brightness: 320 cd/m²
  • Contrast: 1000:1
  • Viewing angle: 175°/175° (H/V)
  • Inputs: 1× 3G-SDI, 1× HDMI 1.4, 1× VGA
  • Loop outputs: 1× 3G-SDI, 1× HDMI 1.4
  • HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • SDI formats: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • Audio: SDI (12 ch, 24-bit), HDMI (2 ch, 24-bit), 3.5 mm headphones, speaker
  • Assist functions: focus peaking, false color, histogram, exposure (zebra), audio level meter, image flip, pixel to pixel, grid, check field, zoom, underscan, image freeze, aspect markers, center marker, safety markers
  • Power: DC input 7–24 V, Sony NP-F (rear plate)
  • Power consumption: ≤ 13 W
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Mounting: VESA 75 mm, 1/4" thread, hot shoe mount included
  • Controls: user buttons F1 and F2
  • Dimensions (L × W × D): 252 × 157 × 25 mm
  • Weight: 550 g

WE RECOMMEND

The following accessories go with the Lilliput A11 10.1" 4K HDMI & 3G-SDI On-Camera Monitor.

Sony NP-F batteries

HDMI cables

SDI cables

Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Video outputsHDMI 1.4 · 3G-SDI
Display aspect ratio16:10
Size10.1"
Monitor inputsHDMI · SDI · 4K HDMI · 3G-SDI · VGA · HDMI 1.4
Luminosity320cd/m2
Panel resolution1920x1200
For monitorOn-camera / field video production monitor
Monitor power supplySony NP-F · DC 7-24V

Other parameters

Mounting interface1/4″-20 thread
Weight550g
Dimensions (W × H × D)252x157x25mm
Viewing angle (horizontal × vertical)175x175°
TallyNo
Touchscreen displayNo
Display typeIPS LCD
High BrightnessNo
SDR/HDRSDR
Power supply typebatteries · power supply
Battery typeSony NP-F
