SWIT K7 On-Camera Monitor

7 inches, 2,800 nits and touch control

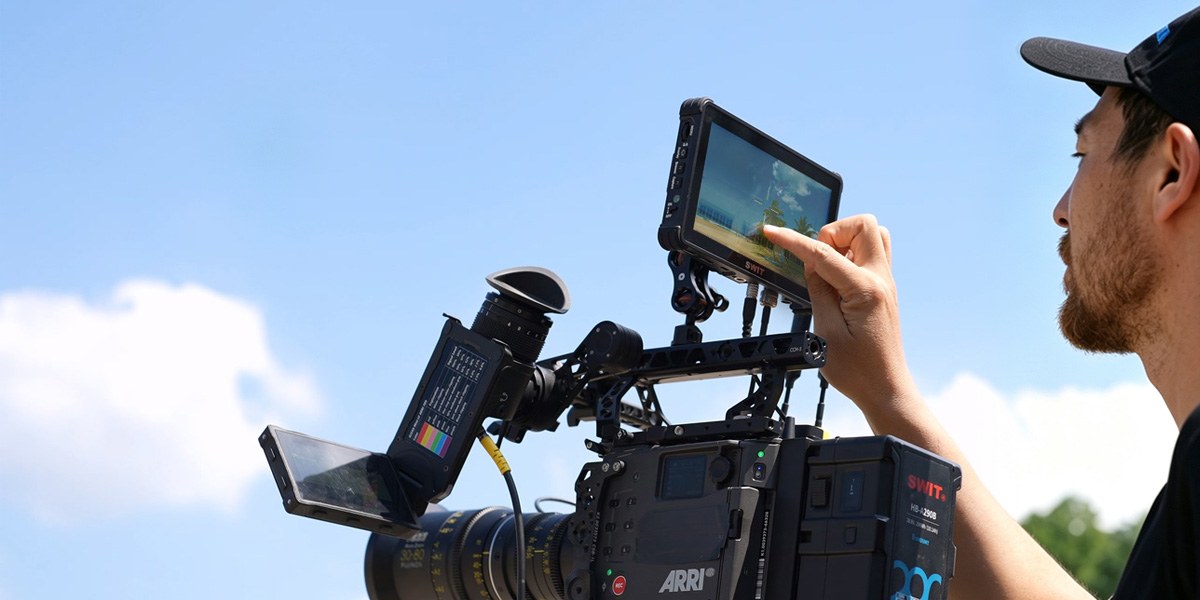

A monitor for camera operators who want a sharp, bright image right on the camera. The optically bonded Full HD display is controlled by touch as well as physical buttons, with tools for exposure, focus and anamorphic lenses always at hand.

All-metal body

A CNC-machined aluminium body manages heat and four rubber corners absorb shocks from drops and knocks.

SDI ↔ HDMI

3G/HD-SDI and HDMI 2.0 (4K60p) inputs with loop outputs, plus cross conversion between SDI and HDMI.

LUTs and delog

Built-in delog LUTs for S-Log2/3, C-Log2/3, LogC3/C4 and Log3G10, plus up to 50 user 3D LUTs from an SD card.

Three power options

2-pin LEMO 7–34 V, USB-C PD 9/12/15/20 V and dual NP-F batteries with hot-swap.

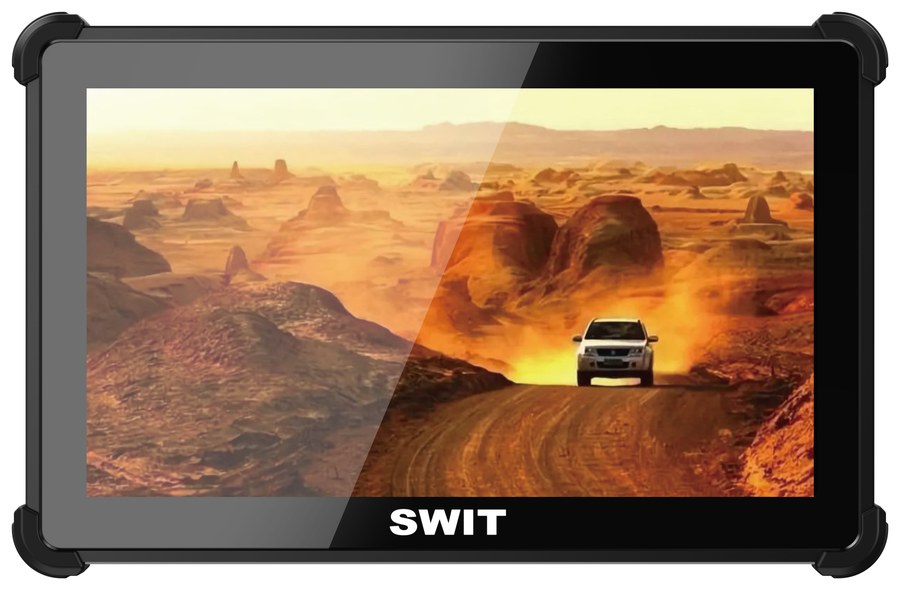

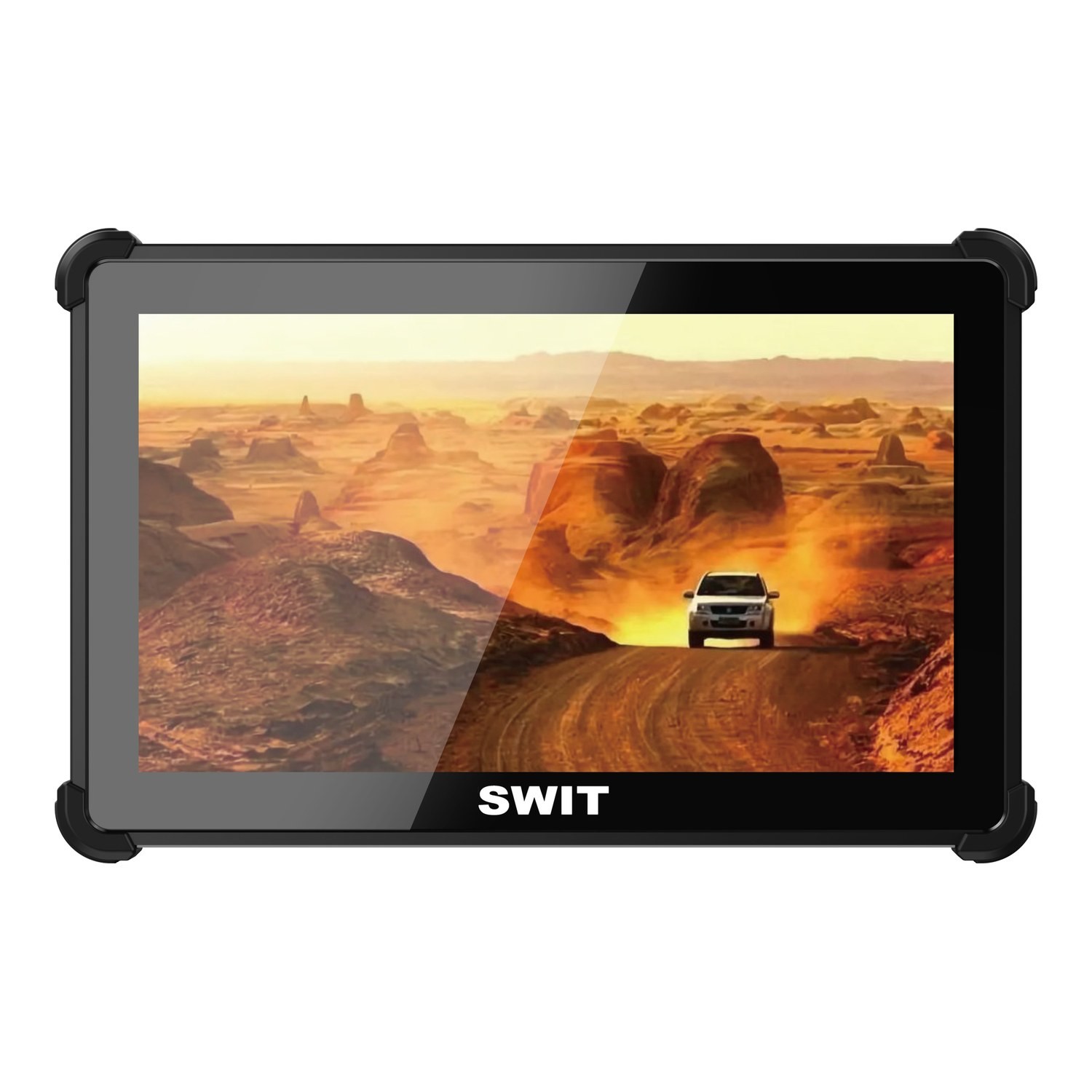

2,800 nits brightness

The 7″ 1920 × 1080 display reaches up to 2,800 nits. Contrast is 1,000:1, colour depth 8-bit (16.77 million colours) and the viewing angle 160° horizontally and vertically.

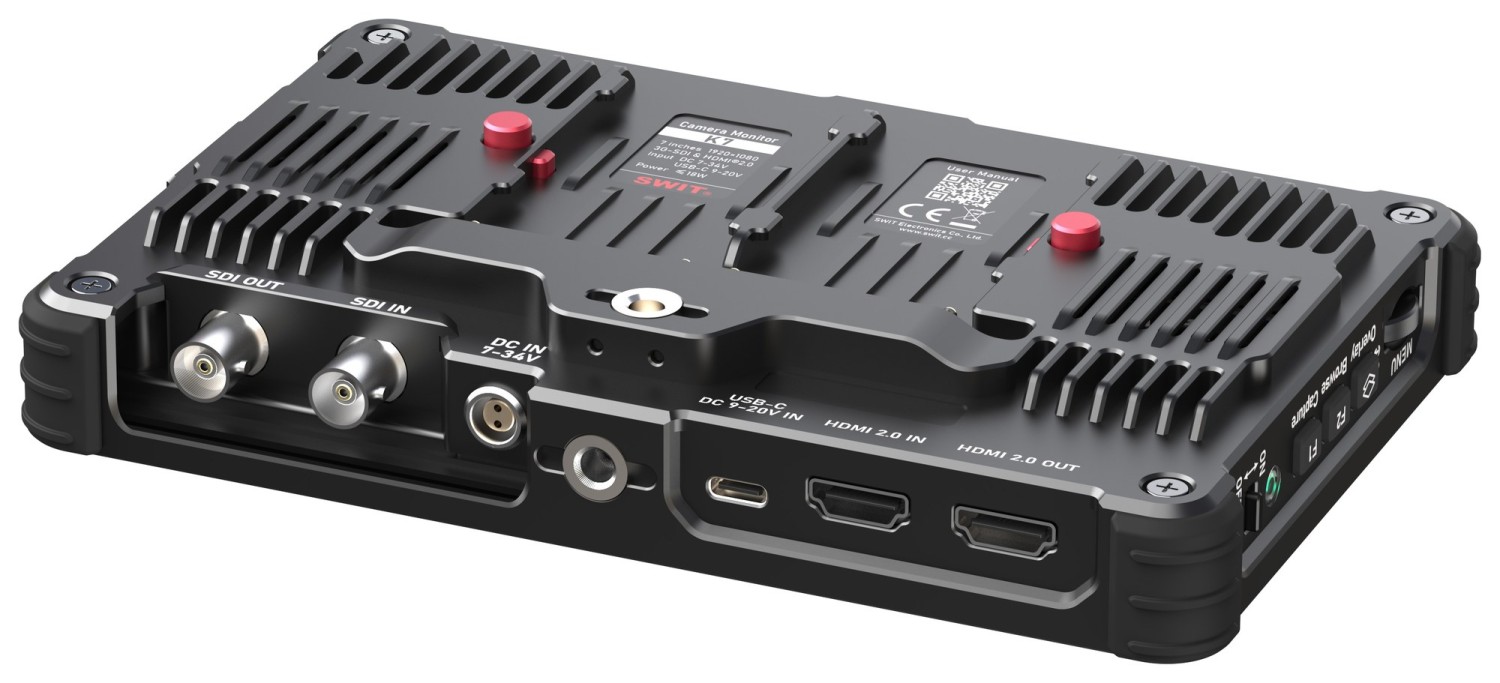

A rugged body for the set

The precision CNC-machined aluminium body is rigid and helps dissipate heat. Four rubber corner guards absorb shocks from drops and collisions on a hectic set.

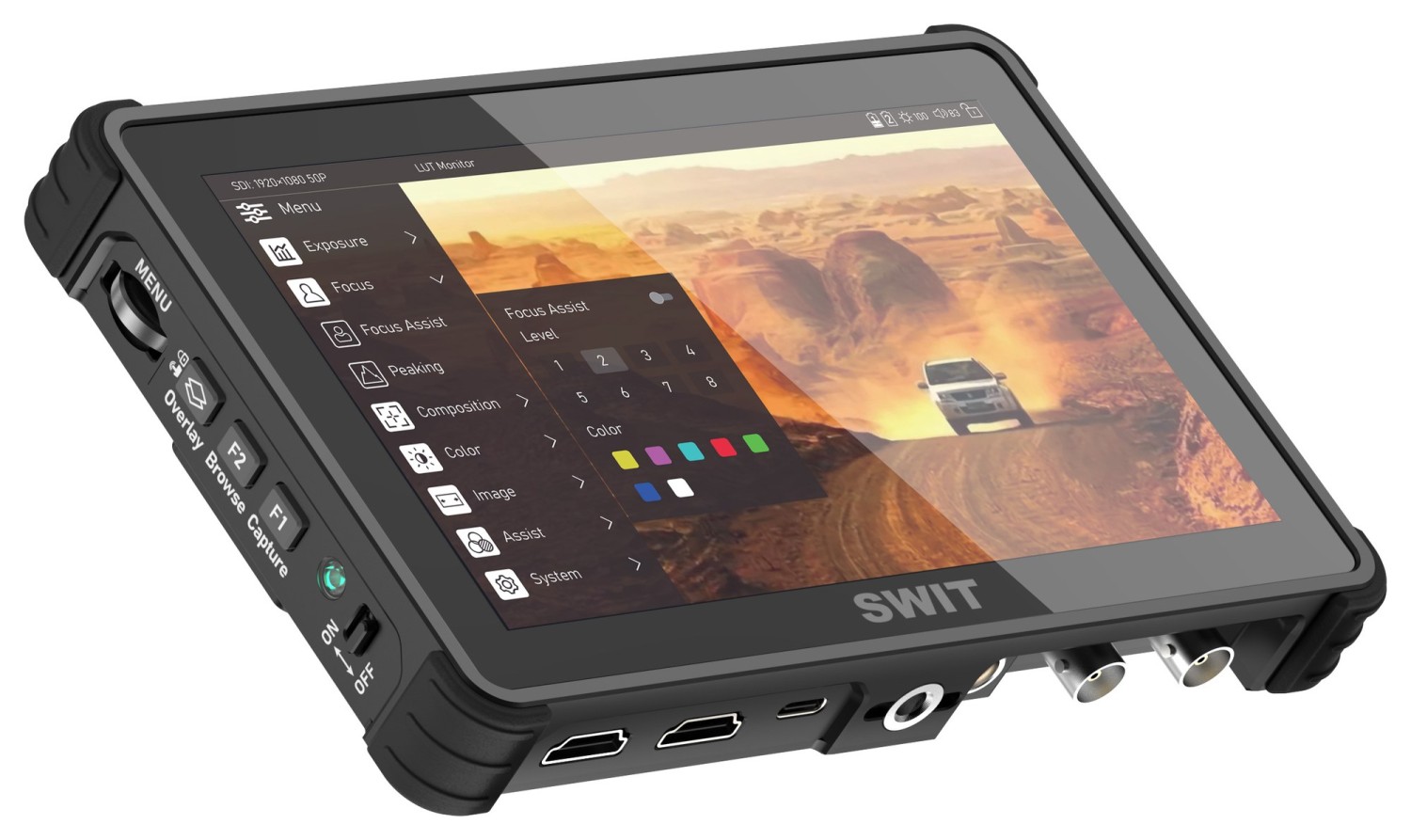

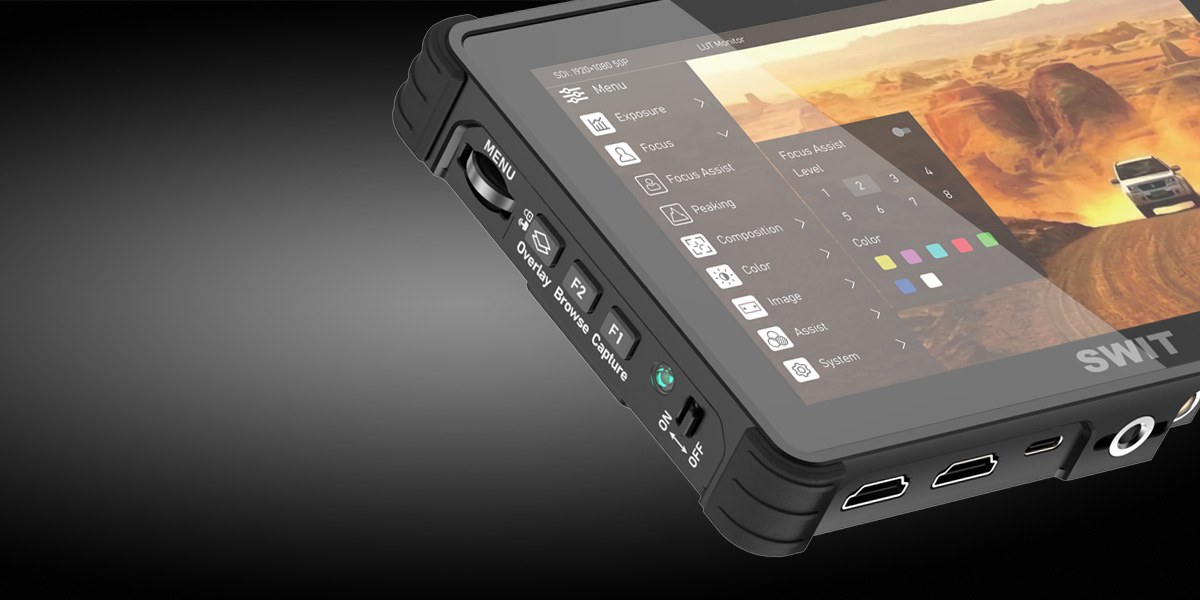

Touch and buttons

The fully laminated multi-touch screen responds to gestures: double tap opens the main menu, a swipe up from the bottom brings quick tools and a two-finger pinch zooms in to check focus. For tactile control there is a scroll wheel, two customisable function keys and a dedicated touch-lock button.

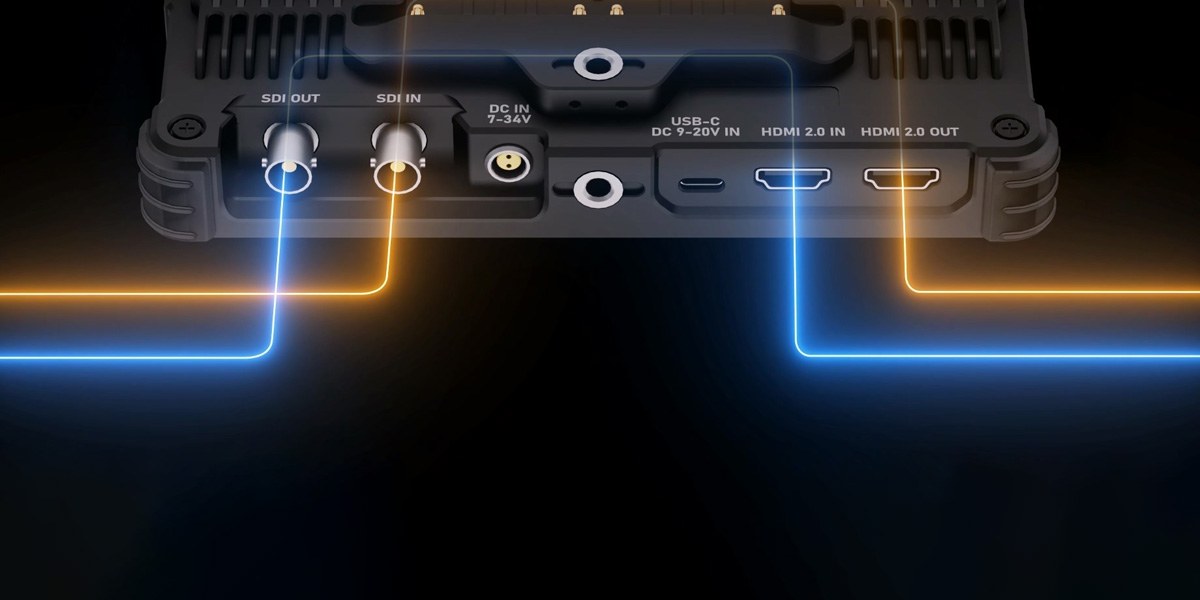

3G-SDI and HDMI 2.0 with cross conversion

3G/HD-SDI and HDMI 2.0 (4K60p) inputs with loop outputs and SDI ↔ HDMI cross conversion bridge different cameras and devices. The LUT can be applied to the SDI or HDMI output, so a monitor without its own LUTs receives a graded signal.

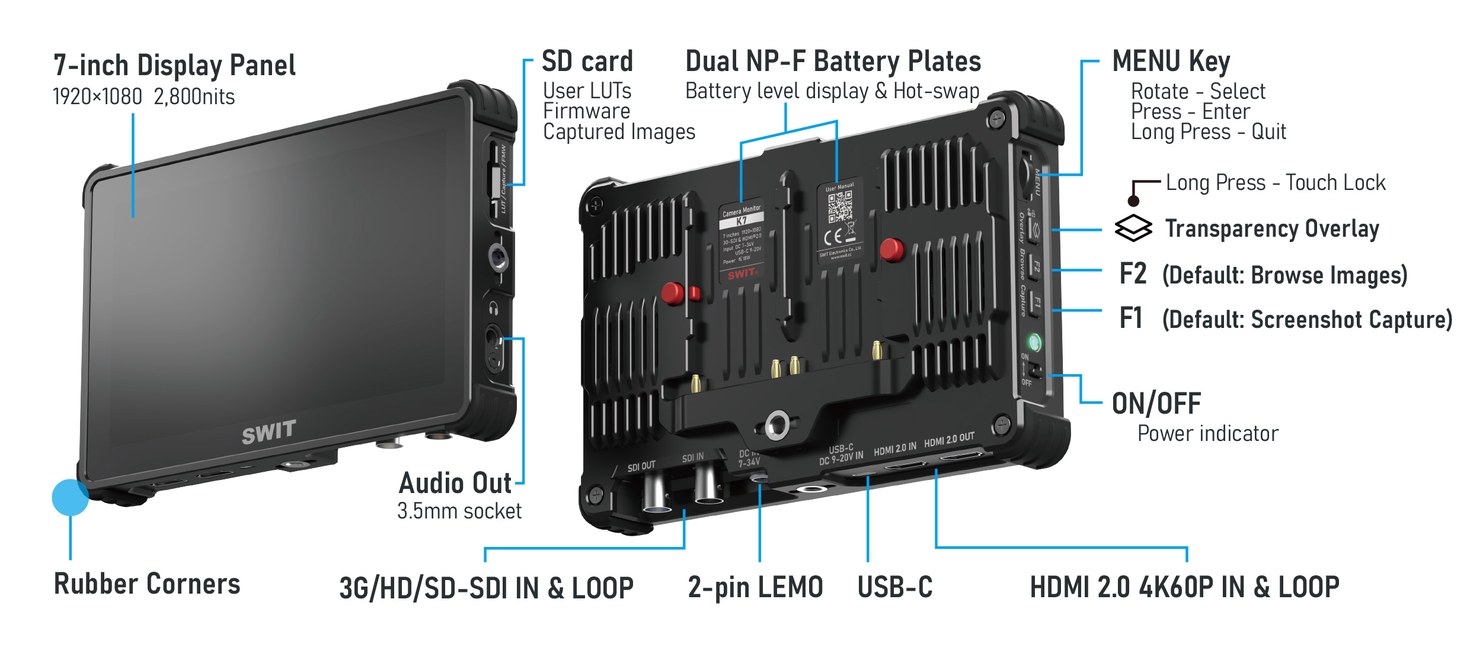

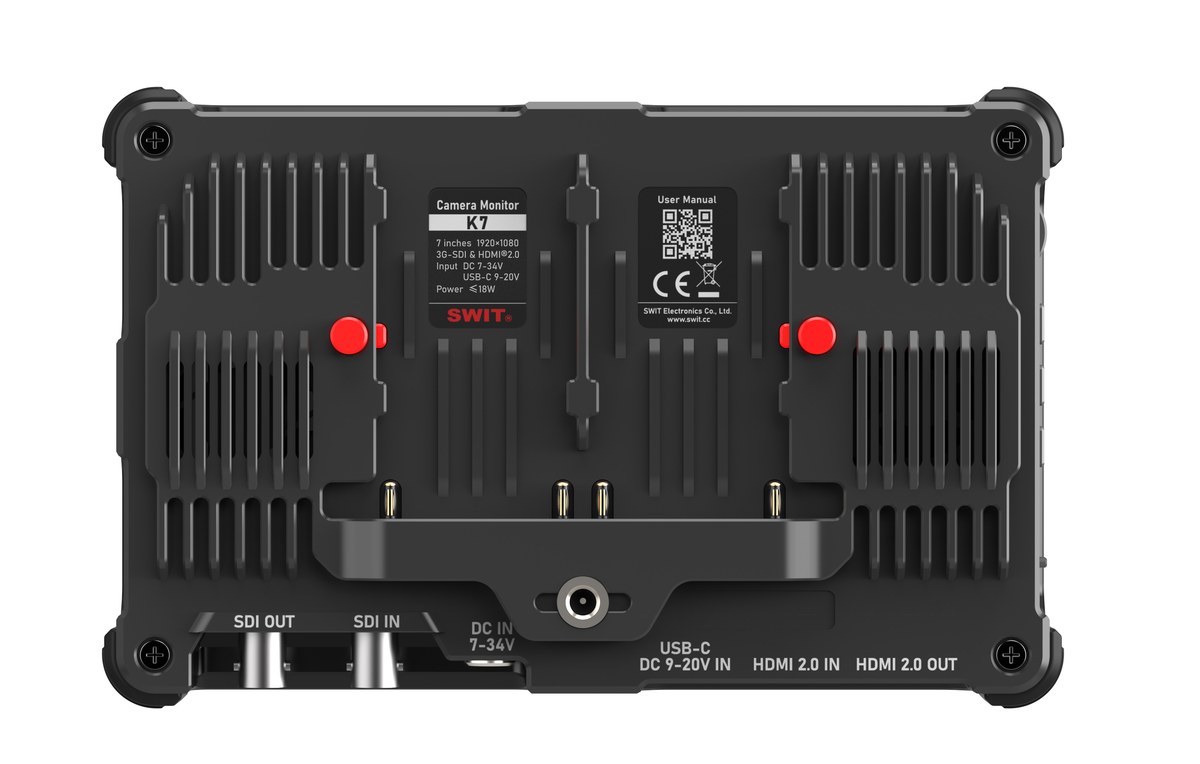

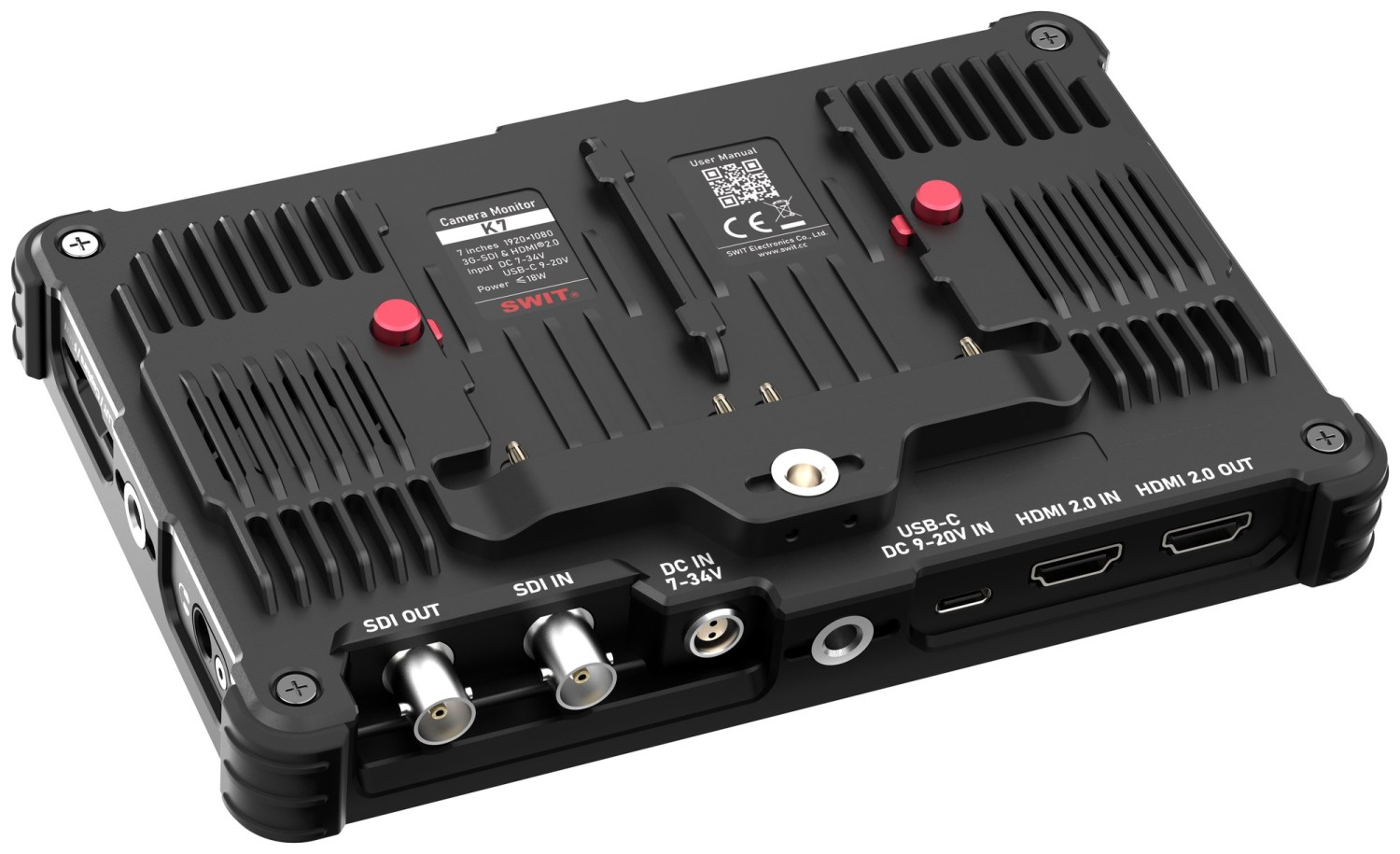

Controls and connectors

The monitor has an SD card slot, the MENU key with rotary control, F1 and F2 function keys, a power switch, dual NP-F slots, a 3.5 mm audio output and SDI, HDMI, 2-pin LEMO and USB-C connectors.

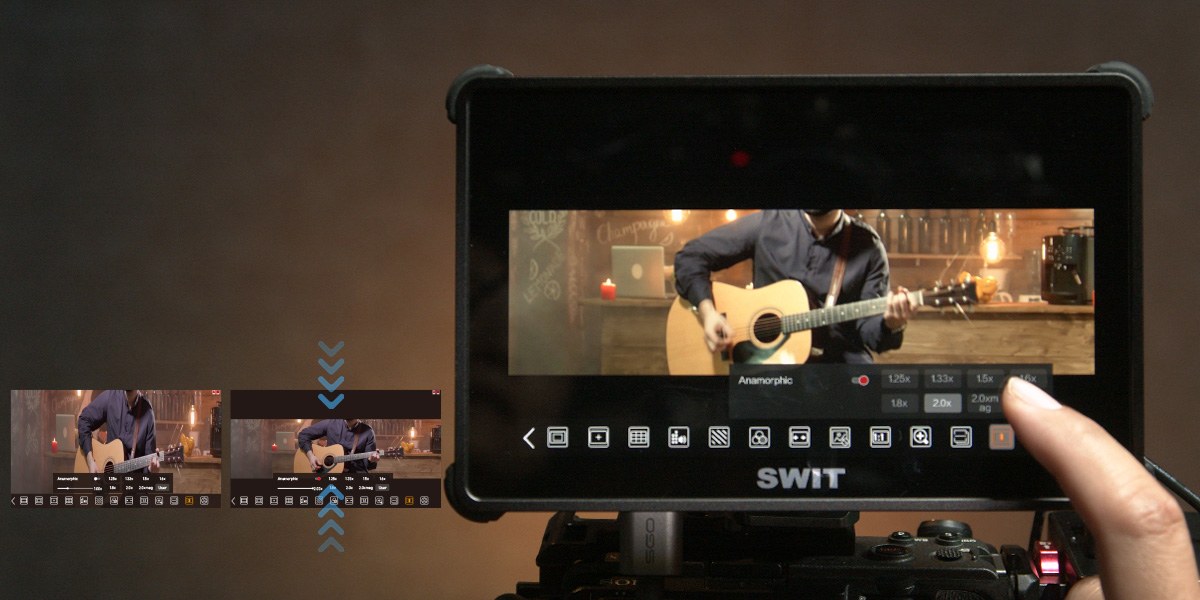

Anamorphic de-squeeze and assist tools

De-squeeze ratios of 1.25×, 1.33×, 1.5×, 1.6×, 1.8×, 2.0× and 2.0× MAG, continuous 0.5–2× custom adjustment and a 0.5× reverse mode for vertically mounted 2× anamorphic lenses. Add peaking, zebra (−7 to 109 IRE), false colour in ARRI and spectrum modes, waveform, vectorscope, histogram, 4-channel audio meters, aspect markers, grid and safe area.

Power and LUTs from SD card

Dual hot-swap NP-F slots (6.5–8.4 V) show the level of both batteries on screen, alongside a 2-pin LEMO 7–34 V input and USB-C PD 9–20 V. User 3D LUTs in 17, 32, 33, 64 and 65 formats load from an SD card, and a 4 GB card is included. A still frame can be captured and overlaid with transparency over the live image, and the menu rotates by ±90° or 180°.
