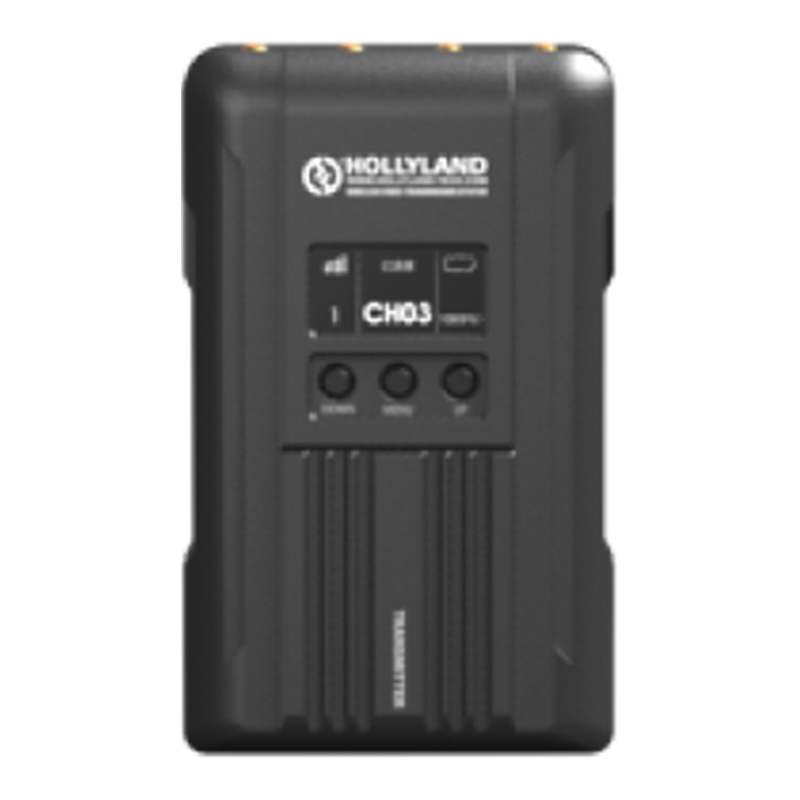

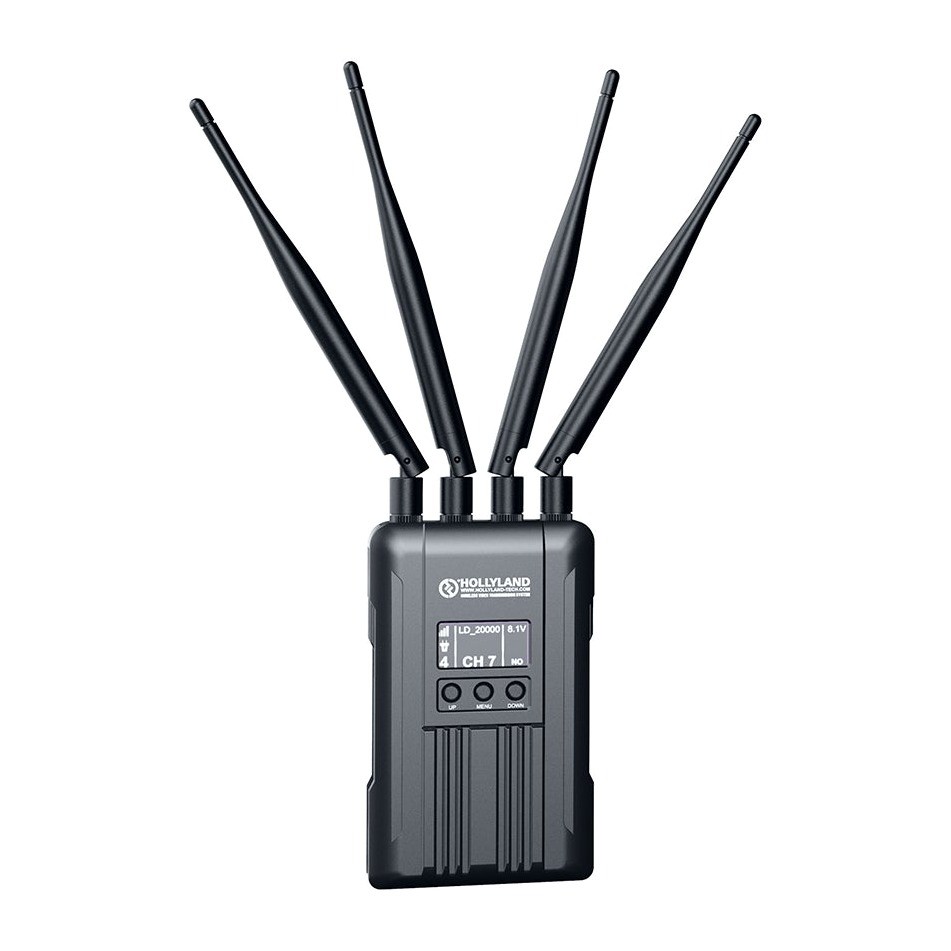

Hollyland Syscom 421S Transmitter

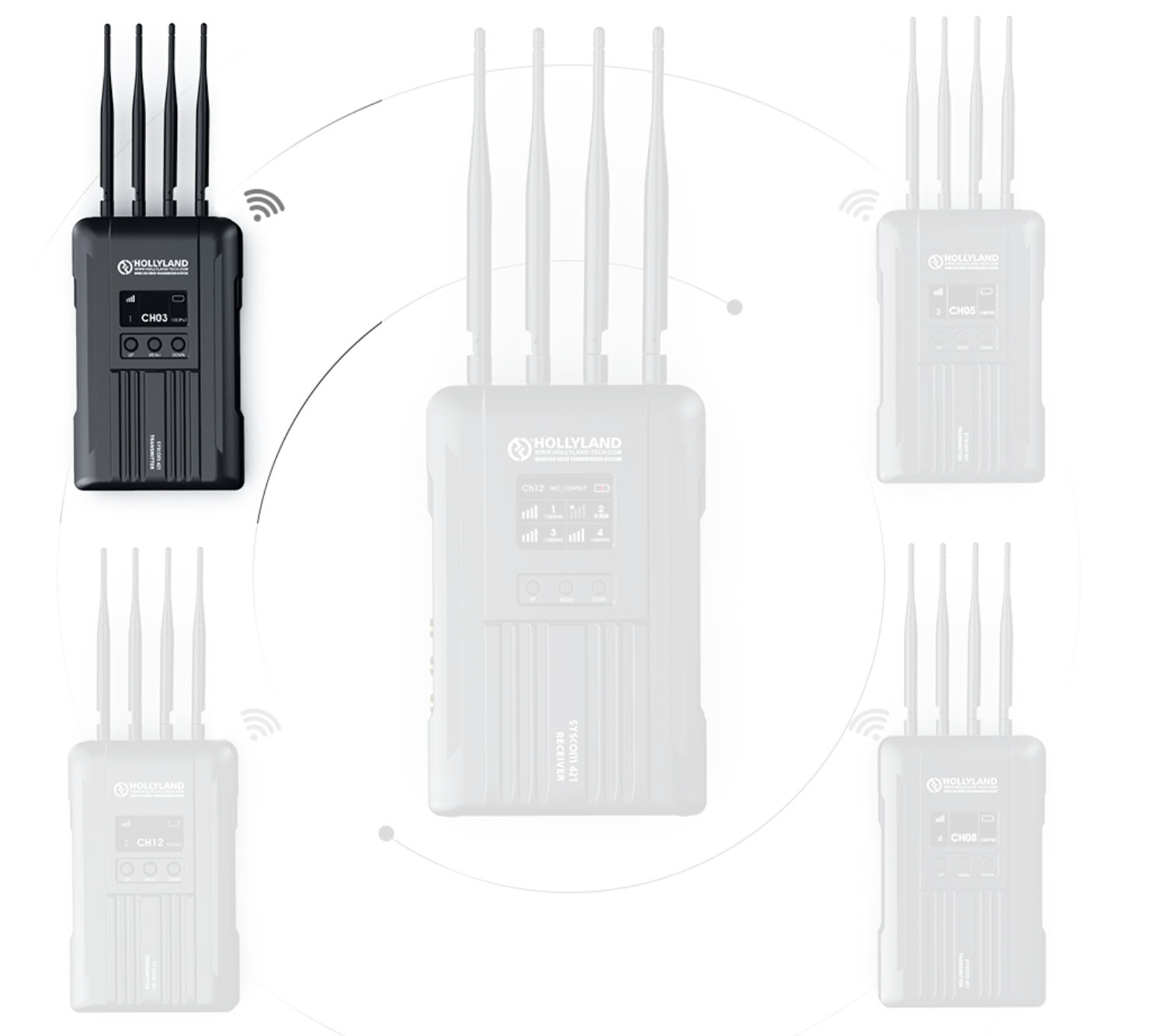

The stand-alone Hollyland Syscom 421S transmitter adds another camera to a Syscom 421S system – the receiver works with up to four transmitters on one RF channel. It takes video via SDI or HDMI, transmits it up to 550 m with 0.07 s latency and has a 3.5 mm tally output, RS485/RS422 and LAN. It runs on 7–36 V, for example from an NP-F970 battery.

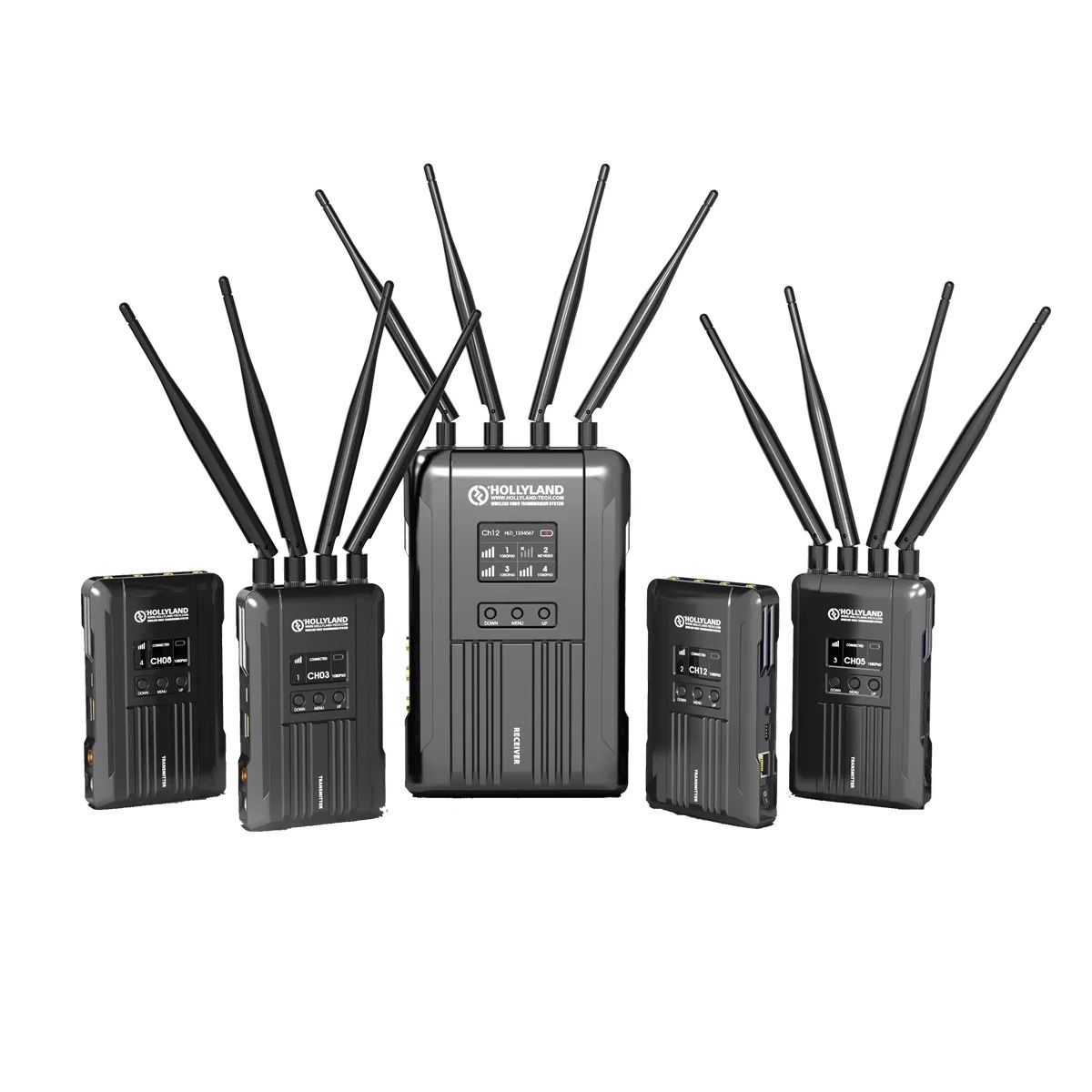

The Syscom 421S 2TX + 1RX kit starts with two cameras. Adding a third and fourth transmitter is simple: the channel is set on the receiver and the transmitters follow automatically, and the receiver puts each picture out on its own SDI and HDMI output.

One more camera for Syscom 421S

A stand-alone transmitter to expand the system to up to four cameras.

SDI + HDMI550 m0.07 sTally 3.5 mmRS485/RS4227–36 V

Powered by NP-F batteries

The transmitter accepts 7–36 V DC; on the camera it runs on an NP-F970, U60 or a battery of the same series.

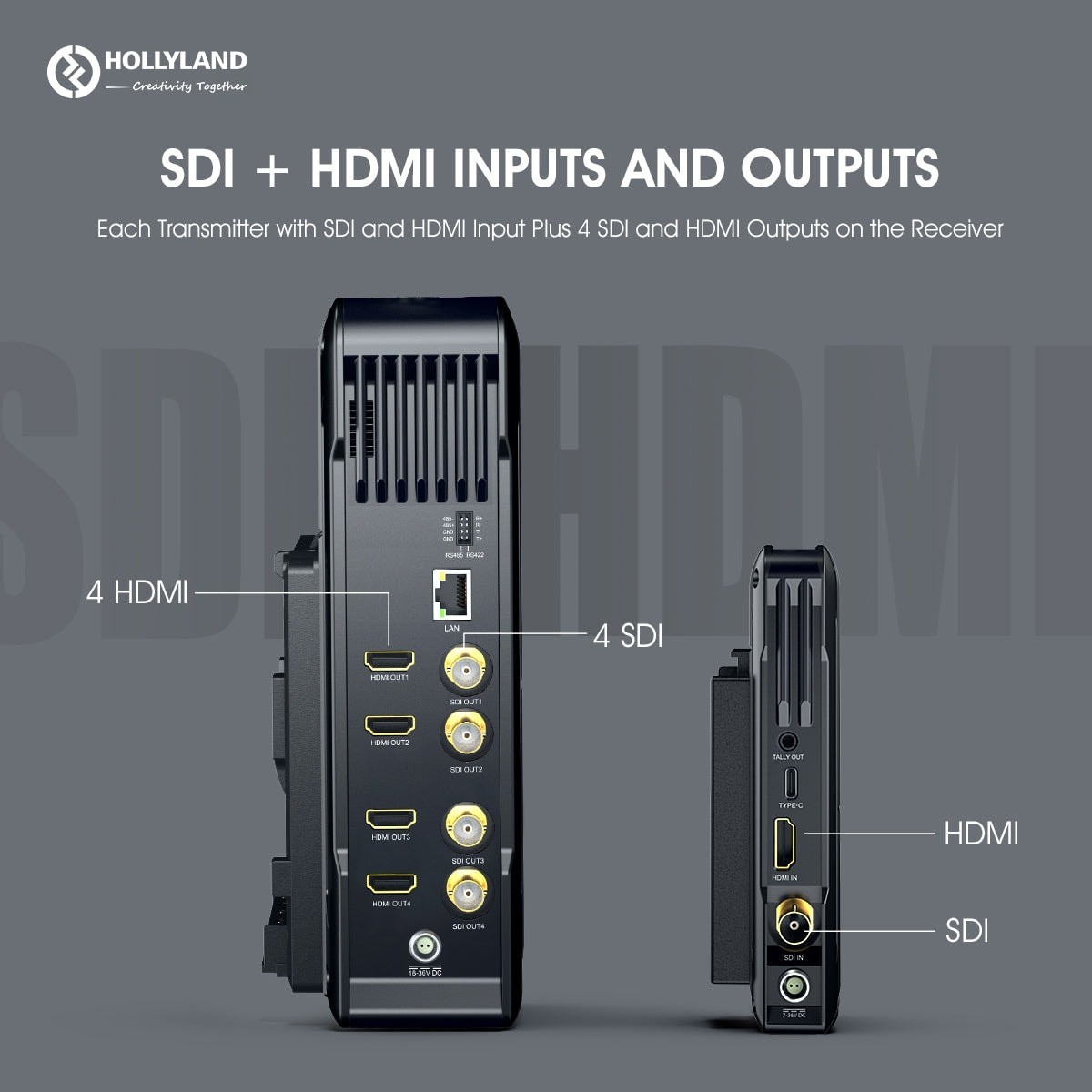

SDI and HDMI on both ends

Each transmitter has an SDI and an HDMI input plus a 3.5 mm tally output. The receiver outputs all four channels at once on four SDI and four HDMI outputs – straight to the switcher and to monitors.

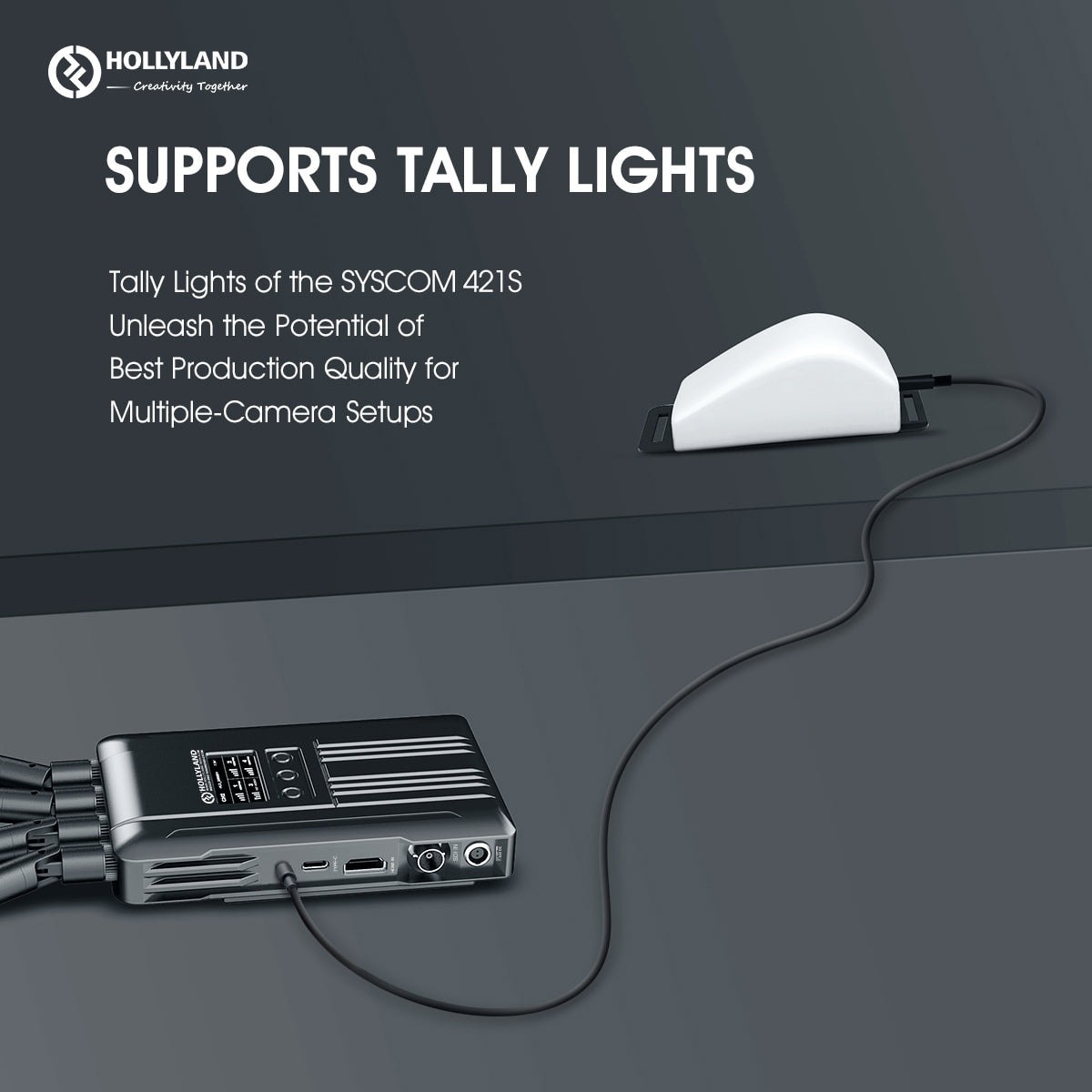

Tally all the way to the camera

A tally light connects to the 3.5 mm TALLY output on the transmitter. The receiver links to a tally box via USB, and the tally box to the switcher with a D-Sub 25 cable – the switcher’s buttons then light up the lamps at the cameras.

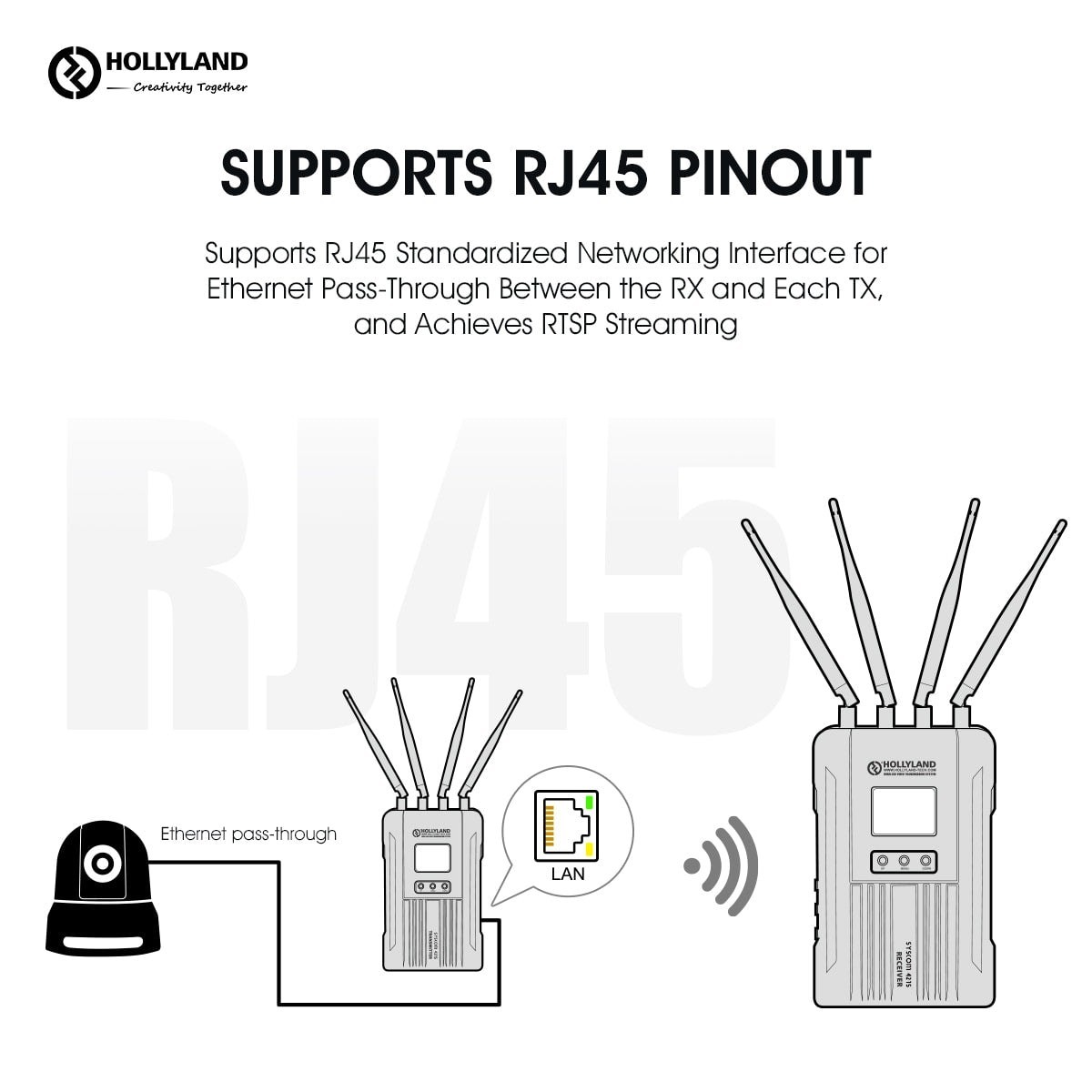

Ethernet and RTSP stream

The LAN port on transmitter and receiver bridges the network wirelessly – for example an IP camera at the transmitter with the network in the gallery. The receiver can deliver an RTSP stream over LAN.

Additional information

This item is a single standalone transmitter, not a complete kit with a receiver. It adds another wireless HDMI or SDI source to an existing Syscom 421S system.

Hollyland lists package contents only for the Syscom 421S kits – each transmitter there comes with 5 GHz antennas, a 7-inch magic arm and a DC conversion cable. The manufacturer does not publish the contents of the standalone transmitter package.
