Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

  • -12 %
  • LAST PIECE
SKU: H7S

Monitor your 4K camera images with the Lilliput H7S 7″ on-camera monitor. Its 3G-SDI and HDMI 1.4 inputs make it suitable for filmmaking and photography; HDMI accepts signals up to 2160p (UHD and DCI 4K) at 24, 25 and 30 fps. The 16:10 display with 1800 cd/m² brightness and a 1200:1 contrast ratio shows a native 1920 × 1200 image, and 3G-SDI and HDMI loop-through…

More information

Promotion: -12%
337.59 € 295.4 € with VAT 244.13 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
SKU:
H7S
Add to Compare Price history

Top accessories for Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)

  • SHOWROOM PRAHA
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs

SmallRig NP-F970 Battery and Charger Kit 3823

Two NP-F970 batteries (7800 mAh) with a dual charger. A full decoding chip keeps
82 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Atomos twisted cable Micro HDMI (refracted) - Mini HDMI

Atomos PRO HDMI spiral cable - more designs to choose from
28 €
To be sent 3 pcs

Lilliput FT02 Separate plugs 12V power adapter

The Lilliput FT02 power adapter with a 12 V output is designed for Lilliput monitors
17 €
To be sent 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Monitor your 4K camera images with the Lilliput H7S 7″ on-camera monitor. Its 3G-SDI and HDMI 1.4 inputs make it suitable for filmmaking and photography; HDMI accepts signals up to 2160p (UHD and DCI 4K) at 24, 25 and 30 fps. The 16:10 display with 1800 cd/m² brightness and a 1200:1 contrast ratio shows a native 1920 × 1200 image, and 3G-SDI and HDMI loop-through outputs pass the signal on to other devices.

A bright 7" monitor with SDI and HDMI out

1800 cd/m² keeps the image readable outdoors without a hood. The H7S adds 3G-SDI in and out to HDMI, handles HDR and 3D LUTs and runs on two Sony NP-F batteries.

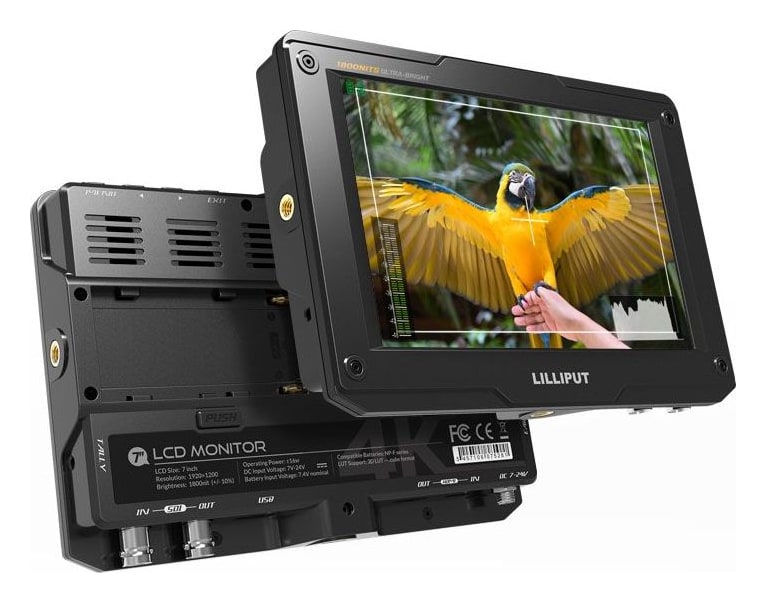

Lilliput H7S
7" 1920 × 12001800 cd/m²3G-SDI and HDMI 1.4HDR and 3D LUT2× Sony NP-F

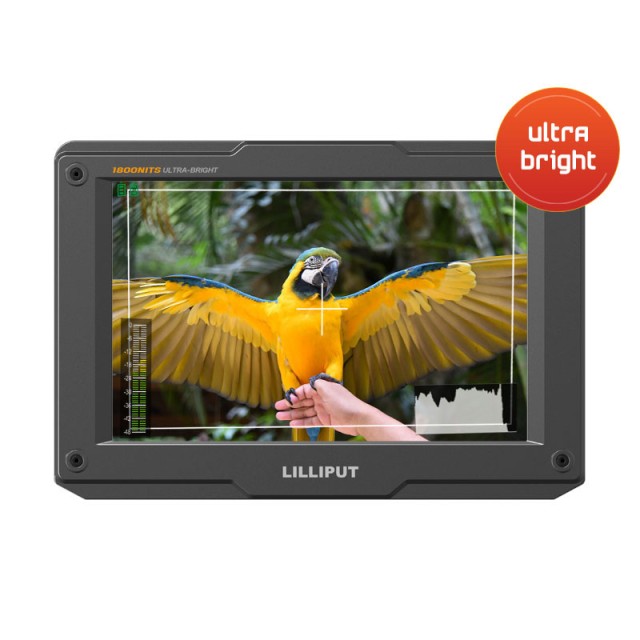

Readable even in direct sunlight

With 1800 cd/m² the screen isn’t washed out by the sun, so you can judge exposure and focus outdoors as reliably as in the studio. The two batteries hot-swap, so power never stops the shoot.

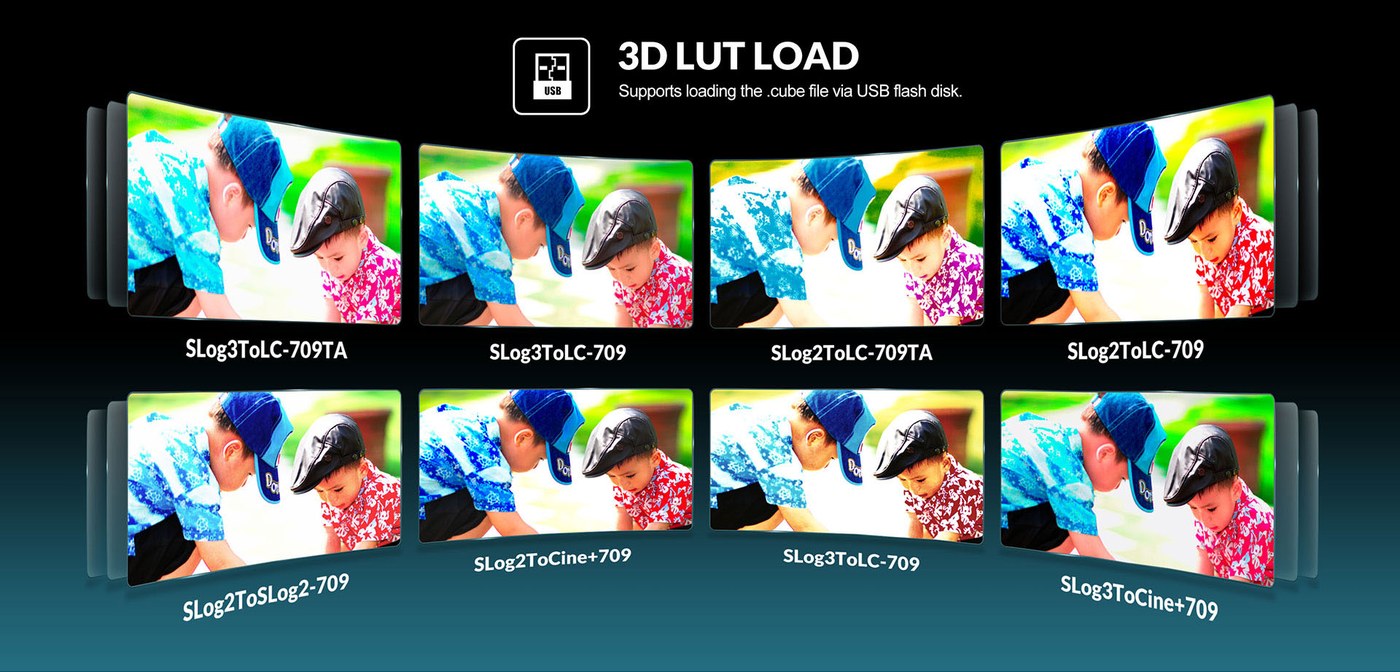

HDR and 3D LUT

ST2084 300/1000/10000 and HLG support; .cube LUTs load from USB.

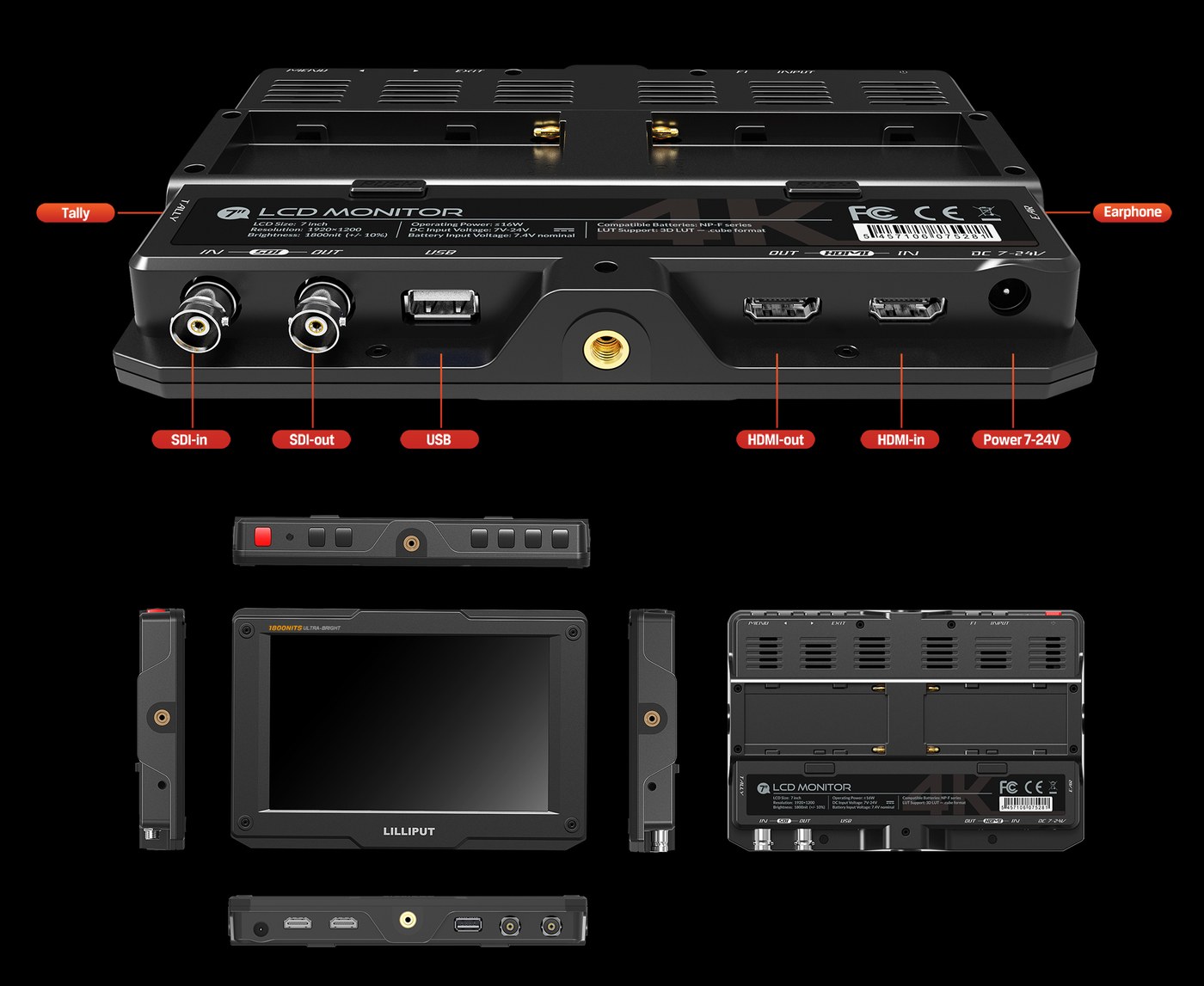

SDI and HDMI out

3G-SDI and HDMI loop-through outputs for a recorder, transmitter or another monitor.

Assist functions

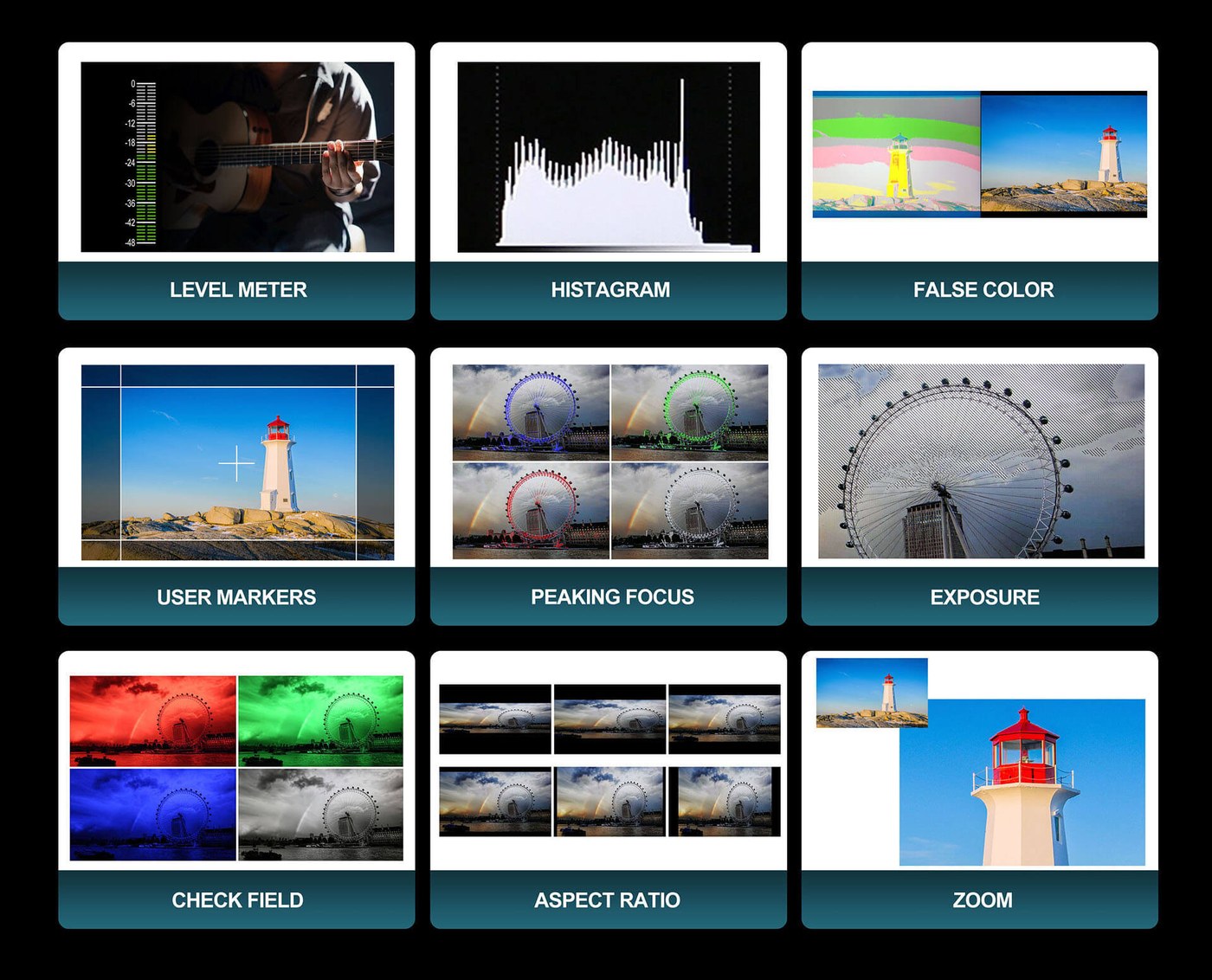

Level meter, histogram, false color, markers, focus peaking, exposure and zoom.

Tally and F1/F2

Tally input for record signaling and two user buttons.

Lilliput H7S – infographic 1Lilliput H7S – infographic 2Lilliput H7S – infographic 3Lilliput H7S – infographic 4Lilliput H7S – infographic 5

More information

HDR, power and mounting

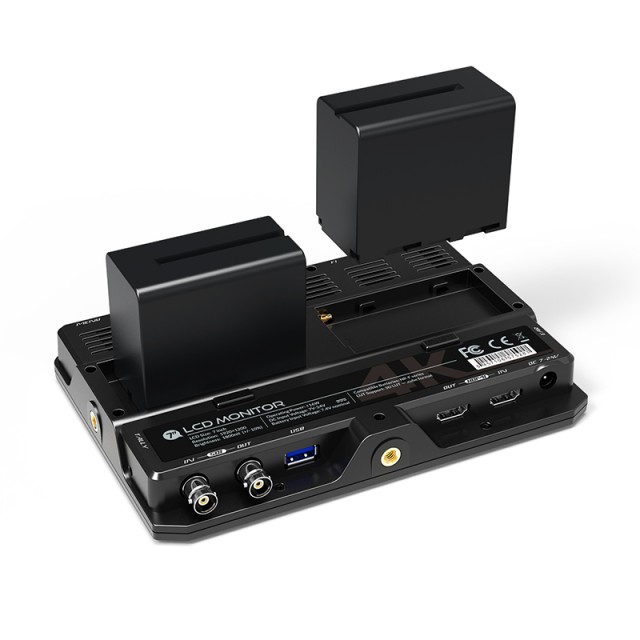

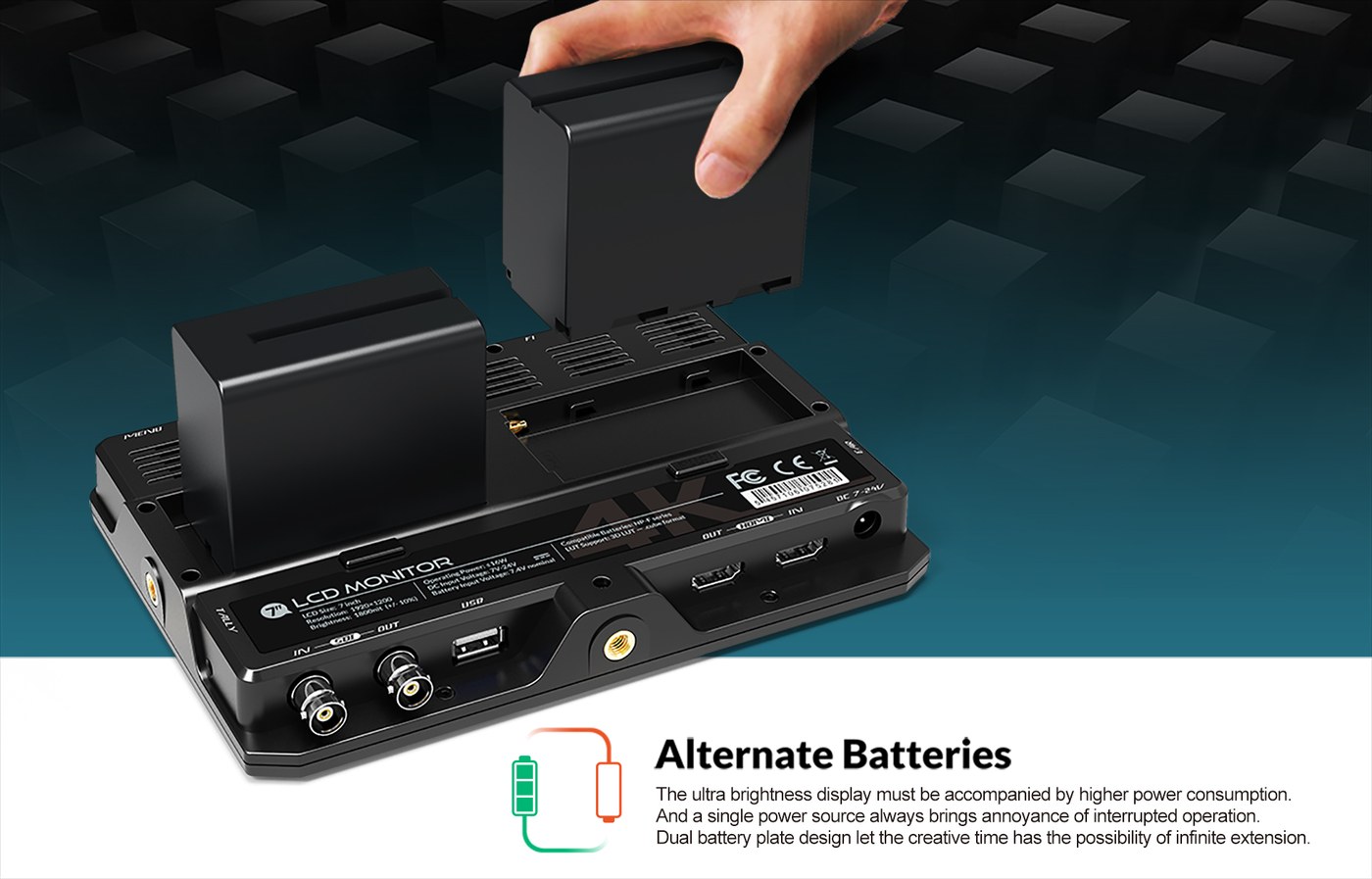

The H7S supports loading 3D LUTs via the USB port on the bottom and accepts HDR input with wide dynamic range display modes ST2084-300, ST2084-1000, ST2084-10000 and HLG (Hybrid Log-Gamma). The rear carries a plate for two Sony NP-F batteries to keep the monitor powered on long shoots. The batteries are hot-swappable, so you can charge one and change the other without switching the monitor off.

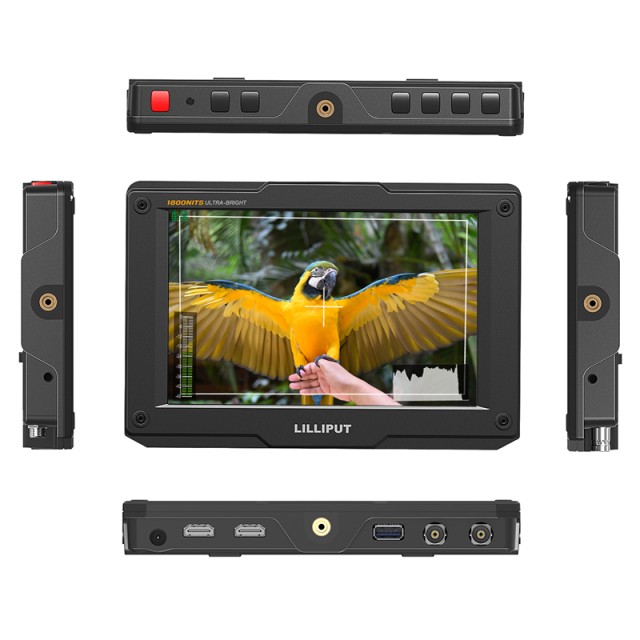

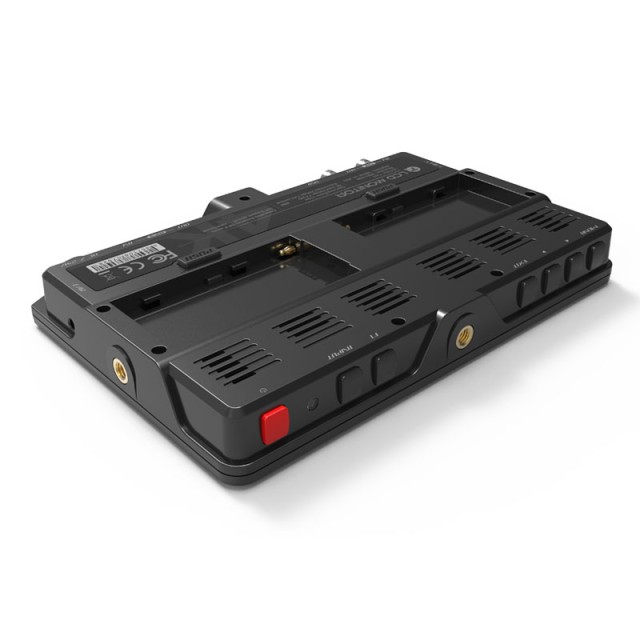

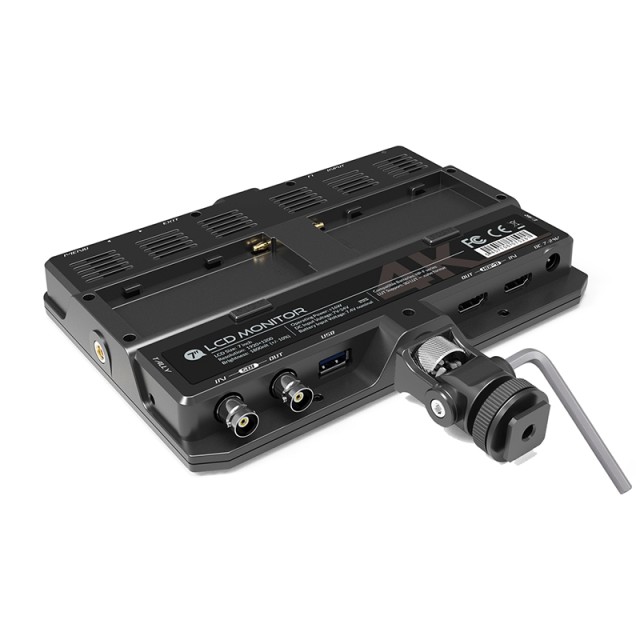

The monitor has a built-in speaker, a headphone jack, a tally input and control and function buttons around the display. Two customizable function buttons act as shortcuts to your favorite features. Mount it on the camera with the included 1/4"-20 hot shoe mount or use the threads on the bottom and sides. An HDMI A/C cable, a tally cable and a carrying bag are also included.

PACKAGE CONTENT

  • 1× Lilliput monitor H7S
  • 1× HDMI A/C cable (HDMI – mini HDMI)
  • 1× tally cable
  • 1× mini hot shoe mount
  • 1× USB flash drive
  • 1× user manual
  • 1× carrying bag

SPECIFICATIONS

  • Brand: Lilliput
  • Model: H7S
  • Display: 7" LCD
  • Resolution: 1920 × 1200
  • Aspect ratio: 16:10
  • Brightness: 1800 cd/m² (±10% at center)
  • Contrast: 1200:1
  • Viewing angle: 160°/160° (H/V)
  • HDR: ST2084 300/1000/10000, HLG
  • LUT: 3D LUT (.cube format), loaded via USB
  • Inputs: 1× 3G-SDI, 1× HDMI 1.4, 1× tally, 1× USB (LUT loading)
  • Loop outputs: 1× 3G-SDI, 1× HDMI 1.4
  • HDMI formats: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • SDI formats: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • Audio: SDI (12 ch, 24-bit), HDMI (2 ch, 24-bit), 3.5 mm headphones, speaker
  • Assist functions: audio level meter, histogram, false color, markers (center, safety, aspect), focus peaking, exposure (zebra), check field, aspect markers, zoom
  • Power: DC input 7–24 V, 2× Sony NP-F (dual plate, hot-swap)
  • Power consumption: ≤ 15 W
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −10 to 60 °C
  • Controls: user buttons F1 and F2
  • Dimensions (L × W × D): 225 × 155 × 23 mm
  • Weight: 535 g

WE RECOMMEND

The following accessories go with the Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor.

Sony NP-F batteries

HDMI cables

SDI cables

Power

Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Video outputsHDMI 1.4 · 3G-SDI
Display aspect ratio16:10
Size7"
Monitor inputsHDMI · SDI · 4K HDMI · 3G-SDI · HDMI 1.4
Luminosity1800cd/m2
Panel resolution1920x1200
For monitorOn-camera / field video production monitor
Monitor power supplySony NP-F · DC 7-24V

Other parameters

Mounting interface1/4″-20 thread
Weight535g
Dimensions (W × H × D)225x155x23mm
Viewing angle (horizontal × vertical)160x160°
TallyYes
Other featuresHDR · Tally · 3D LUT correction
Touchscreen displayNo
Display typeLCD
High BrightnessYes
SDR/HDRSDR / HDR
Power supply typebatteries · power supply
Battery typeSony NP-F
