Angenieux MSU-1 Universal Cine Servo with 3 Motors & Wireless for EZ-1/EZ-2 Lens

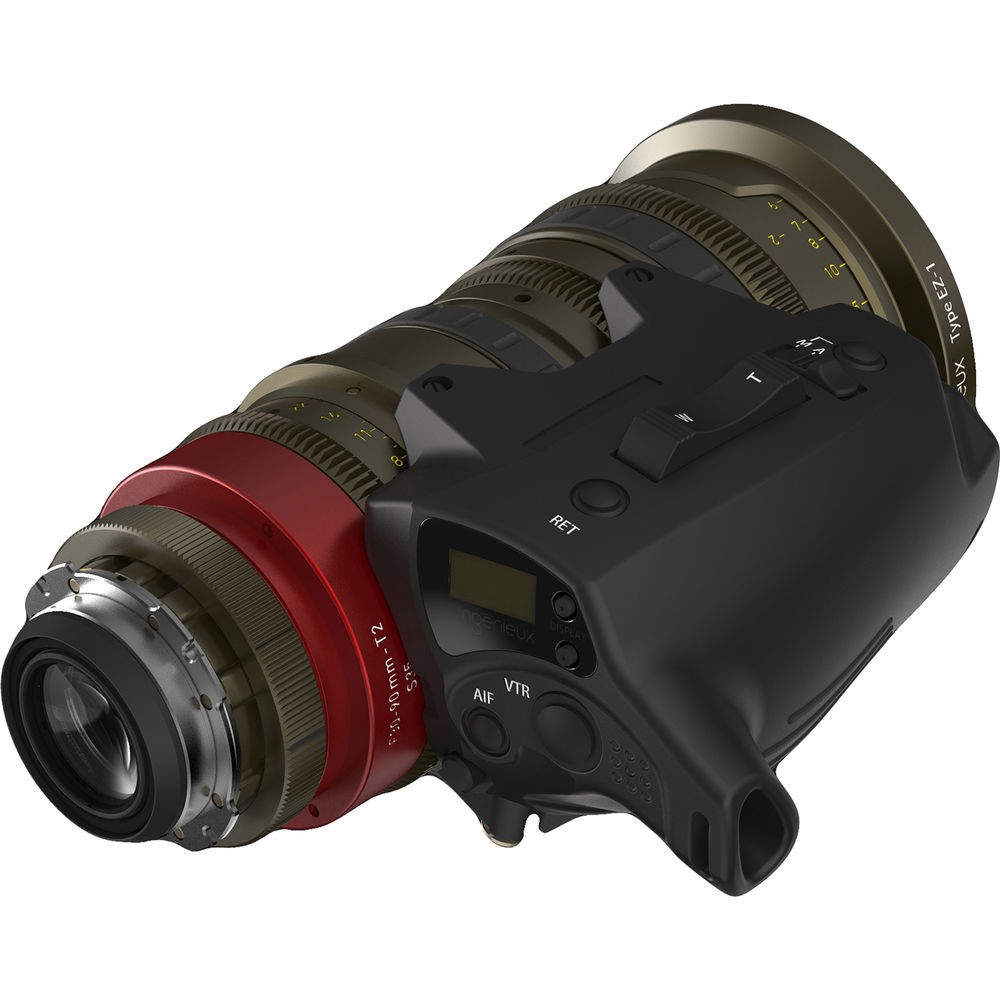

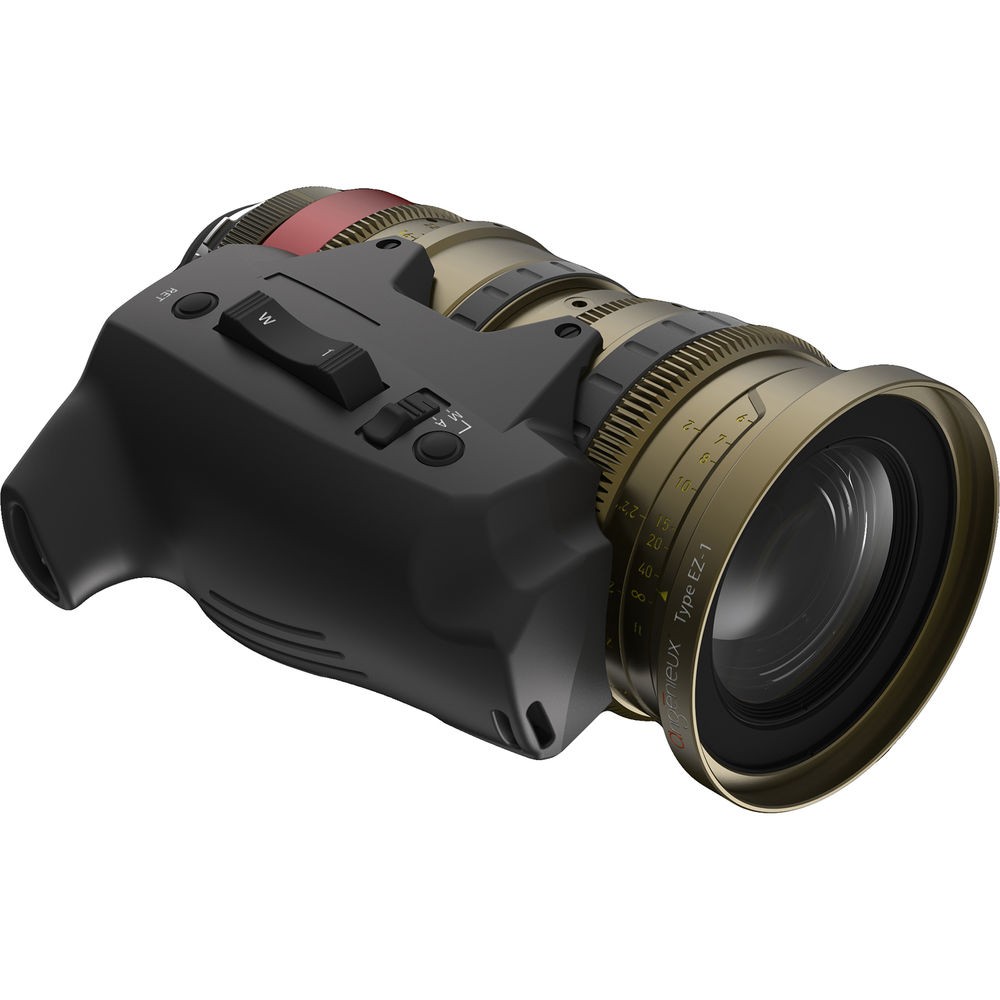

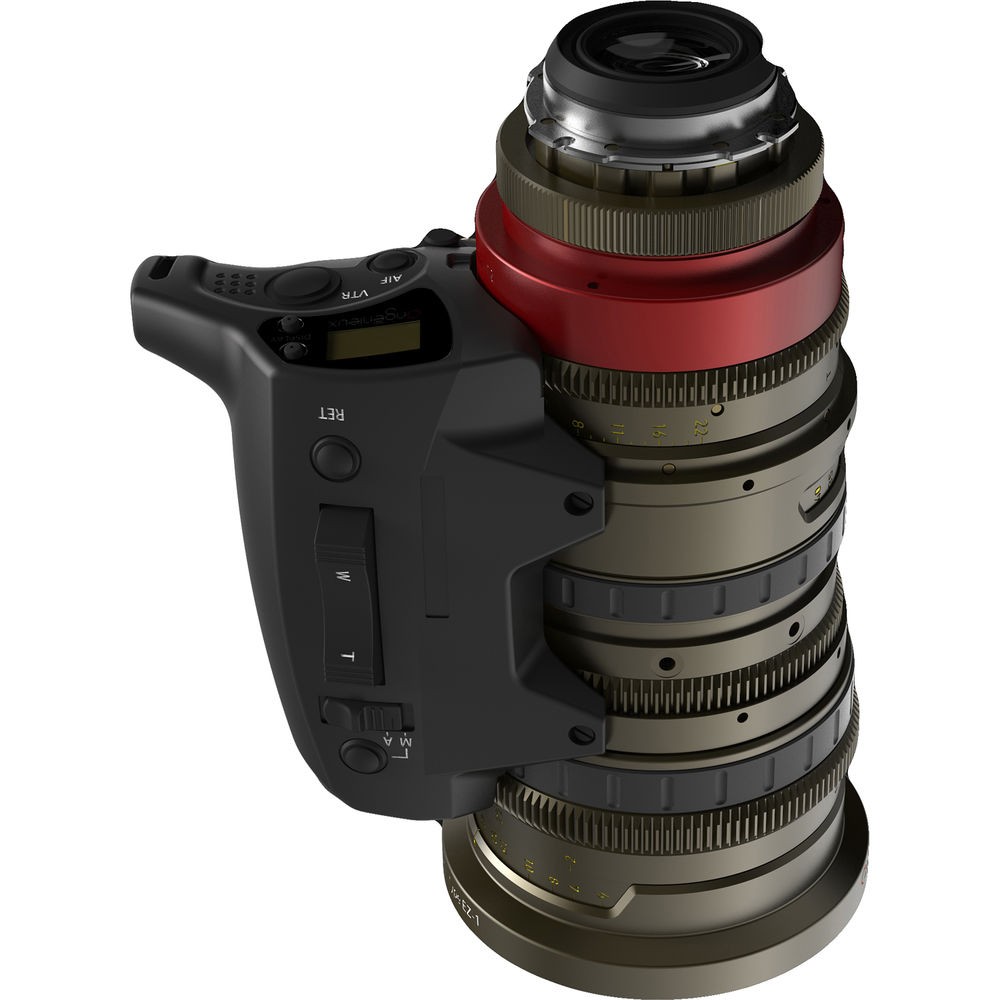

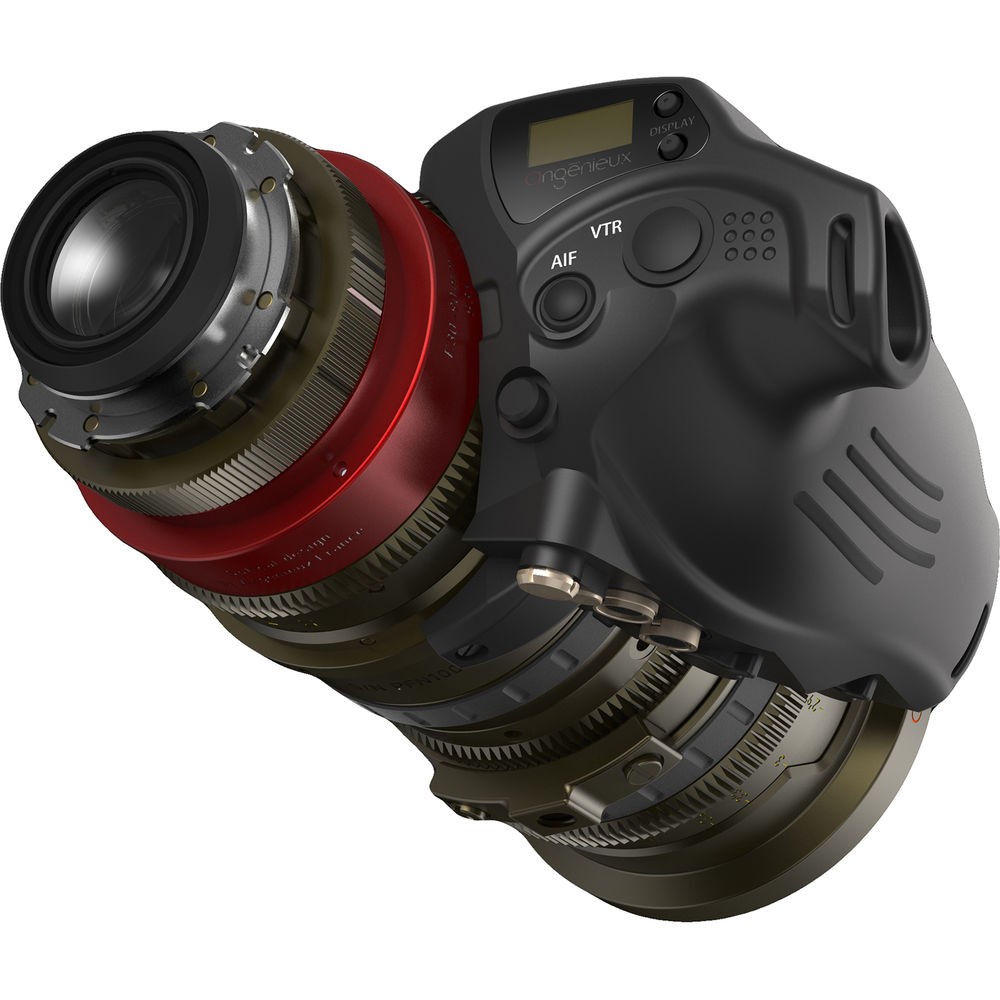

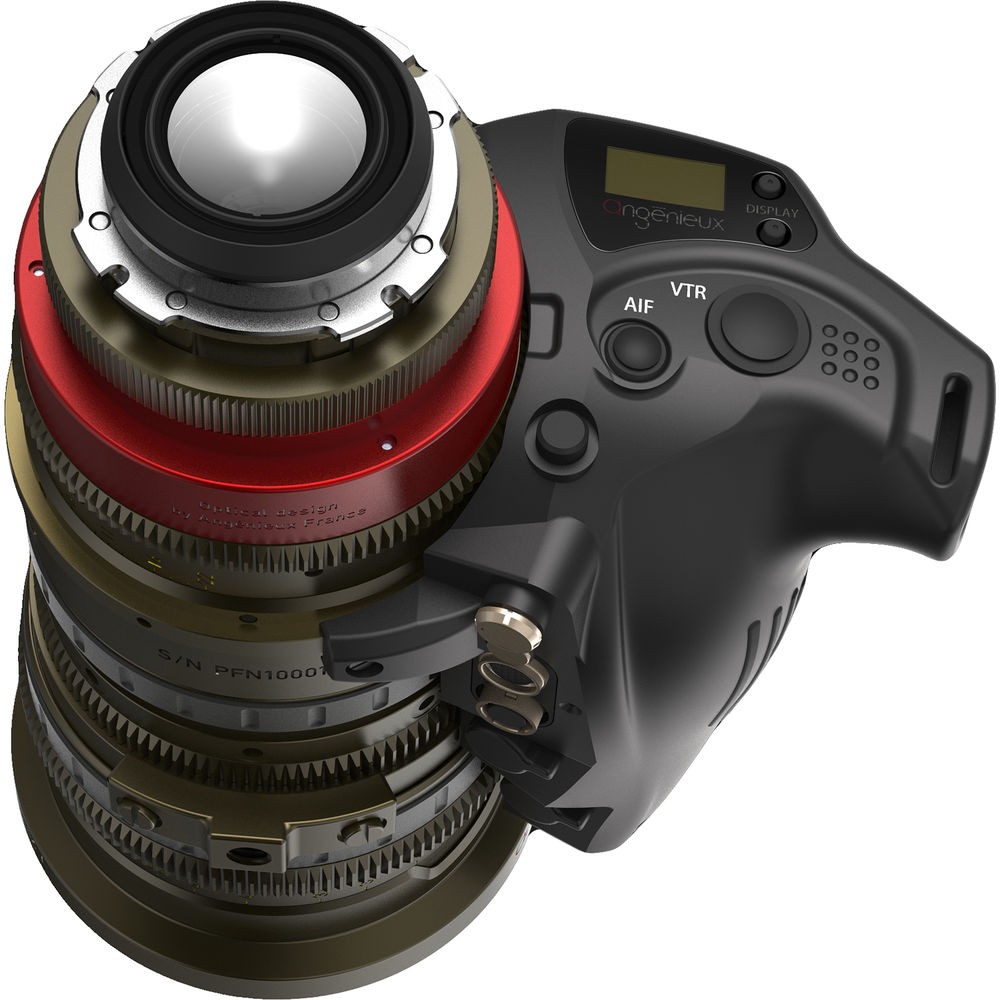

The MSU-1 Universal Cine Servo with 3 motors and wireless module from Angenieux is a removable lens drive unit designed specifically for use with Angenieux EZ-1 and EZ-2 lenses. It provides ENG-style control for EZ-1 and EZ-2 cinema lenses.

The built-in features you would expect from an ENG-style lens control grip, along with several accessories, make for a powerful combination when used with your lens. The three lens drive gears are positioned to work perfectly with the lens and have a 0.8 module to match 35mm film lenses. The start/stop button on the handle controls the camera, while the traditional zoom rocker is complemented by adjustable speed control.

Further compatibility is ensured by the presence of Hirose and LEMO connectors. A built-in wireless module allows the servo drive to be controlled without a fixed cable connection. Those who wish to do so can control the servo using standard ENG pan handles from Canon or Fujinon.

Mounting
The MSU is self-aligning and mounts with three screws and a guide pin.

Basic functions

• Auto Iris: on/off
• Rec: on/off
• Video return
• QZ (quick zoom)
• Iris: instant
• On-screen display
• Menu display
• System modes: analog request, digital request, wireless, local
• Aperture control mode: automatic / remote
• Wireless frequency selection
• Firmware update
• Start automatic calibration
• Lens data selection

Compatibility
Compatible with standard ENG handles for Canon & Fujinon panning lenses:

• 20-pin Hirose – analog and remote control
• 12-pin Hirose – direct connection to the lens port on the camera
• 4-pin LEMO – communication via "I" protocol
• 6-pin LEMO – MBUS port
• Cooke I System – real-time data transfer, no storage

Wireless control
Built-in wireless module allows connection to Movcam wireless lens controllers, optionally for iris, zoom, and focus.

Zoom/Focus – requirements and compatibility
Using a 20-pin adapter cable (not included):

• Fujinon
• Canon
• Microforce

Remote control compatibility
Using a 20-pin interface:

• Cmotion
• Preston
• ARRI

Speed and sensitivity
The motors have been optimized for high-speed drive while maintaining sensitivity and precision.

ENG-style operation

• Zoom speed
• Q-Z switch
• Information display
• VTR switch
• Function selector
• Display on/off
• Return switch
• Zoom control switch
• Aperture control switch
• Instant automatic aperture
