VAXIS ATOM 600 HDMI 1TX 1RX Kit

The Vaxis ATOM 600 HDMI kit with transmitter and receiver sends up to 1080p60 with 80 ms latency over 150 m. HDMI loop on the transmitter, two HDMI outputs on the receiver, monitoring on up to three phones, NP-F970 or USB-C power.

ATOM 600 HDMI is a compact wireless link for cameras with HDMI output – for gimbals, small crews and handheld shooting. The transmitter takes the camera signal and passes it via HDMI loop to the on-camera monitor, while the receiver outputs it on two HDMI ports. Both units are palm-sized and run silently without a fan.

Pocket-size wireless HDMI

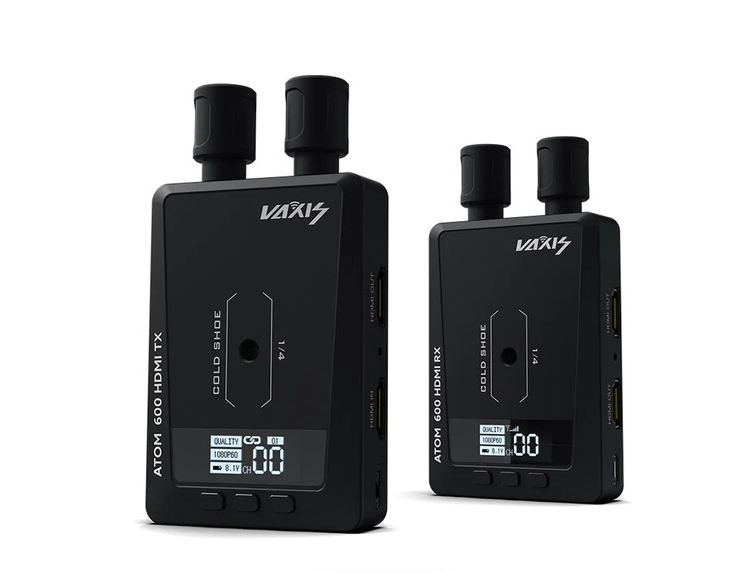

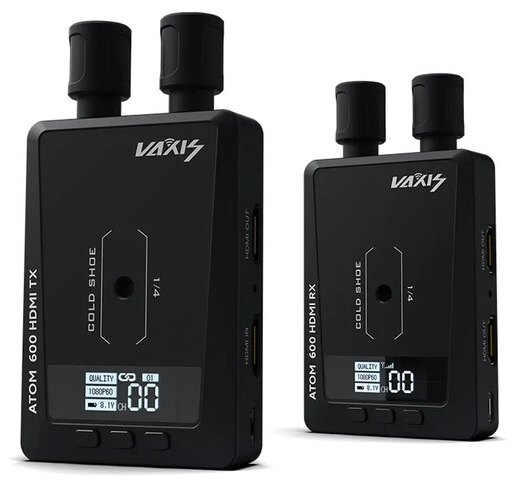

ATOM 600 HDMI transmitter and receiver with dual Cavs antennas and NP-F970 or USB-C power.

150 m range80 ms latencyTransmitter + receiverFanlessApp monitoring

HDMI loop on camera

The transmitter has an HDMI input and loop output, so the on-camera monitor stays connected. The receiver outputs the image on two HDMI ports.

Power as needed

Each unit runs on an NP-F970 battery or USB-C from a power bank or adapter. The transmitter draws under 5 W, the receiver under 3 W.

Part of the ATOM ecosystem

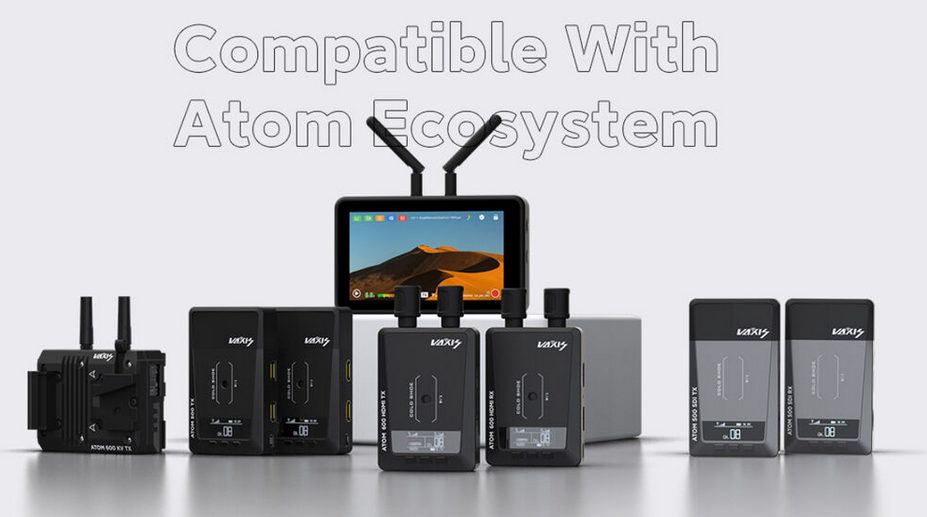

ATOM 600 HDMI works with Atom A5 monitors and other parts of the ATOM system. One transmitter serves two receivers plus three mobile devices with the app.

Cavs antenna

Dual-band 2.4 and 5.8 GHz for a stronger signal.

Silent

Fanless, receiver draws under 3 W.

Size

91 × 63.5 × 26 mm and 150 g.

Mounting

Cold shoe surface and 1/4″ thread.

ATOM 600 HDMI. Keep humble, more muscle – a transmitter and receiver of the same compact size.

Key features. 150 m range, low latency, dual Cavs antenna, multiple ports, trigger record and fitting into the Atom ecosystem.

Light and silent. A 4-inch unit fits in your palm and, drawing 3.5 W, needs no fan.

150 m range. The image from the transmitter reaches the receiver at up to 150 metres.

0.08 s latency. An 80 ms delay is low enough for watching the shot and pulling focus from a monitor.

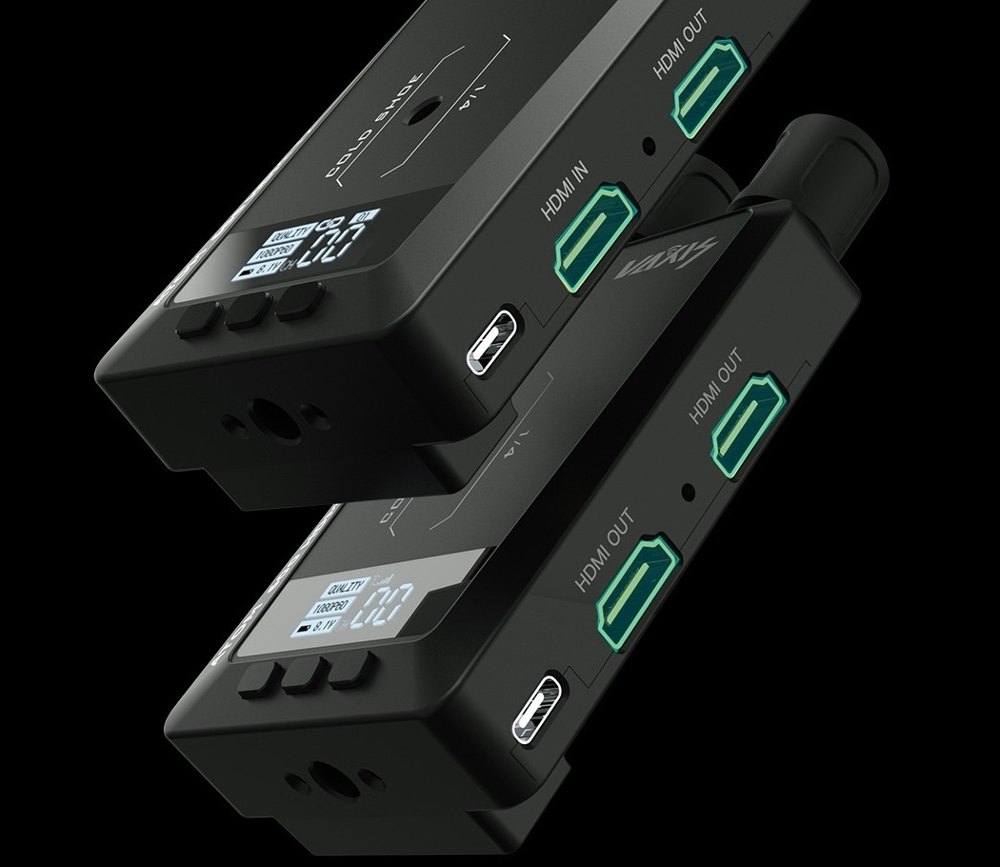

Multiple ports. Two HDMI ports on each unit: the transmitter has an input and a loop output, the receiver two outputs.

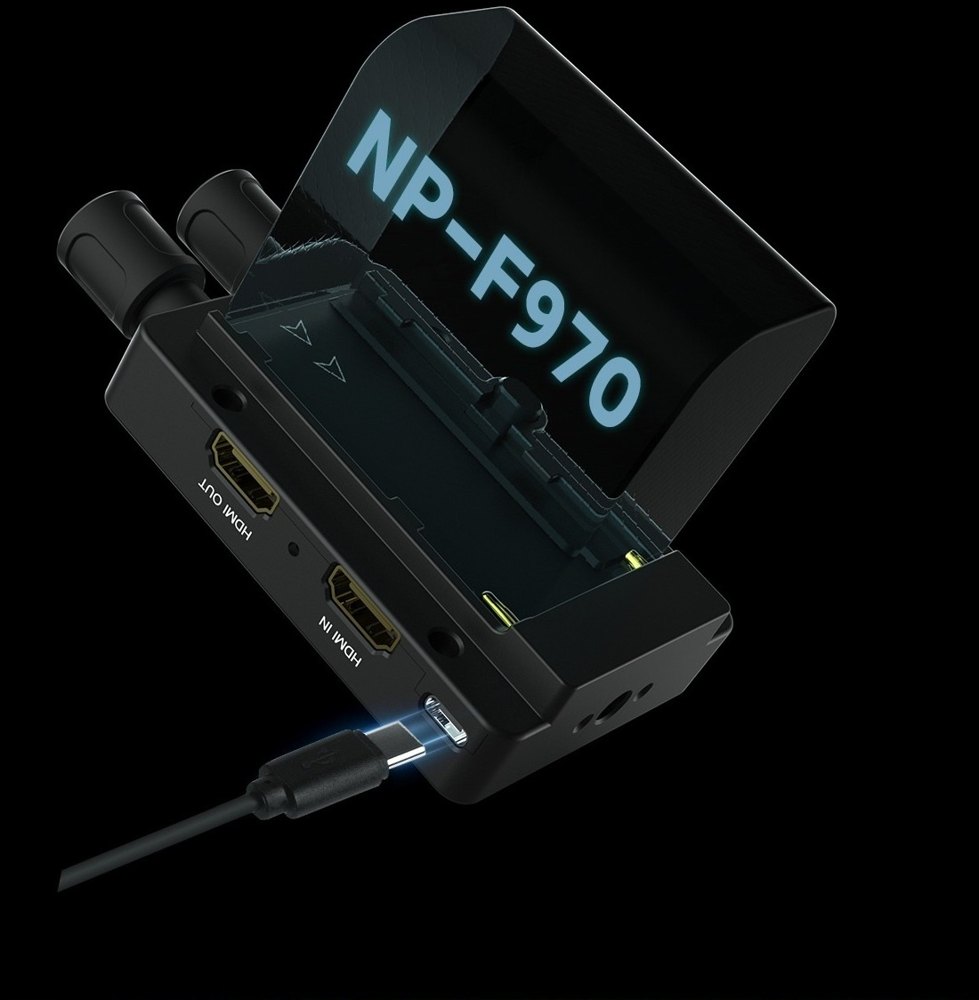

Dual power options. NP-F970 battery or USB-C power.

Dual Cavs antenna. Compatible with 2.4 and 5.8 GHz for a stronger signal and faster transfer.

Multiple connection methods. The transmitter fits on a gimbal, cage or camera; the examples show rigs with DJI Ronin.

Trigger record. With an Atom A5 monitor, the transmitter directly triggers its synchronous recording.

App monitoring. Watch the image on a phone, iPad and monitor at the same time – your phone becomes a monitor.

One camera, five screens. One transmitter connects to two receivers and three mobile devices simultaneously.
