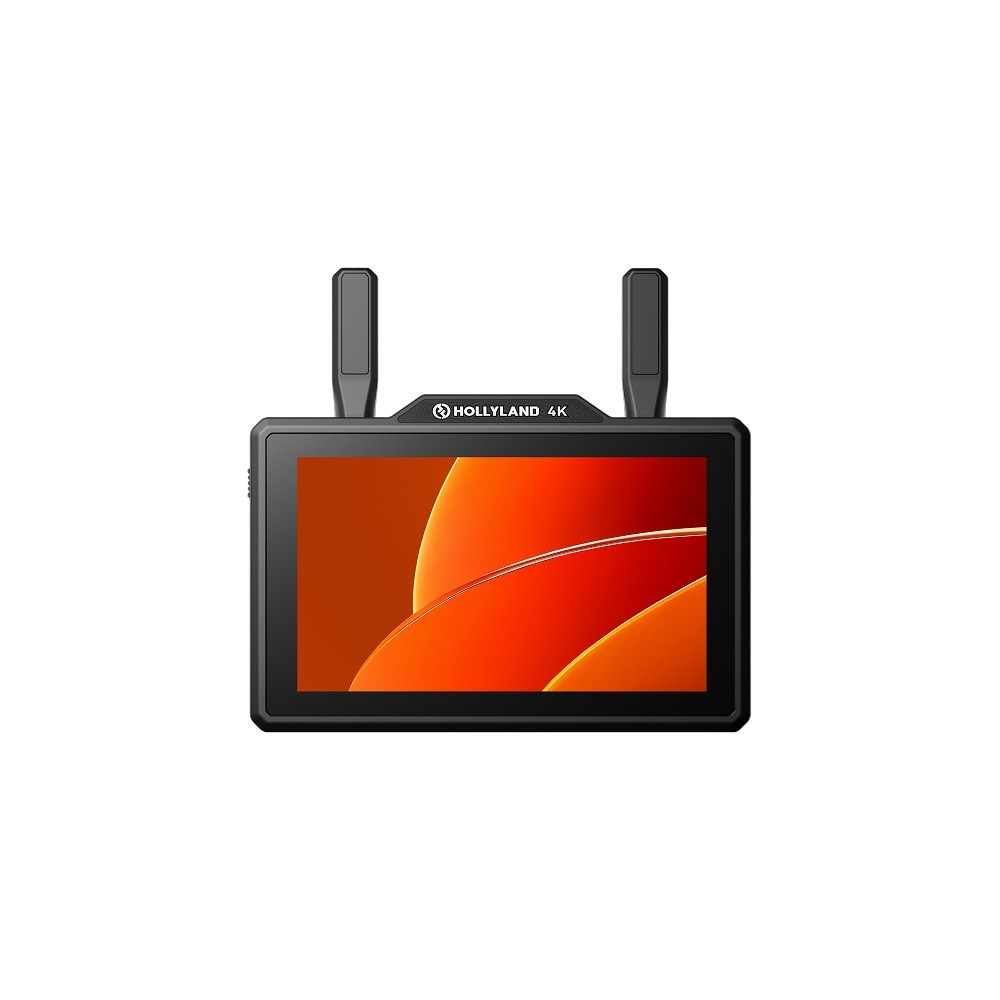

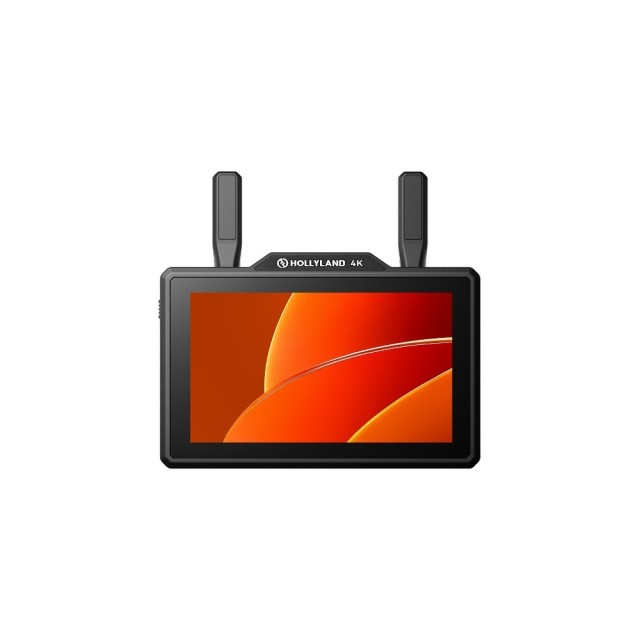

Hollyland Pyro 5 4K Wireless Transceiving Monitor
SKU: 8832
Hollyland Pyro 5 4K is a 5.5″ monitor with 1500-nit brightness that works as both a transmitter and a receiver. It transmits 4K30 with around 60 ms latency up to 400 m, and in Broadcast Mode one transmitter serves up to four receivers. It controls the camera by touch, records proxy files with timecode to an SD card and streams via RTMP.
519 € with VAT
428.93 € without VAT
Availability
on request
Top accessories for Hollyland Pyro 5 4K Wireless Transceiving Monitor
SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
94 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent > 5 pcs
SanDisk Extreme PRO SDXC UHS-I 64GB 200MB/s
SanDisk Extreme PRO SDXC UHS-I 64GB 200MB/s
43 €
To be sent > 5 pcs
Hollyland Shoulder Strap 01 for Pyro 7
Hollyland Shoulder Strap 01 for the Pyro 7 and Pyro 5 4K wireless monitors. With
22 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Hollyland Pyro 5 4K is a 5.5″ monitor with 1500-nit brightness that works as both a transmitter and a receiver. It transmits 4K30 with around 60 ms latency up to 400 m, and in Broadcast Mode one transmitter serves up to four receivers. It controls the camera by touch, records proxy files with timecode to an SD card and streams via RTMP.

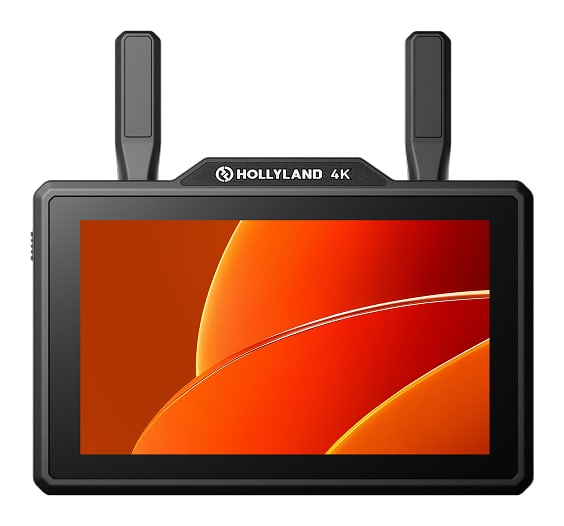

Monitor, transmitter and receiver in one
Pyro 5 4K combines a 5.5″ touchscreen with dual-band 4K30 transmission and fits into the entire Pyro ecosystem.
5.5″ / 1500 nits4K30up to 400 m60 ms
More than a monitor
Camera control, proxy recording to SD card, RTMP streaming and image analysis tools in a single device.

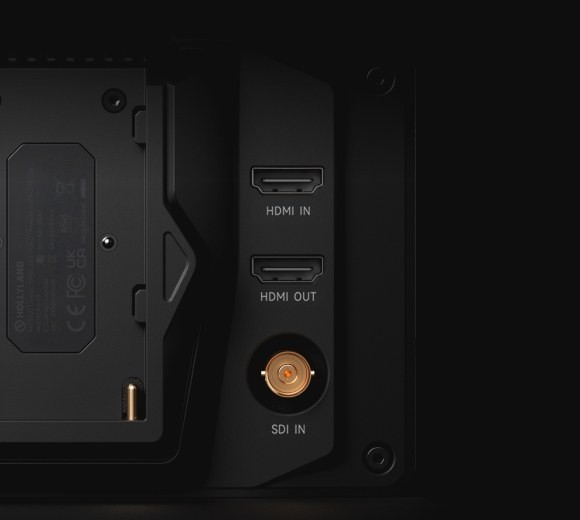

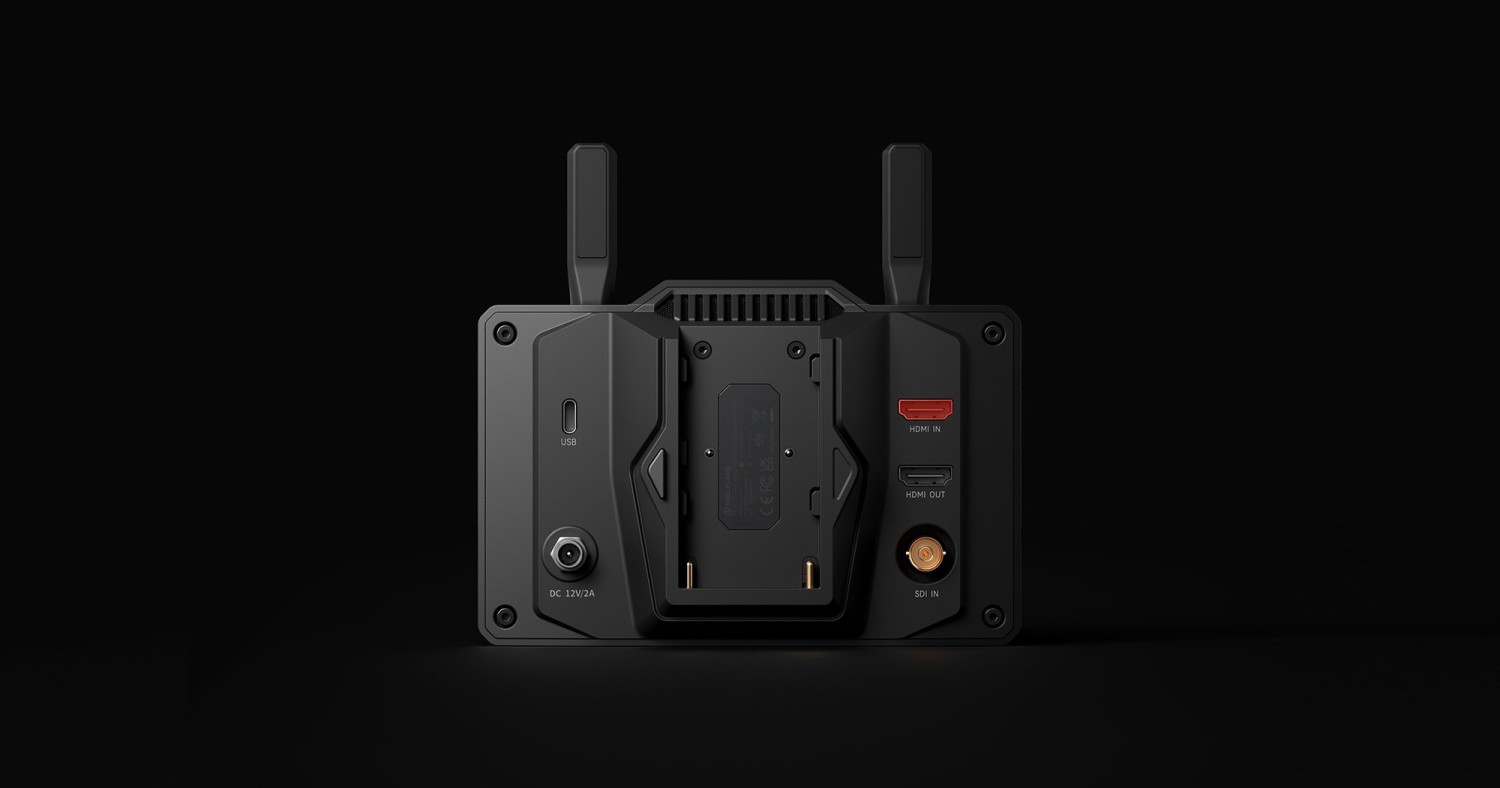

HDMI and SDI
HDMI 1.4b and 3G-SDI inputs with HDMI loop-out in transmitter mode, HDMI 1.4b output in receiver mode.
NP-F and DC power
NP-F battery (6–16 V) or 10–18 V DC supply.

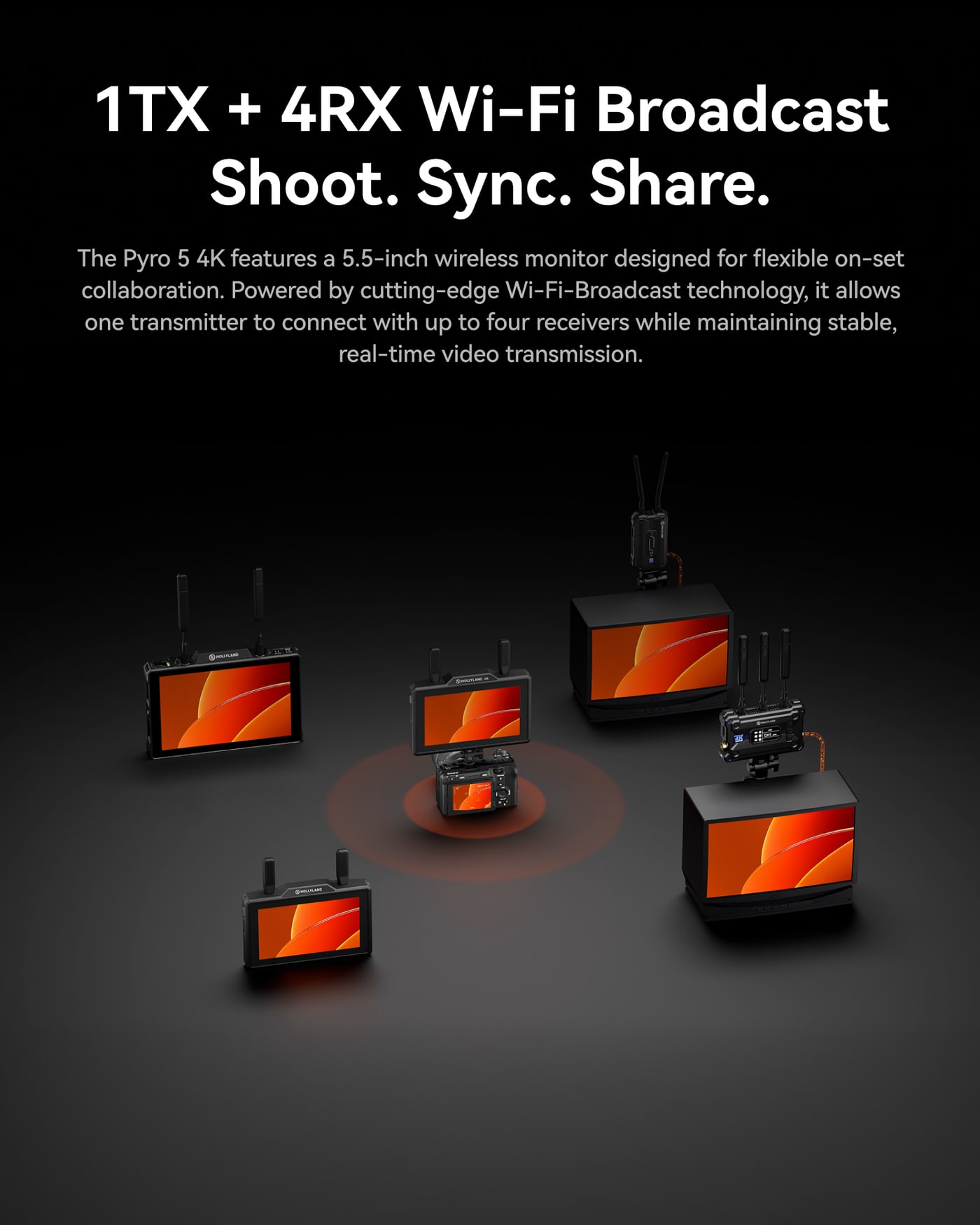

1 transmitter and 4 receivers
In Broadcast Mode one transmitter connects with up to four receivers, with intelligent camera view switching and auto frequency hopping, at up to 200 m line of sight or 100 m back-to-back. One-to-four transmission also works with Broadcast Mode off, with a range of up to 400 m line of sight and 150 m back-to-back.
1500-nit brightness
The 5.5″ display with 1920 × 1080 resolution, 1500-nit brightness and Rec.709 coverage stays readable even in direct sunlight.

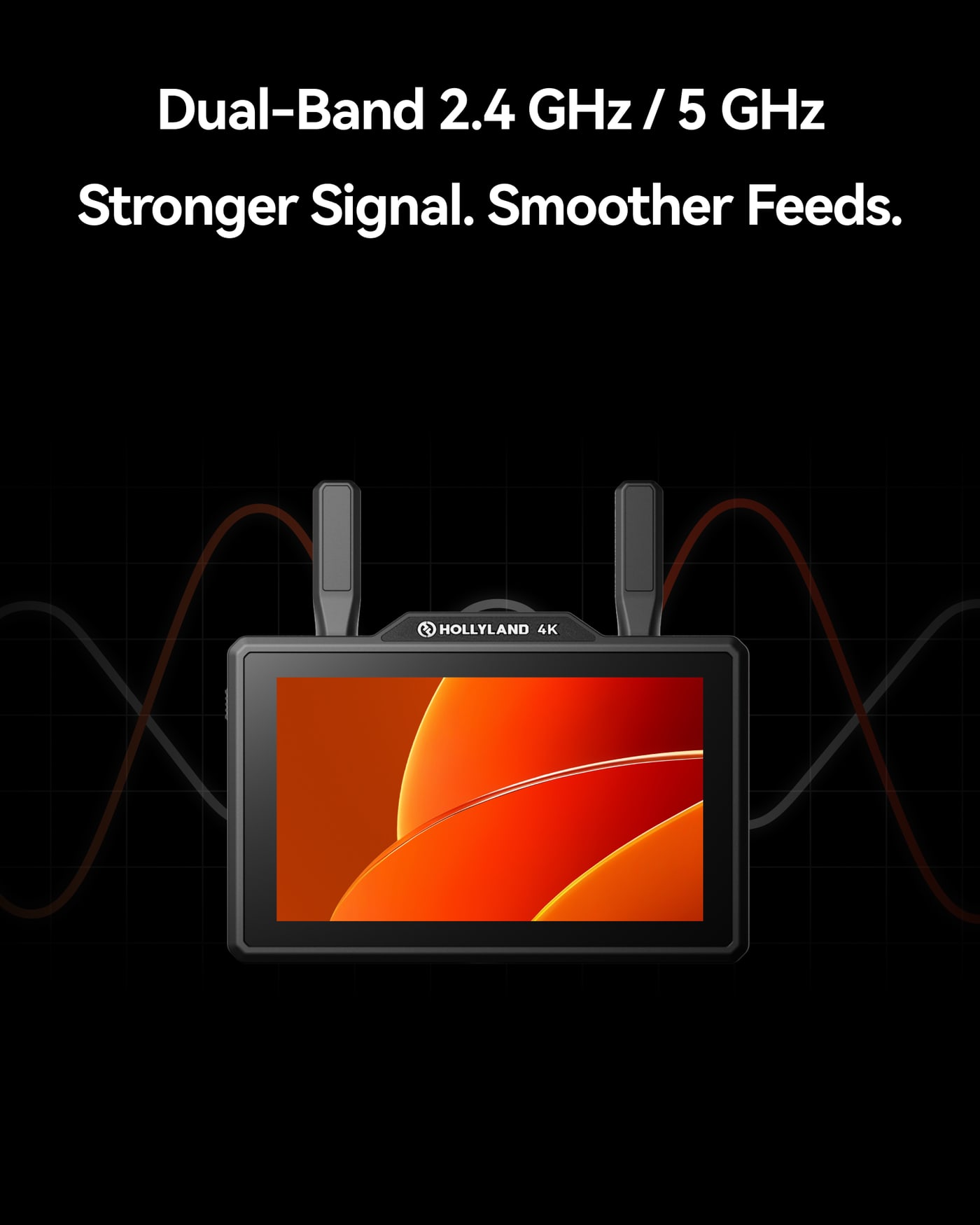

Dual band and auto frequency hopping

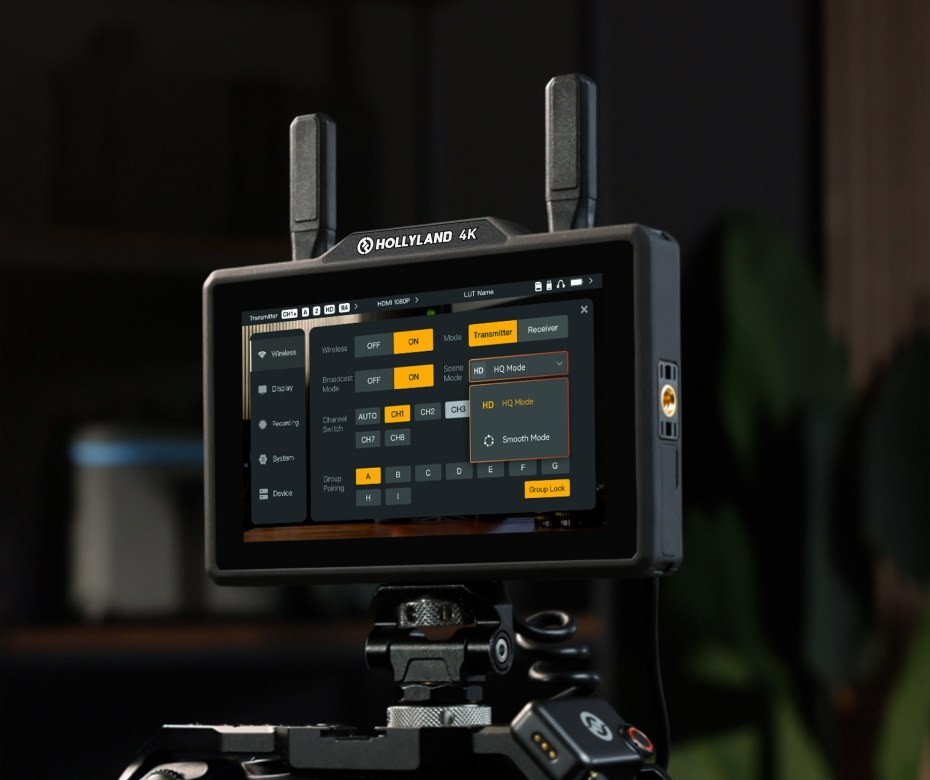

Transmission in the 2.4 GHz and 5 GHz bands adapts to the environment by itself. At startup the system scans and locks onto the best channel; channels can also be scanned and switched manually on the receiver with signal strength indicators. HD Mode offers a 12 Mbps bitrate with latency from 75 ms, Smooth Mode latency from 60 ms for long distances.

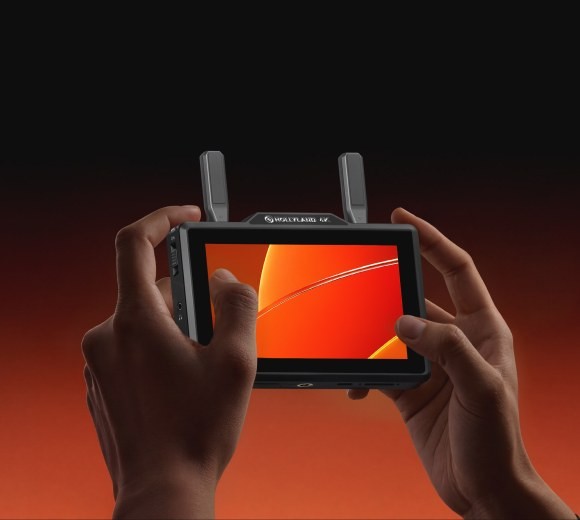

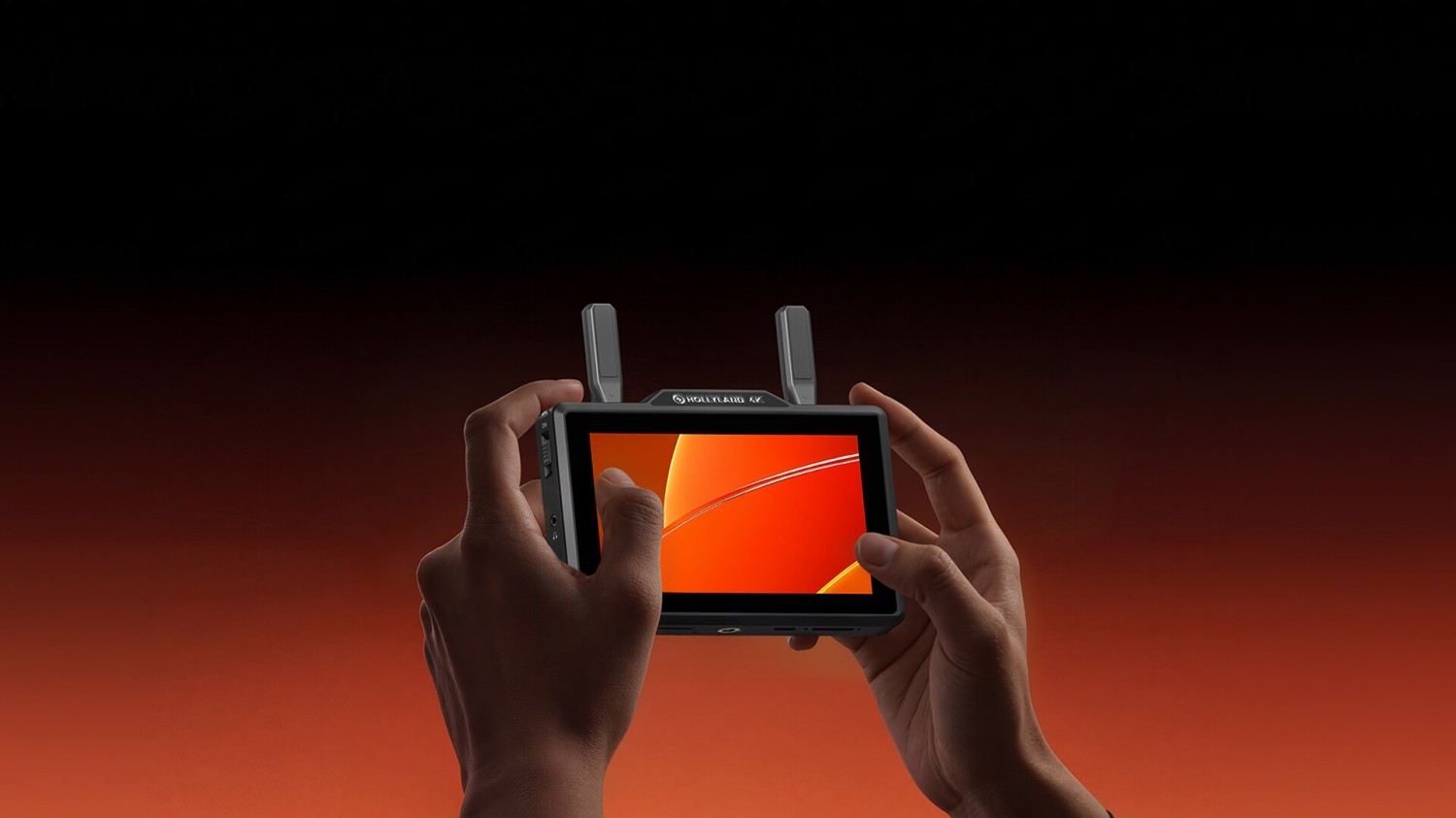

Touch camera control
Set ISO, aperture, shutter speed, white balance and focus mode from the touchscreen and trigger camera focus with a tap.

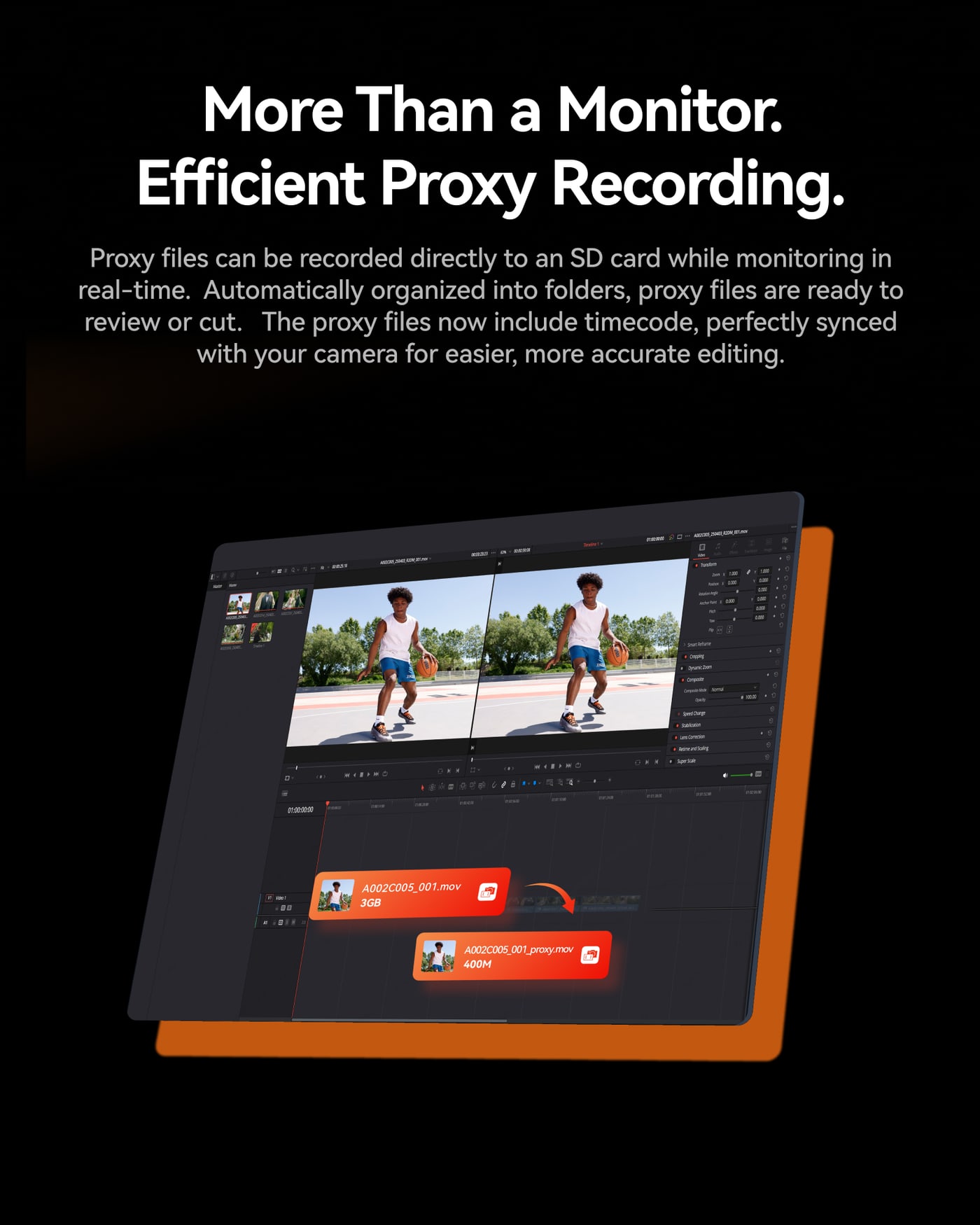

Proxy recording with timecode
Proxy files are recorded directly to an SD card while monitoring, organized automatically into folders and carry timecode synced with the camera.

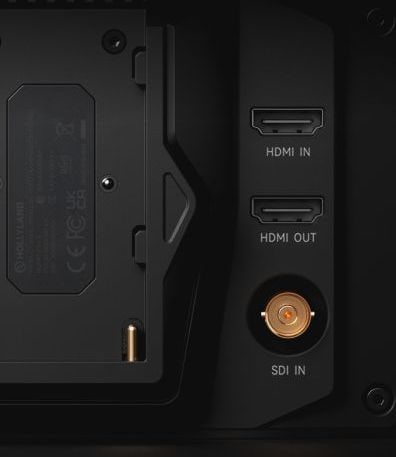

Interfaces for every setup
HDMI input with loop-out and a 3G-SDI input fit Pyro 5 4K into most production setups. There is also a 3.5 mm headphone output, USB-C (USB 2.0 OTG) and an SD card slot.
Image analysis and more
Waveform, vectorscope, histogram, focus assist, zebra, false color, 3D LUT import from a USB drive, aspect markers, crosshatch, anamorphic de-squeeze, image flip, 1–4× zoom and image overlay. Lock Pairing keeps each receiver tied to its transmitter when several systems run side by side, and RTMP streaming runs via the HollyView app and a 4G LTE Wi-Fi modem.
PACKAGE CONTENT
- 1× Pyro 5 4K
- 2× Easy-Install short antenna
- 1× USB-C OTG adapter
- 1× tempered glass screen protector
- 1× USB-C to USB-C cable
- 1× 1/4″ cold shoe
SPECIFICATIONS
- Display: 5.5″ touchscreen, 1920 × 1080, 16:9
- Brightness and contrast: 1500 nits, 1000:1
- Color gamut: Rec.709
- Inputs (transmitter mode): HDMI 1.4b, 3G-SDI
- Outputs: HDMI 1.4b loop-out (transmitter mode), HDMI 1.4b (receiver mode)
- Color depth: HDMI input YUV 422 / YUV 444 8-bit, HDMI output RGB 888
- Audio: HDMI 1.4b, 2 channels
- Transmission: 1 transmitter and up to 4 receivers, 2.4 GHz and 5 GHz
- Range (line of sight): up to 400 m, up to 200 m in Broadcast Mode
- Latency: approx. 60 ms (1080p60, laboratory test)
- Bitrate and codec: max. 12 Mbps, H.264
- Operating frequency: 2.412–2.484 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.725–5.850 GHz
- Transmit power: < 23 dBm
- Receiver sensitivity: −85 dBm, −80 dBm in Broadcast Mode
- Bandwidth: 20 MHz, 40 MHz in Broadcast Mode
- Connectors: SMA antenna (male), DC 2.0 mm, 3.5 mm headphones, USB-C (USB 2.0 OTG), SD slot
- Power: NP-F battery 6–16 V, DC 10–18 V
- Power consumption: transmitter < 18.9 W, receiver < 16 W
- Weight: approx. 410 g
- Dimensions: 151.6 × 102.3 × 40.5 mm
- Operating temperature: −10 to 45 °C
- Storage temperature: −40 to 60 °C
Parameters
Parameters
| Manufacturer: | Hollyland |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | DC |
| Colour | Black |
| Input connector | HDMI type A – female · BNC – female |
| Output connector | HDMI type A – female |
| Video codec | H.264 |
| Output connector | 3.5 mm CTIA – female |
| Line-of-sight range | 400m |
| Weight per unit | 410g |
| Maximum receiving devices | 4 |
| Maximum UHD 4K frame rate | 30fps |
| Display brightness | 1500nit |
| Touchscreen | Yes |
| NP-F battery slots | 1 |
| Latency | 60 ms |
| Size | 5.5" |
| Input | SDI · HDMI |
| Output | HDMI |
| Panel resolution | 1920 × 1080 (Full HD) |
| Monitor power supply | NP-F |
Other parameters
| Other features | Touchscreen · Camera control |
| High Brightness (NITS) | Yes |
