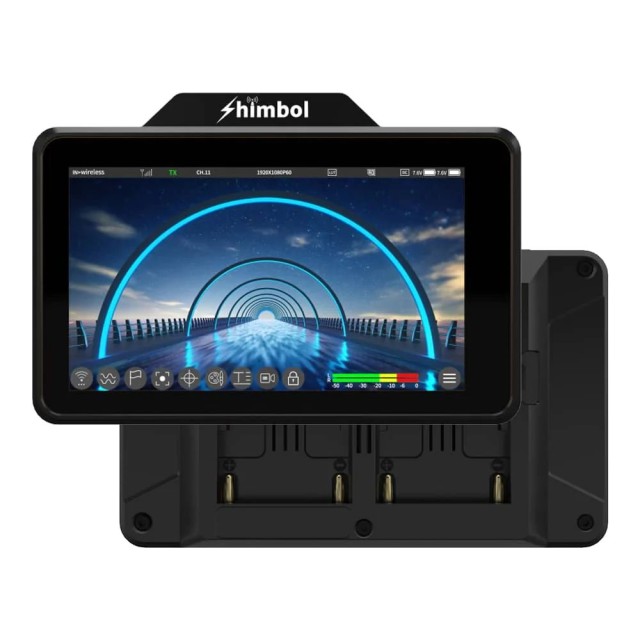

Shimbol ZO600M 5,5“ Wireless HDMI Monitor

The Shimbol ZO600M is a 5.5" HD touchsreen on-camera monitor with 1920x1200 resolution, 1000 cd/m² brightness, and 1200:1 contrast ratio. It features an HDMI I/O and a a wireless transmission system allowing to wirelessly receive/transmit video from up to 152m with approx. 80 ms latency. The RX/TX operation is switchable and Shimbol ZO600M can thus be used either as a transmitter or receiver. As a transmitter, it can send video to 2x receivers plus 1x iOS devices simultaneously. It also features a teleprompter function. By downloading the text content to the TF card, it can be used as a teleprompter. The TF card slot also enables 3D LUT¨import as well as mp4 video recording. The Shimbol ZO600M is powered using the L-series battery (dual slots) or DC supply.

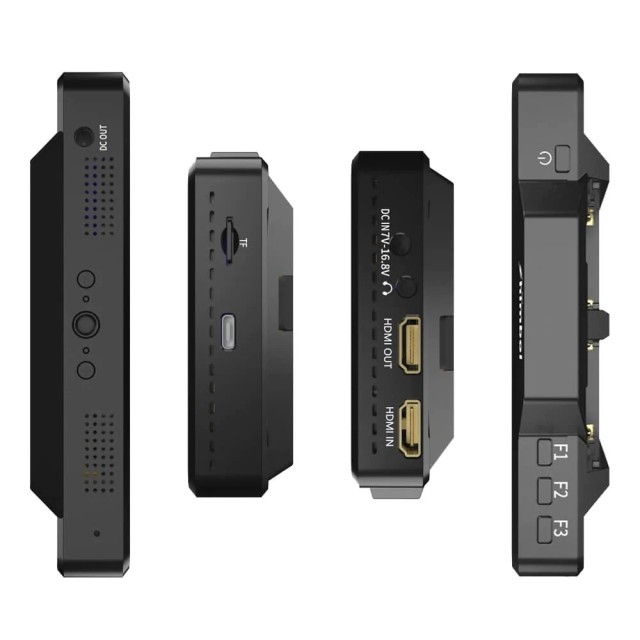

Interface: HDMI I/O, 3,5mm Geadphone Out, USB-C
Power: NP-F, DC In
Power Supply Voltage: 7-16,8VDC
Display: 5,5“ TP
Screen Resolution: 1920x1080
Brightness: 1000 cd/m2
Contrast: 1200:1
Video Input Format: 1080p60/59,94/50/30/29,97/25/24/23,98, 1080i60/59,94/50, 720p60/59,94/50
Video Recording Format: MP4 (max. 4 GB)
LUT Format: Cube (17x17x17, 33x33x33)
Teleprompter File Format: TXT
Audio Sampling Frequency: 48 kHz
Weight: 300 g
Dimensions: 151x103x29,5
Wireless Transmission: 5,1-5,8 GHz
Transmitting Power: 17 dBm
Latency: 80 ms
Receiving Sensitivity: -80 dBm
Range: up to 152m
