Feelworld T7S PRO

The Feelworld T7S PRO is a 7-inch 2000-nit ultra-bright professional field monitor designed for filmmakers, colorists, and broadcast professionals. It features SDI and HDMI 2.0 I/O, 3D LUT support (up to 32 LUTs), HDR display, and advanced monitoring tools like waveform, vectorscope, false color, and focus assist, ensuring accurate image evaluation in any production environment.

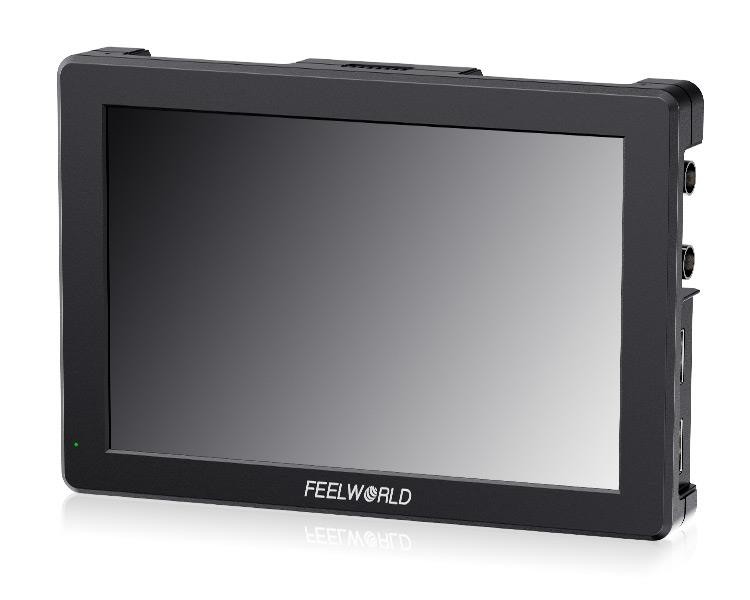

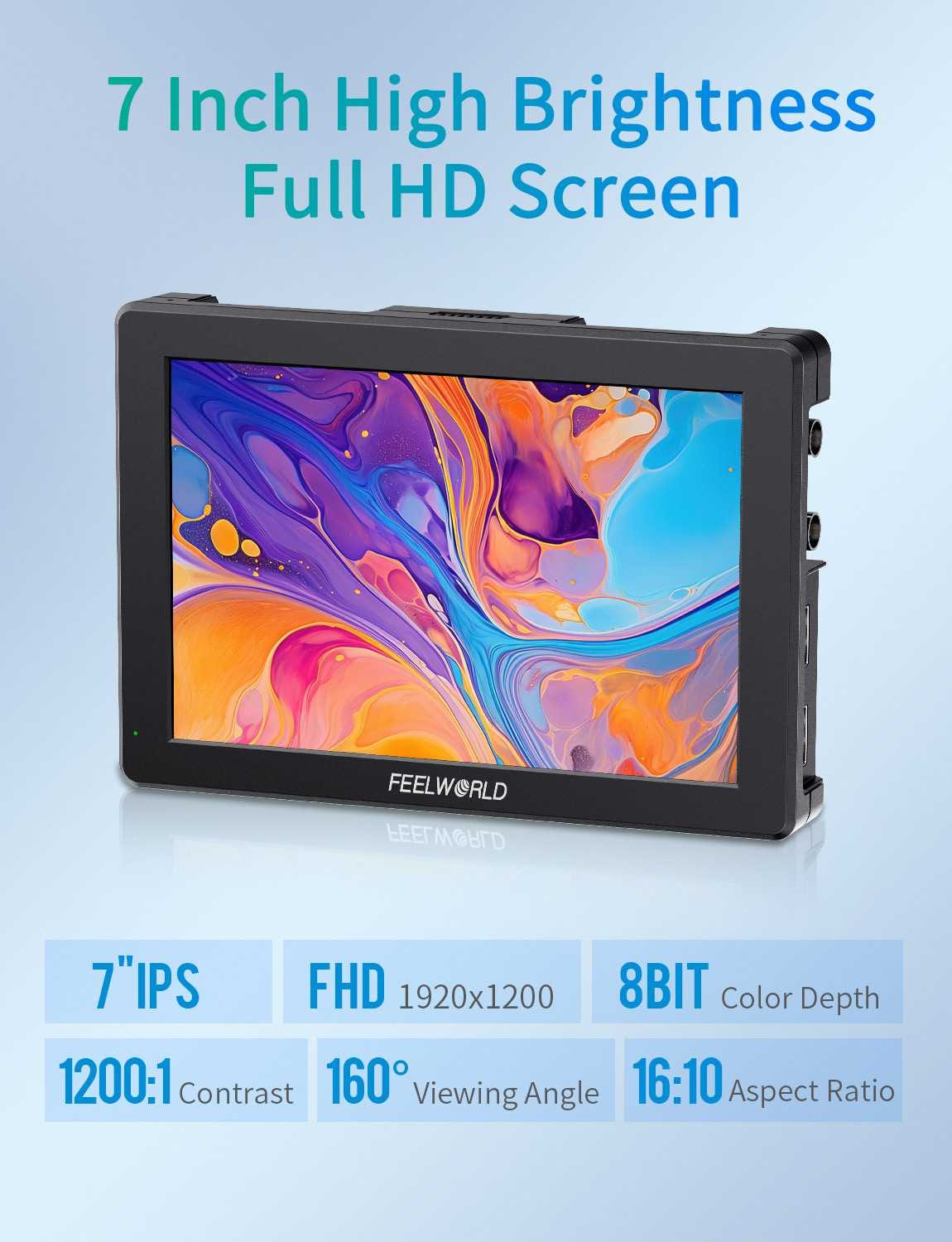

The Feelworld T7S PRO 7-inch Field Monitor delivers exceptional clarity, precision, and versatility for professional video monitoring on set or in the studio. With a Full HD 1920×1200 IPS panel, 2000 cd/m² high brightness, and wide 160° viewing angle, it provides sharp, color-accurate visuals even in direct sunlight.

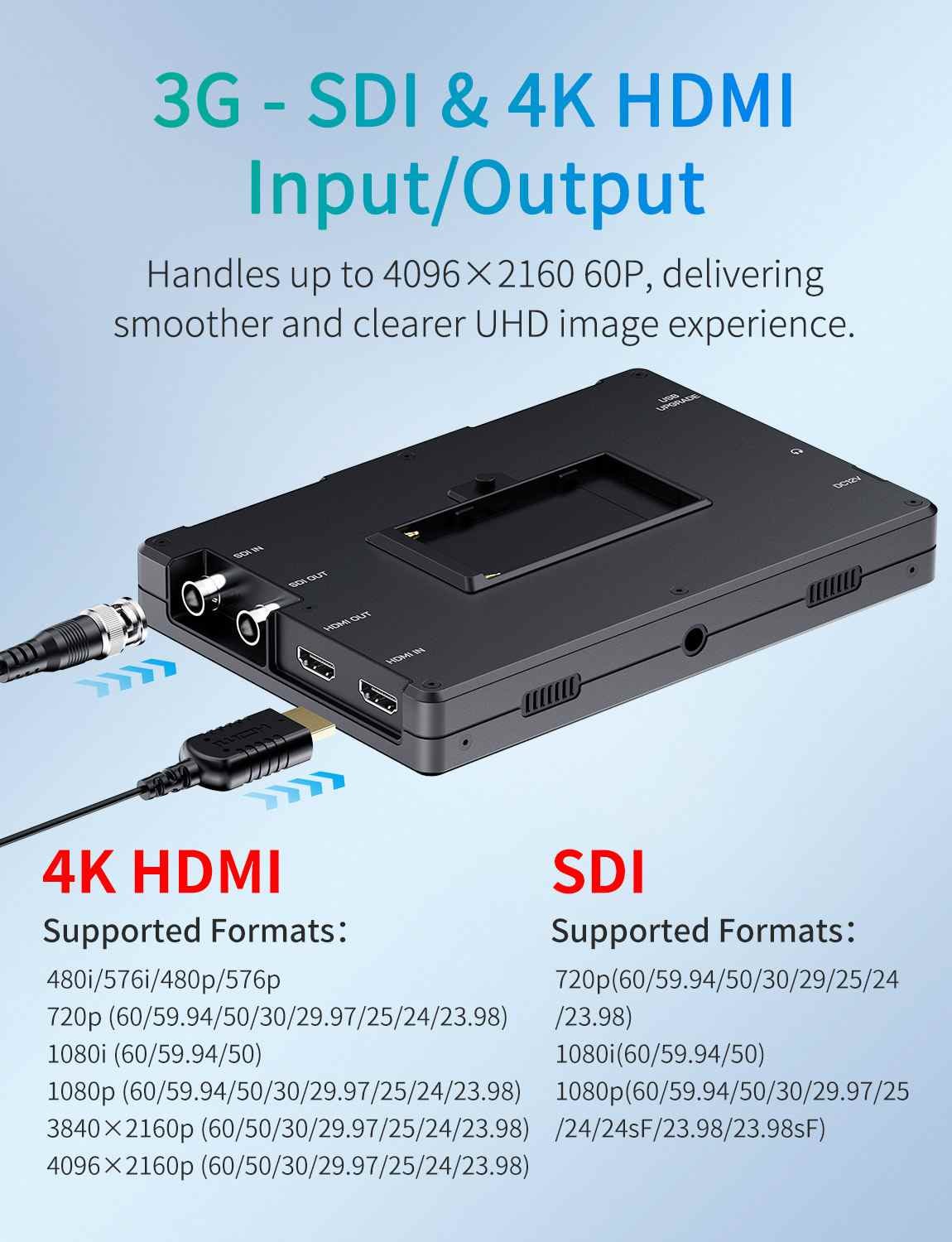

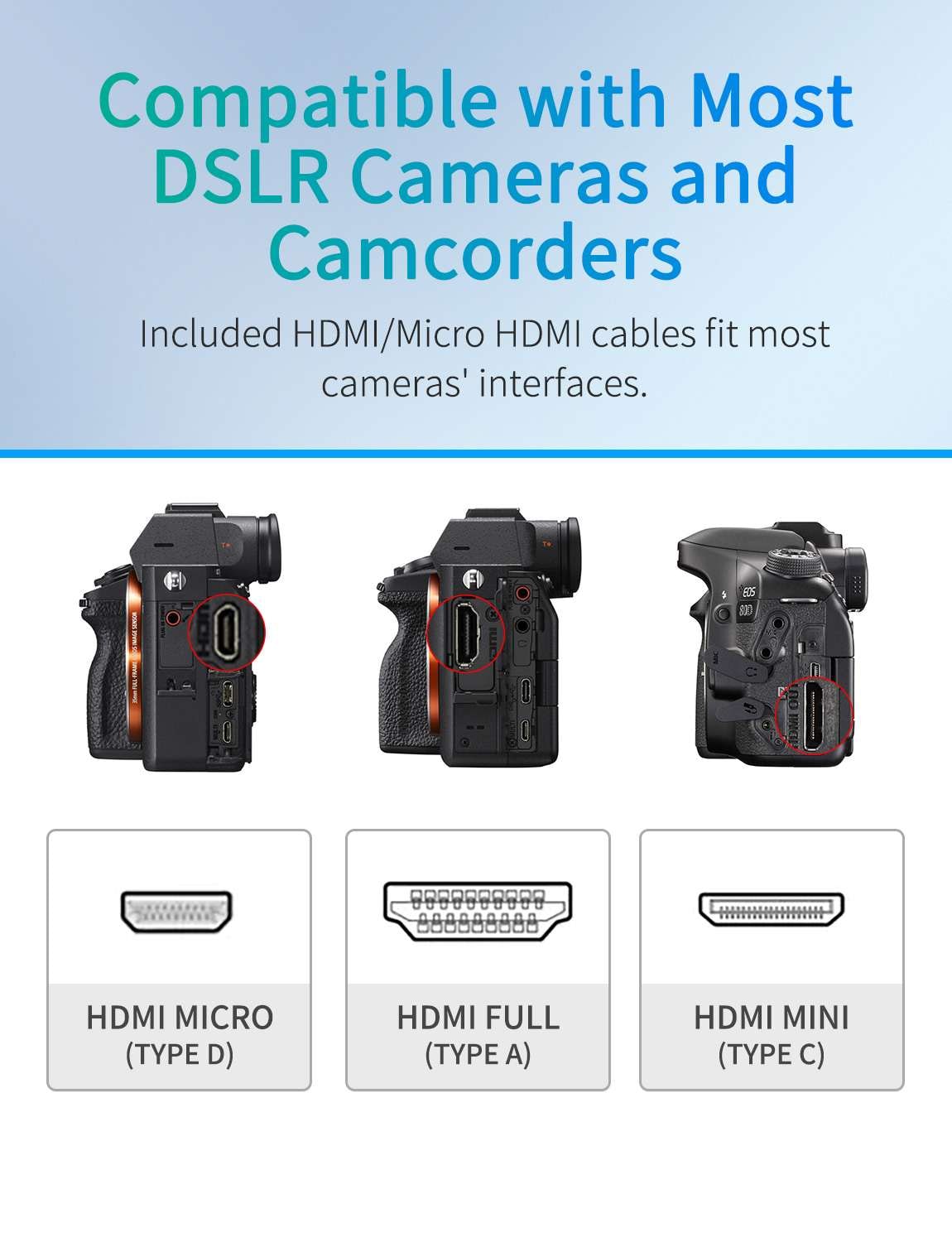

Supporting both 3G-SDI and HDMI 2.0 inputs and outputs, the T7S PRO is compatible with a wide range of cameras and workflows. It offers 3D LUT support (up to 32 user LUTs), enabling you to apply and preview color grades or convert Log to Rec.709 instantly. The monitor also supports HDR, ensuring rich contrast and accurate highlights for modern cinematography.

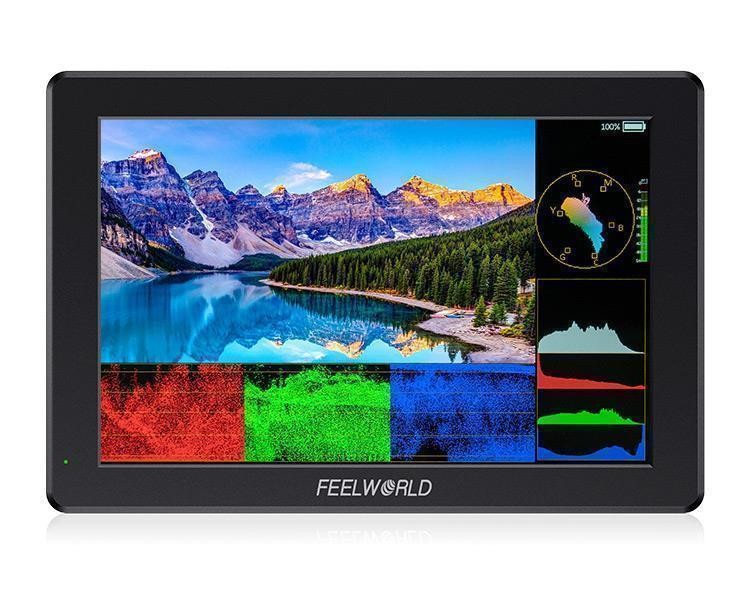

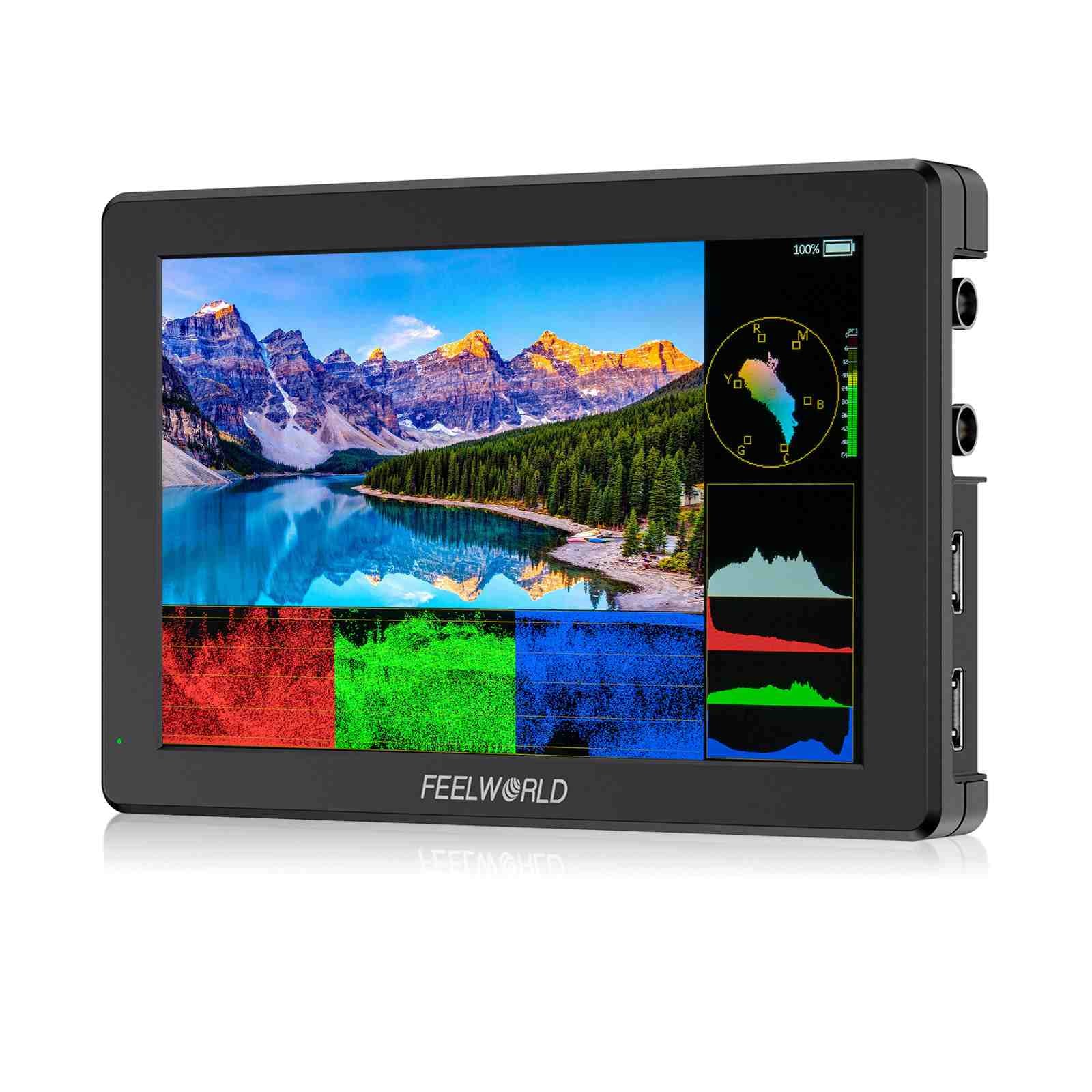

Advanced exposure and focus tools include waveform (RGB/YUV/Y), vectorscope, histogram, false color (Normal/ARRI), focus assist with adjustable levels, and zebra exposure warning. The anamorphic mode (1.33x–2.0x and user-defined scaling) allows accurate preview of de-squeezed images from anamorphic lenses.

The T7S PRO also features customizable markers, grids, and aspect ratios, as well as SDI timecode display, image flip, freeze, and zoom up to 16x. Multiple user switch buttons allow fast access to frequently used tools, while color temperature adjustments and OSD transparency controls provide further customization.

Its solid build and high-luminance panel make it an ideal tool for DPs, camera operators, and color technicians working in bright outdoor environments or demanding film sets.

Key Features:

• 7" Full HD IPS Display (1920×1200)

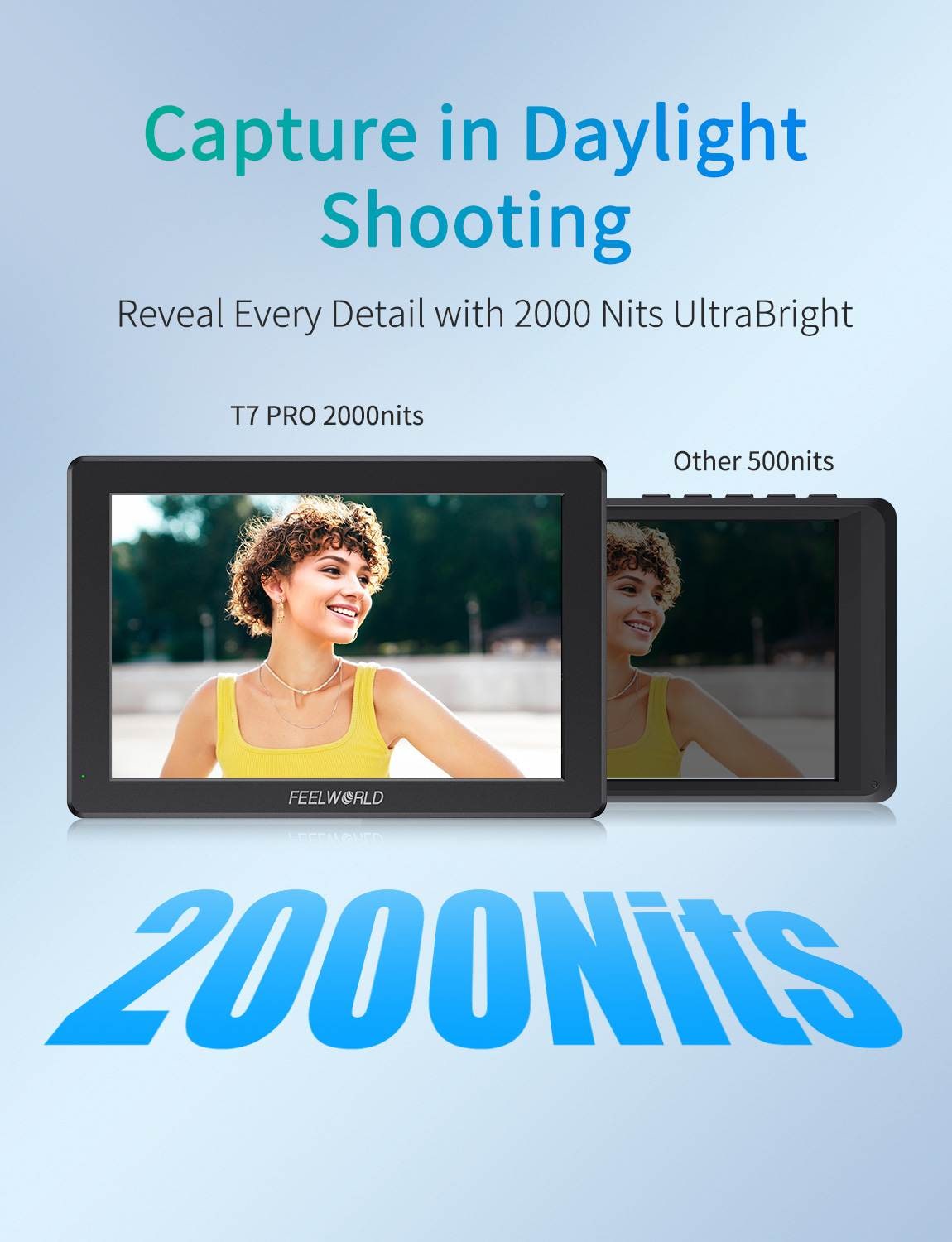

• Brightness: 2000 cd/m² (high-bright for daylight viewing)

• Contrast Ratio: 1200:1

• 3D LUT Support: Up to 32 custom LUTs (via USB)

• HDR Display Support

• Waveform, Vectorscope, Histogram (RGB/Y)

• Focus Assist: Adjustable levels, multiple colors (Red/Green/Blue)

• False Colors: Normal and ARRI modes

• Overexposure Warning (10–100 IRE adjustable)

• Anamorphic Preview Modes: 1.33x, 1.6x, 2.0x, user custom

• SDI Timecode Display (LTC, VITC)

• Zoom: 2x–16x + User-defined scaling

• Image Flip / Freeze / Pixel-to-Pixel

• Aspect Ratios & Safety Frames: Multiple presets (16:9, 4:3, 2.35:1, etc.)

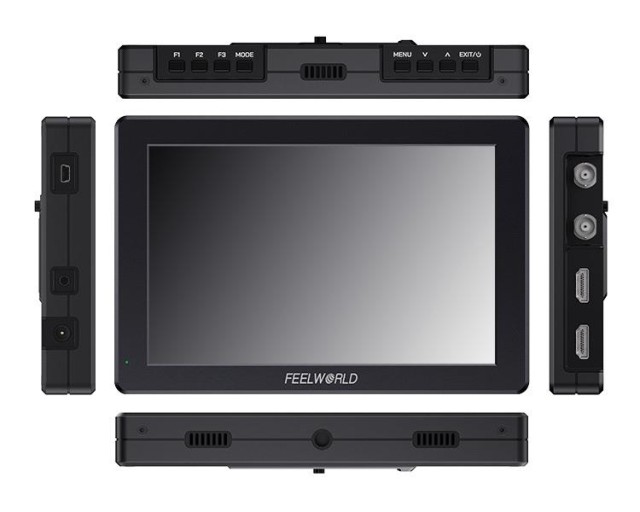

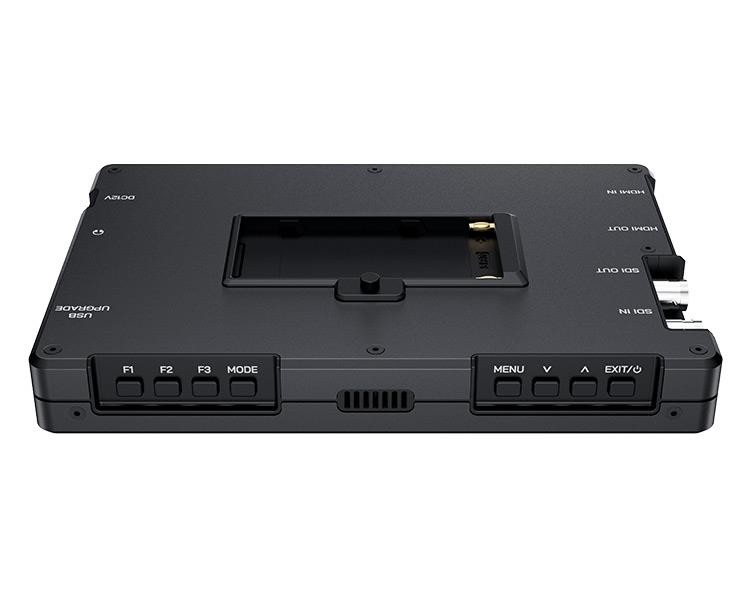

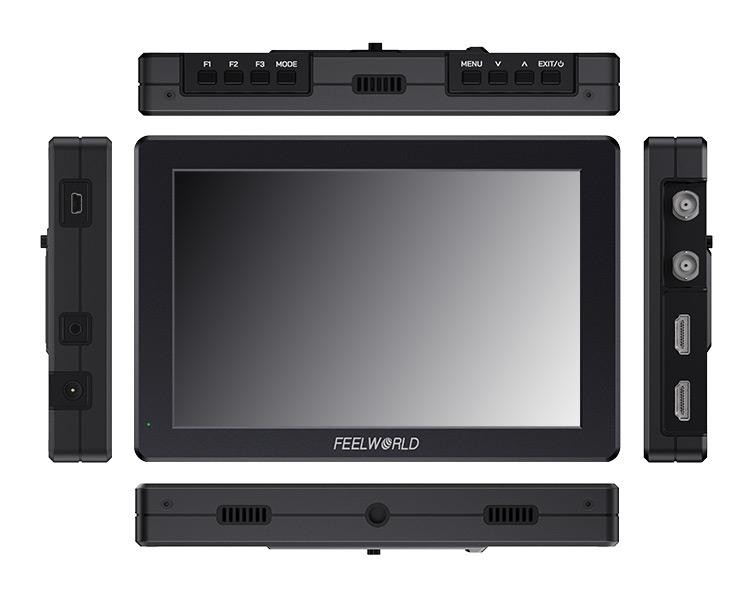

• Customizable User Buttons (1–4)

• Audio Monitoring via 3.5mm Headphone Jack

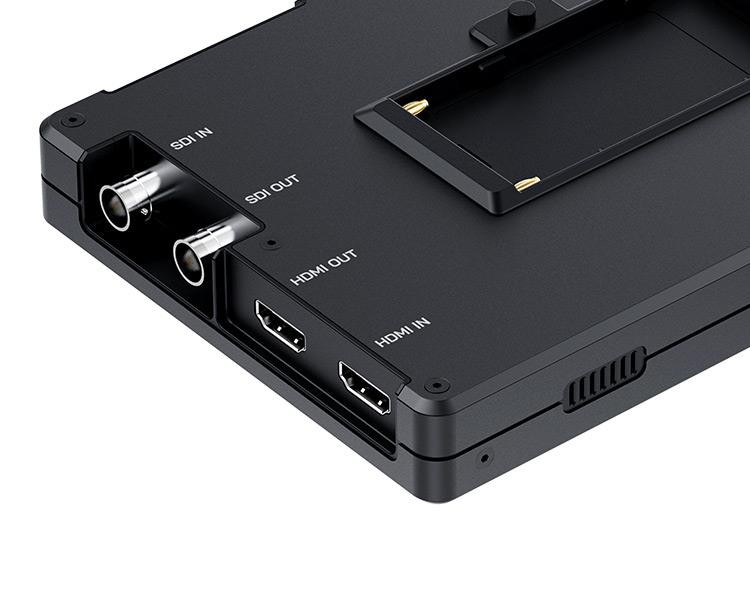

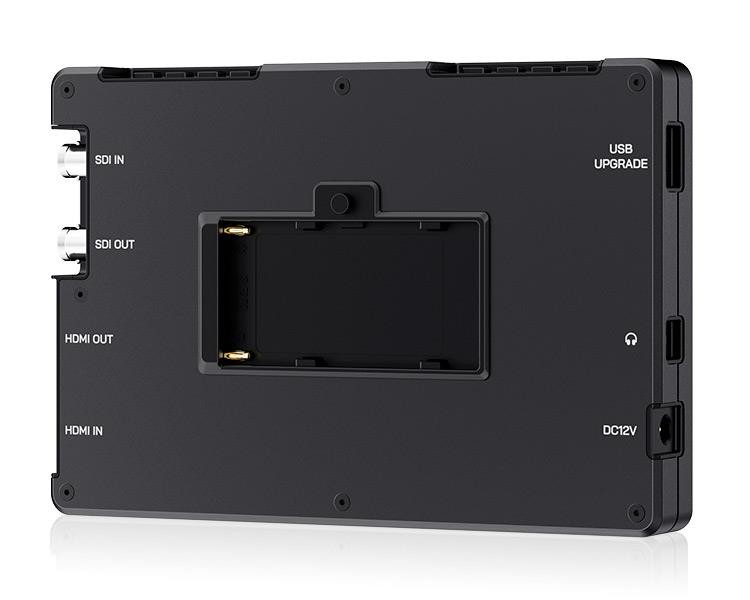

• Input: 3G-SDI, HDMI 2.0, Mini USB (LUT import)

• Output: 3G-SDI, HDMI 2.0

• Viewing Angle: 80°/80° (L/R, U/D)

• Backlight: LED

Specifications:

• Display Size: 7” IPS

• Resolution: 1920 × 1200 pixels

• Brightness: 2000 cd/m²

• Contrast Ratio: 1200:1

• Color Depth: 8-bit

• Aspect Ratio: 16:10

• Viewing Angle: 160° total

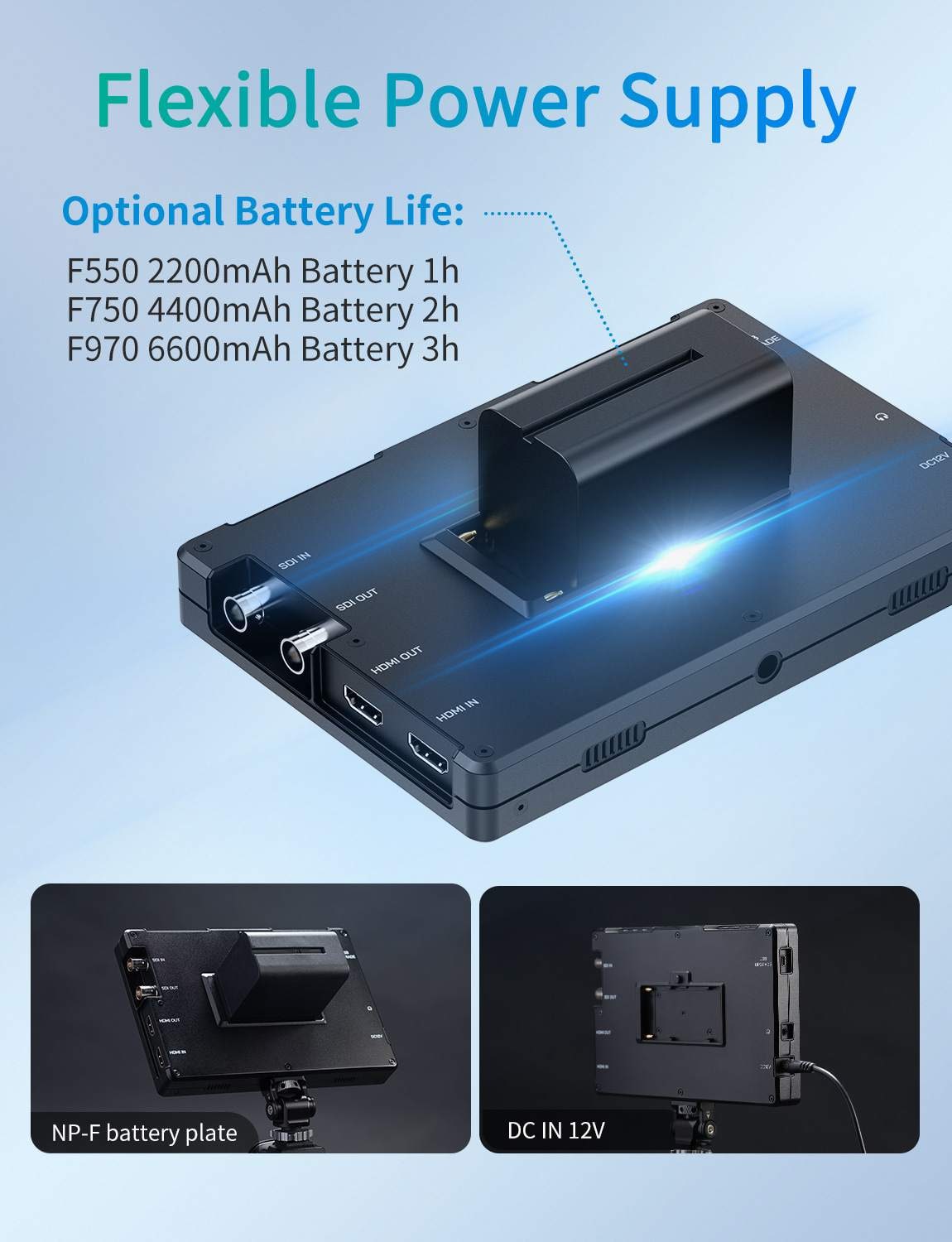

• Power Input: DC (7–24V)

• Audio Output: 3.5mm stereo headphone

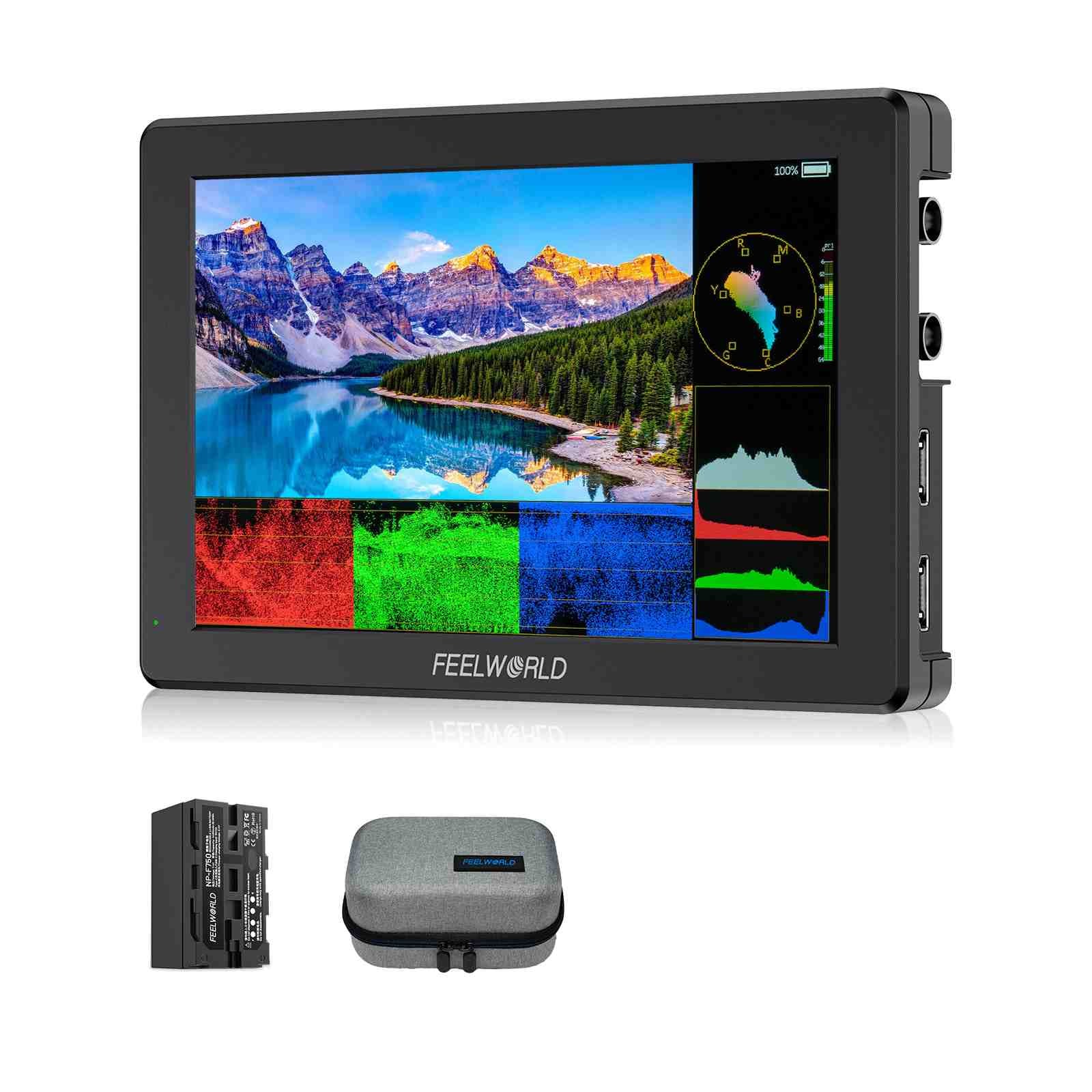

Package Includes:

• 1× Feelworld T7S PRO Monitor

• 1× HDMI Cable

• 1× Sun Hood

• 1× Tilt Arm Mount

• 1× User Manual
