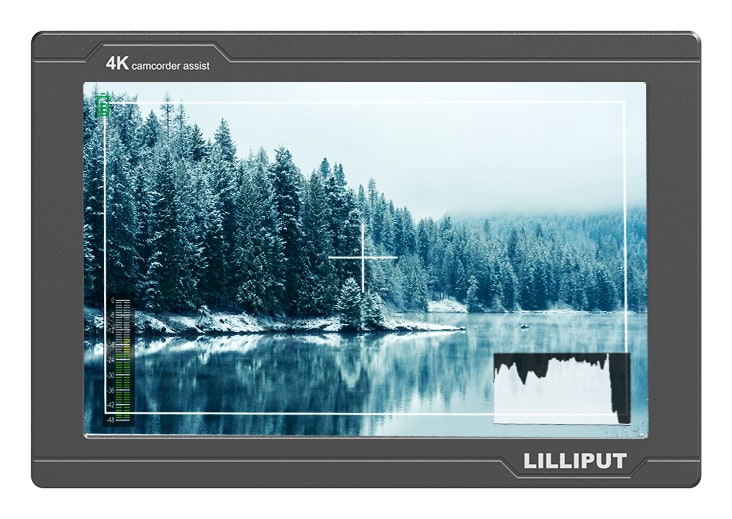

Lilliput FS7 7" 4K HDMI/3G-SDI On-Camera Monitor

The Lilliput FS7 7″ 4K HDMI/3G-SDI monitor is a high-contrast on-camera monitor with a native 1920 × 1200, 8-bit display. View clear, sharp images up to DCI 4K 4096 × 2160 (24p) and UHD 3840 × 2160 (up to 30p) via HDMI, and up to 1080p60 via the 3G-SDI input. The FS7 offers a 1000:1 contrast ratio, 500 cd/m² brightness and a wide 170° viewing angle; both the HDMI and 3G-SDI signals can be looped out to other devices.

7" monitor for SDI and HDMI cameras

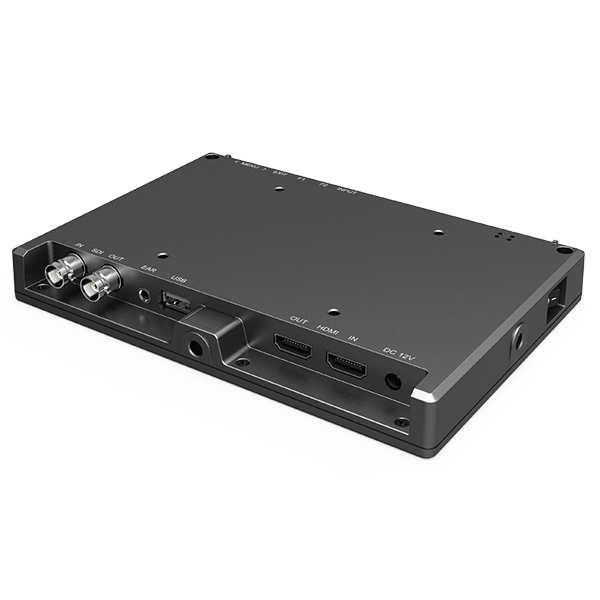

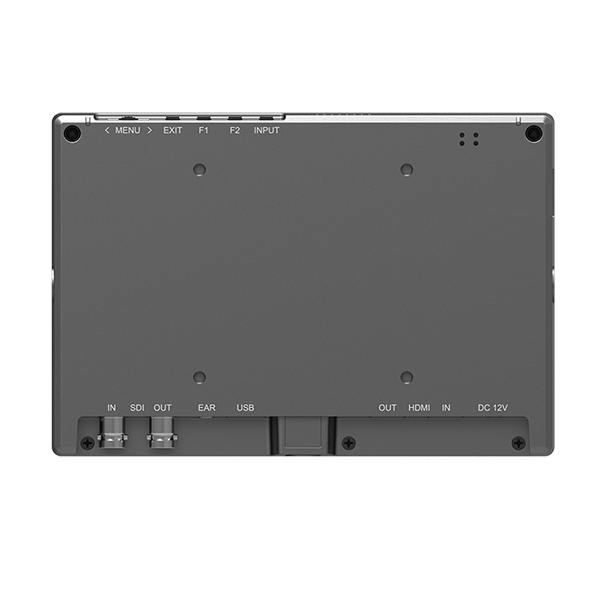

The FS7 accepts 3G-SDI and 4K HDMI and passes both on. The 405 g metal body runs on a Sony NP-F battery, and a 12 V adapter is included.

7" IPS 1920 × 12003G-SDI in and outHDMI up to 4K500 cd/m²Metal body

One monitor for stills and video cameras

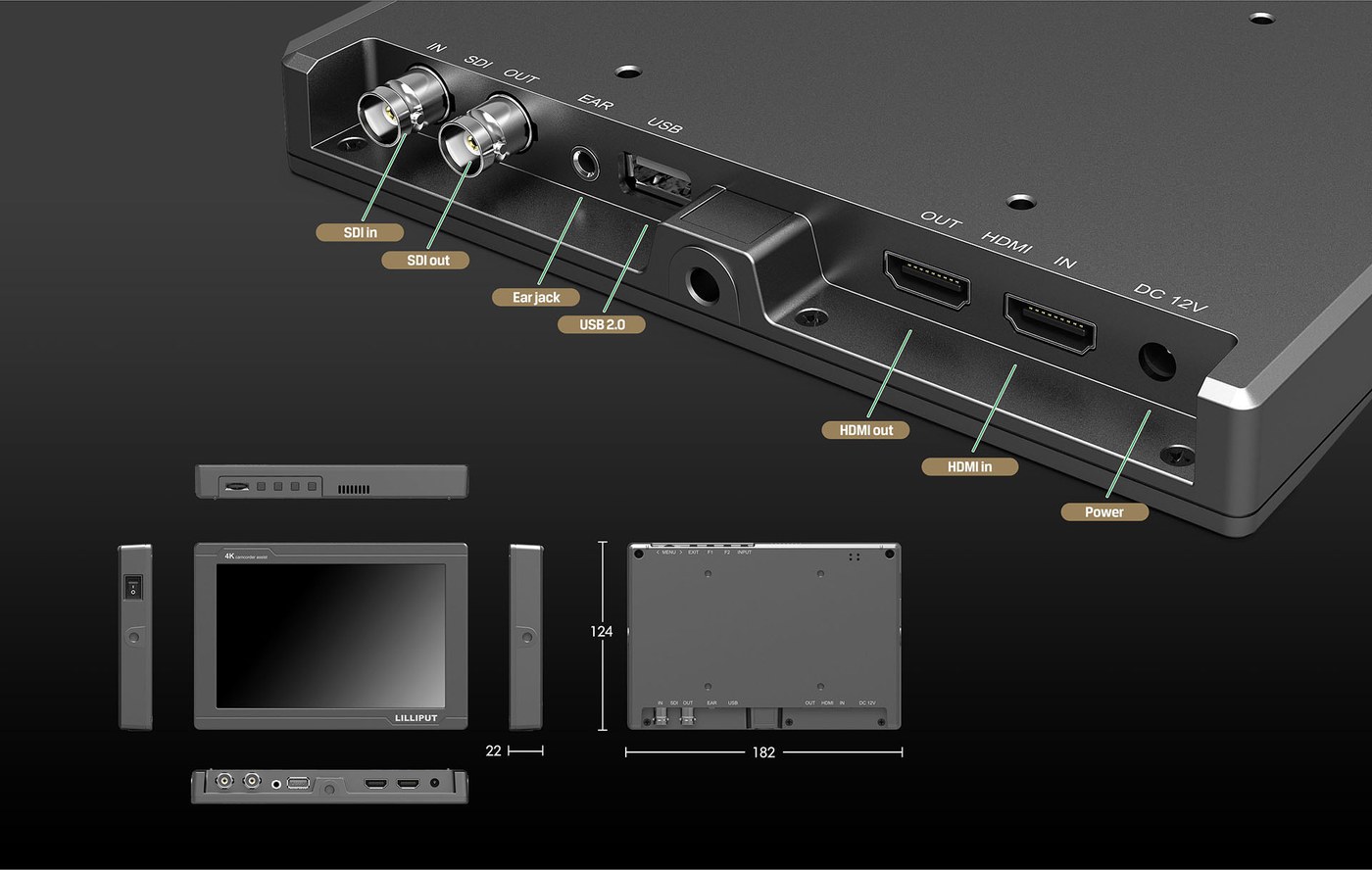

With 4K HDMI and 3G-SDI in and out, the FS7 suits a DSLR as well as a professional camcorder. The loop-through outputs send the picture on to a recorder or another monitor.

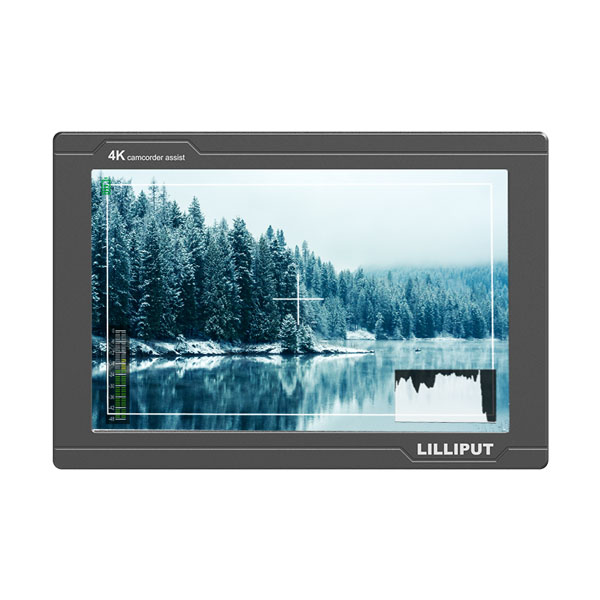

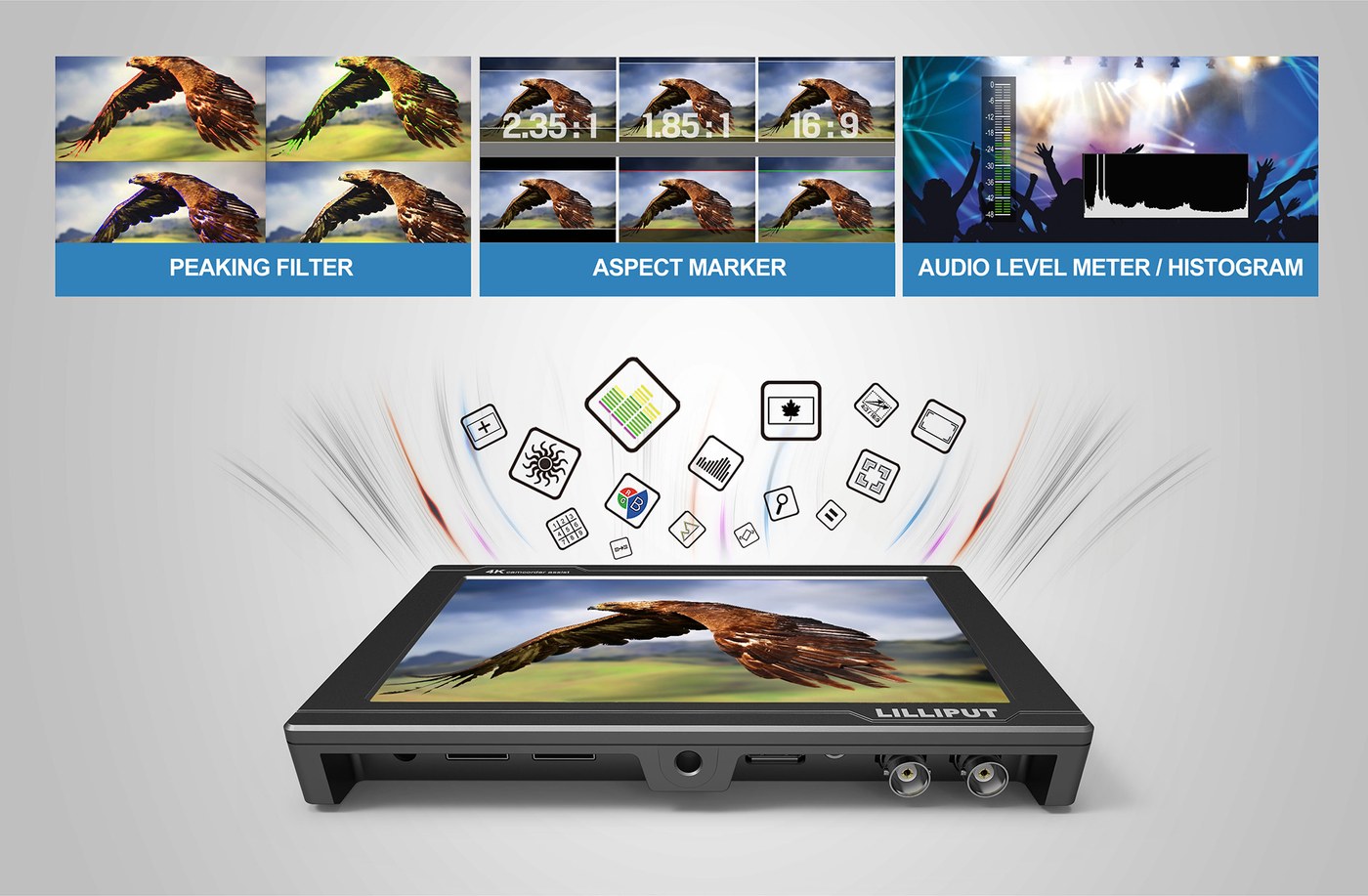

Assist functions

Focus peaking, aspect markers, audio level meter, histogram and more.

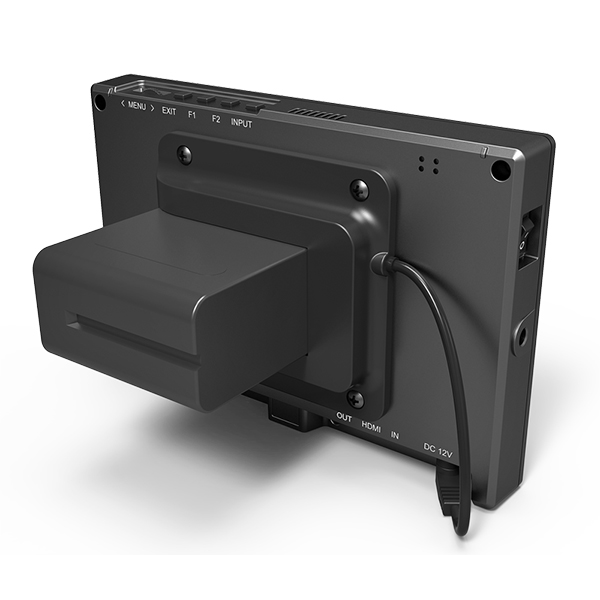

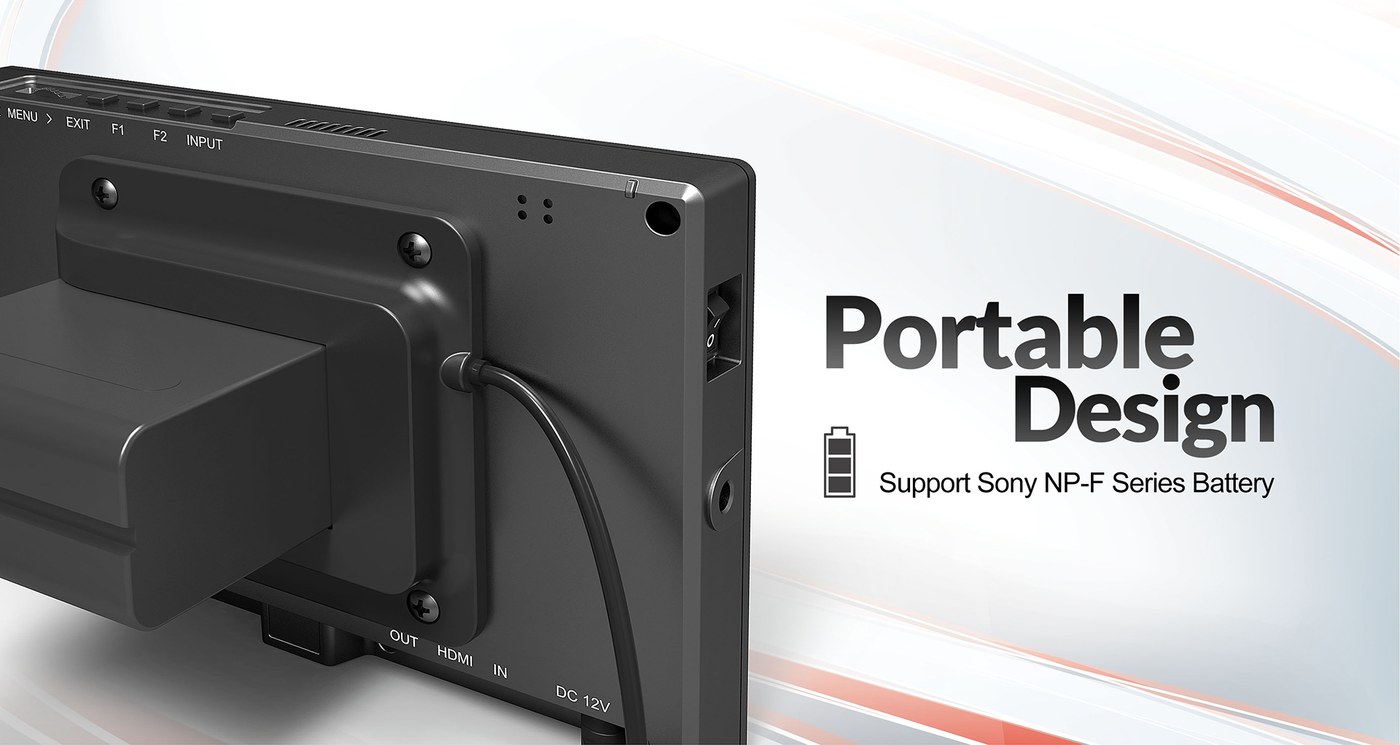

Sony NP-F batteries

NP-F plate included; DC 7–24 V power too.

Wide angle

IPS panel with a 170° viewing angle keeps colors true from the side.

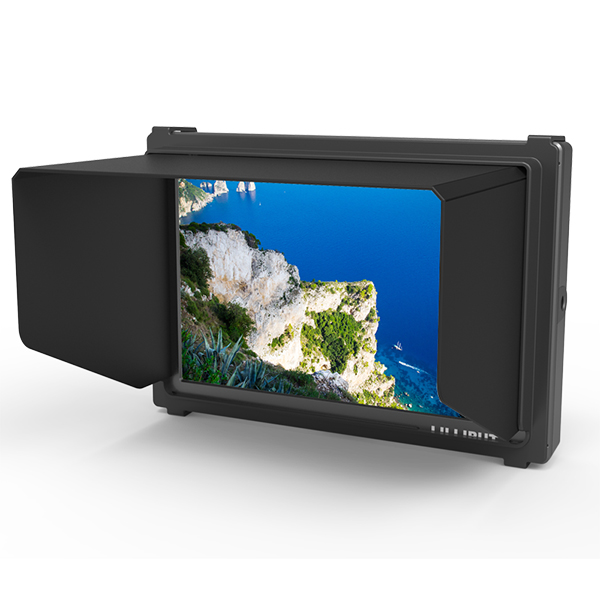

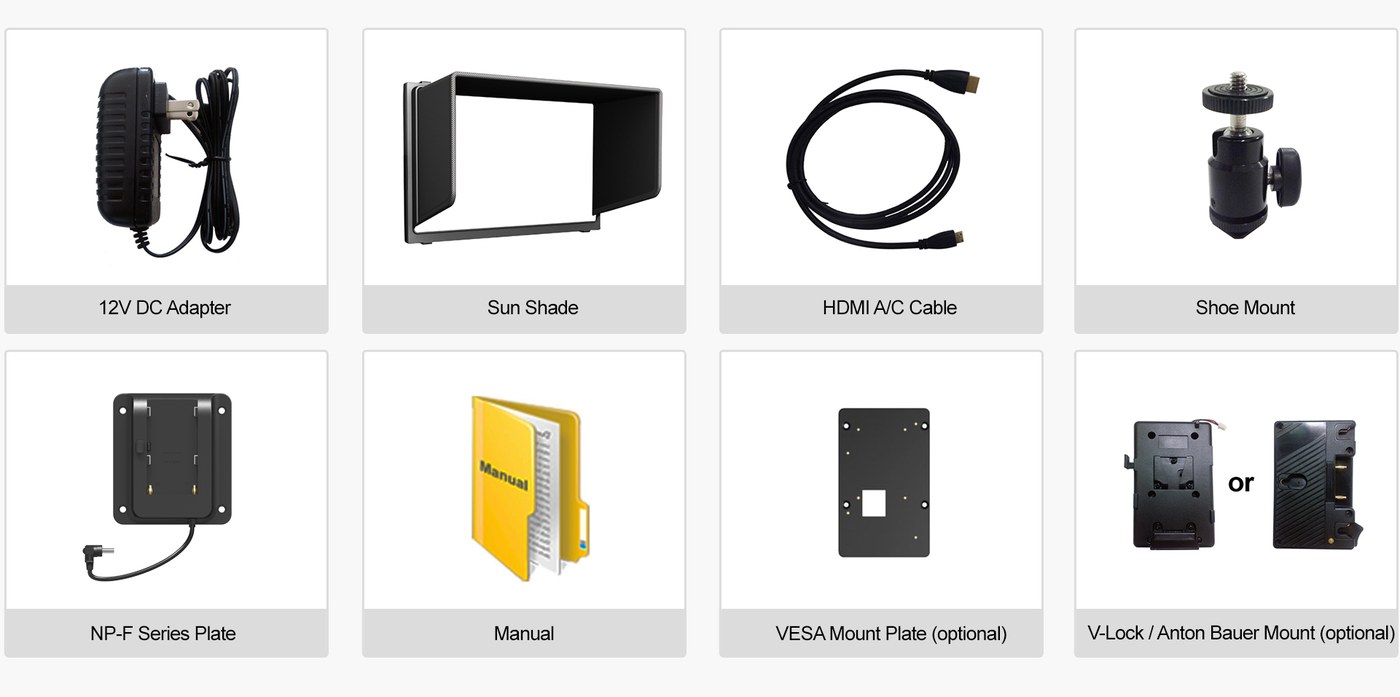

Complete kit

Sunshade, HDMI A/C cable, hot shoe mount and 12 V adapter.
