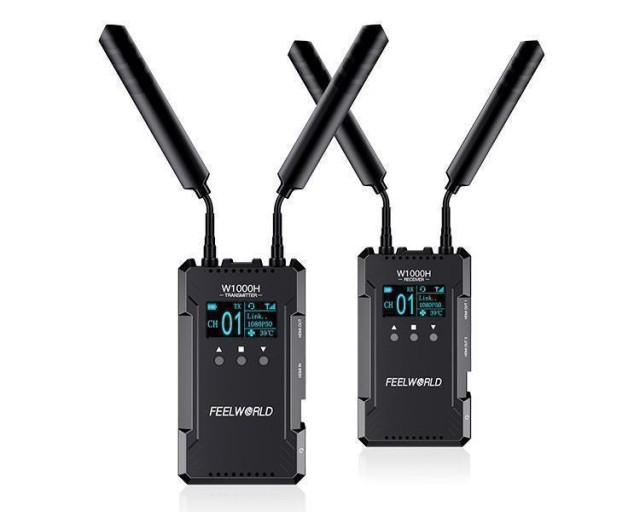

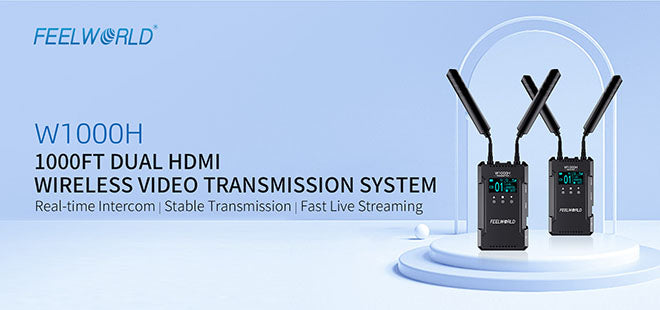

Feelworld W1000H Video Transmission System Dual HDMI Full Duplex Intercom Live Streaming

The Feelworld W1000H is a Video Transmission System with dual HDMI ports, 1000ft transmission distance, full-duplex intercom, and support for up to 1080P60Hz resolution, allowing for seamless live streaming and monitoring.

FEATURES

• A dual HDMI signal interface connects more devices
• More than 1000ft transmission range with 0.08S ultra-low latency
• Up to 1080P@60Hz, provide high-quality image
• Wireless full-duplex talkback, real-time intercom between the director  and the photographer
• With type-C to Ethernet adapter accessory, achieve live streaming
• The transmitter can be switched as a receiver at will
• One TX to multiple RX, monitoring for everyone on set
• Real-time APP monitoring for Android/iOS system
• 13 frequency channels, AUTO channel scan









  All-in-one Wireless Video Transmission System
  Brings Video Transmission to the next level
  FEELWORLD W1000H TX/RX set is a real-time wireless video transmission system integrated with intercom and live streaming. With 8Mbps high data rate, dual HDMI ports and other features built for professional filmmaking, the W1000H empowering filmmakers, crews, and content creators everywhere.

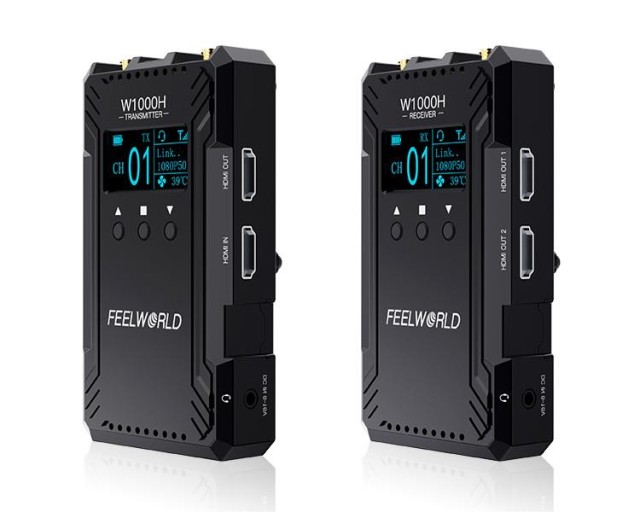

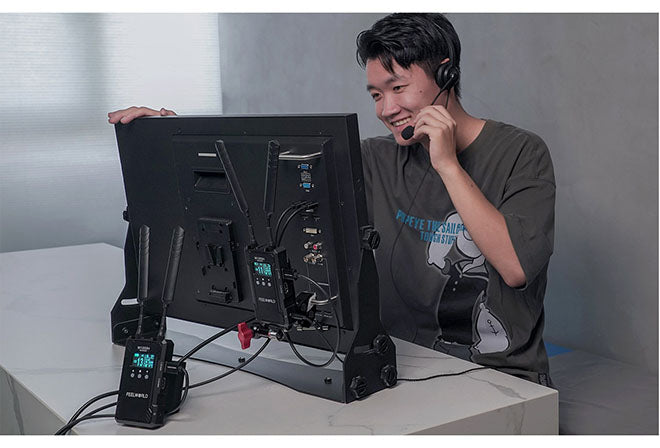

  Full Duplex Wireless Communication
  Meet the real-time intercom between the director and the photographer
  The one of highlights for W1000H its full duplex intercom, just connect to headphone, enable communication between the director and the photographer, save your time and costs to set an extra intercom system.

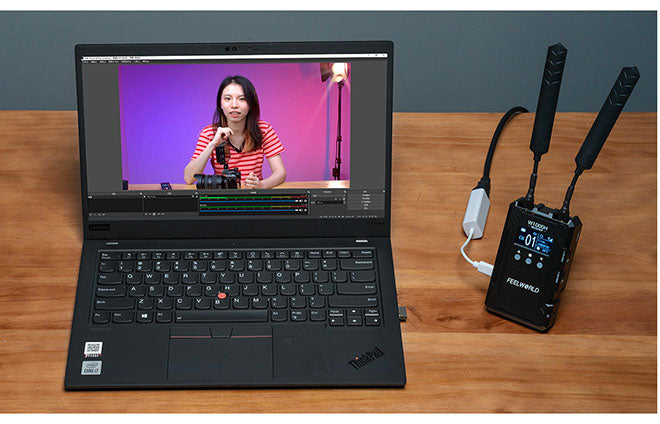

  Direct Video for Live Stream
  Supports static IP and route IP
  With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on our personal computer without further encryption and decryption via a video capture device.
  Note: The Type-C to Ethernet adapter is optional



  Compact and Lightweight

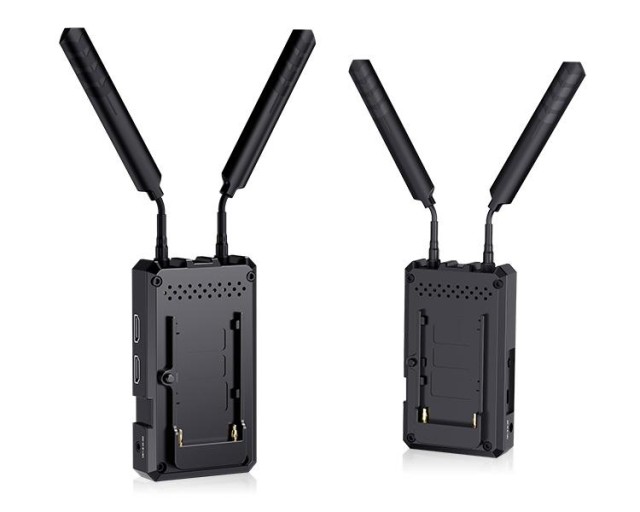

  The W1000H is compact, lightweight, and small enough to mount anywhere. Both at the bottom of transmitter and receiver come with a single ¼”-20 mounting point for mounting camera arms, cold shoes, etc.

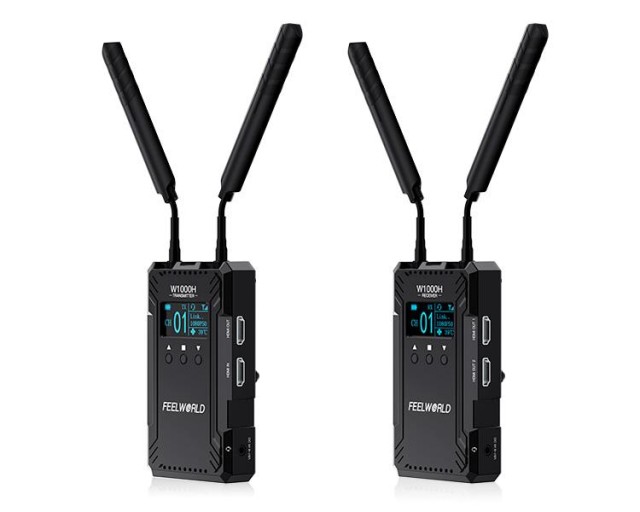

  1000FT Transmission Range with 0.08S Low Latency
  The W1000H has more than 1000ft hassle-free and reliable range for wireless video and audio transmission; 0.08S achievable latency for real-time monitoring that enables.

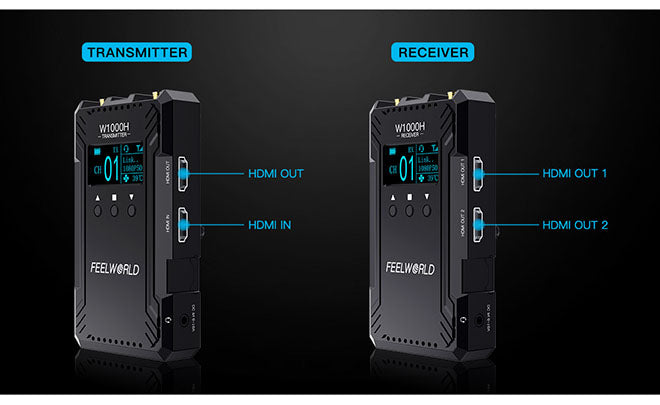

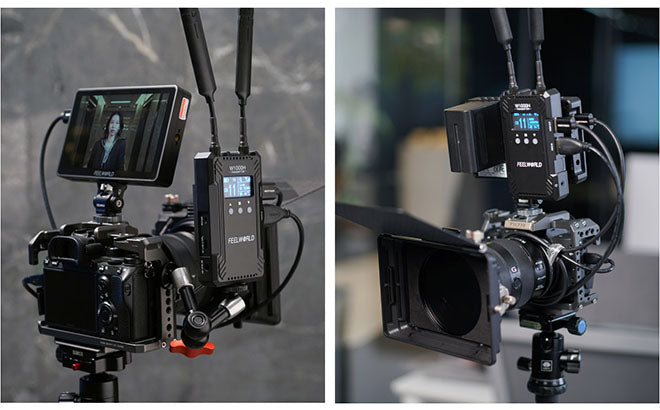

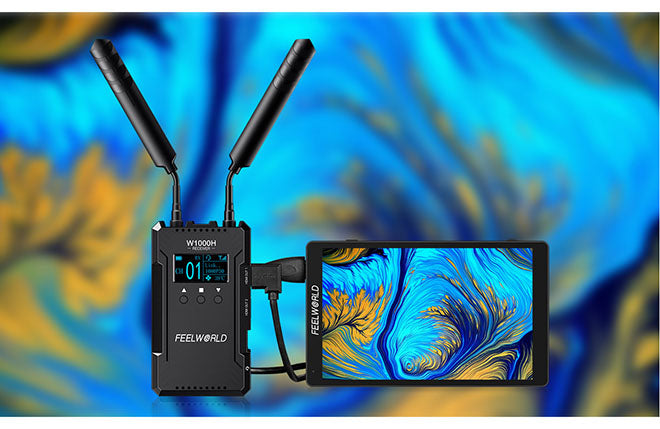

  Dual HDMI Ports, Connect More Device
  The transmitter with HDMI input and output, can output video a small monitor on the camera, allow the cameraman to clearly see the shots. The receiver with two HDMI outputs, which support simultaneous output the video.

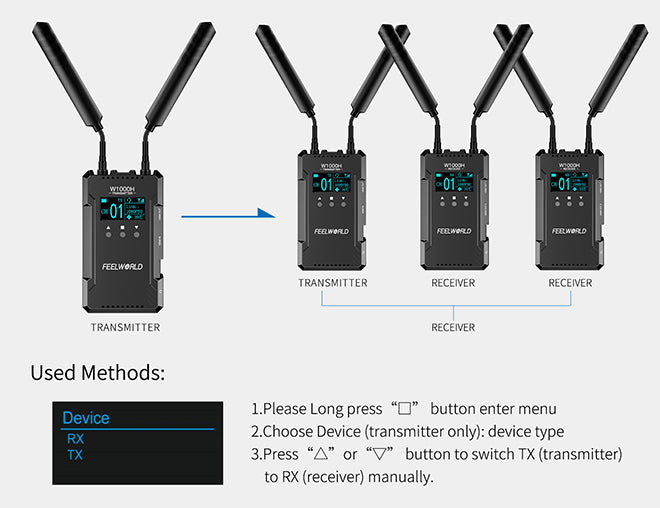

  One Device Dual Uses
  More flexible and costs-effective
  The transmitter can be switched as a receiver at will, define working mode freely, fulfill multiple use cases.

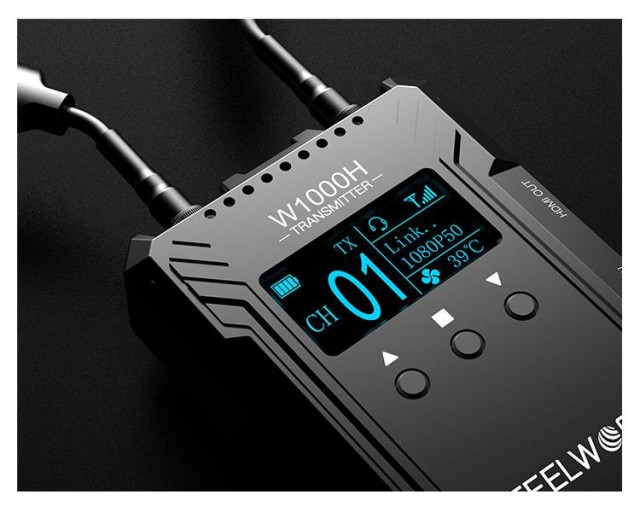

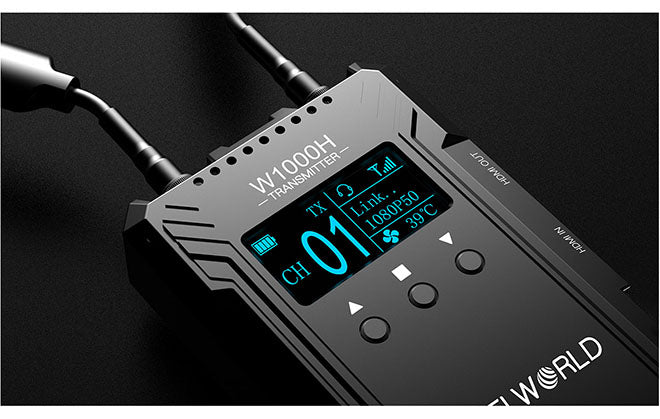

  Innovation OLED Screen Design
  Reading status and control system easily
  The W1000H has a creative OLED screen so you can check out all device status and control the system with displayed information on the screen.



  1080P HD Image Quality
  The resolution supports 1080P60,1080i60 and under 1080P60 format, provide a higher quality image.

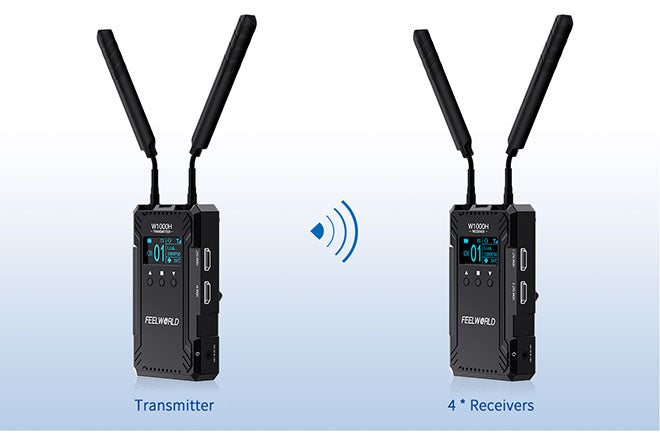

  One Transmitter to Multiple Receivers
  Monitoring for everyone on set
  More than one device can “join the party”. W1000H allows you have up to four receivers bound to one transmitter that efficient your crew monitor every shot as it happens.



  13 Frequency Channels, AUTO Scan
  Make the shooting screen more stable
  There are 13 frequency channels. Automatically scan the current environment to find out available channels and avoid the channels with interference.

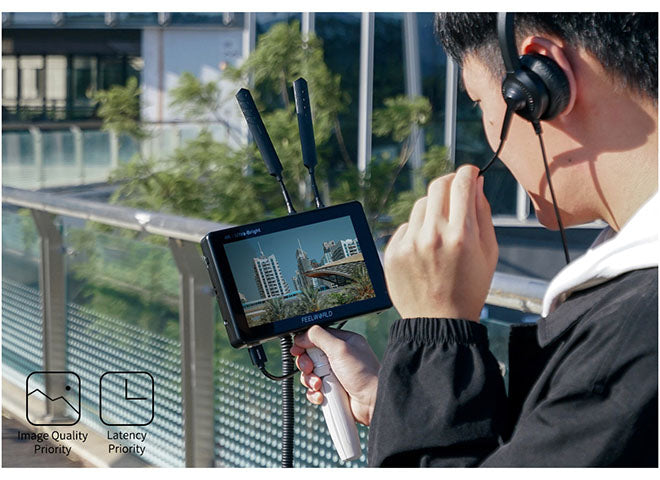

  Scene Modes, Switch Freely
  Each channel can choose image quality priority or latency priority, switch freely as needed to help you easily cope with different occasions.

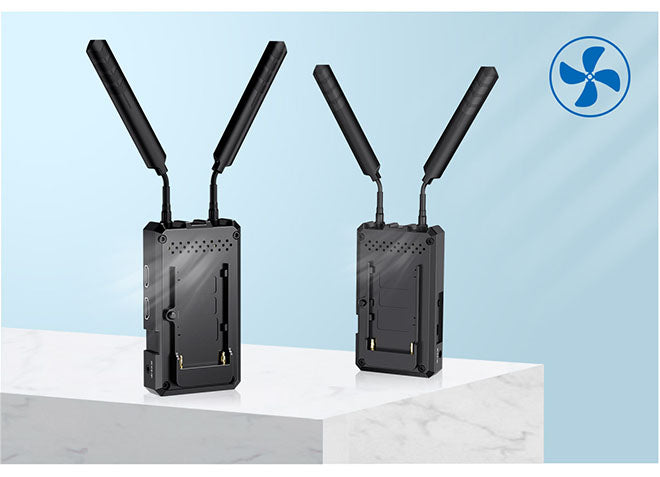

  Built-in Fan, Effective Cooling
  The excellent cooling design enable the device working long time in hot environment as well.



  Real-Time APP Monitoring
  Support Android/iOS system
  Supports both Android and IOS system APP monitoring, up to 4 phones or tablets real-time monitoring with professional monitor features, such as monochrome, false color and center mark(other features are under development).

  IOS users can search “ feelworld” on APP store to get APP (name: MMonitor)

  Android APP (name: Feelworld Wireless ) can be get from the following ways: .
  1. search “feelworld wireless”in GOOGLE PLAY
  2. scan the QR code

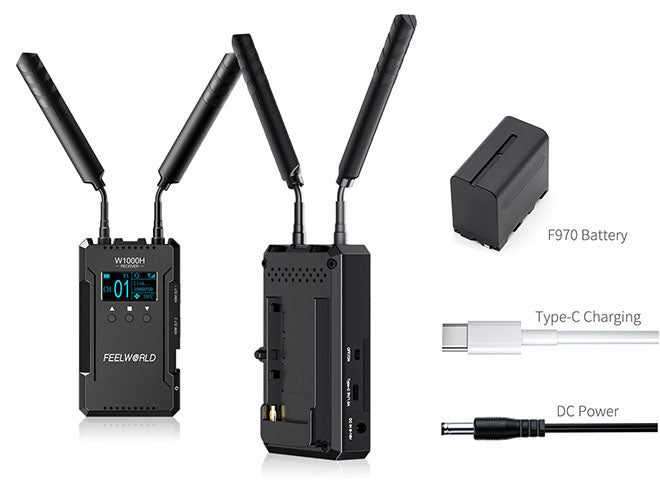

  Multiple Power Options
  Long-lasting power for your shooting
  The W1000H is equipped with Sony F970 battery plate to be powered by standard F970 battery, Type-C ( 5V/1.5A ) charging and 6-16V DC power options.
  Note: Due to the actual output of some batteries will be greater than 16V, which may burn the machine. Please ensure that the actual output voltage of the battery used is less than 16V.



  Wide Range Application
  The W1000H is widely used in the areas of filmmaking, sports events, wedding live broadcast, church live streaming, corporate events etc.



  Packaging List:

  1× Transmitter
  1× Receiver
  5× Antenna
  1× Cold Shoe
  1× Type-C to USB
  1× User Manaul

  SPECIFICATIONS:

  Transmitter

  Screen	OLED
  Interface	1 * HDMI input  1* HDMI output  2 *Antenna port （RP-SMA Male）  DC power input  3.5mm headphone jack  Type-C
  Power Supply Way/Voltage	F970 battery  Type-C: 5V/1.5A  DC adapter: 6-16V
  Power Consumption	<7.5W
  HDMI Format	480P60, 576P60  720P60/59.94/50  1080P60/59.94/50/30/29.97/25/24/23.98  1080I60/59.94/50  HDMI Type A
  Frequency	5.1-5.9GHz
  Modulation Mode	OFDM
  Transmission Power	Maximum 17dBm
  Band Width	20MHZ
  Occupied Bandwidth	20/40MHz
  Latency	Min 0.08S
  Intercom Frequency Response Range	20Hz~20KHz
  Operating Temperature	0℃ ～ 40℃
  Storage Temperature	-20℃ ～ 60℃
  Unit Size(mm)	67L*24W*118H (excluding antenna）
  Unit Weight	128g



  Receiver

  Screen	OLED
  Interface	2* HDMI output  2 *Antenna port （RP-SMA Male）  DC power input  3.5mm headphone jack  Type-C
  Power Supply Way/Voltage	F970 battery  Type-C: 5V/1.5A  DC adapter: 6-16V
  Power Consumption	<6.5W
  HDMI Format	480P60, 576P60  720P60/59.94/50  1080P60/59.94/50/30/29.97/25/24/23.98  1080I60/59.94/50  HDMI Type A
  Frequency	5.1-5.9GHz
  Modulation Mode	OFDM
  Receiving Sensitivity	-87dBm
  Band Width	20MHZ
  Occupied Bandwidth	20/40MHz
  Latency	Min 0.08S
  Intercom Frequency Response Range	20Hz~20KHz
  Operating Temperature	0℃ ～ 40℃
  Storage Temperature	-20℃ ～ 60℃
  Unit Size(mm)	67L*24W*118H (excluding antenna）
  Unit Weight	128g
