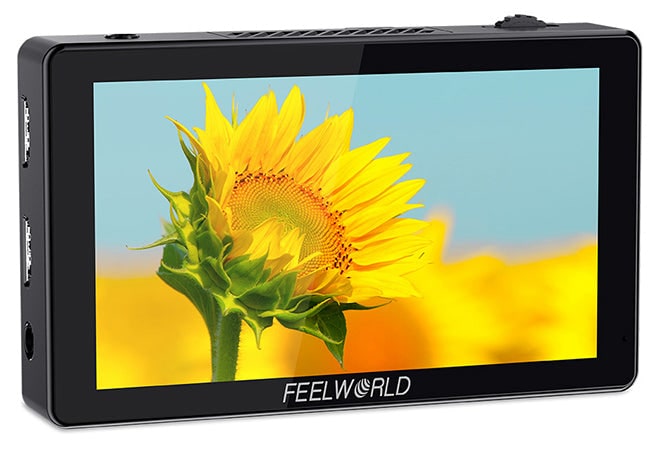

FeelWorld LUT5 5.5" IPS 3000 cd/m² On-Camera Monitor

FEELWORLD LUT5 is a 5.5-inch ultra-high bright on-camera monitor, with 3000nit ultra-high brightness, the screen is clearly visible in the sun. Full HD LCD touch screen, easy to operate; supports HDMI signal 4K@30Hz, HDR monitoring, custom 3D LUT and other professional auxiliary composition tools. There is a F970 external install and powr kit on the rear of LUT5, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The compact size and lightweight can be used with a gimbal to move quickly on set.

More information

278.3 € with VAT 230 € without VAT
-+
Availability
Prague > 5 pcs, Central warehouse 2 pcs
Manufacturer
Free transport When purchasing this product
Product description

Product description

FEELWORLD LUT5 is a 5.5-inch ultra-high bright on-camera monitor, with 3000nit ultra-high brightness, the screen is clearly visible in the sun. Full HD LCD touch screen, easy to operate; supports HDMI signal 4K@30Hz, HDR monitoring, custom 3D LUT and other professional auxiliary composition tools. There is a F970 external install and powr kit on the rear of LUT5, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The compact size and lightweight can be used with a gimbal to move quickly on set.

FeelWorld LUT5 5.5" IPS 3000 cd/m² On-Camera Monitor

KEY FEATURES

  • 5.5-inch 1920x1080 full HD IPS screen
  • Touch screen menu operation, improve shooting efficiency
  • Ultra-bright 3000nit, clearly visible in the sun
  • Light sensor auto dimming
  • Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
  • Supports HDR monitoring, what you see is what you get
  • Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment

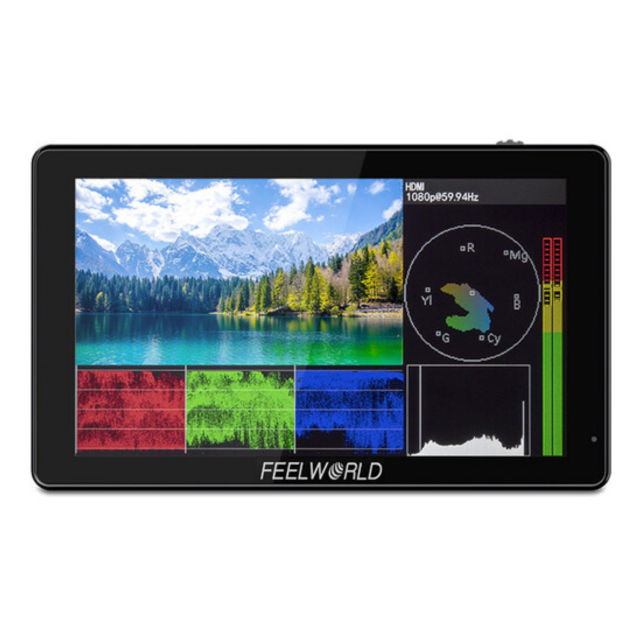

  • With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
  • Stereo Earphone output
  • DC 8V power out to power your DSLR camera or mirrorless camera

FEELWORLD LUT5 is a 5.5-inch ultra-high bright on-camera monitor, with 3000nit ultra-high brightness, the screen is clearly visible in the sun. Full HD LCD touch screen, easy to operate; supports HDMI signal 4K@30Hz, HDR monitoring, custom 3D LUT and other professional auxiliary composition tools. There is a F970 external install and powr kit on the rear of LUT5, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The compact size and lightweight can be used with a gimbal to move quickly on set.

Compact and Lightweight

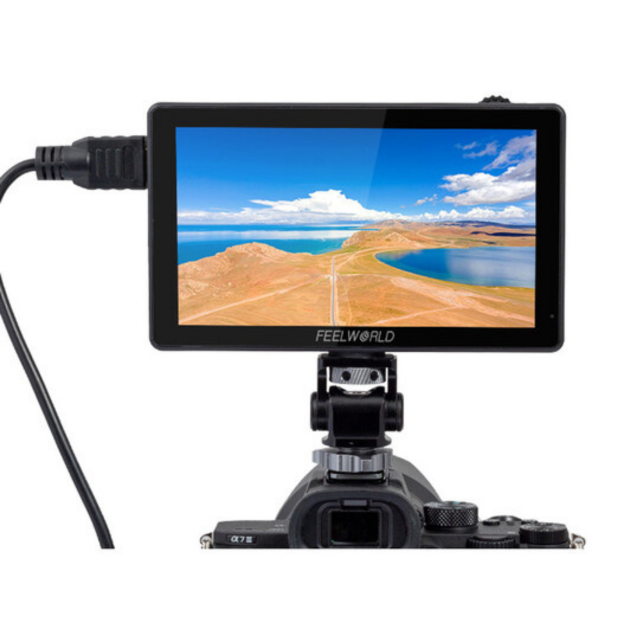

The compact size and lightweight of LUT5 is suitable for use with a gimbal can move quickly on set.

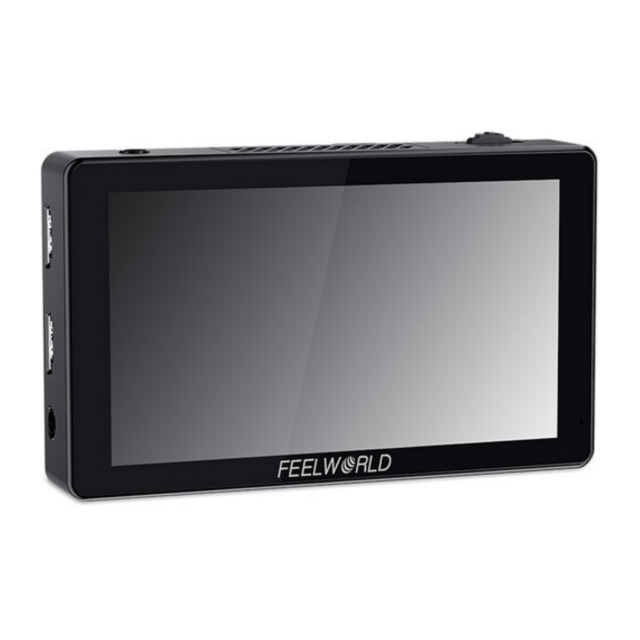

5.5” LCD Full HD Resolution
Viewing clearly and capture every detail with confidence
The LUT5 comes with a 5.5-inch 1920x1080 full HD panel, it displays your stills and monitoring content at superior color fidelity. Ultra high brightness 3000nits, 1000:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 368 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the set. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

3000nit Daylight Viewable - Ideal for outdoor shooting
With the support of 3000 nits of ultra-high brightness, LUT5 is not afraid of strong light. And the outdoor shooting screen display is clearly visible, you can shoot without a sunshade.

Light Sensor for Auto Dimming
The LUT5 has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filmming environment

Full Touch Screen Design - Easy and sensitive operation, make your filming more efficiency
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

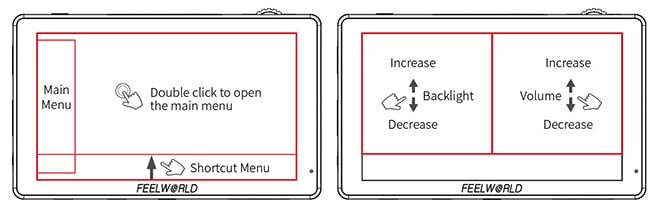

Touch Screen Operating Instruction

  1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
  2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.
  3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
  4. Click any space beside the menu to exit.

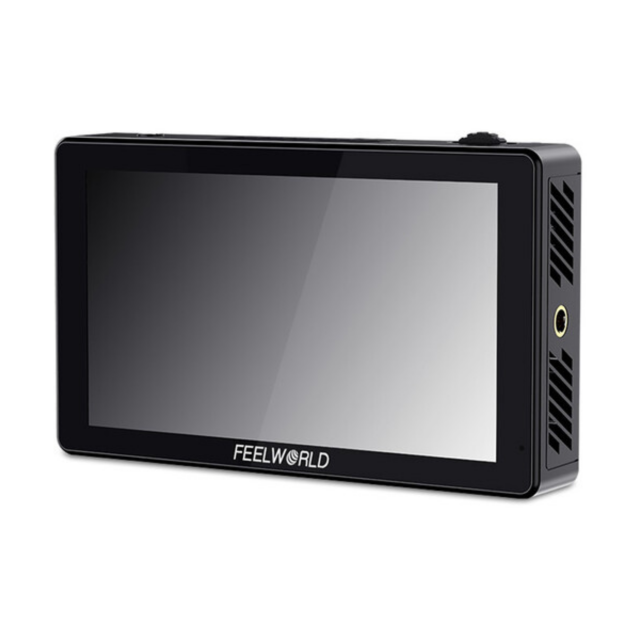

Bulit-in Cooling System - Multidimensional cooling holes design
The monitor built-in heat conducting unit and low consumption fan, and equipped with multidimensional cooling holes, better cooling effective.

True Color. Professional Color Calibration - Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, present the clear image and natural color, ensuring accurate color reproduction, to reproduce the physical nature of the shooting, enabling users to accurately evaluate the quality of various

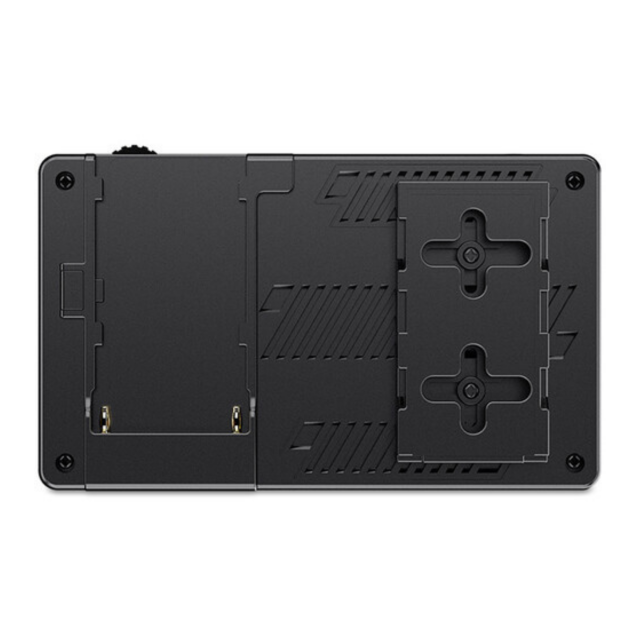

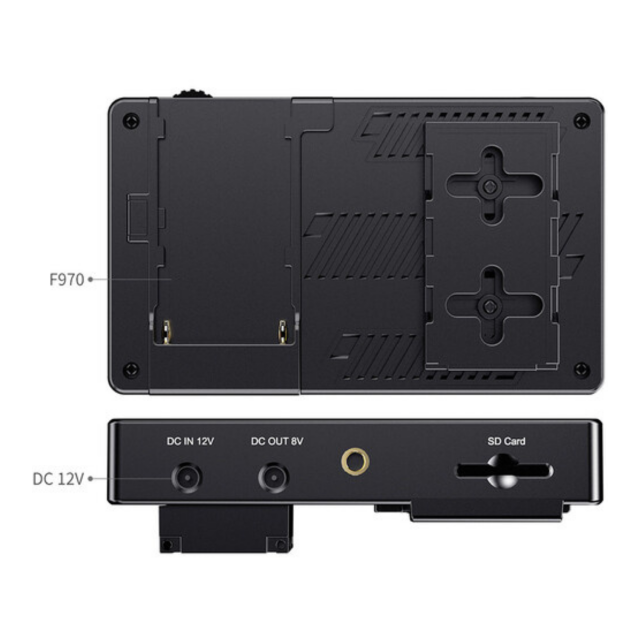

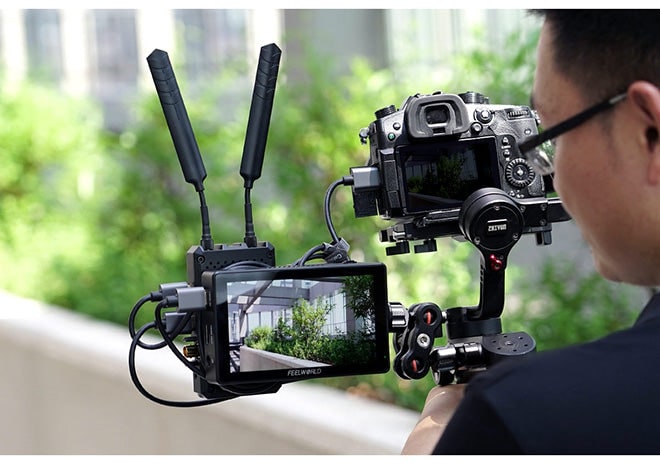

Innovative External Install and Power Design - Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.

4K HDMI Input and Output
The LUT5 supports 4K@30Hz signal input and output, which is transmitting without loss and the screen is clearer.

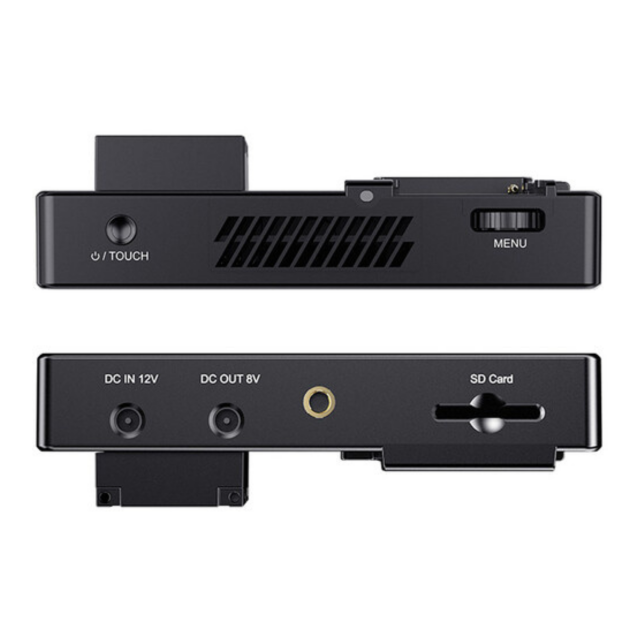

DC Power Supply - Power yourDSLR or mirrorless camera
The LUT5 is not only equipped with DC IN 12V, but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT5 extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.

Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

Flexible Power Supply
The rear of the monitor provides a battery slot, which can be installed with standard Sony NP-F series batteries to provide long-lasting power for your bright screen!

● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series


As the LUT5 has 3000nit brightness, power consumption is greater than normal brightness monitors, we recommend you use the Sony standard F970 battery to power monitor. Using the F970 battery (7.4V 6600mah), the monitor can working about 2.5 hours. Note: Different specifications of the battery have different capability. The working time for the monitor will be different. Higher capability (working time) will be longer.





PACKAGE CONTENT

Package content :

1× Micro HDMI Cable
1× Mini hot shoe mount+Hex wrench
1× Manual



SPECIFICATIONS

Display Specification:
 Model  LUT5
 Screen Size  5.5" IPS
 Resolution  1920x1080 pixels
 Pixel Pitch  0.069 (L) x 0.069(W) (mm)
 Aspect Ratio  16:9
 Brightness  3000cd/m²
 Contrast Ratio  1000:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)

Input:
 1 X HDMI  HDMI

Output:
 1 X HDMI  HDMI
 1 X DC  Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio:
 Audio  3.5mm Stereo Headphone

HDMI Input/ Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General:
 Input Voltage  DC7~24V
 Power Consumption  ≤20W
 Working Temperature  -20°C~70°C
 Storage Temperature  -30°C~80°C
 Install Way  1/4"-20 Thread Socket ( Right, Bottom)
 Unit Size  142Lx86Hx28D(mm)
 Unit Weight  270g
 Color Box Size  186L*124W*80H(mm)
 Outer Carton Qty  10
 Outer Carton Size  465*200*326 (mm)
 Gross Weight  7.5kgs
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features:
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1:1, 1.91:1.1, 4:5, 9:16, 1.85:1, 2.35:1)
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment (5600K, 6500K, 9300K, user)
* Nine Grid
* Zoom (100%~500%)
* Aspect Ratio
* Pixel to Pixel



Parameters

Parameters

Manufacturer: Feelworld
Category: Camera monitors

Main parameters

Monitor power supplySony NP-F
Luminosity3000cd/m2
Size5.5"
Monitor inputs4K HDMI
Panel resolution1920x1080

Other parameters

Other featuresHDR
Other features3D LUT correction
Other featuresMatte finish
High Brightness (NITS)Yes
