Feelworld FW568 PRO

FEELWORLD FW568 PRO has moderate size, ultra light weight, high bright screen, up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere. With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

Lightweight . Bright . Useful

FEELWORLD FW568 PRO has moderate size, ultra light weight, high bright screen, up to 4K@60Hz HDMI transmission rate and a series of camera auxiliary functions. It is a monitor that can meet your creative needs anytime and anywhere.

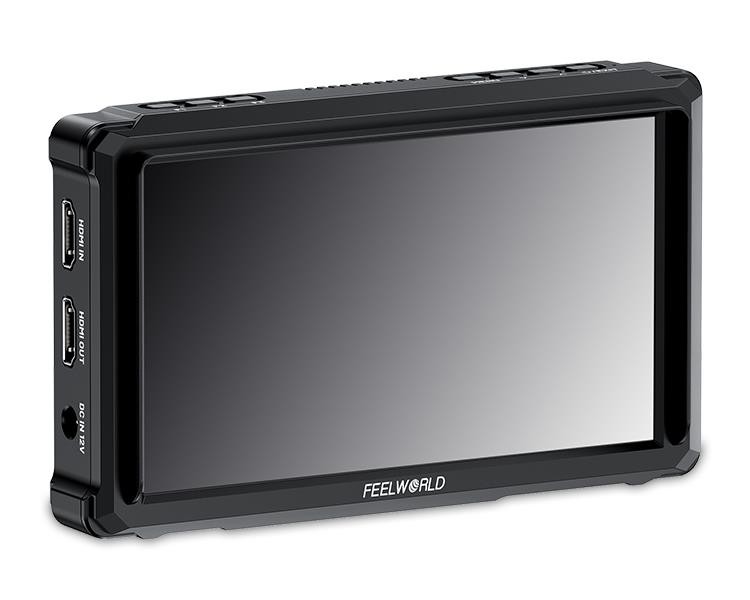

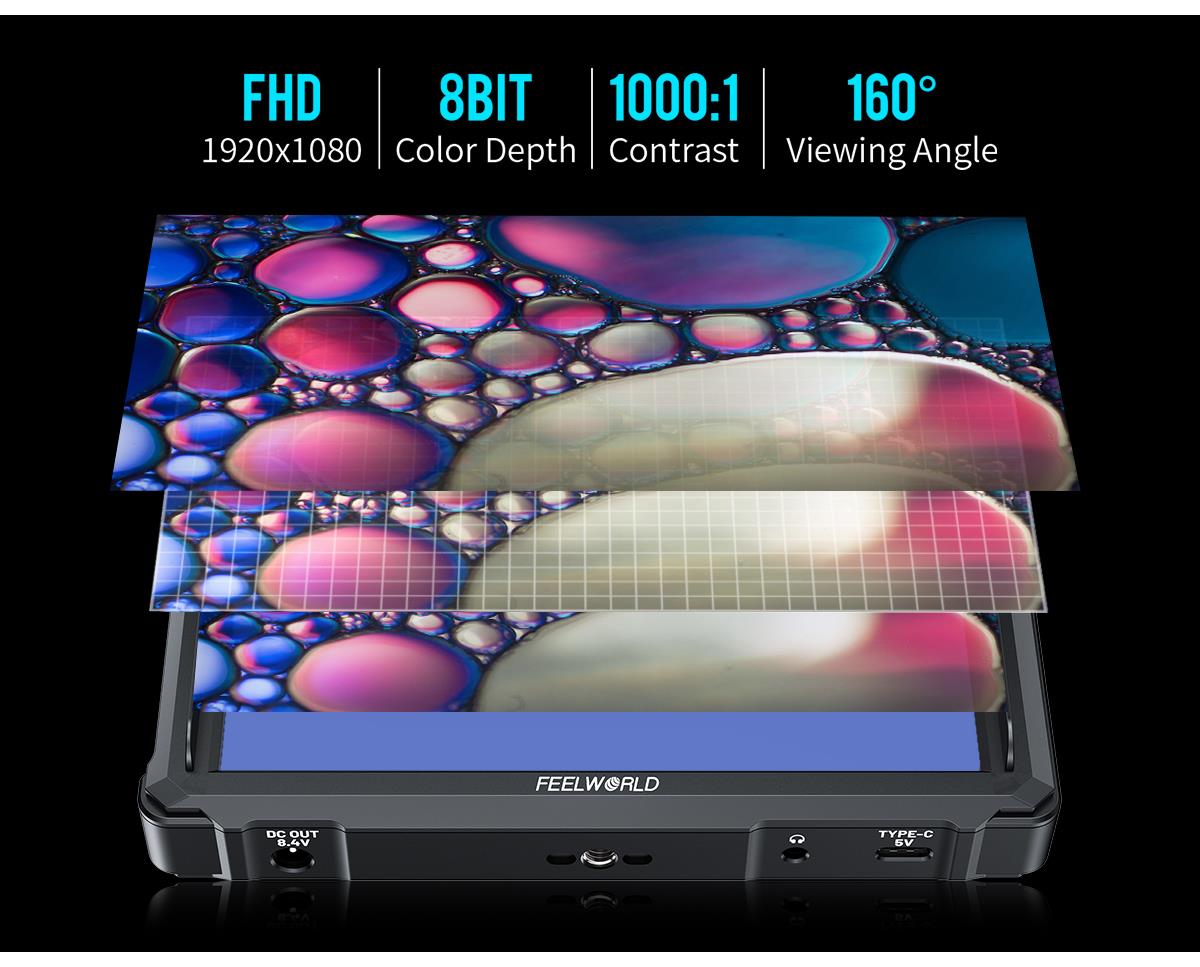

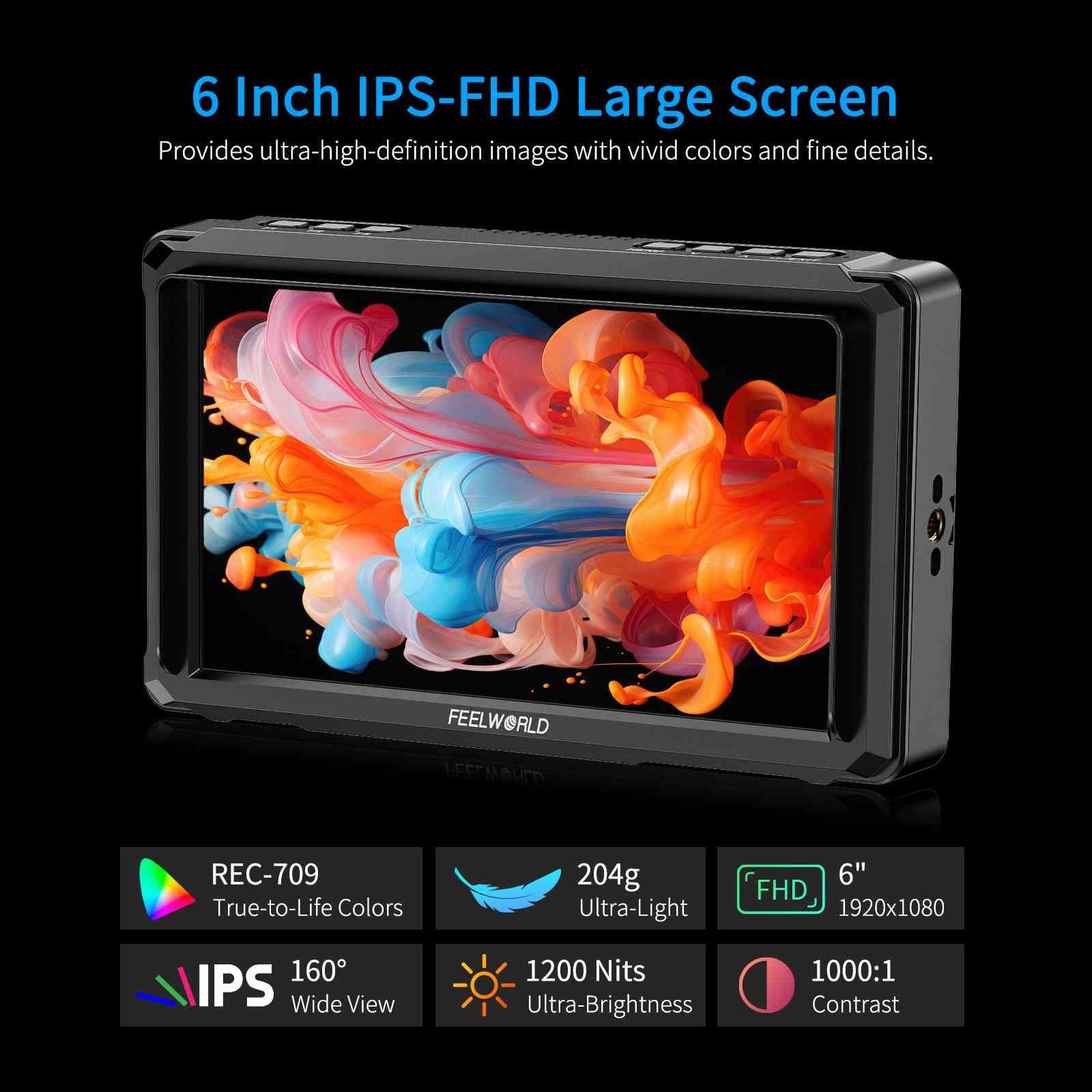

6-inch Full HD Screen

Clearly checking and capture every nuance

With extremely high resolution 6-inch IPS panel, provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.

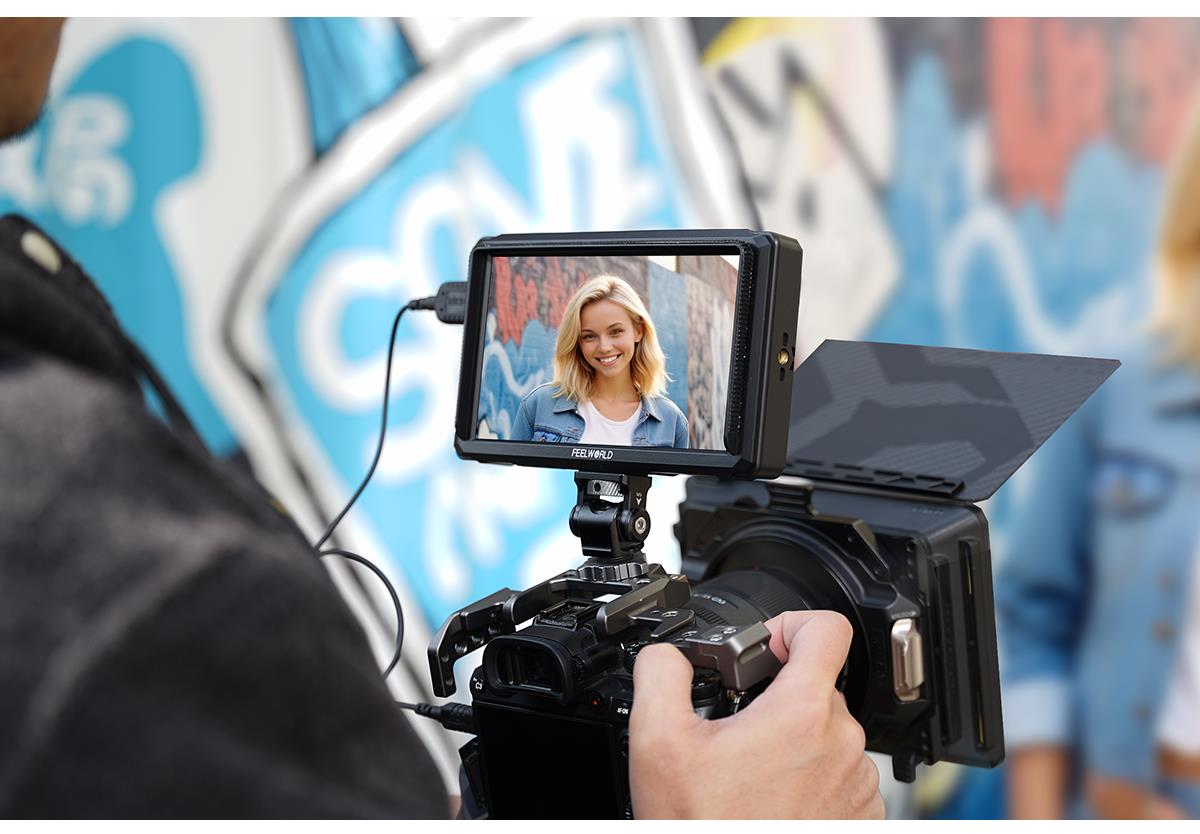

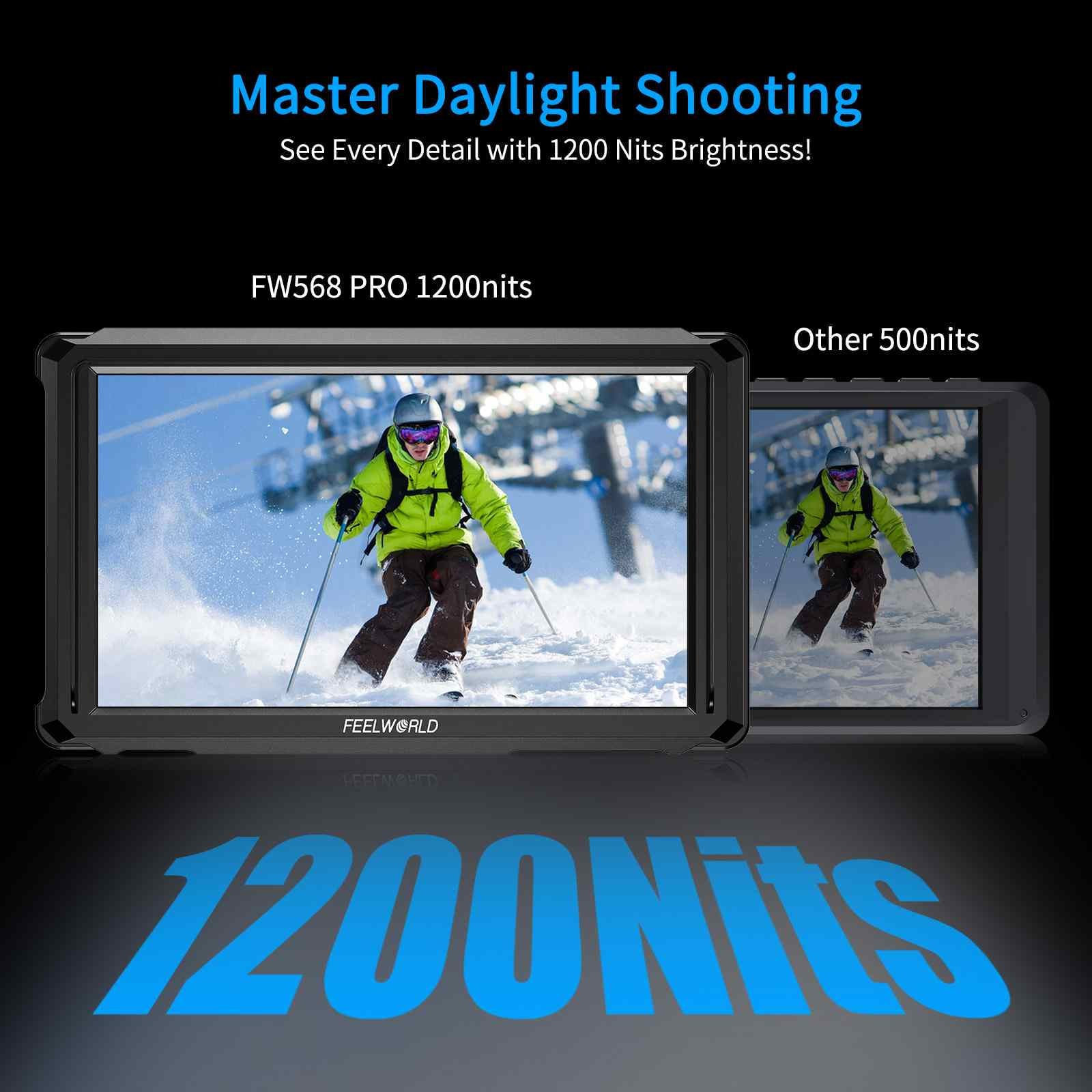

1200Nit, Daylight Viewable

High brightness 1200nit is viewable in almost every kind of light.Indoors, outdoors or anywhere you need.

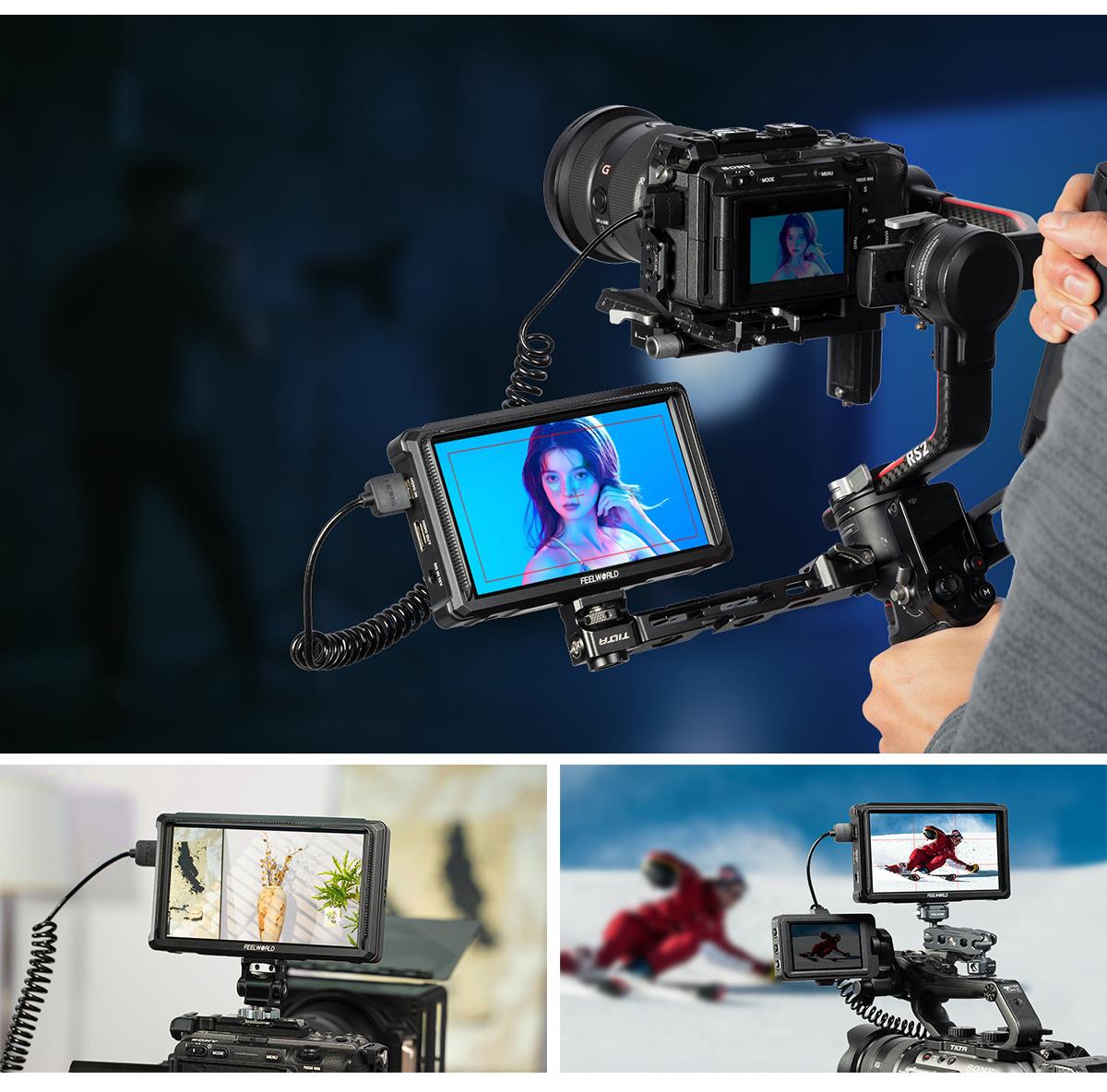

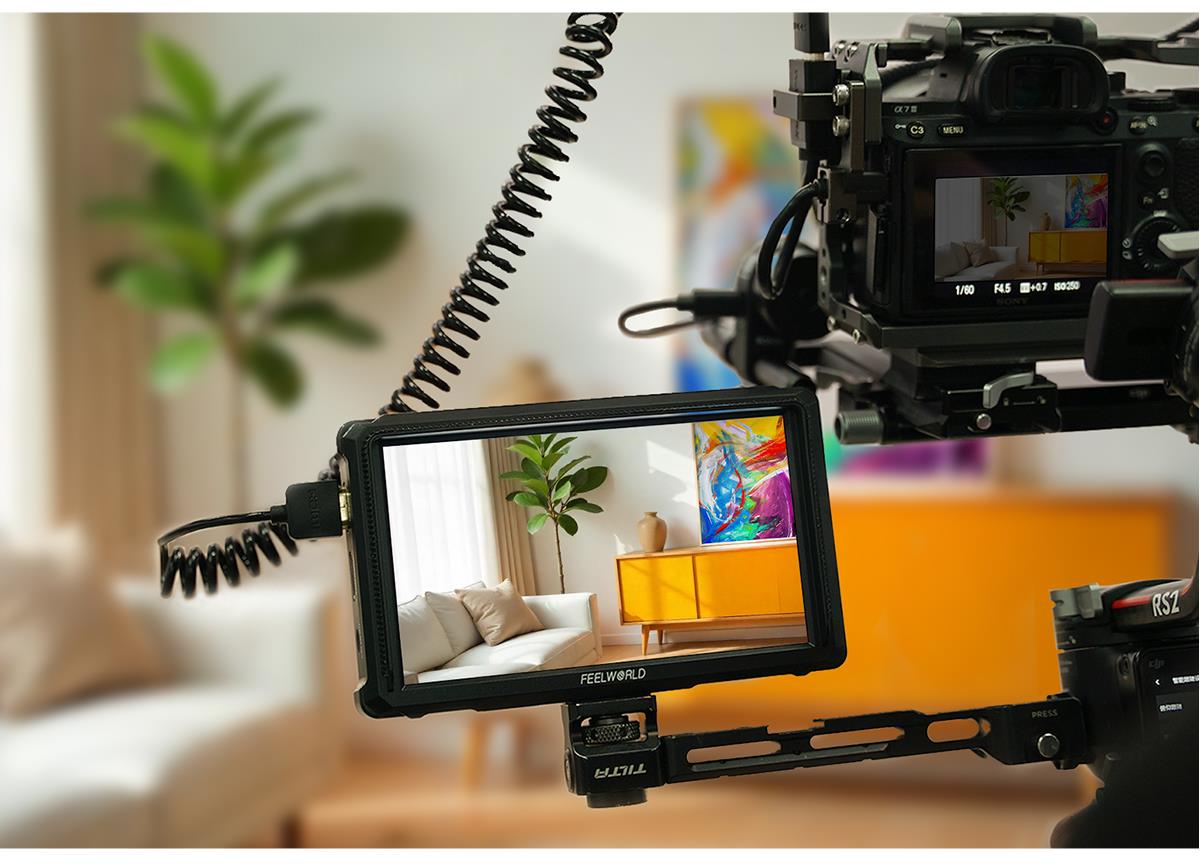

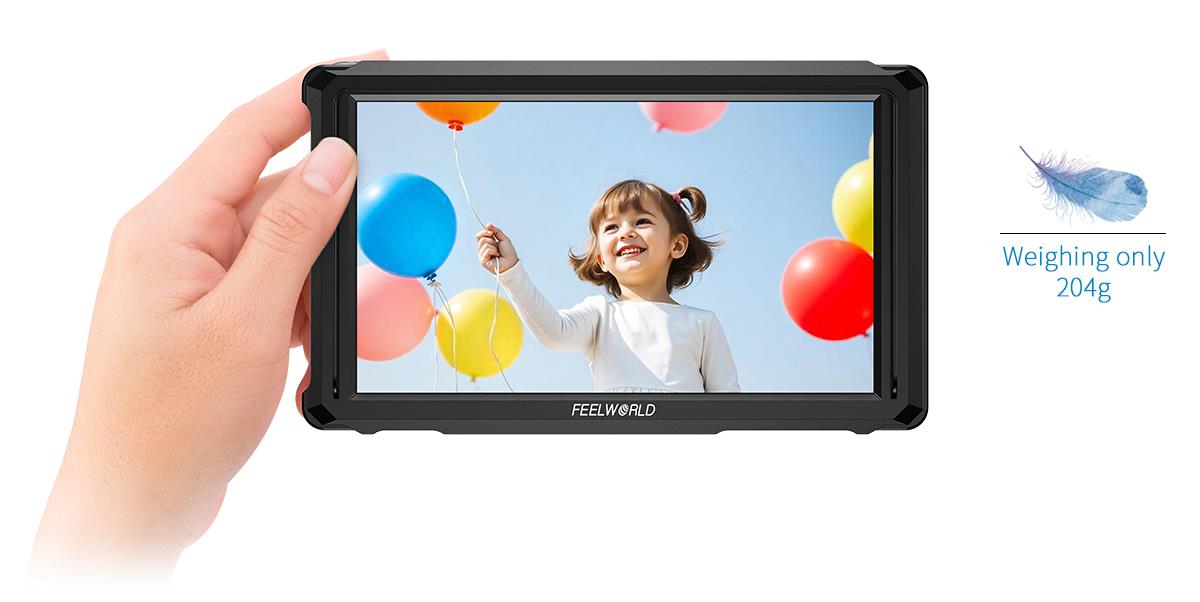

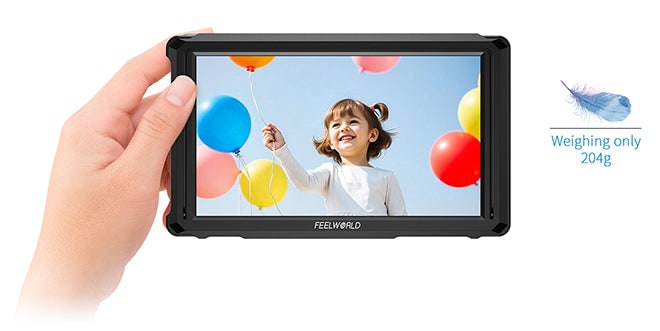

Lightweight Design, Ideal Partner for Gimbal

The weight of FW568 PRO only 204g, this lightweight design make it ideal for work with gimbal for moving shooting.

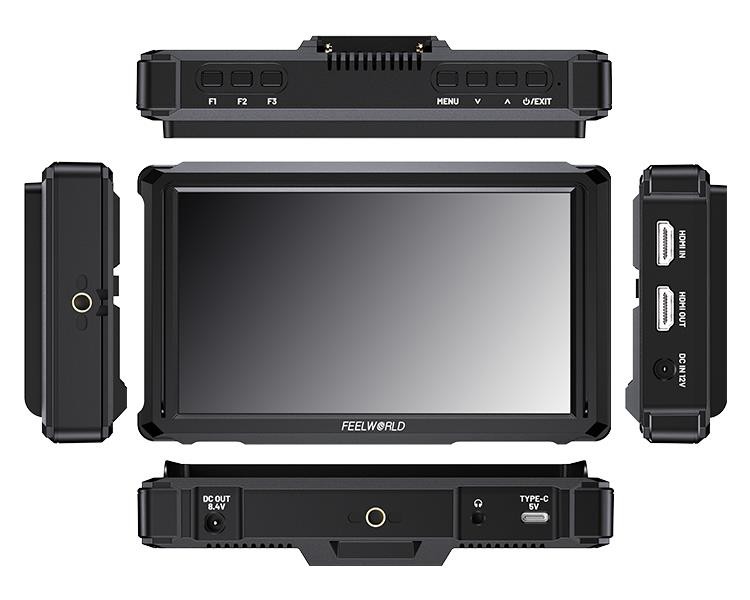

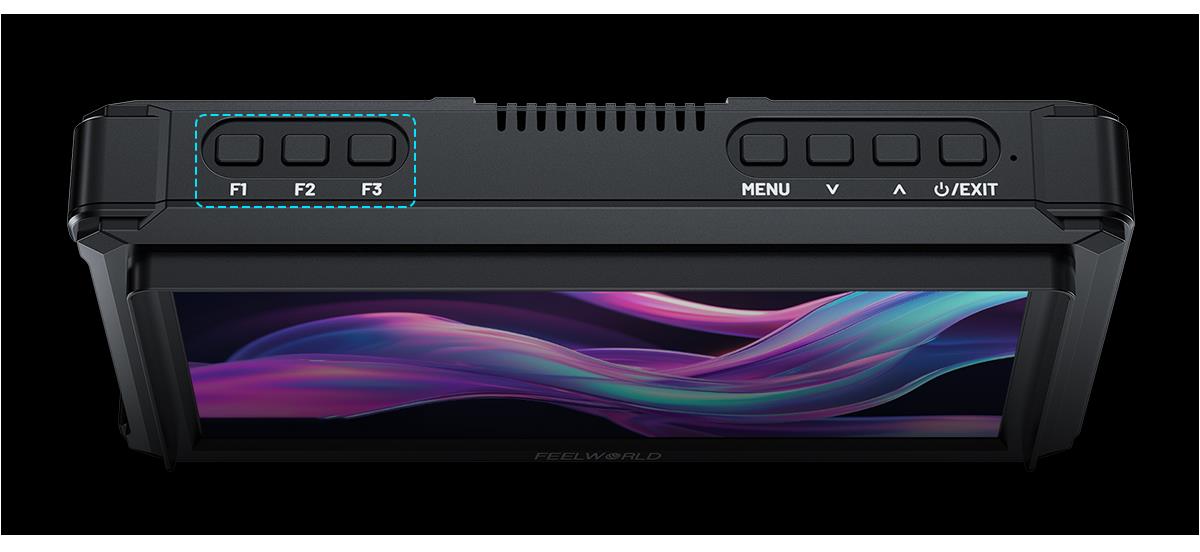

Intuitive Button Operation

FW568 PRO provides multiple intuitive buttons,you can control the menu easily. Especially the three custom shortcut buttons, the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

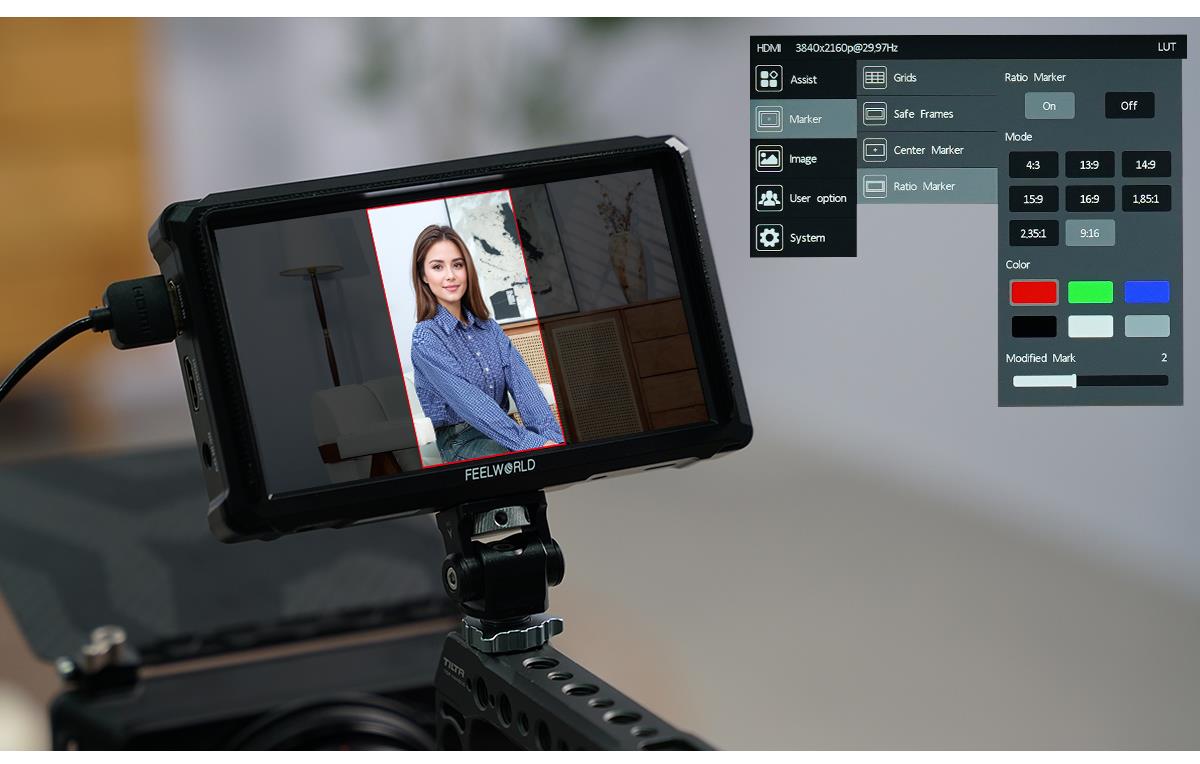

9:16 Vertical Screen Marker

FW568 PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.

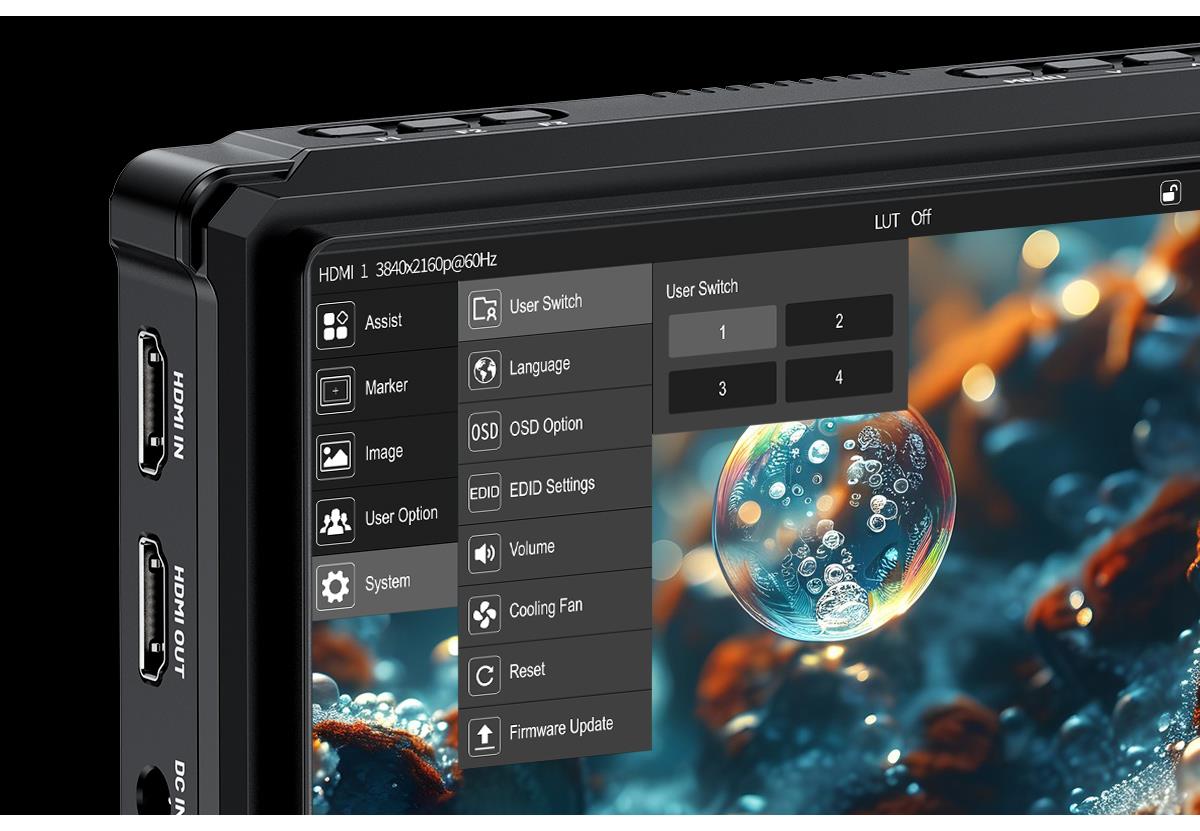

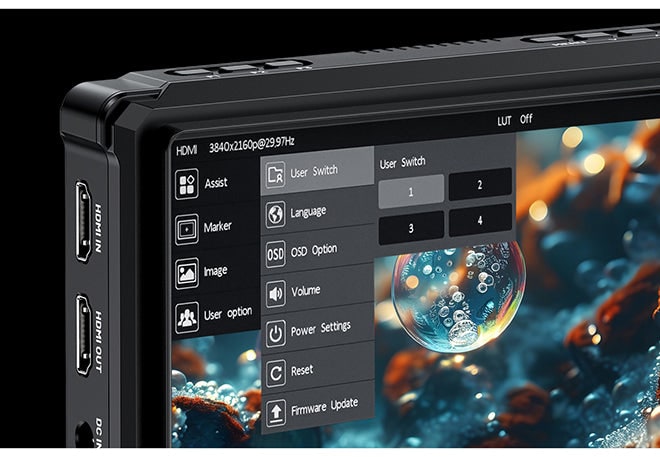

Menu User Switch

FW568 PRO provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly or switch next time.

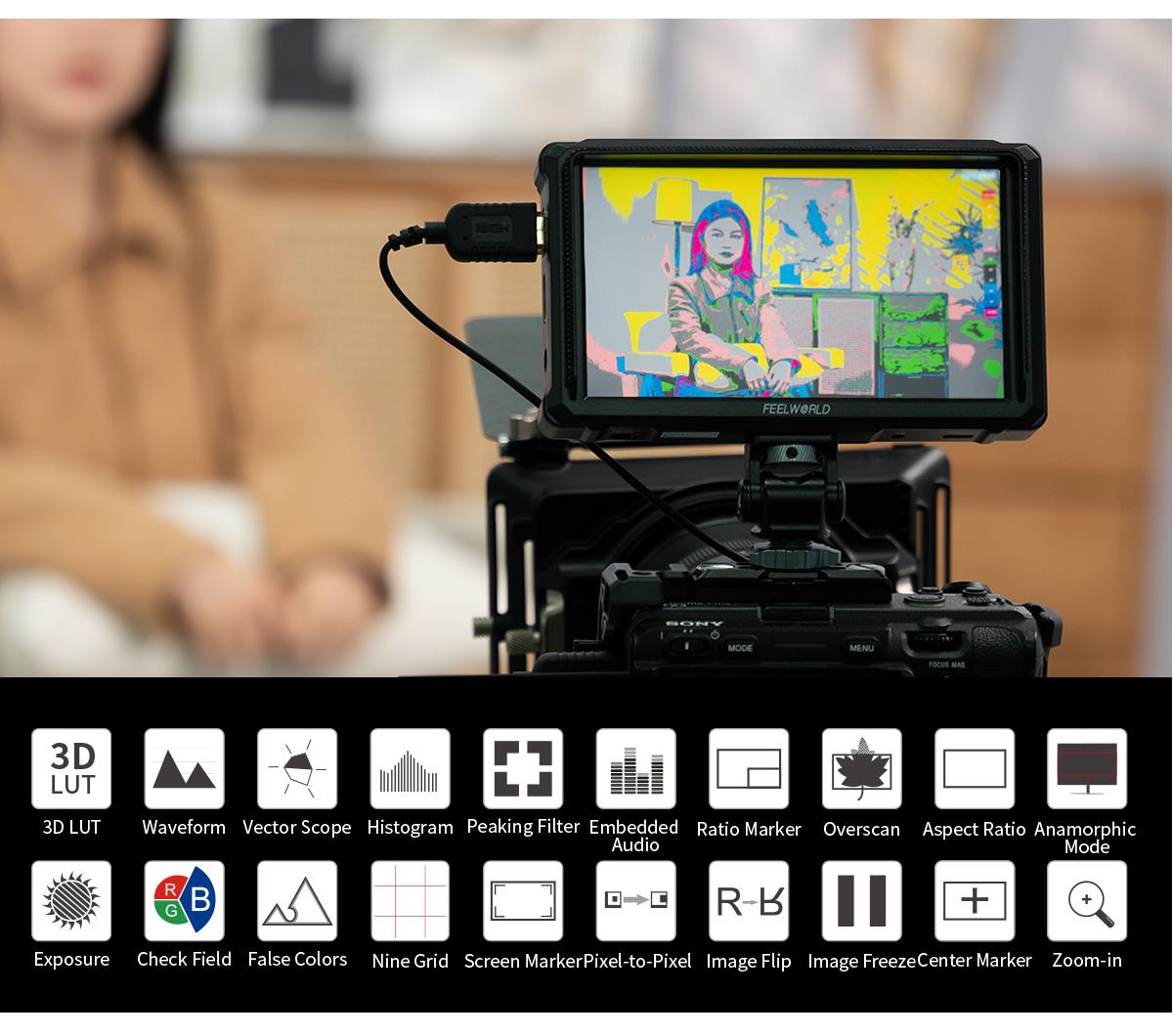

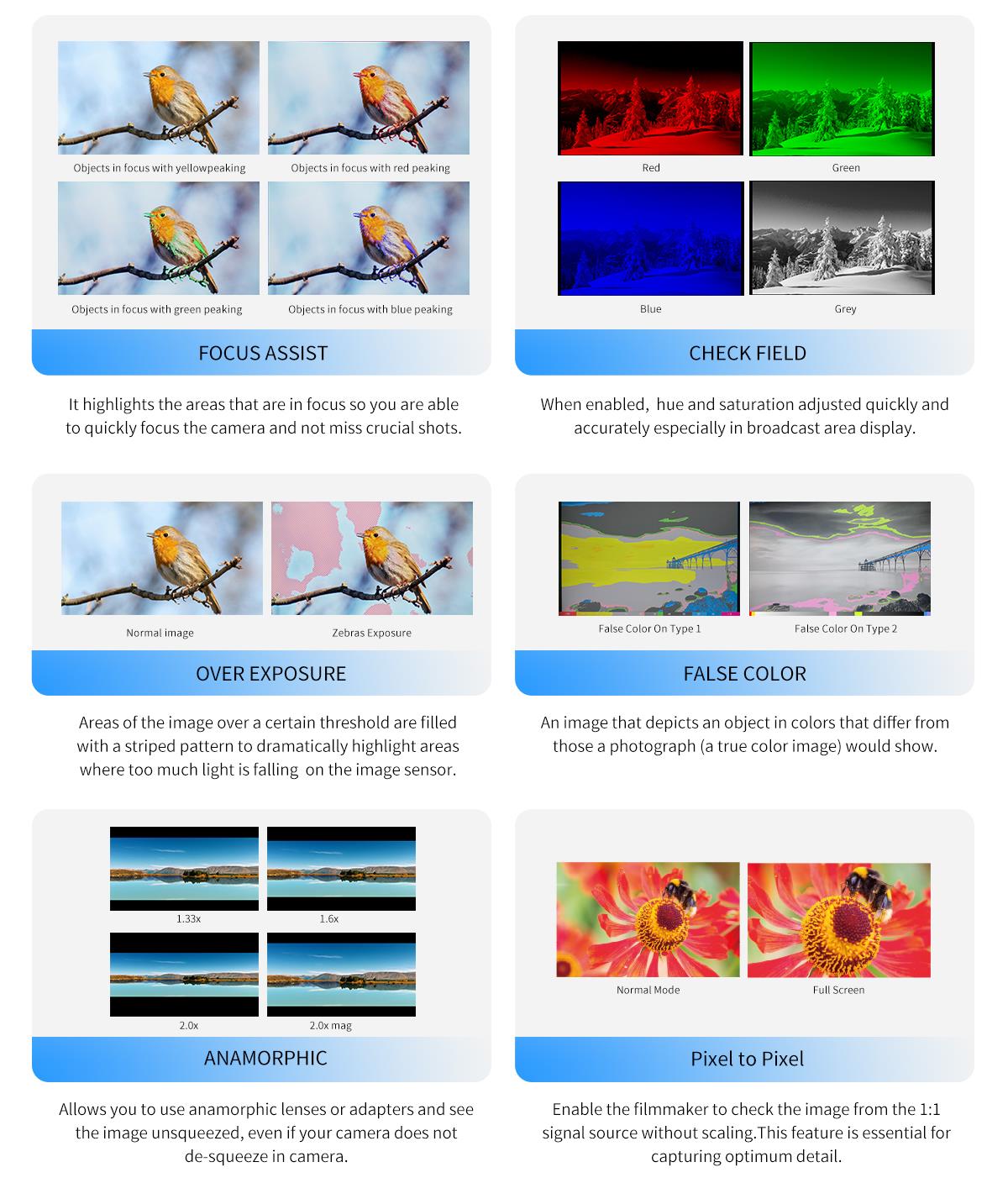

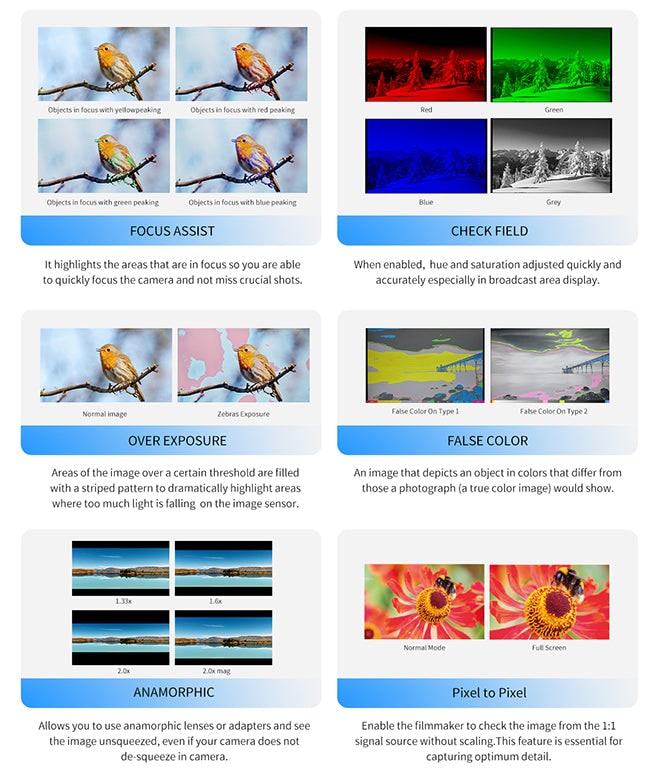

Full Range of Auxiliary Functions

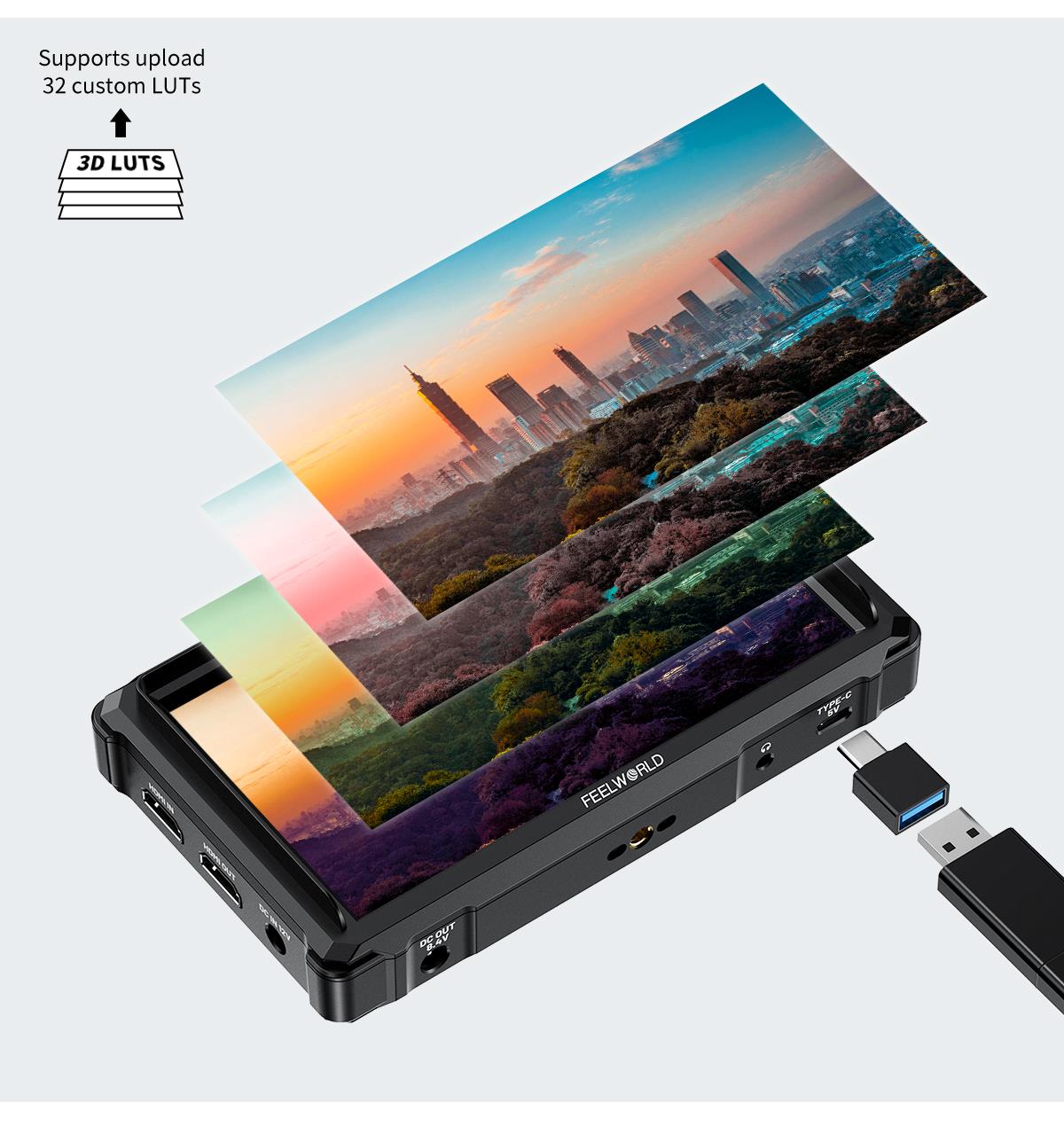

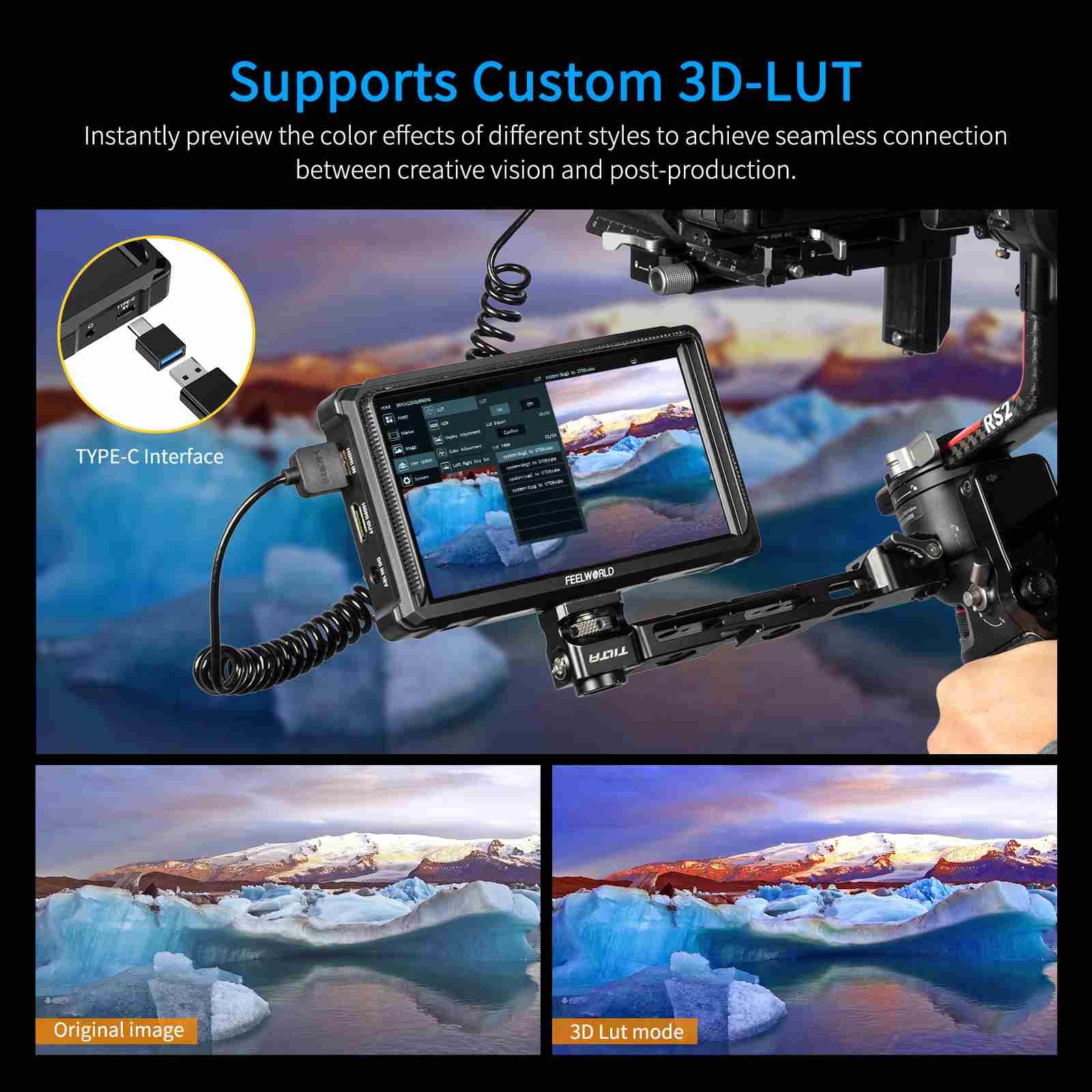

Load Custom 3D LUTs, Preview Filming Look in Field Shooting

3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash drive (up to load 32). Insert the USB flash drive to the standard accessory Type-C to USB adapter, then connect with Type-C interface of FW568 PRO.

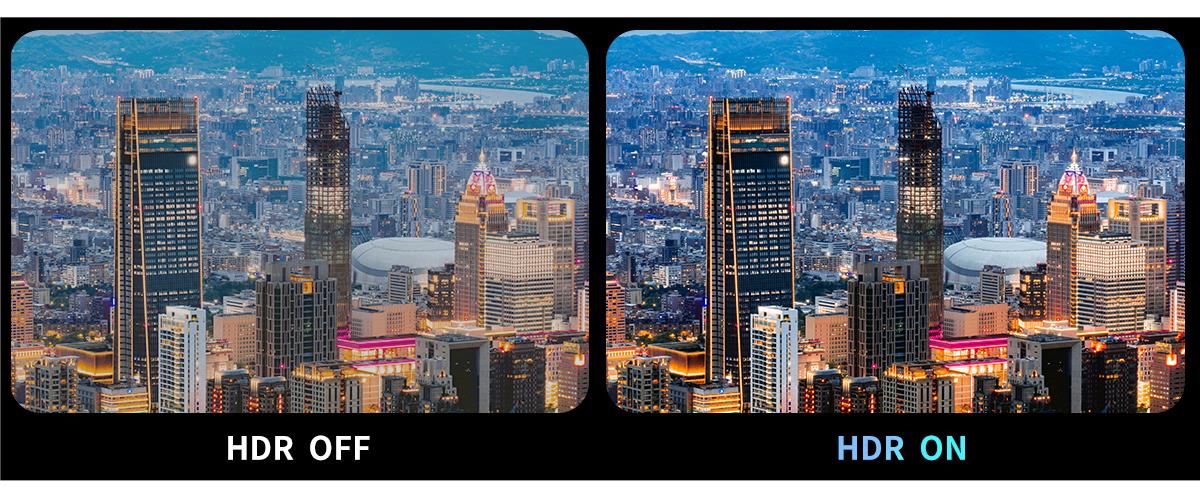

HDR Monitoring

What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty, it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

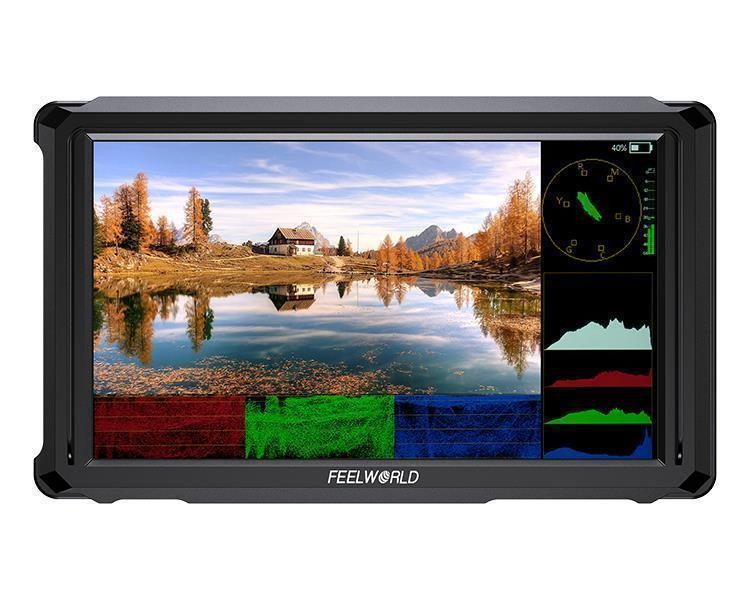

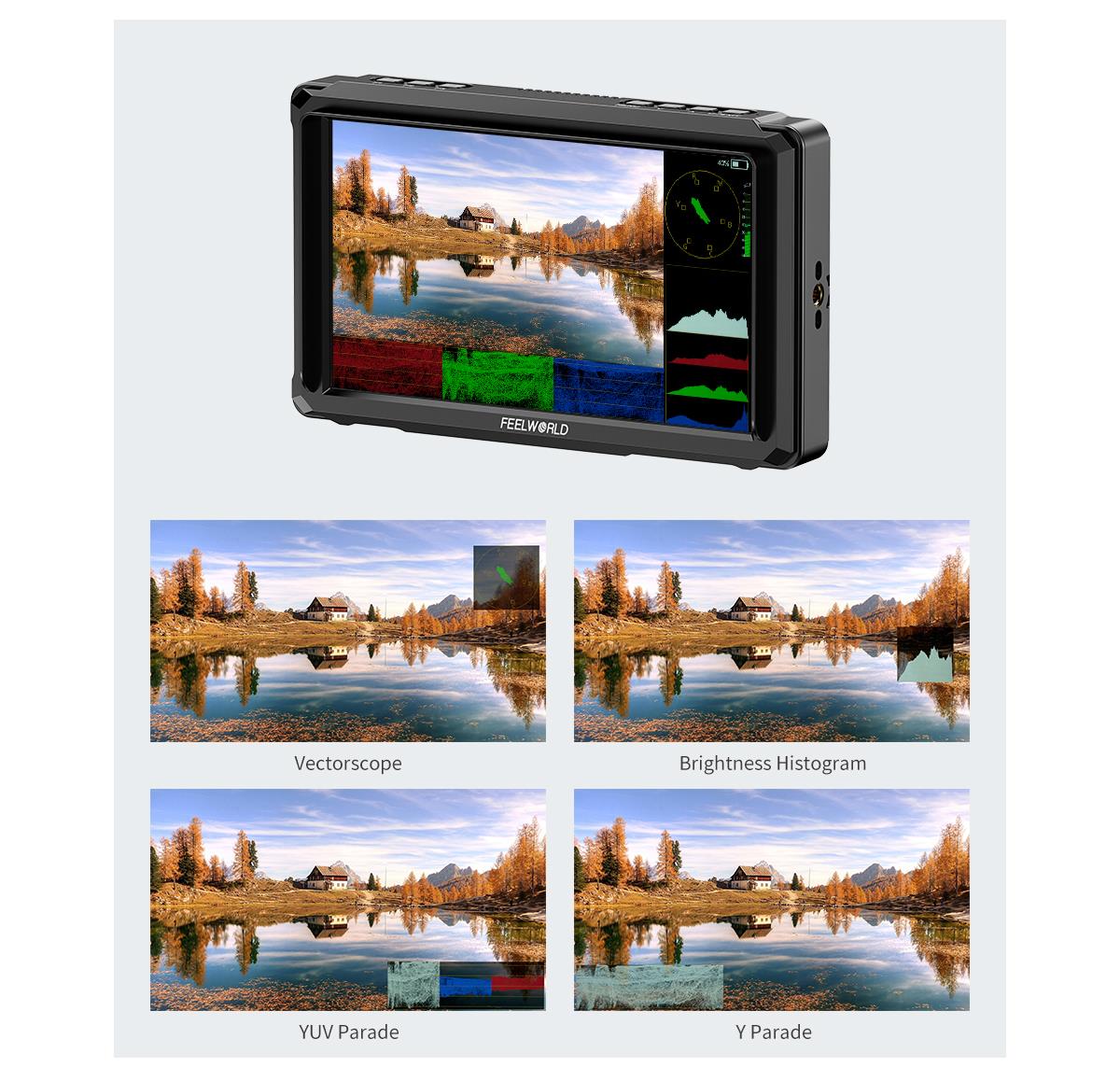

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. FW568 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

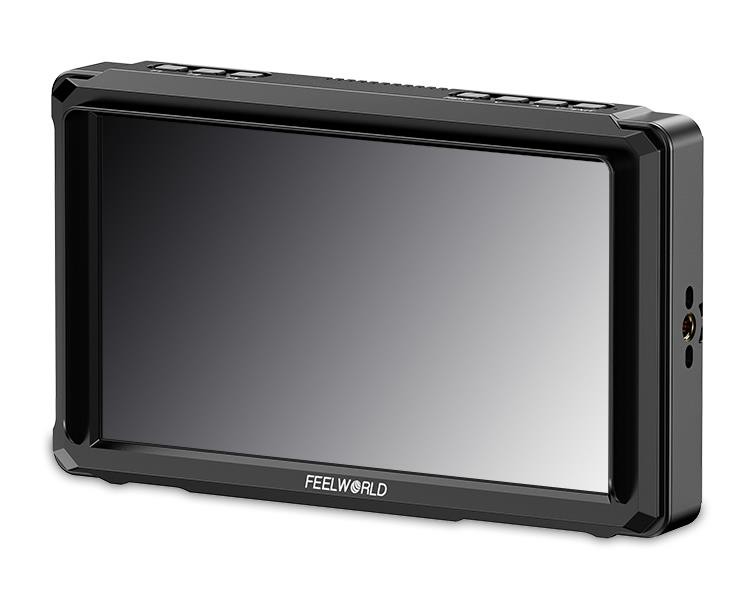

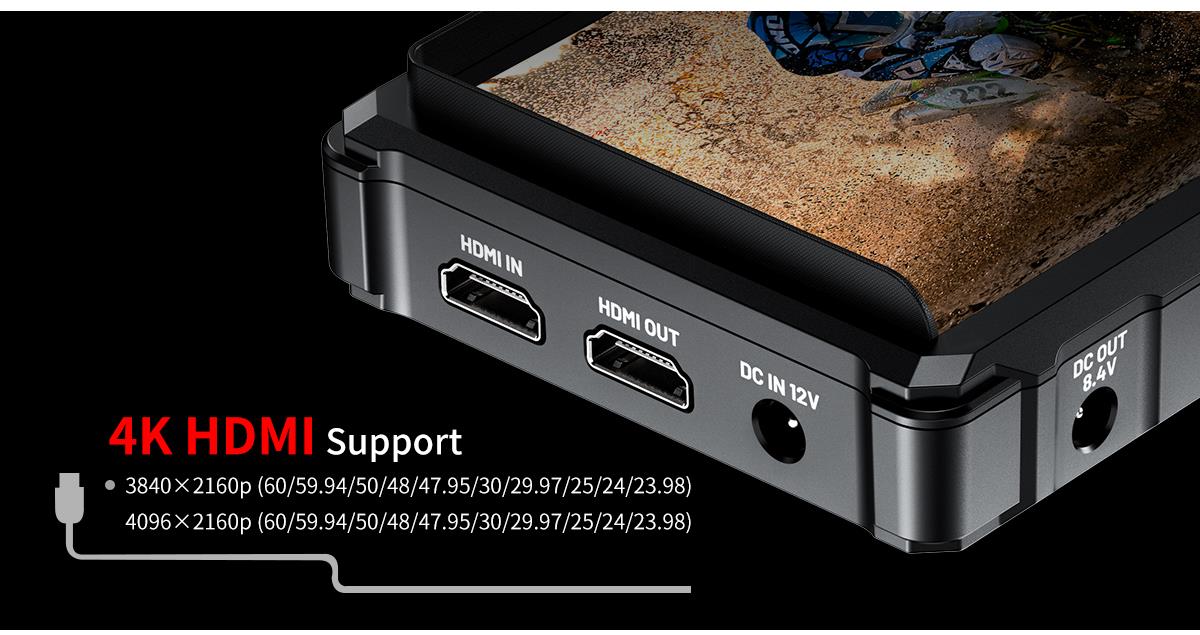

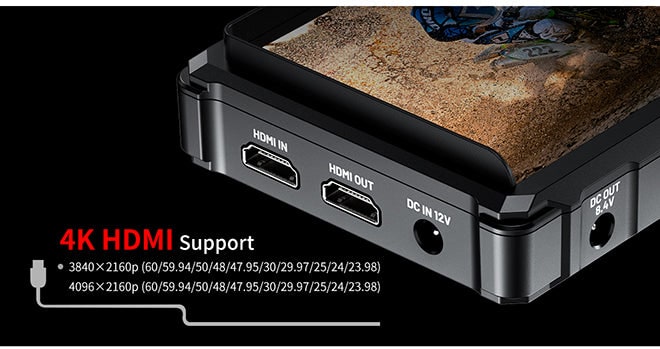

4K HDMI Input and Output, High Speed Transmission

Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

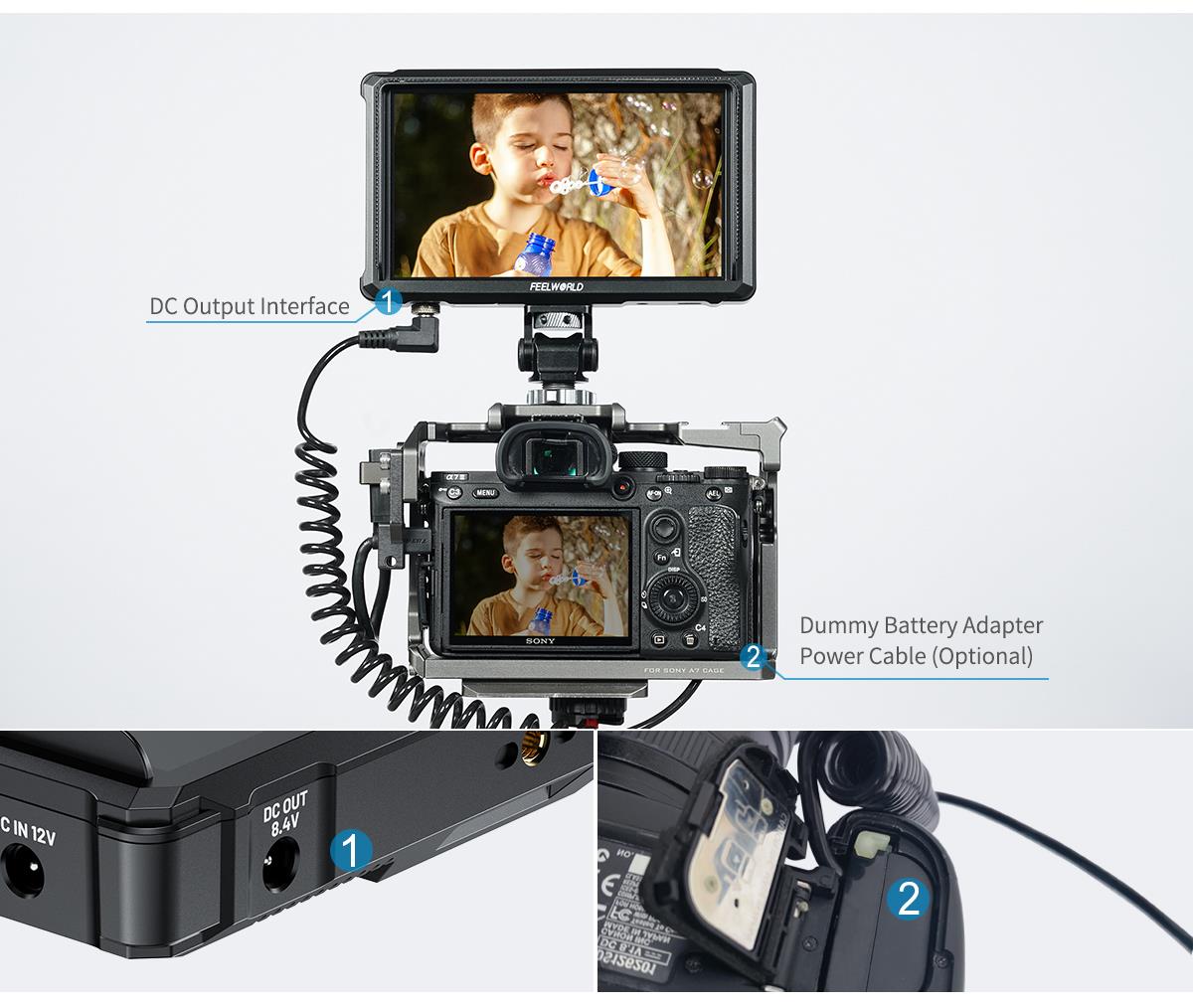

DC 8.4V OUT, Power Your DSLR or Mirrorless Camera

FW568 PRO provides auxiliary DC 8.4V power out (suitable DC 5.5*2.1mm power plug), allowing shooters to power their cameras. With a battery adapter cable (Optional), the FW568 PRO extends camera run-time, while providing a more usable display.

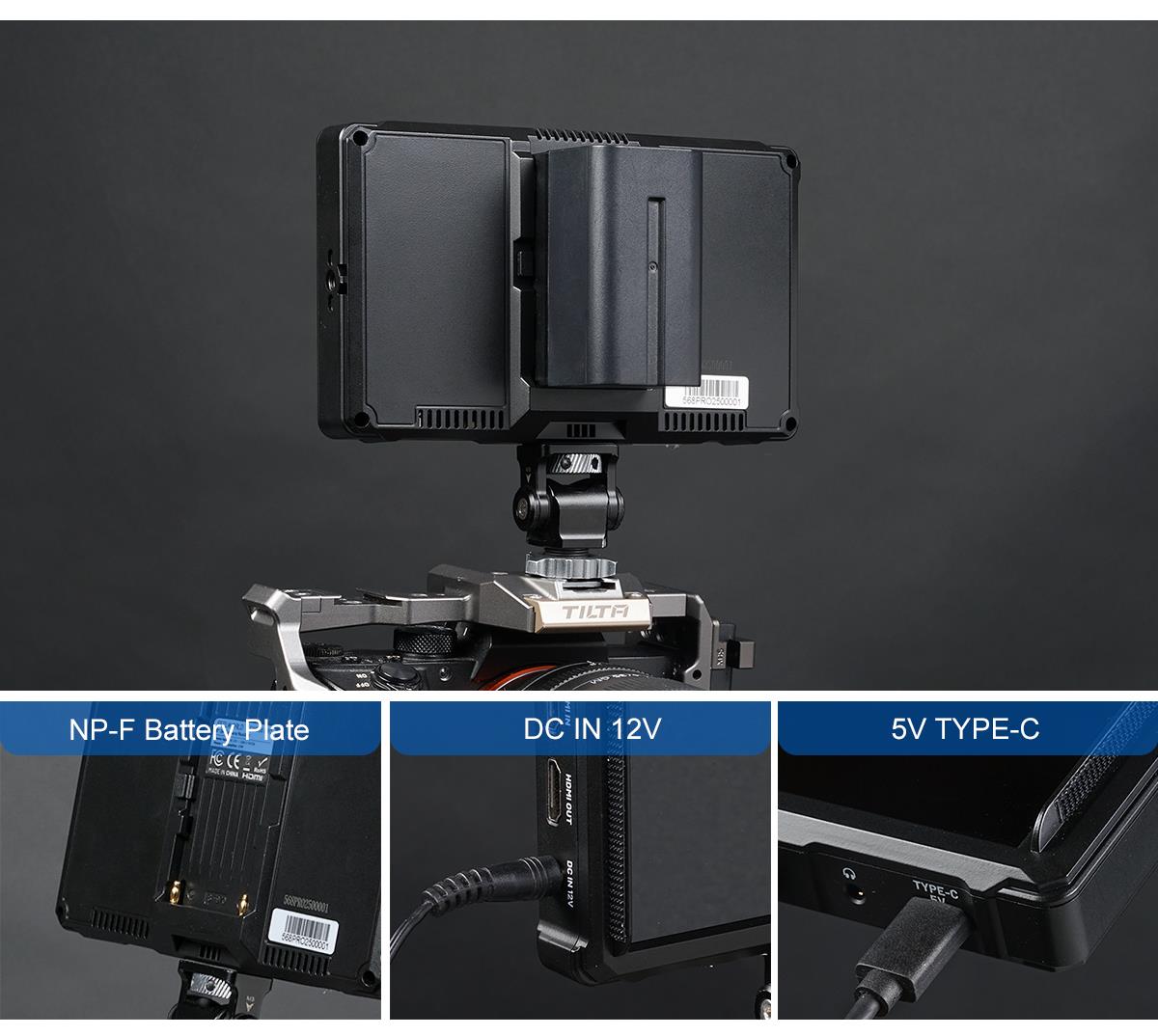

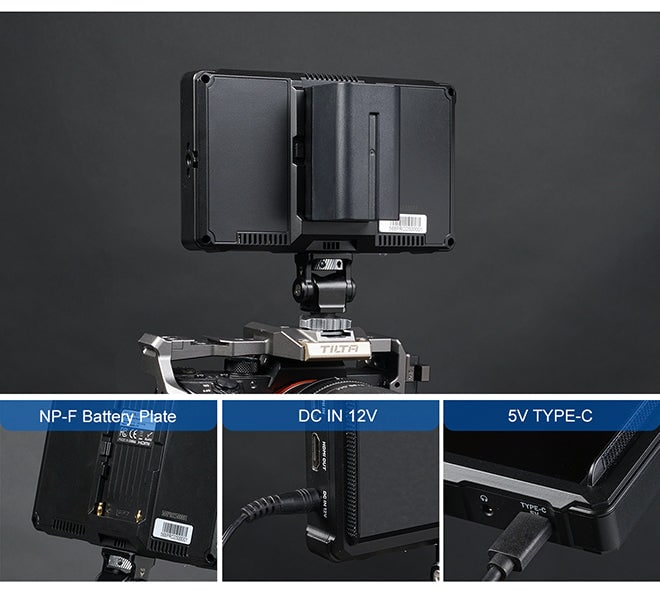

Multiple Power Supply,Long-lasting Power for Shooting

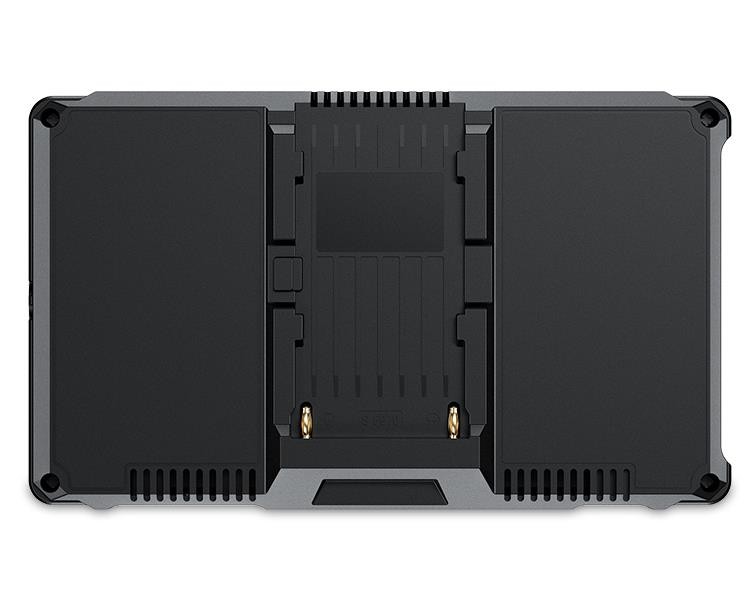

You can connect to DC power input to get continuous power (suitable for use 1.5A power adapter,DC 5.5*2.1mm power plug) or use the standard NP-F battery plate to install NP-F series battery for mobile application. Install one F750 battery (4400mah) last for about 3 hours. The monitor also provides a 5V Type-C input, which can be powered by mobile phone charger or power bank (suggest 5V/3A).

Note: the battery excluding, please purchase separately.

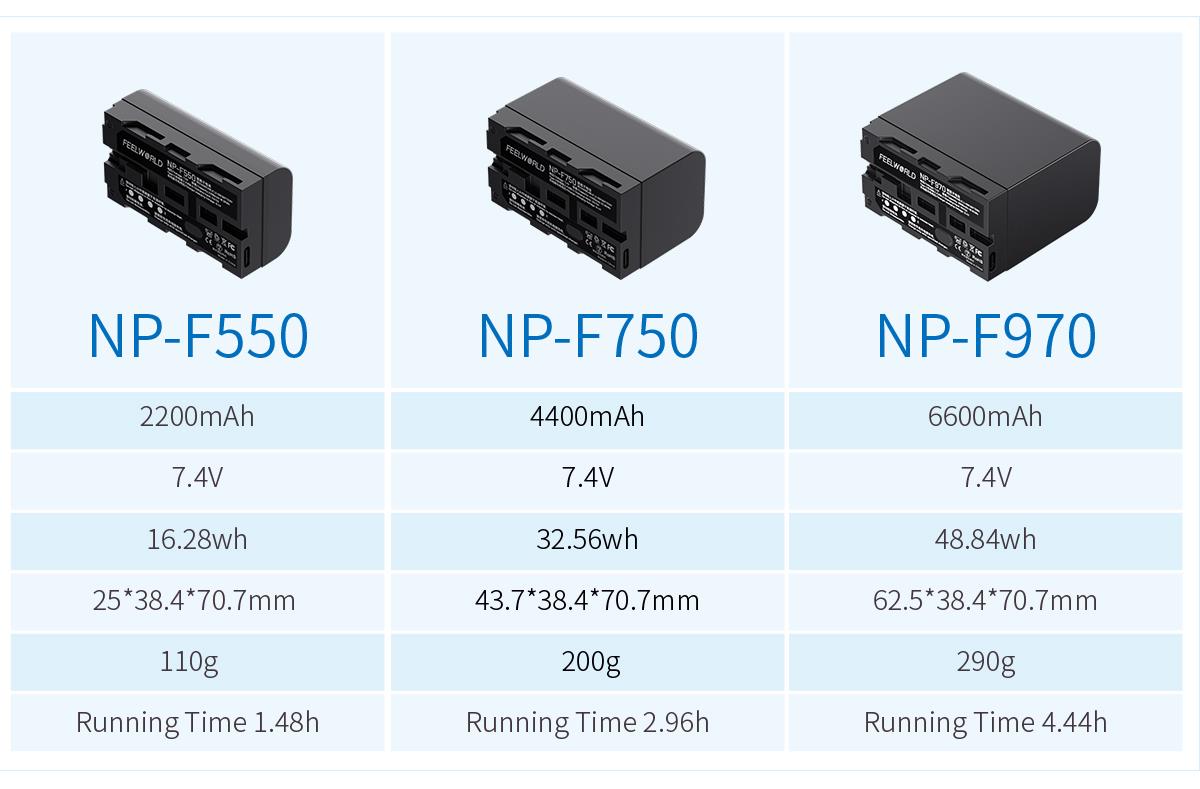

NP-F Battery Optional Recommendation

The power consumption of FW568 PRO is 11W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

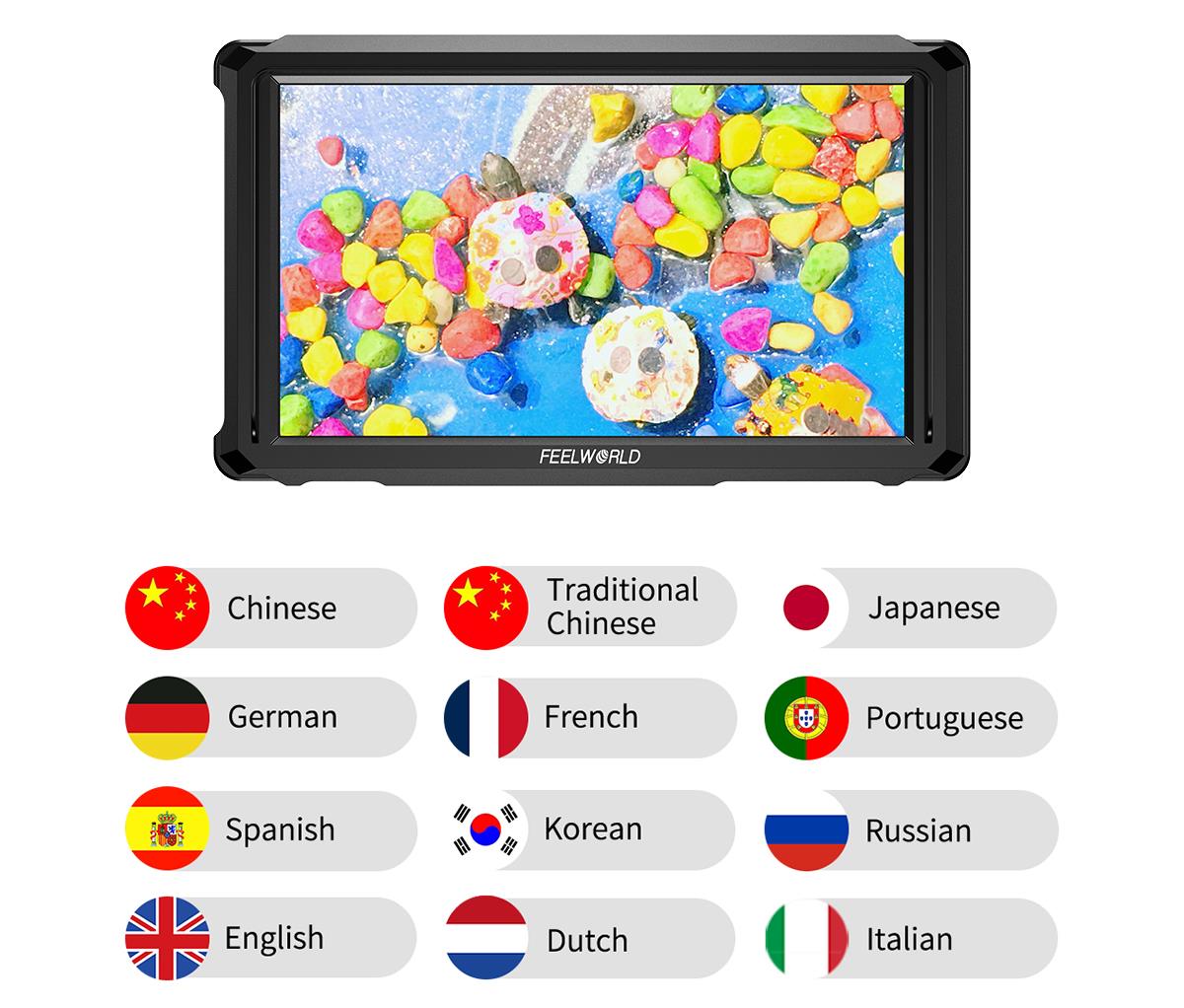

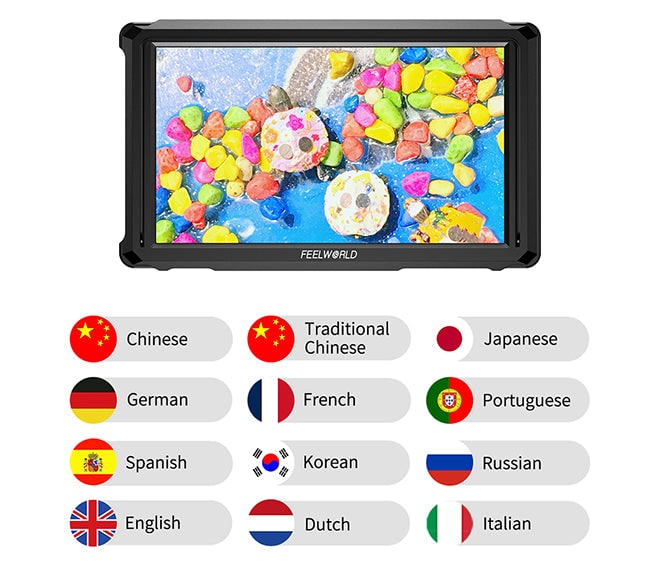

12 Languages Supporting

FW568 PRO built-in up to 12 languages, that means FW568 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

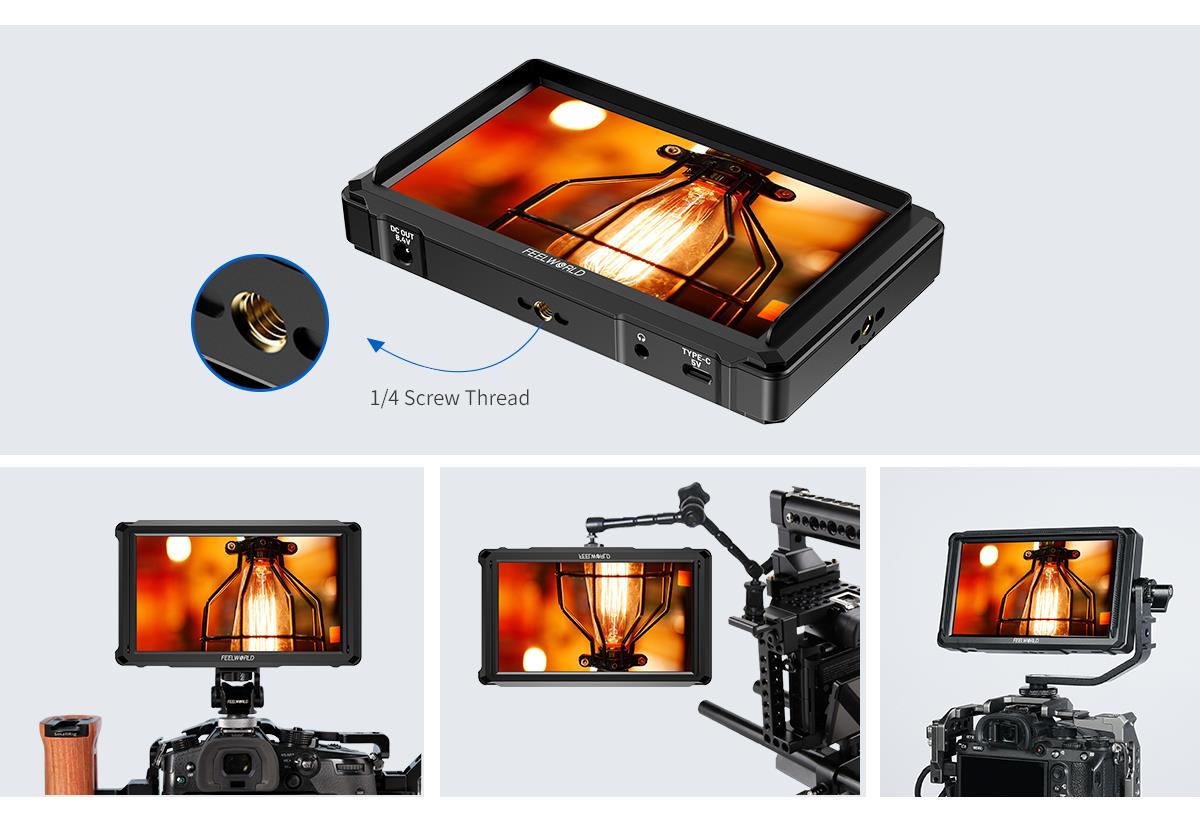

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor is equipped with 2 standard 1/4”mounting threads (bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

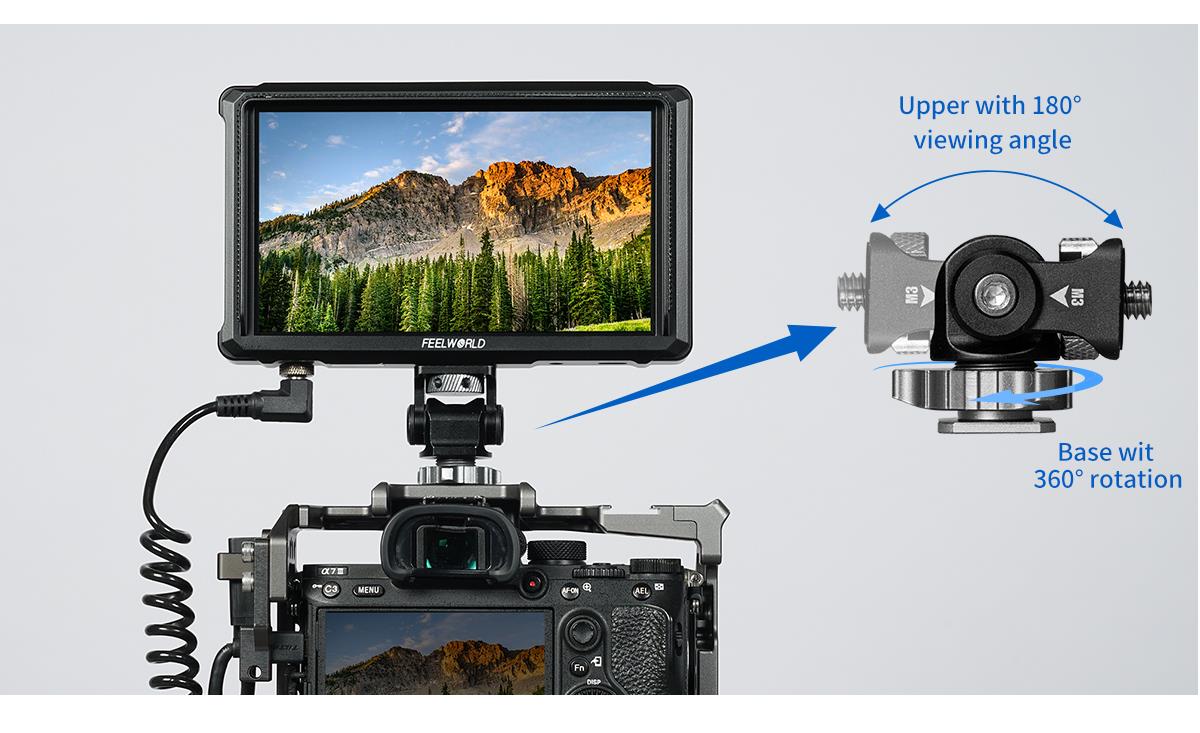

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

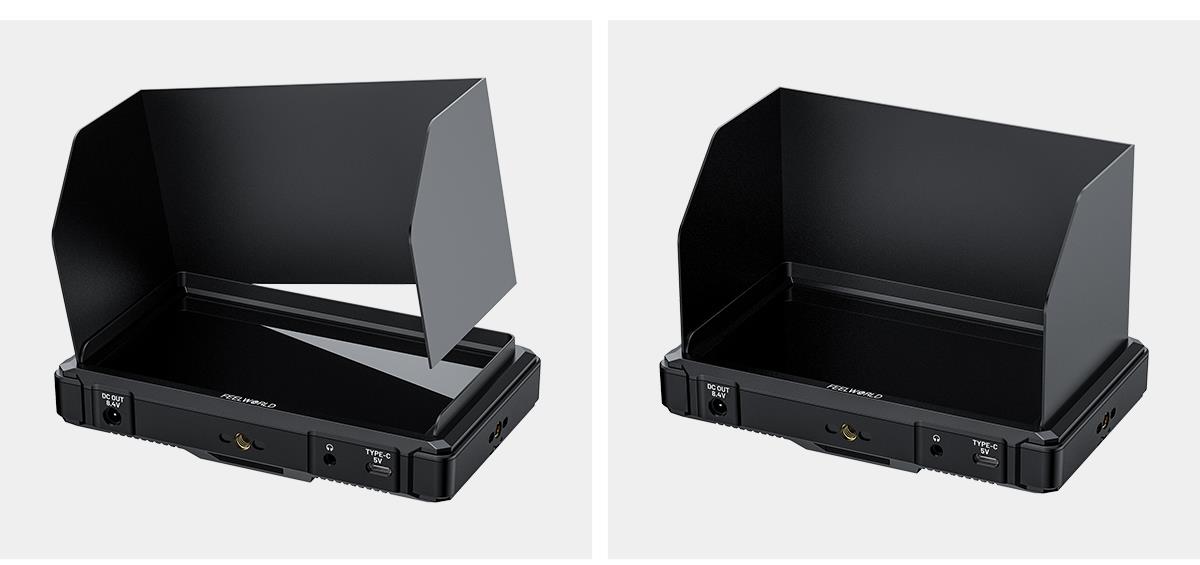

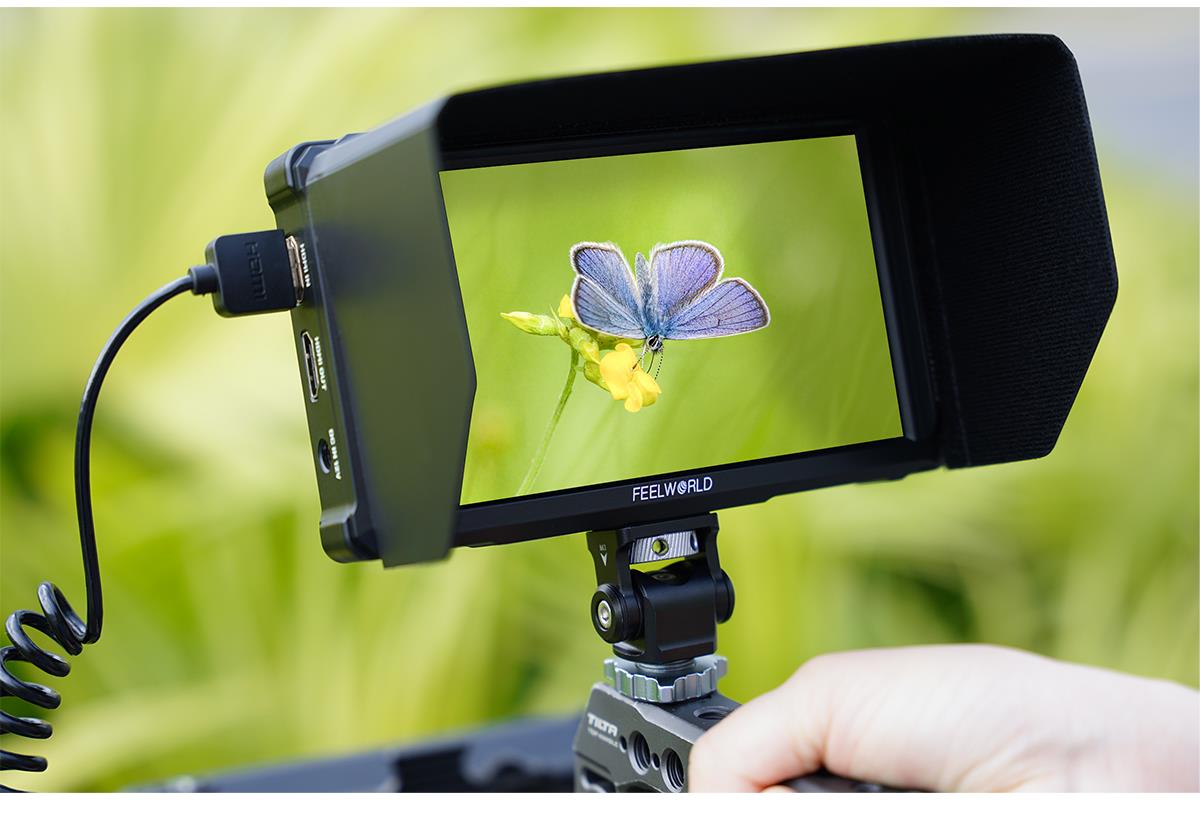

Portable Sun-hood

The standard portable sun-hood can easy to resist the strong light, and easy to install.
