F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor

Introduction

Screen Size：  6" IPS Touch Screen
Resolution：   1920x1080 pixels
Aspect ratio： 16:9
Brightness：   450cd/m²

Input

HDMI, Type-C 5V In
Output
HDMI, Stereo Headphones, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)

FEATURES

• High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 450cd/m², 160° wide viewing angles IPS Panel

• This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light, and other equipment

• Support 3D LUT Log to Rec.709, user 3D LUT Upload

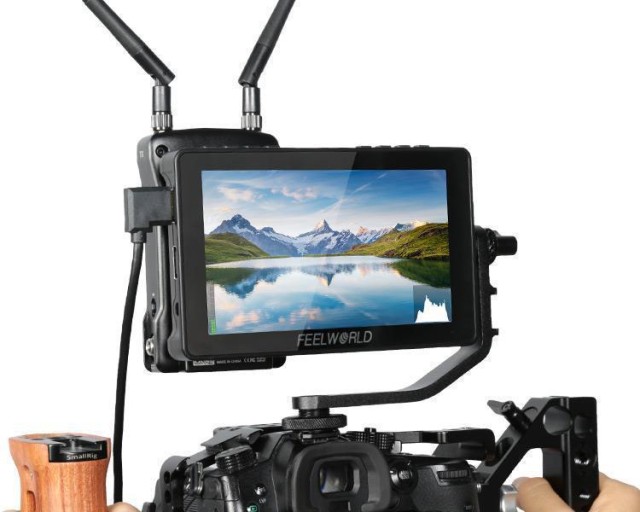

• It provides auxiliary power out; allowing shooters to power their cameras

• All waves

• Waveform (RGB, Y, YUV)

• Histogram(RGB1, Y, RGB2)

• Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)

• False Colors

• Zebra Exposure

• Nine Grid

• Scan Mode (Under Scan, Over Scan)

• Zoom (4x,9x,16x)

• Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)

• Pixel to Pixel

• Center Marker

• Safe Area (80%,85%,90%,93%,96%,2.35:1)

• Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)

• Marker Colors (Red, Green, Blue, White, Black）

• Check Field (Red/Green/Blue/Mono)

• Image Flip (H, V, H/V)

• Image Freeze

• Zoom All (0~500 adjustable)

• U/D & L/R Zoom (0~500 adjustable)

• Color Temperature Adjustment
