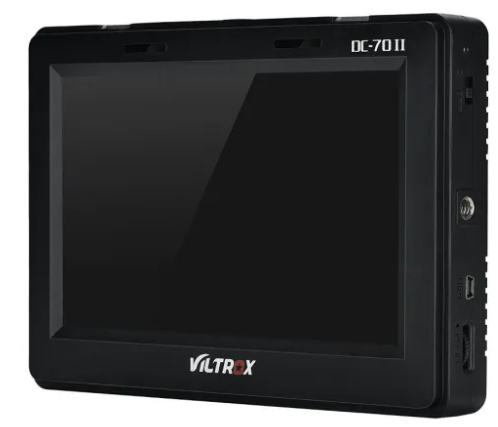

Viltrox DC-70 II 4K monitor

SKU: DC-70 II 4K

The Viltrox DC-70 II 4K is a 7-inch camera monitor featuring a 1024 × 600 IPS LCD panel, HDMI and AV inputs, HDMI pass-through output, and support for signals up to 1080p. It helps you more accurately check your frame, focus, and exposure when shooting in the studio or on location; image tools include peaking, false color, waveform, and pixel-by-pixel…

More information

136 € with VAT 112.4 € without VAT
Add to Compare Price history
Availability
on request
SKU:
DC-70 II 4K
Add to Compare Price history

Top accessories for Viltrox DC-70 II 4K monitor

Viltrox NP-F550

The Viltrox NP-F550 is a compact, rechargeable NP-F-type Li-ion battery for compatible
28 €
In stock > 5 pcs

PremiumCord ULTRA HDMI 2.1 High Speed + Ethernet cable 8K@60Hz 0.5m gold

PremiumCord introduces the ULTRA HDMI 2.1 High-Speed + Ethernet 8K cable, a top-of-the-line
7.6 €
In stock 5 pcs

Viltrox NP charger

  • SHOWROOM PRAHA
The Viltrox NP charger is a compact single-channel charger for Sony NP-F type batteries.
12 €
In stock 3 pcs

Viltrox 8K coiled HDMI cable

The Viltrox 8K coiled HDMI 2.1 cable with a bandwidth of 48 Gbps supports 8K60, 4K240,
14 €
Backordered 4 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Viltrox DC-70 II 4K is a 7-inch camera monitor featuring a 1024 × 600 IPS LCD panel, HDMI and AV inputs, HDMI pass-through output, and support for signals up to 1080p. It helps you more accurately check your frame, focus, and exposure when shooting in the studio or on location; image tools include peaking, false color, waveform, and pixel-by-pixel magnification.

The monitor can be powered by a Sony NP-F (L-Series) battery or an external 8–18 V DC power source. It features a built-in speaker, a 3.5 mm headphone jack, a mini-USB port for firmware updates, and the package includes a lens hood, an adjustable hot shoe mount, and HDMI cables for standard camera connectors.

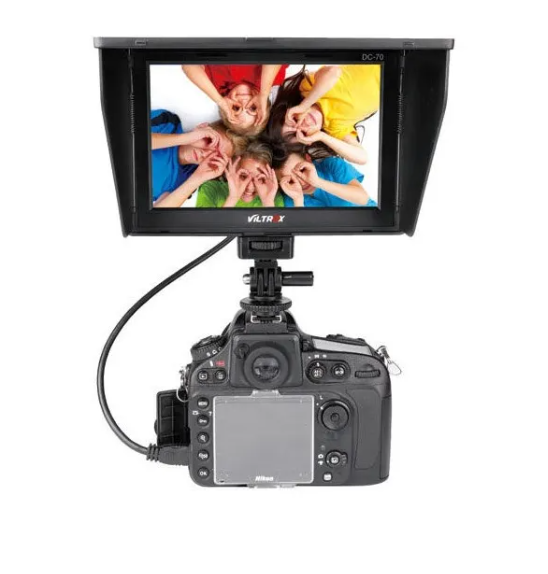

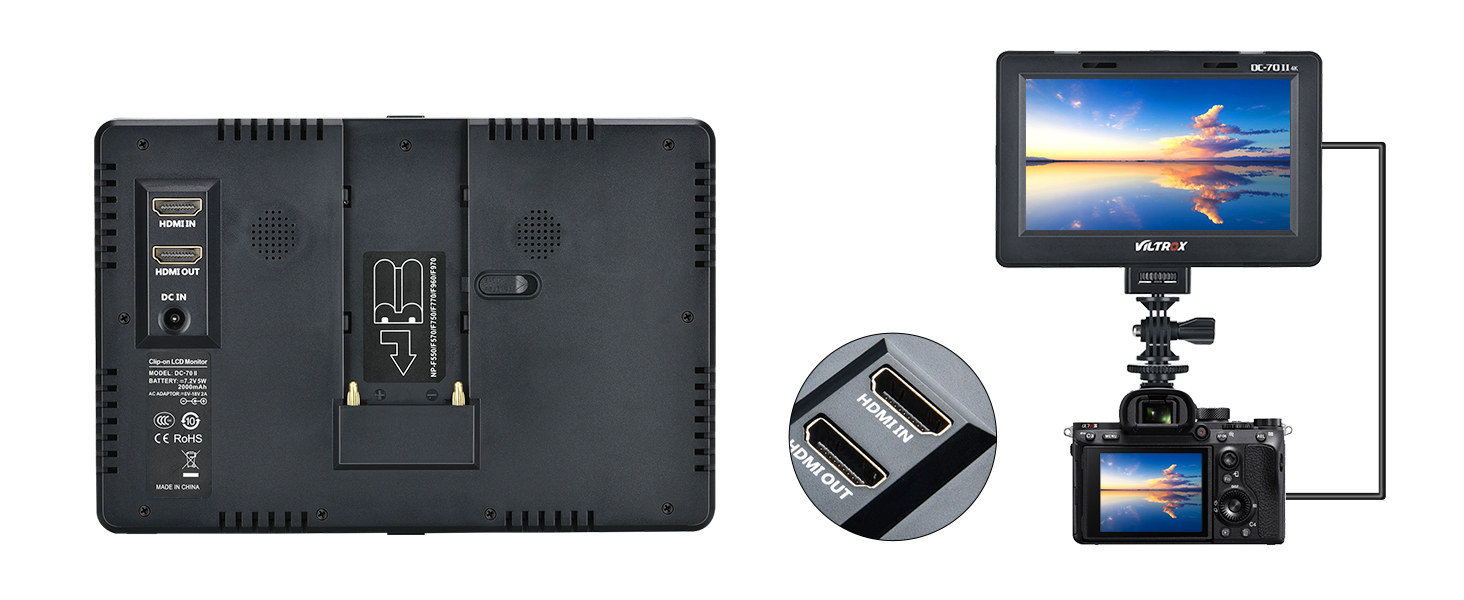

Viltrox DC-70 II 4K monitor na kameře

7″ camera preview monitor

MORE PRECISE FRAME CONTROL

The Viltrox DC-70 II 4K expands your camera’s live view with a 7-inch IPS LCD panel featuring a resolution of 1024 × 600. HDMI and AV connections, along with a pass-through HDMI output, make it easy to integrate into a simple camera setup or a workflow with an additional display.

7″ IPSLCD, HDMI +AV, signal up to 1080p

FOCUS AND EXPOSURE UNDER CONTROL

For more precise manual adjustments, the camera offers focus peaking, false color, waveform, and adjustments for brightness, contrast, hue, and color temperature, as well as pixel-by-pixel magnification. A built-in speaker and a 3.5mm headphone output provide audio monitoring directly from the camera.

POWER FOR FIELD AND STUDIO USE

The battery compartment for Sony NP-F (L-Series) batteries enables mobile operation, while the 8–18 V DC input is designed for external power. The mini-USB port is used for firmware updates; the included lens hood improves visibility when working outdoors.

PACKAGE CONTENT

  • Viltrox DC-70 II 4K Monitor ×1
  • Lens Hood ×1
  • Adjustable hot shoe adapter ×1
  • HDMI Type-A to Mini HDMI Cable ×1
  • HDMI Type-A to Micro HDMI Cable ×1

SPECIFICATIONS

  • Type/Model: Viltrox DC-70 II 4K LCD camera monitor
  • Diagonal: 7″
  • Panel: IPS LCD, 1024 × 600
  • Maximum input signal: up to 1080p via HDMI
  • Video Inputs: HDMI, AV
  • Video output: HDMI loop-through
  • Audio: built-in speaker, 3.5mm headphone output
  • Power: Sony NP-F (L-Series) or DC 8–18 V
  • Firmware update: mini-USB
  • Image tools: peaking, false color, waveform, pixel-to-pixel zoom

WE RECOMMEND

The Viltrox DC-70 II 4K is a professional 7-inch viewfinder monitor with an HDMI input that requires a Sony L-Series (NP-F) battery for operation. The accessories listed below include compatible batteries and additional equipment that form a comprehensive ecosystem for both on-location and studio shooting.

Power and Batteries - Essential accessories for powering the DC-70 II monitor using the NP-F (L-Series) standard.

Lighting and LED Panels - Supplementary lights that are compatible with the same type of batteries as the monitor or are suitable for mounting on a camera rig.

Tripods and Mechanical Accessories - Stabilization elements and accessories for mounting monitors and lighting equipment.

Parameters

Parameters

Manufacturer: Viltrox
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI · AV
Panel resolution1024x600
For monitorOn-camera monitoring for filmmaking
Monitor power supplySony NP-F · 8–18 VDC

Other parameters

Other featuresLightweight · IPS panel
