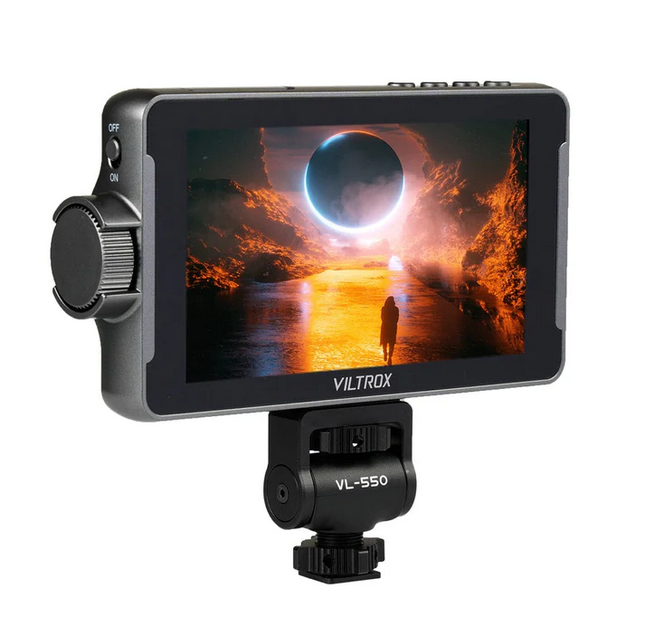

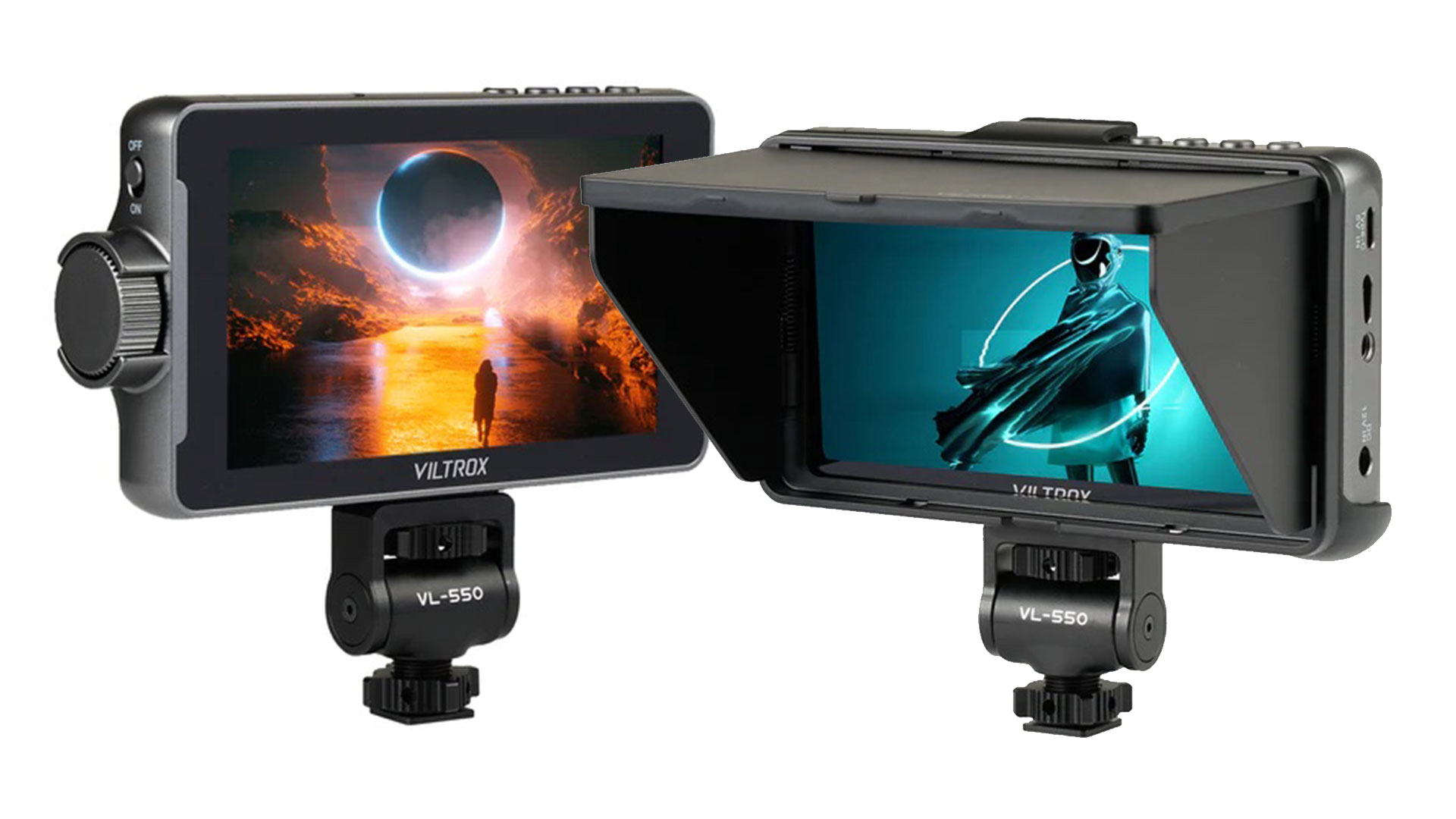

Viltrox DC-550

The Viltrox DC-550 is a high-brightness 5.5-inch Full HD monitor with a 1200 Nits display, ultra-wide viewing angles, and professional monitoring tools, perfect for filmmakers and photographers.

The Viltrox DC-550 is a compact yet powerful 5.5-inch Full HD monitor designed for filmmakers and photographers who need high-quality visual monitoring. With a 1920×1080 resolution, 1200 Nits brightness, and a 1200:1 contrast ratio, this display ensures crystal-clear viewing even in bright outdoor environments. Its 178° ultra-wide viewing angle allows easy monitoring from different positions.

Supporting 4K 30Hz HDMI input and output, the DC-550 ensures a smooth and high-definition monitoring experience. The HDMI 1.4 interface offers seamless connectivity with cameras and external devices. Professional-grade monitoring tools such as a luminance histogram and Parade waveform enhance precision in exposure and color control. The monitor also features an SD card slot for firmware upgrades, a 3.5mm headphone jack for real-time audio monitoring, and supports NP-F series batteries for portable operation.

Its compact and lightweight design (only 280g) makes it an ideal companion for on-the-go shooting, while the DC12V-18V and Type-C power interface provide versatile power options.

Key Features:

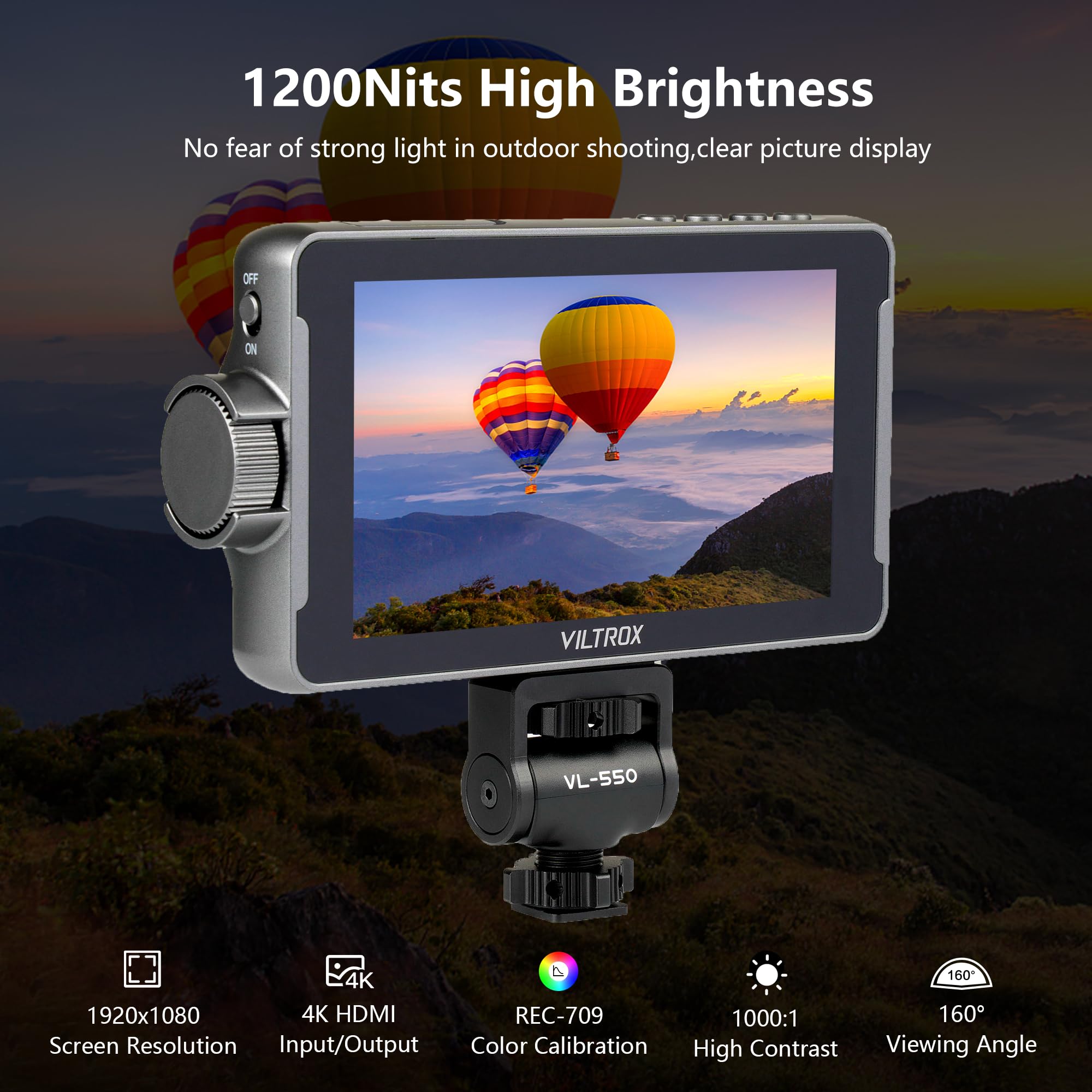

• High-Brightness Display: 1200 Nits brightness for excellent visibility in bright conditions.
• Full HD 5.5-inch IPS Screen: 1920×1080 resolution for sharp, detailed images.
• Ultra-Wide Viewing Angle: 178° viewing angle ensures clear monitoring from multiple perspectives.
• Professional Monitoring Tools: Includes luminance histogram and Parade waveform for precise image adjustments.
• 4K 30Hz HDMI Support: HDMI 1.4 input and output for seamless connectivity.
• Portable and Lightweight: Compact design weighing only 280g for easy transport.
• Versatile Power Options: Supports NP-F series batteries, DC12V-18V input, and Type-C power supply.
• Firmware Upgradeable: SD card slot for software updates and feature enhancements.

Specifications:

• Screen: 5.5-inch LED IPS
• Resolution: 1920×1080 pixels
• Brightness: 1200cd/m²
• Contrast Ratio: 1200:1
• Viewing Angle: 178°
• Input Interface: HDMI 1.4
• Output Interface: HDMI 1.4
• Audio: 3.5mm headphone jack
• Power Interface: DC12V-18V, Type-C (5V 3A)
• Battery Compatibility: NP-F550/F570/F750/F770/F960/F970
• Dimensions: 165×91×28.5mm
• Weight: ≈280g
• Operating Temperature: 0°C to +40°C
• Storage Temperature: -20°C to +60°C
