Viltrox DC-550 Pro II 5.5" 4K60 HDMI 2.0 Camera Monitor
SKU: DC-550 Pro II
Viltrox DC-550 Pro II is a compact 5.5″ on-camera monitor with a 1,400-nit Full HD IPS display for dependable viewing outdoors or in the studio. HDMI 2.0 carries 4K/60p on both input and output, while the touchscreen is complemented by a control dial and F1–F3 keys. The second generation adds camera control, Onion Skin, custom 3D LUT import, and power options…
242 € with VAT
200 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Viltrox DC-550 Pro II is a compact 5.5″ on-camera monitor with a 1,400-nit Full HD IPS display for dependable viewing outdoors or in the studio. HDMI 2.0 carries 4K/60p on both input and output, while the touchscreen is complemented by a control dial and F1–F3 keys. The second generation adds camera control, Onion Skin, custom 3D LUT import, and power options from NP-F batteries, USB-C, or DC input.
FIELD TEST OF THE LENS’S COVERAGE
VILTROX DC-550 PRO II
A bright 5.5″ Full HD monitor for confident decision-making when shooting on location or in the studio. With 1,400 nits of brightness, touchscreen control, and HDMI 2.0, this display helps you keep both your footage and your workflow under control.
Rec.709, custom 3D LUT import, waveform, histogram, vectorscope, parade, false color, zebra, and peaking bring essential tools right to the camera position.
5.5″ FullHD 1,400nits HDMI 2.0 · 4K60
CAMERA CONTROL FROM THE MONITOR
When connected via USB or Wi-Fi, you can adjust the basic settings of a compatible camera—including shutter speed, aperture, and ISO—directly from the monitor. A side dial and three programmable F1–F3 keys keep the most frequently used functions within easy reach.
4K60 VIA HDMI 2.0
Both the HDMI 2.0 input and pass-through output support signals up to 4K at 60 Hz. The monitor can thus serve as a seamless monitoring point between the camera and another device without being limited to 30p.
ONION SKIN FOR SEAMLESS EDITING
Save a frame from the HDMI input to an SD card and overlay it on the live image. The Onion Skin feature makes it easy to retake shots, check composition, and precisely match movement.

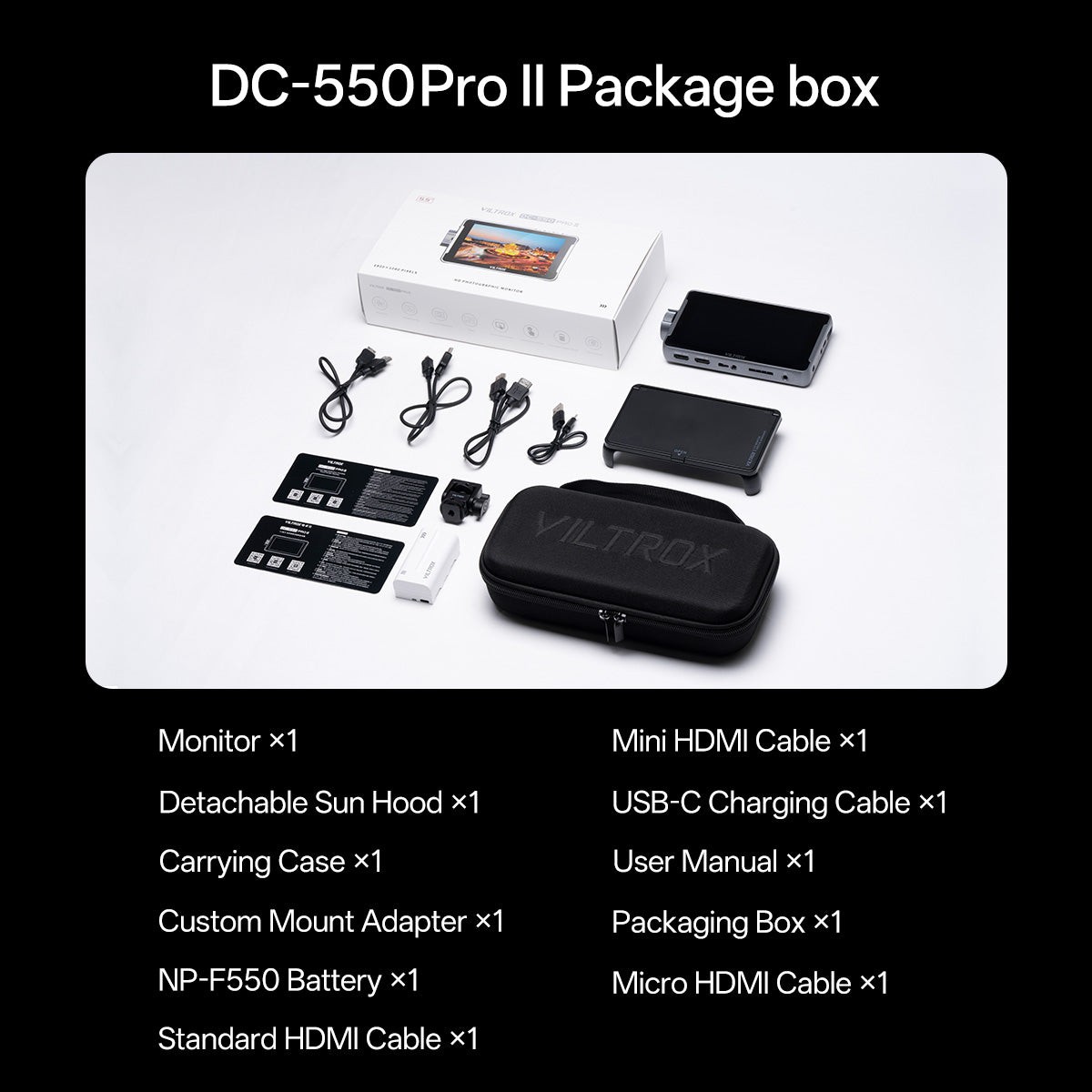

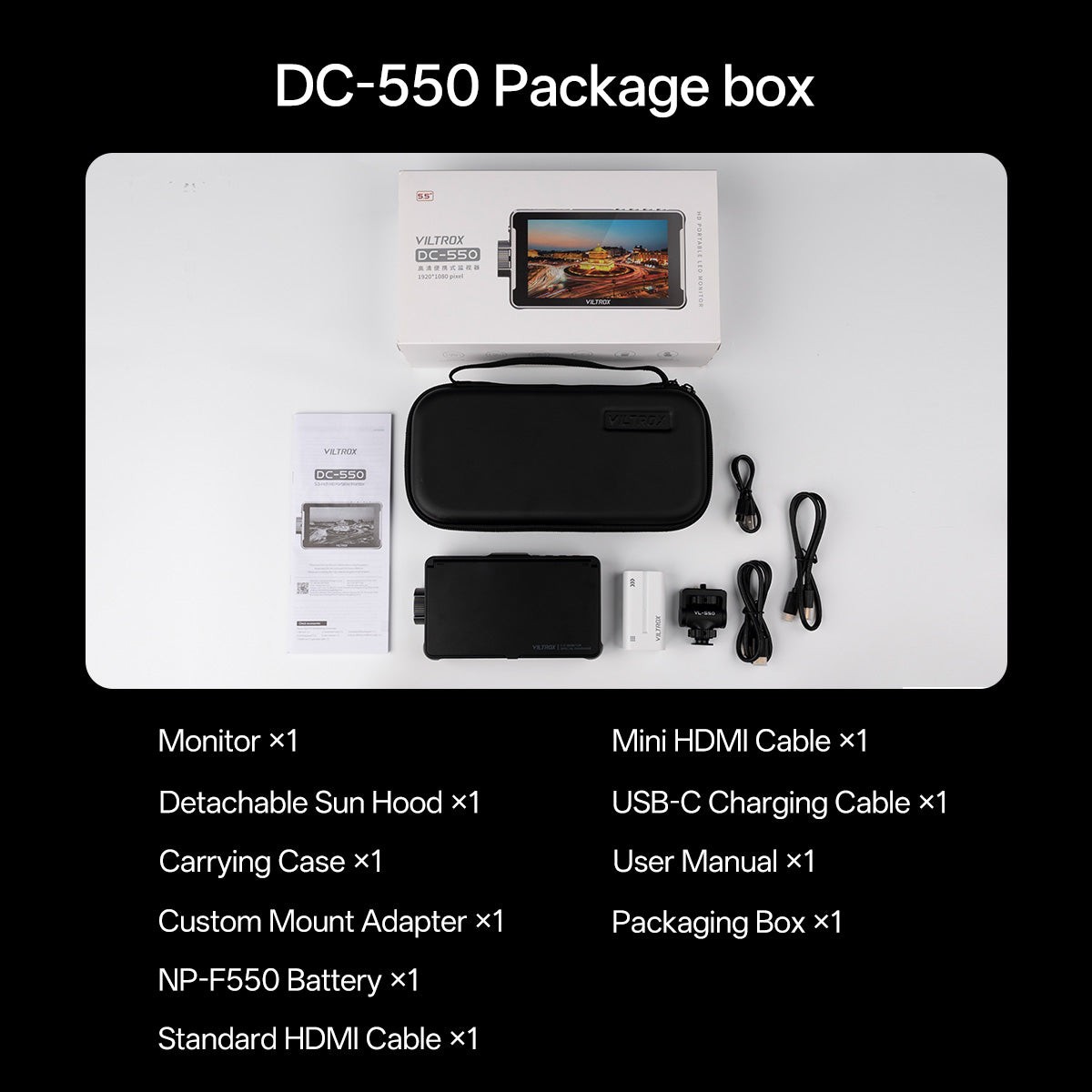

PACKAGE CONTENT
SPECIFICATIONS
- Display diagonal: 5.5″
- Resolution: Full HD
- Brightness: 1,400 nits
- Viewing angle: 160°
- Color space: Rec.709
- Controls: touchscreen, side control dial, F1–F3 keys
- Input: HDMI 2.0, up to 4K at 60 Hz
- Output: HDMI 2.0, up to 4K at 60 Hz
- SD card slot: import custom 3D LUTs, save frames for Onion Skin, firmware updates
- Tools: waveform, histogram, vectorscope, parade, false color, zebra, peaking, monochrome mode
- De-squeeze: 7 preset ratios + custom value
- Power: NP-F battery, DC input, USB-C
- Gyroscope: automatic image rotation 0°/180°, menu rotation 0°/90°/180°/270°
- Cooling: Integrated fan for heat dissipation
- Manufacturer’s catalog number: DC-550 Pro II
Parameters
Parameters
| Manufacturer: | Viltrox |
| Category: | Camera monitors |
Main parameters
| Size | 5.5" |
| Monitor inputs | HDMI 2.0 |
| Luminosity | 1400cd/m2 |
| Panel resolution | 1920 × 1080 (Full HD) |
| For monitor | On-camera monitoring for filmmaking |
| Monitor power supply | Sony NP-F · USB-C |
Other parameters
| Other features | Touchscreen · Camera control · 3D LUT correction |
| High Brightness (NITS) | Yes |
