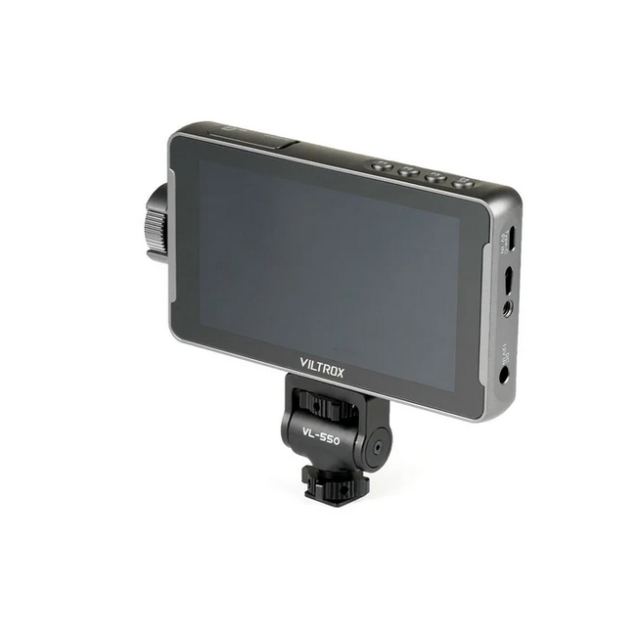

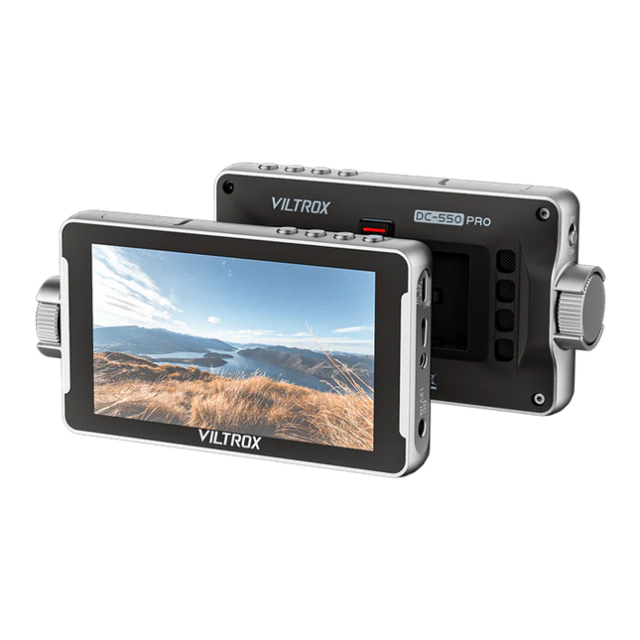

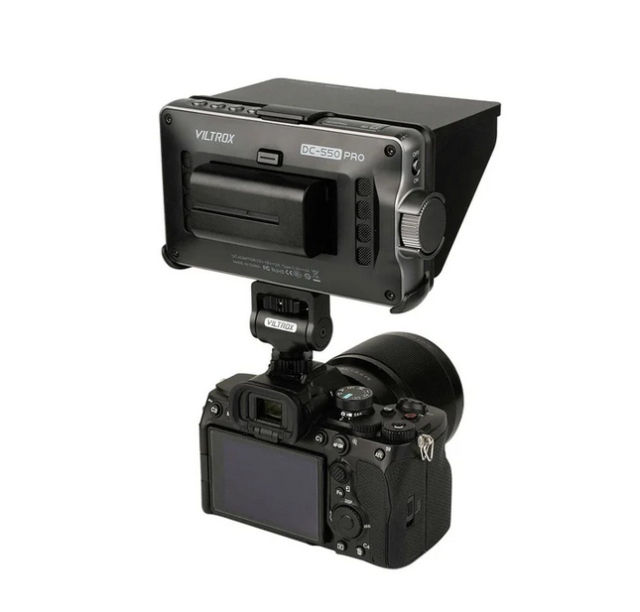

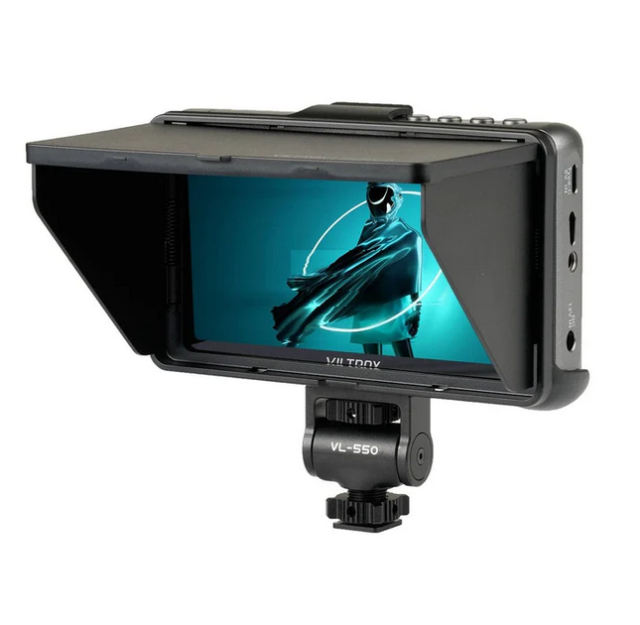

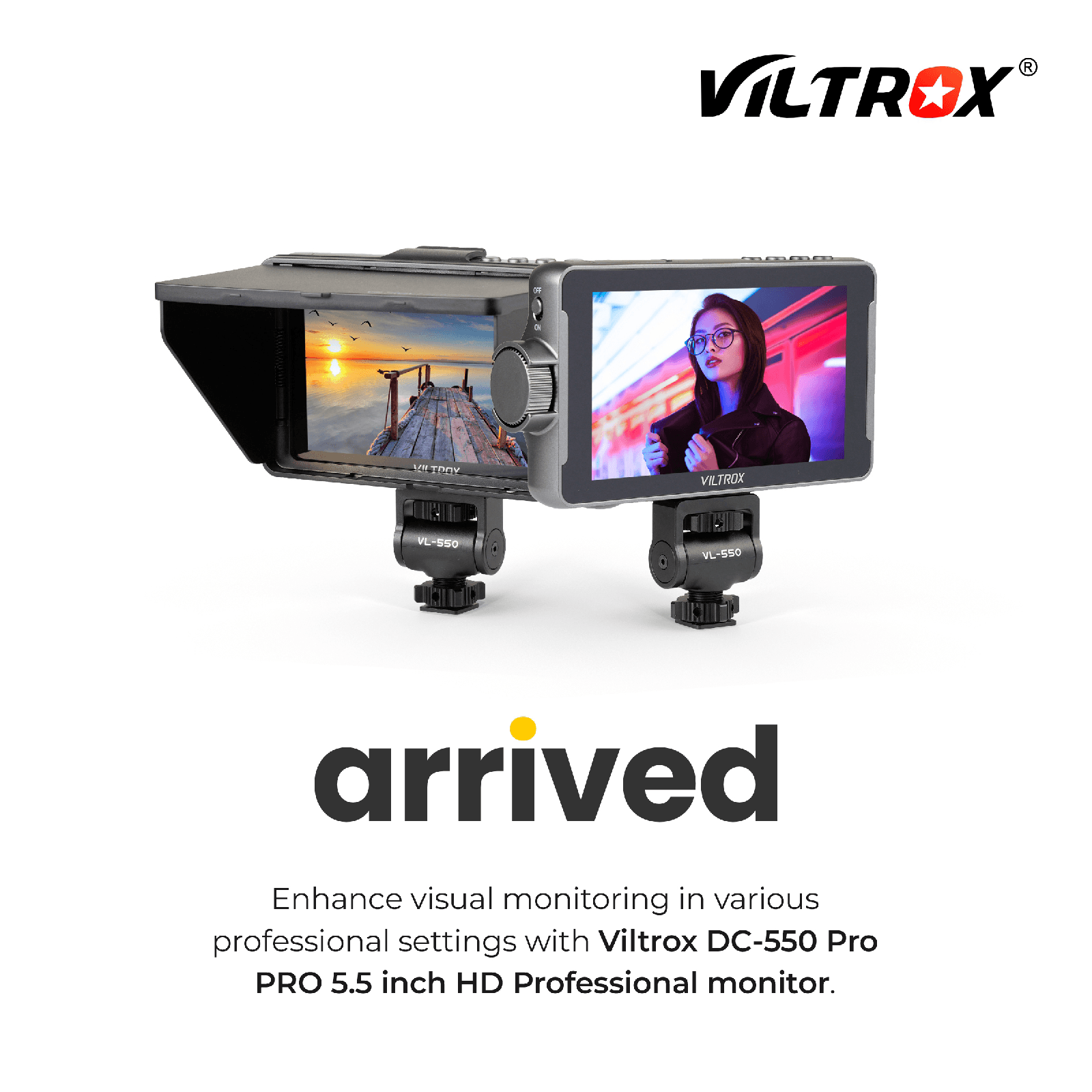

Viltrox DC-550 Pro

The Viltrox DC-550 Pro is a 5.5-inch touchscreen camera monitor with a Full HD IPS panel (1920 × 1080), 1200 cd/m² brightness, 1200:1 contrast ratio, and a 178° viewing angle. Both the HDMI 1.4 input and pass-through output accept signals up to 4K/30p; the monitor displays them in Full HD resolution, giving filmmakers greater and clearer control over their shots whether working outdoors or in the studio.

For precise focus, exposure, and color adjustment, it offers touch controls, physical buttons and a dial, custom keys, waveform, RGB parade, vectorscope, histogram, peaking, false color, and the ability to import custom 3D LUTs from an SD card. Power can be supplied via a Sony NP-F battery, USB-C 5 V / 3 A, or DC 12–18 V; the monitor features a 3.5mm headphone output and an SD card slot for firmware updates.

5.5" Touchscreen Camera Monitor

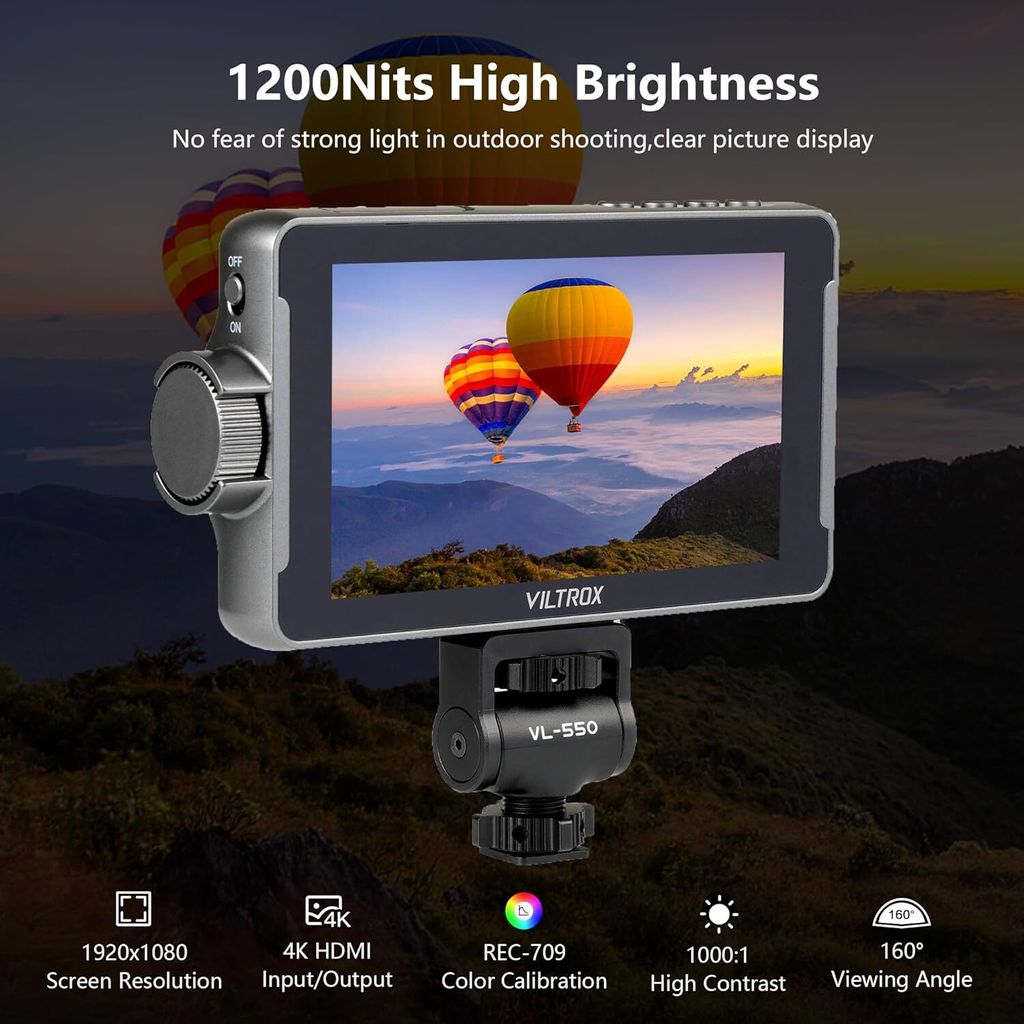

CLEAR IMAGE EVEN OUTDOORS

The Full HD IPS display with 1200 cd/m² brightness and a 1200:1 contrast ratio makes it easy to check composition, focus, and exposure outside the studio. The touchscreen, complemented by physical controls, provides quick access to tools without interrupting the shot.

1920 ×1080 1200cd/m² touchscreen + controls

EXPOSURE AND COLOR TOOLS

The DC‑550 Pro combines waveform, RGB parade, vectorscope, histogram, focus peaking, and false color into a compact on-camera view. The SD card slot allows you to import custom 3D LUTs and update the firmware, enabling you to tailor the image to your specific production workflow.

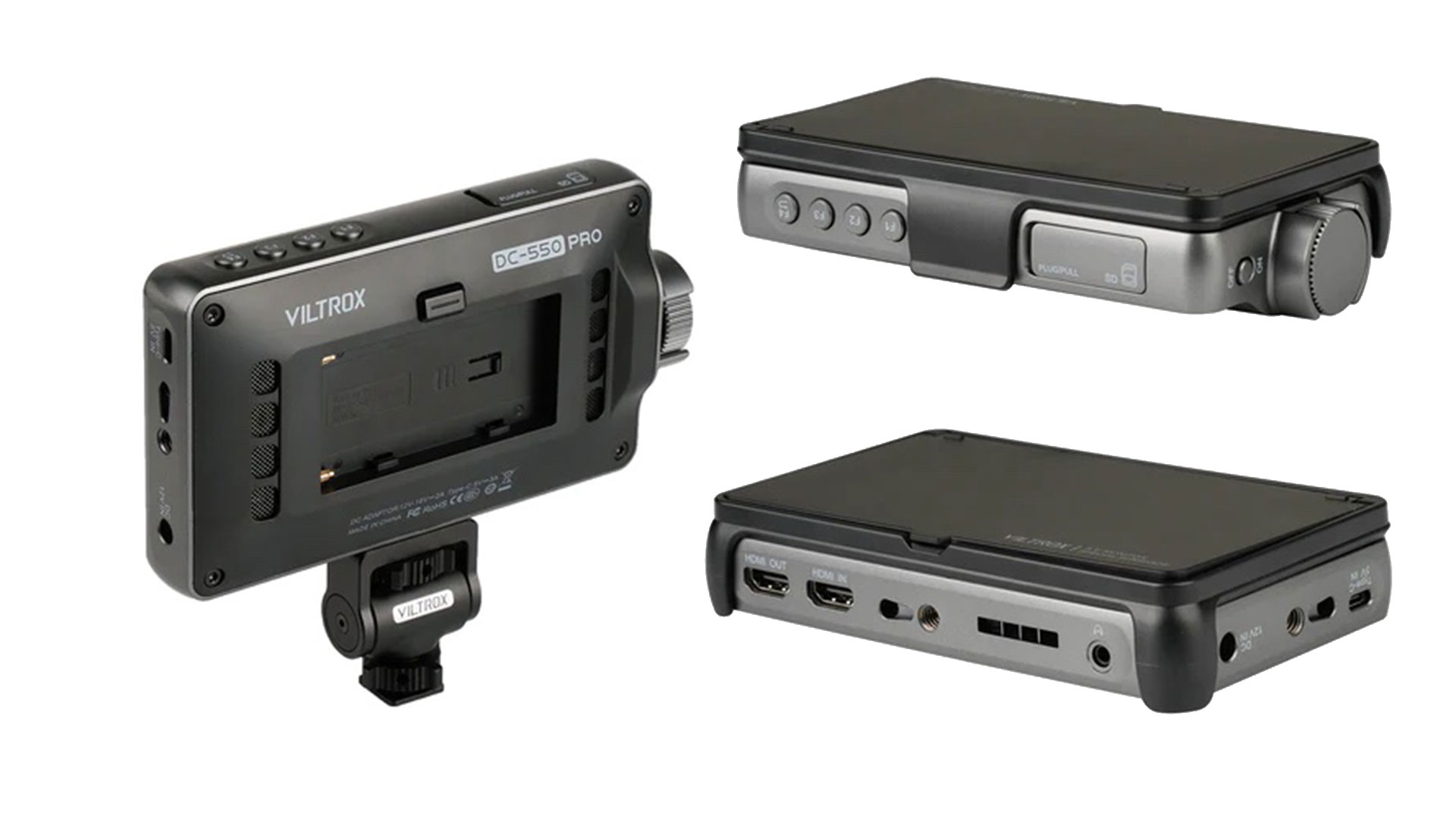

FLEXIBLE CONNECTIVITY AND POWER

The HDMI 1.4 input and loop-through output support signals up to 4K/30p, while the monitor displays a Full HD image. For a mobile setup, use a Sony NP‑F battery, USB‑C 5 V / 3 A, or DC 12–18 V; the 3.5mm output allows you to monitor audio through headphones.
