Viltrox DC-550 Lite
SKU: DC-550 Lite
Viltrox DC‑550 Lite is a compact 5.5-inch Full HD on-camera monitor with a 1,920 × 1,080 IPS display, 400 cd/m² brightness and a wide viewing angle. Its HDMI 1.4 input and loop-through output accept signals up to 4K/30p, giving filmmakers a larger, more precise view without interrupting camera recording. Button control, histogram and waveform help with exposure,…
152 € with VAT
125.62 € without VAT
Availability
on request
Top accessories for Viltrox DC-550 Lite
Viltrox Battery NP-F750
The Viltrox NP-F750 is a high-capacity, rechargeable NP-F-type Li-ion battery for
32 €
To be sent > 5 pcs
SmallRig NP-F970 USB-C Rechargeable Camera Battery (Black) (4469)
Promotion: -20% ends in: 6d: 17h: 22m
NP-F970-type battery with a 10500mAh/76.65wh capacity for extended usage, USB-C and
75.57 €
94.15 €
In stock > 5 pcs
Viltrox NP-F550
The Viltrox NP-F550 is a compact, rechargeable NP-F-type Li-ion battery for compatible
28 €
In stock > 5 pcs
SmallRig NP-F970 Camera Battery Charger 4086
SmallRig 4086 dual-slot charger for Sony NP-F550 to NP-F970 batteries. It charges
13 €
In stock > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Viltrox DC‑550 Lite is a compact 5.5-inch Full HD on-camera monitor with a 1,920 × 1,080 IPS display, 400 cd/m² brightness and a wide viewing angle. Its HDMI 1.4 input and loop-through output accept signals up to 4K/30p, giving filmmakers a larger, more precise view without interrupting camera recording. Button control, histogram and waveform help with exposure, the 3.5 mm socket supports audio monitoring, and firmware can be updated via SD card. Power is available from a Sony NP-F battery, 12–18 V DC input or USB-C at 5 V / 3 A.
Full HD camera monitor
Viltrox DC‑550 Lite

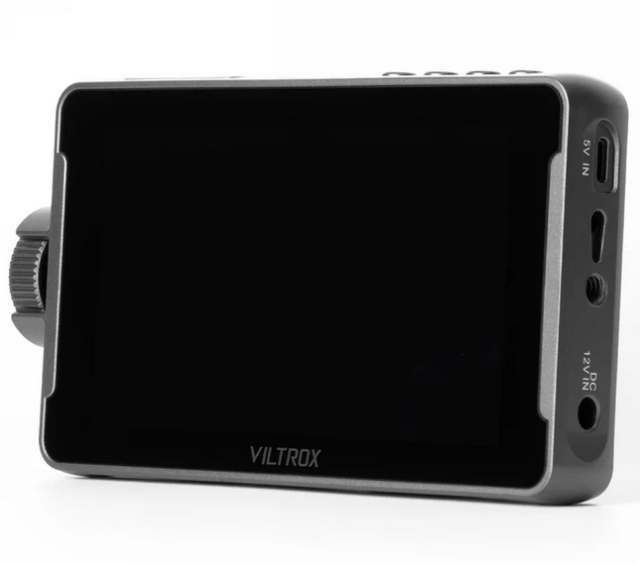

This lightweight monitor adds a 5.5-inch IPS screen, Full HD resolution and clear physical controls to a camera rig. It is made for filmmakers who need a more confident view of framing, focus and exposure in a compact setup.
5.5″ Full HD400 cd/m²HDMI up to 4K/30p
Uninterrupted HDMI
HDMI 1.4 input and loop-through output support a 4K signal up to 30p. Monitor a camera while passing the image onward to another compatible device.
Field-ready power

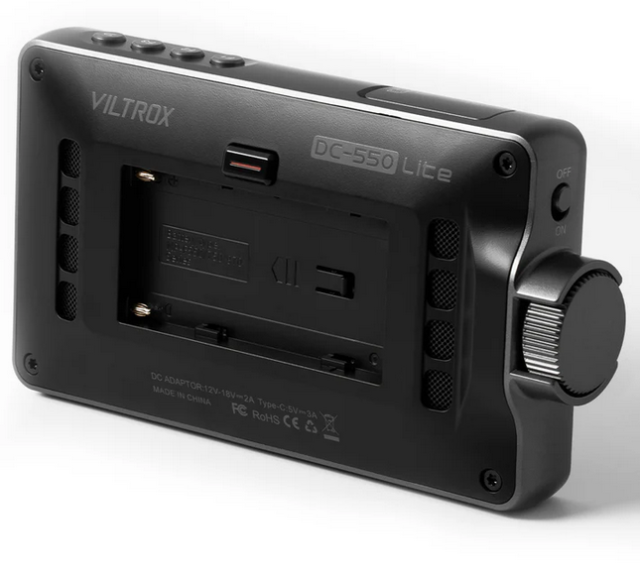

Use a Sony NP-F battery for mobile work, or power the monitor through 12–18 V DC or USB-C at 5 V / 3 A. A 3.5 mm output supports headphones and the SD-card slot is used for firmware updates.

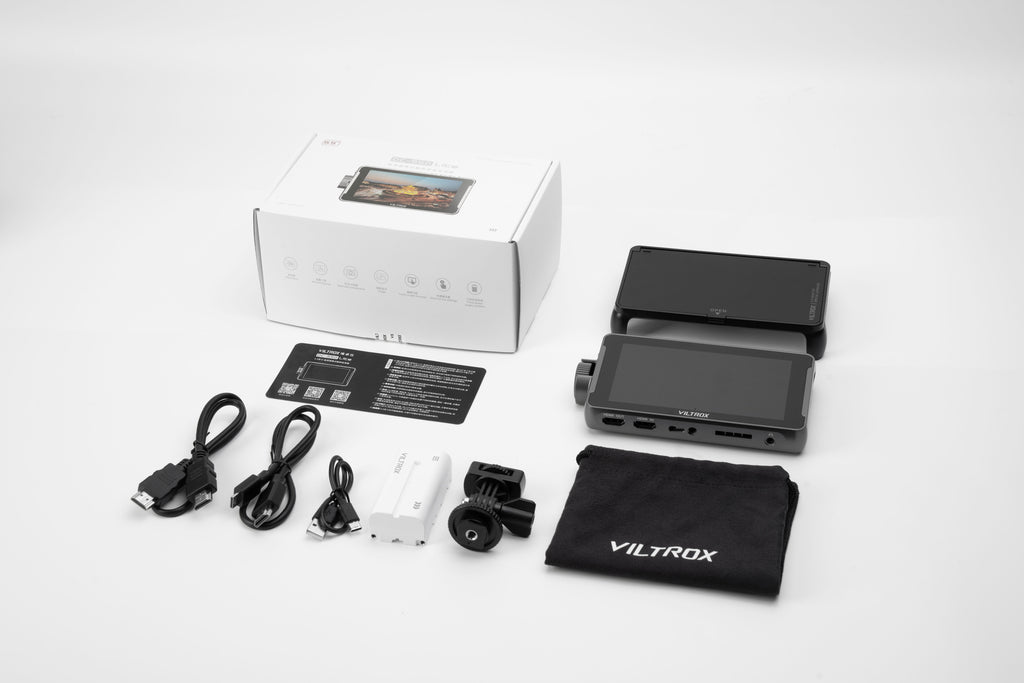

PACKAGE CONTENT
- Viltrox DC‑550 Lite monitor with sun hood ×1
- NP-F550 battery ×1
- Cold-shoe adapter ×1
- USB-C cable ×1
- Standard-to-mini HDMI cable ×1
- Standard-to-micro HDMI cable ×1
- Carry case ×1
- User manual ×1
SPECIFICATIONS
- Display: 5.5″ IPS LCD
- Resolution: 1,920 × 1,080 (Full HD)
- Brightness: 400 cd/m²
- Viewing angle: wide
- Video input/output: HDMI 1.4, up to 4K/30p
- Audio: 3.5 mm headphone output
- Control: physical buttons
- Monitoring: histogram and waveform
- Firmware: SD-card update
- Power: NP-F, 12–18 V / 2 A DC or USB-C 5 V / 3 A
- Dimensions: 165 × 91 × 28.5 mm
- Weight: approx. 267 g
WE RECOMMEND
The Viltrox DC-550 Lite is a professional 5.5-inch monitor that requires a reliable NP-F power source and a stable mount within a camera setup. The accessories listed below include fully compatible batteries of various capacities, tripods for stabilizing the image, and supplementary LED lights suitable for video production.
Power and Batteries - The monitor is equipped with a slot for NP-F series batteries, which ensure mobility when shooting on location.
Tripods and Stabilization - High-quality tripods allow for secure mounting of the camera and monitor to achieve stable shots.
Lighting - Supplementary LED lights, many of which share the same NP-F power system as the monitor, are essential for professional-quality imagery.
- Viltrox Weeylite RB08 Mini Bi-Color Portable Light
- Viltrox Weeylite RB10 RGB Light
- Viltrox Weeylite RB9 (RGBW portable full-color dimmable LED light with built-in battery)
- VILTROX L116T RA CRI 95+ Super Slim LED Light Panel, 50W Bi-Color 3300K-5600K
- Viltrox Weeylite S03-B 4W Mini LED Light 2800-6800K (Blue)
- Viltrox Weeylite Full-Color RGB LED Panel WP35
- Viltrox S05 Blue
- Viltrox K60 2-Piece Kit
- Viltrox K60
Parameters
| Manufacturer: | Viltrox |
| Category: | Camera monitors |
Main parameters
| Size | 5.5" |
| Monitor inputs | HDMI · HDMI 1.4 |
| Luminosity | 400cd/m2 |
| Panel resolution | 1920 × 1080 (Full HD) |
| For monitor | On-camera / field production monitor for video |
| Monitor power supply | Sony NP-F · USB-C |
