NimbleTech QuattroPod Mini 2T1R

SKU: QPD-M2T1R

The NimbleTech QuattroPod Mini 2T1R is a wireless presentation kit consisting of one R01 receiver and two T02 transmitters. It enables plug-and-play content sharing from computers and mobile devices without installing an app; for collaboration, up to four sources can be displayed simultaneously on a single screen. The system uses a secure 5 GHz Wi-Fi connection…

More information

549 € with VAT 453.72 € without VAT
Add to Compare Price history
Personal pickup: 24. 08. from 09:00
Shipment day: 24. 08.
In stock 4 pcs
Praha 4 pcs
SKU:
QPD-M2T1R
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The NimbleTech QuattroPod Mini 2T1R is a wireless presentation kit consisting of one R01 receiver and two T02 transmitters. It enables plug-and-play content sharing from computers and mobile devices without installing an app; for collaboration, up to four sources can be displayed simultaneously on a single screen. The system uses a secure 5 GHz Wi-Fi connection with AES-128 and WPA2.

The T02 transmitters support HDMI up to 1920 × 1080 at 60 Hz. The R01 receiver provides HDMI 1.4 output up to 4K at 30 Hz, USB for pairing and reverse control, and Gigabit Ethernet with PoE support. The Host Control feature allows you to manage sources on the display; the system supports AirPlay and Chromecast and is designed for meeting rooms, classrooms, and multi-presenter collaboration.

QuattroPod Mini · 2T1R

Two transmitters for more flexible collaboration

Compact R01 + 2× T02 kit for quick wireless presentations. Connect the transmitter, press a button, and share; up to four sources can be displayed in split-screen mode.

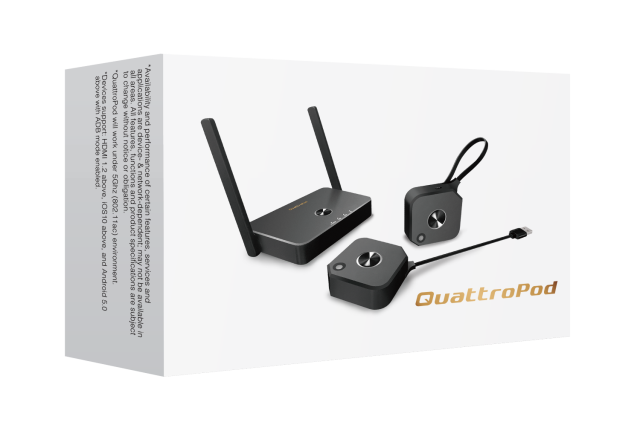

What’s in the Kit

  • QuattroPod Receiver R01 × 1
  • QuattroPod Mini Transmitter T02 × 2
  • R01: HDMI output, USB, Gigabit Ethernet/PoE
  • T02: HDMI input and USB-A

Barrier-Free Presentation

  • Plug, click, and cast—no app installation required.
  • Screen mirroring from Windows, macOS, iOS, and Android; AirPlay and Chromecast.
  • Host Control for source management; Smart Touchback for compatible interactive displays.
  • Secure 5 GHz network: AES-128 and WPA2.

PACKAGE CONTENT

Practical Use

Multiple sources on a single display

The two included T02 transmitters allow presenters to switch quickly. The QuattroPod Mini platform supports up to four simultaneous sources in split-screen mode; each additional laptop for direct streaming requires its own compatible transmitter.

Network and Range

The R01 uses 5 GHz 802.11ac 2T2R Wi-Fi at up to 866 Mb/s; the T02 uses 5 GHz 802.11ac 1T1R at up to 433 Mb/s. The manufacturer specifies an approximate range of 30 m, which is affected by local Wi-Fi interference.

SPECIFICATIONS

Technical Specifications

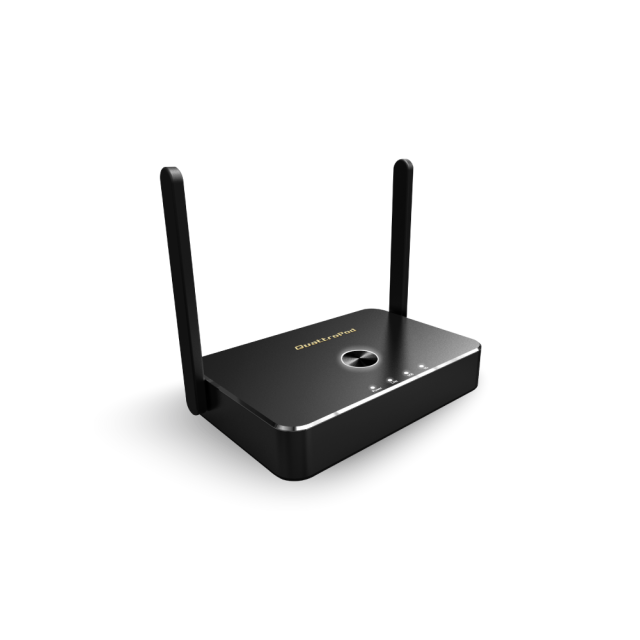

R01 Receiver

OutputHDMI 1.4, up to 4K at 30 Hz
InterfacesHDMI out, USB-A, DC 5 V, Ethernet
Network802.11ac 2T2R 5 GHz, up to 866 Mb/s; 10/100/1000M Ethernet with PoE
Power / Power ConsumptionDC 5 V / 2 A; standby approx. 5 W, casting approx. 10 W
Temperature / Dimensions0 to 40 °C; 120 × 80 × 25 mm without antennas

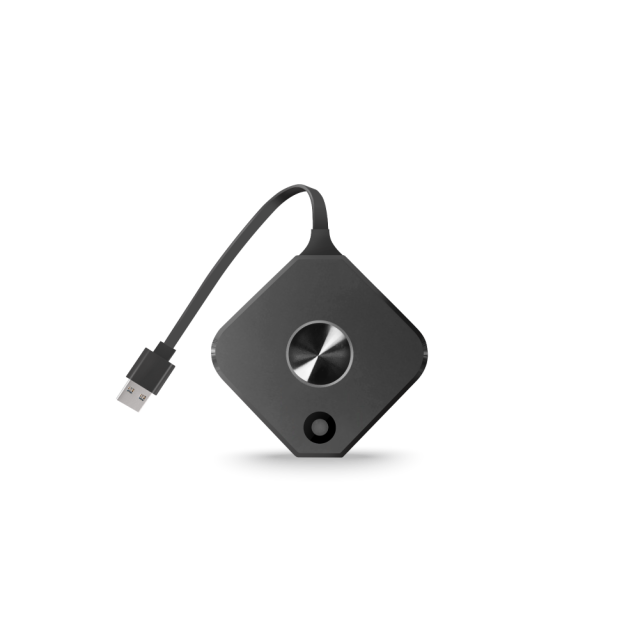

T02 Transmitters

InputHDMI, up to 1920 × 1080 at 60 Hz
InterfacesHDMI in, USB-A male, and USB-A female
Network802.11ac 1T1R 5 GHz, up to 433 Mb/s
Power / Power ConsumptionDC 5 V / 0.9 A; standby approx. 2 W, casting approx. 4 W
Temperature / Dimensions0 to 40 °C; 60 × 60 × 22 mm
Parameters

Parameters

Manufacturer: NimbleTech
Category: Wireless video transmission

Main parameters

Input wireless videoHDMI
