Datavideo HS-1600T Mark II HDBaseT Portable Video Streaming Studio
SKU: 2200-2019
The Datavideo HS-1600T Mark II is a portable four-channel HD/SD production studio with a built-in switcher, PTZ camera control, 17.3-inch Full HD monitor, four-channel audio mixer, H.264/AVC streaming encoder and SD-card recorder. Three HDBaseT inputs carry video, control, power and tally over one Cat6A cable per compatible camera; the HDMI input also provides…
7 209 € with VAT
5 957.85 € without VAT
Availability
14-30 days
Top accessories for Datavideo HS-1600T Mark II HDBaseT Portable Video Streaming Studio
Datavideo PTC-145TW Full HD PTZ Camera (White)
The Datavideo PTC-145TW is a white Full HD installation PTZ camera with HDBaseT connectivity.
1 909 €
on request
Datavideo PTC-145T HDBaseT PTZ Camera (Dark Blue)
The Datavideo PTC-145T installation camera in dark blue combines Full HD resolution
1 909 €
on request
Datavideo PTC-155TW Full HD PTZ camera with AI tracking
The Datavideo PTC-155TW is a white Full HD PTZ camera for live production, corporate
2 669 €
on request
Datavideo PTC-155T Full HD HDBaseT PTZ Camera with AI Tracking
The Datavideo PTC-155T is an AI-powered Full HD PTZ camera with 30x optical zoom,
2 669 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

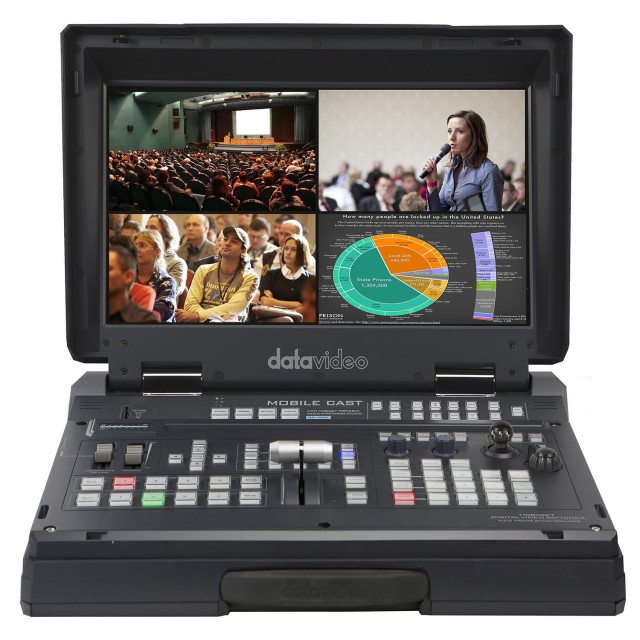

The Datavideo HS-1600T Mark II is a portable four-channel HD/SD production studio with a built-in switcher, PTZ camera control, 17.3-inch Full HD monitor, four-channel audio mixer, H.264/AVC streaming encoder and SD-card recorder. Three HDBaseT inputs carry video, control, power and tally over one Cat6A cable per compatible camera; the HDMI input also provides a loop-through output. Route the program over HDMI and HDBaseT while streaming to two platforms at once. It suits mobile studios, worship, education, live events, interviews and corporate streams operated by one person. Auto Tracking availability depends on the firmware version of the specific unit.

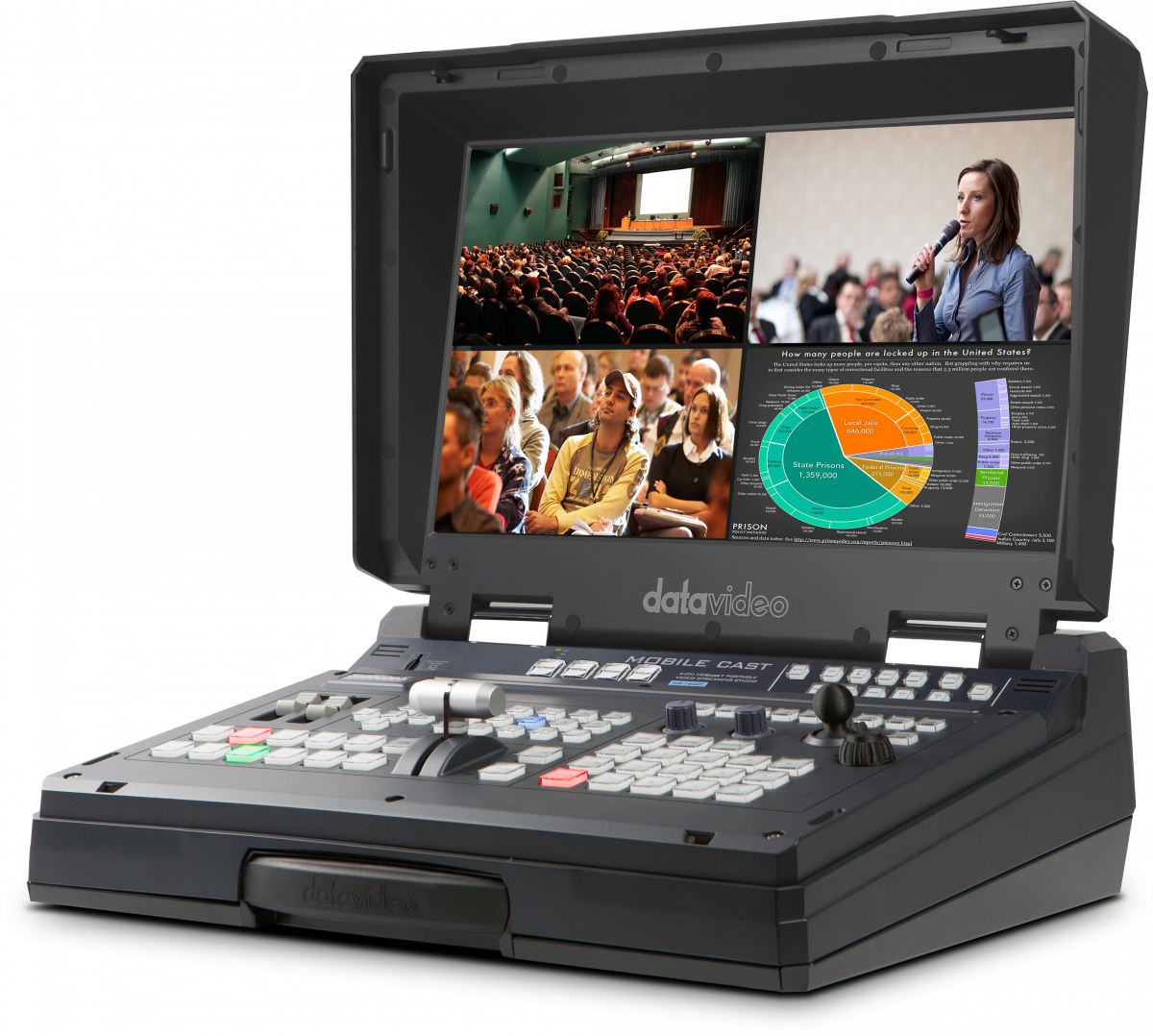

Datavideo HS-1600T Mark II · portable HDBaseT studio
Mobile production over HDBaseT
This four-channel production studio in a portable briefcase design combines video switching, control for up to three compatible PTZ cameras, a 17.3-inch Full HD monitor, audio mixing, H.264 streaming and SD-card recording. It suits single-operator productions, live events, worship, education, interviews and corporate streams.
A simpler workflow for one operator
One system brings together camera switching, joystick PTZ control, preview and program monitoring, streaming and recording. A separate streaming encoder or recorder is not required.

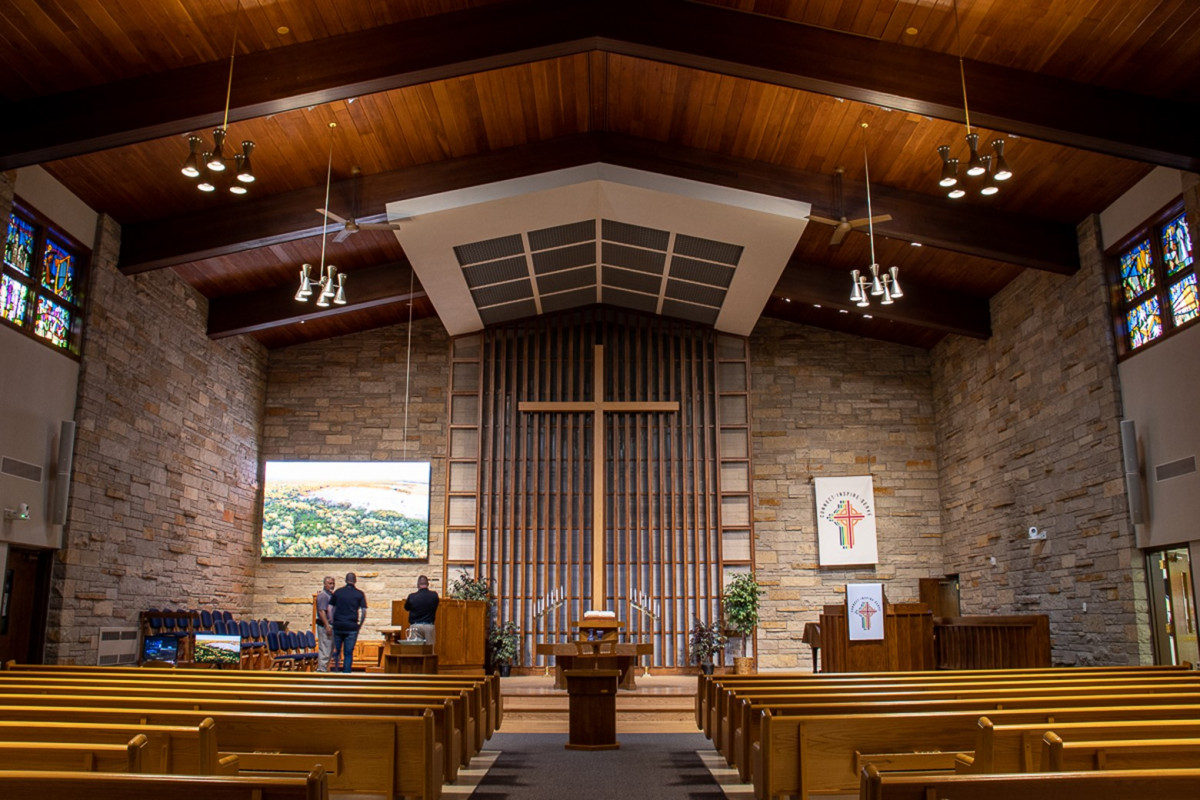

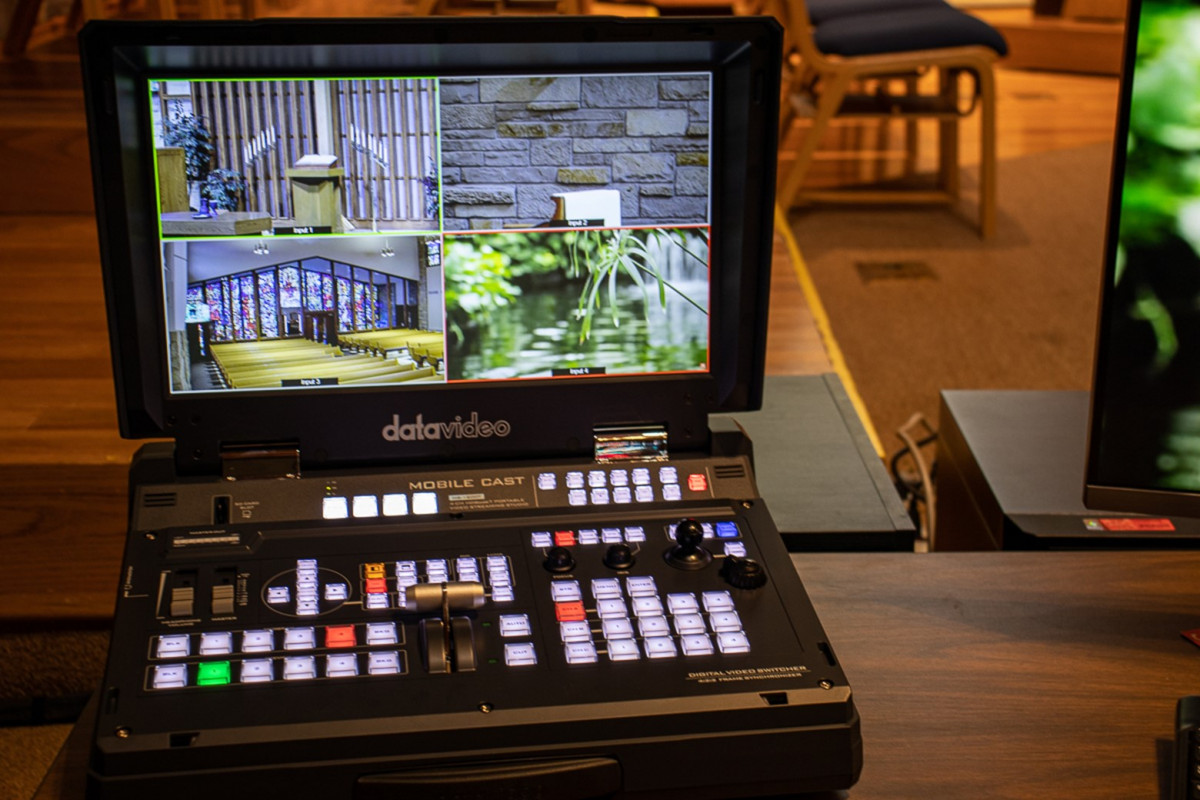

In Datavideo’s Memorial Presbyterian Church case study, the HS-1600T Mark II was used with three Datavideo PTC-140TW cameras. Its straightforward controls helped volunteer operators prepare and run weekly services.
HDBaseT simplifies camera cabling

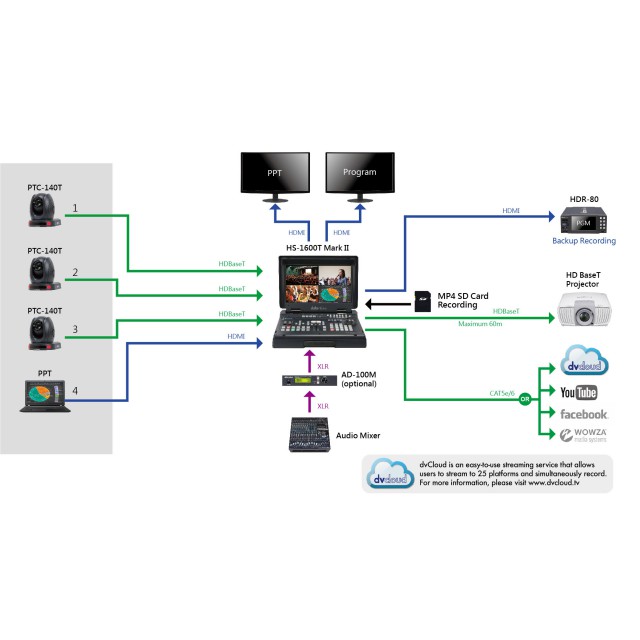

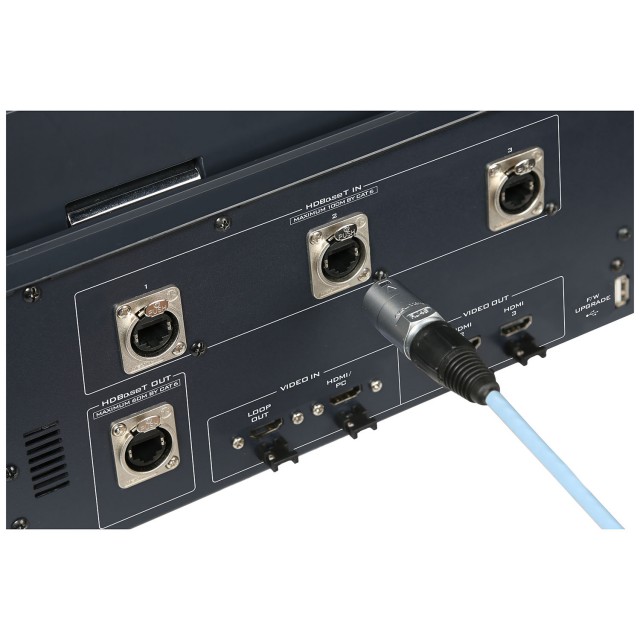

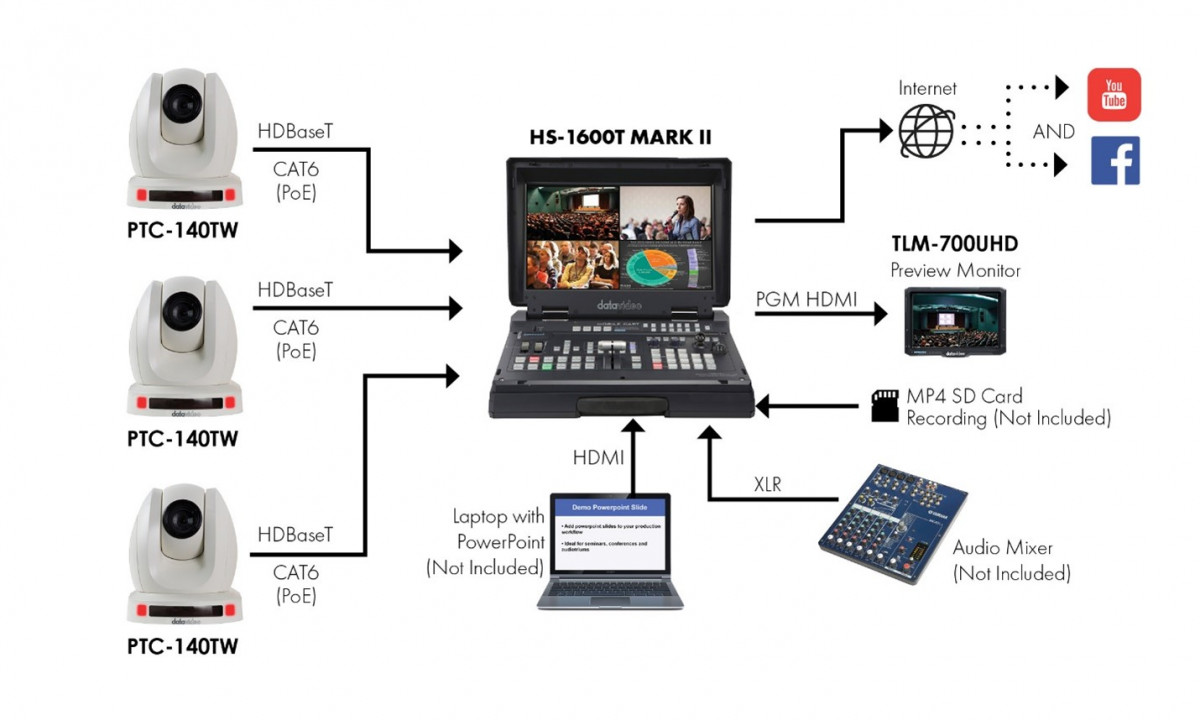

Three HDBaseT inputs and the built-in camera controller support up to three compatible PTZ cameras. One Cat6A cable per camera carries video, control, power and tally, shortening setup and making it easier to place cameras away from the control desk.

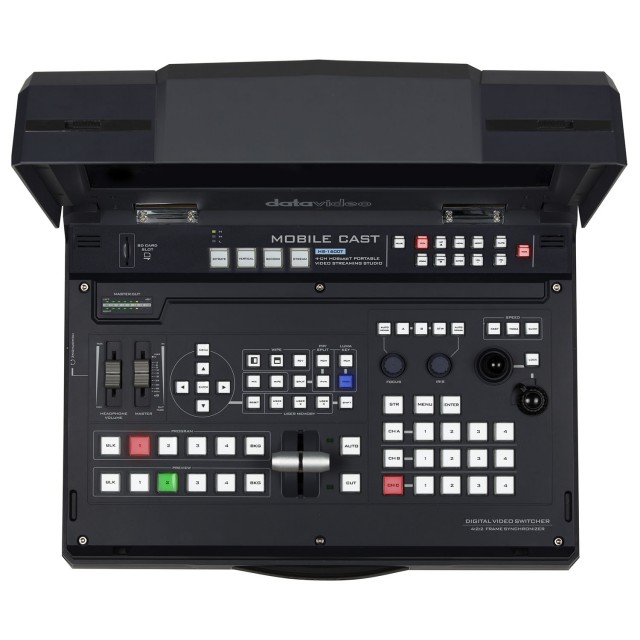

The control surface includes a joystick for pan, tilt and zoom plus preset buttons for recalling prepared shots. Auto Tracking depends on the unit’s firmware; earlier units without the feature may require a firmware update and a new control-surface label.
Stream and record from one system
The built-in H.264/AVC encoder can send the program to two streaming platforms at the same time. Protocols include RTMP/RTMPS, RTSP, HLS and SRT; with dvCloud, SRT can provide a more resilient contribution link over an unstable connection. Start streaming and recording with one button.
Recording saves MP4 files to an SD card. The built-in 17.3-inch, 1920 × 1080 monitor provides a production view without a separate display.
Auto Tracking note: Availability depends on the firmware version of the specific unit. Check the control-surface version before installation; some earlier units need an update.
PACKAGE CONTENT
- 1× Datavideo HS-1600T Mark II
- 1× AC/DC switching adapter, 56 V output, with AC cord
- 3× Ethernet cables
SPECIFICATIONS
- Type: portable 4-channel HD/SD production studio with HDBaseT

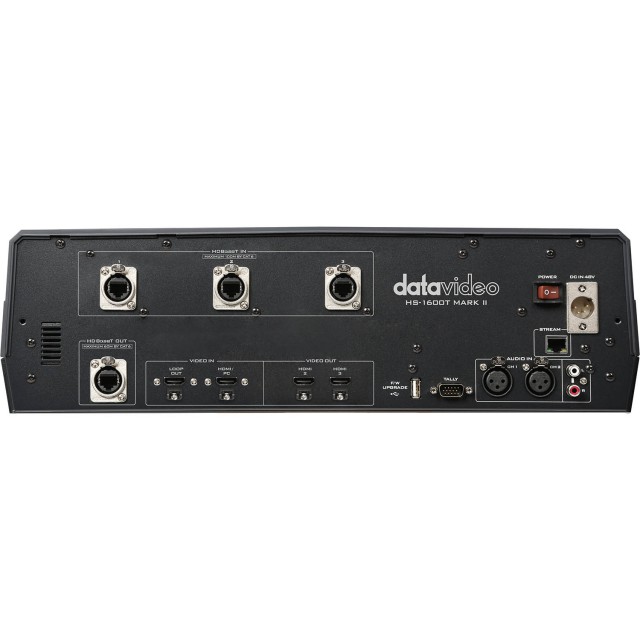

- Video inputs: 3× HDBaseT, 1× HDMI
- Video outputs: 3× HDMI PGM, 1× HDBaseT PGM, 1× STREAM (RJ-45)
- HDBaseT cable: shielded Cat6A
- Video processing: 4:4:4, 10-bit; down-conversion
- Supported formats: 1080p/i, 720p, 576i/p and 480i/p at supported 50/59.94/60 Hz rates
- Monitor: 17.3-inch LED-backlit HD TFT, 1920 × 1080 px
- Audio inputs: 2× balanced XLR, 1× stereo RCA (L/R), de-embedded digital audio
- Audio output: 1× stereo headphone
- Built-in audio mixer: 4 channels
- Keying: 1× Lumakey
- Picture in picture: 1× PIP
- Streaming codec: H.264/AVC, Main/High Profile, up to 10 Mb/s
- Streaming audio: AAC-LC, 32–384 kb/s, 48 kHz, 16-bit
- Streaming protocols: TS over TCP/UDP, RTSP, RTMP/RTMPS, HLS, SRT
- Recording: MP4 to SD card; FAT, exFAT or NTFS
- Dimensions (L × W × H): 455 × 355 × 134 mm
- Weight: 7.8 kg; reinforced plastic case
- Power: DC 48 V, 4.16 A
- Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo HS-1600T Mark II is a comprehensive mobile studio that integrates production control, streaming, recording, and PTZ camera control via the HDBaseT interface. To maximize production efficiency, it is essential to supplement the system with compatible intercoms for communication with the crew, signal converters for input flexibility, and teleprompters for professional on-camera delivery.
Intercom and Communication - Ensures essential communication between the control room and camera operators during live broadcasts.
Signal Conversion and Distribution - Enables the control room to connect to various types of sources and end devices via SDI, HDMI, or USB.
- Datavideo DAC-9P
- Datavideo DAC-70
- Datavideo DAC-80
- Datavideo VP-634
- Datavideo CAP-1
- Datavideo DAC-8PA
Monitoring and Audio - Tools for precise image monitoring and audio synchronization.
Reading devices and accessories - Professional teleprompters and their accessories for smooth presenter delivery.
Other Accessories and Streaming - Accessories for installation, camera protection, and decoding of streamed content.
Parameters
| Manufacturer: | Datavideo |
| Category: | Switchers |
Main parameters
| Number of inputs | 4 |
| Switcher inputs | HDMI · HDBaseT |
| Switcher outputs | HDMI · HDBaseT |
| Resolution | HD |
| Features | Streaming · Recording · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing |
| Control panel | Yes |
