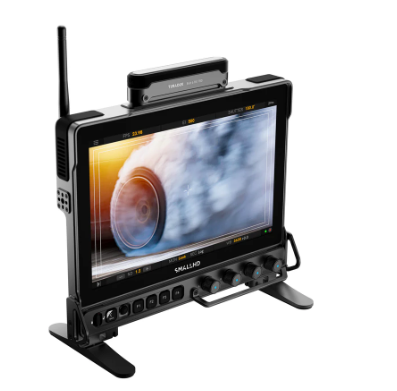

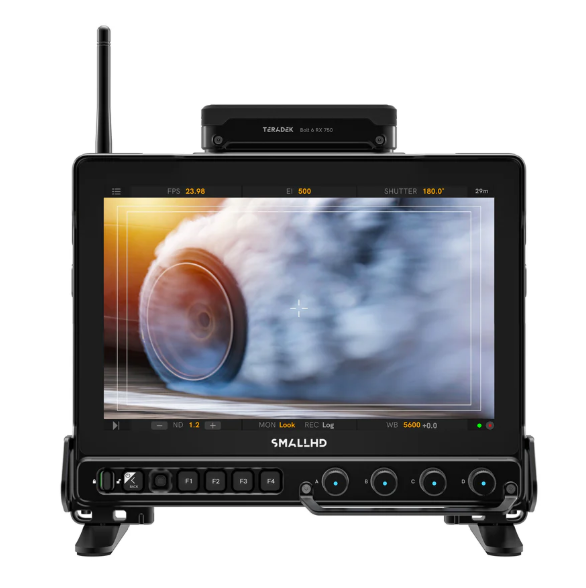

SmallHD Ultra 10 Bolt 6 RX 750 V-Mount Kit

The SmallHD Ultra 10 Bolt 6 RX 750 ft V-Mount is a professional 10-inch ultra-bright field monitor with integrated wireless video reception for zero-delay monitoring on set. The SmallHD Ultra 10 Bolt 6 RX 750 ft / V-Mount combines a 2000-nit display, rugged IP54-rated construction, and built-in Teradek Bolt 6 receiver for reliable, high-performance workflows in demanding production environments.

The SmallHD Ultra 10 Bolt 6 RX 750 ft V-Mount is a high-end production monitor designed for professional cinematography, broadcast, and field production environments. It delivers a perfect balance of portability and performance with a bright 10.1-inch 1920×1200 IPS display, offering 2000 nits of brightness for excellent outdoor visibility and accurate HDR monitoring.

This model features an integrated Teradek Bolt 6 receiver, enabling zero-delay wireless video transmission from compatible cameras at ranges up to 750 feet via an internal V-Antenna system. This eliminates the need for external receivers, reducing rig complexity while maintaining reliable, high-quality video feeds on set.

Built for demanding conditions, the Ultra 10 is IP54-rated for resistance to dust and water spray, and operates in a wide temperature range. Its rugged chassis includes reinforced edges and user-replaceable shock-absorbing bumpers to protect against drops and impacts, making it ideal for field use.

The monitor runs on SmallHD’s advanced PageOS platform, offering highly customizable workflows through touchscreen control, tactile buttons, joystick input, and rotary encoders. It also supports extensive professional tools such as waveform, vectorscope, LUT management, focus assist, and multi-view monitoring.

Connectivity is extensive, including 6G-SDI, HDMI, Ethernet, and locking USB ports for optional camera control support for systems such as ARRI, Sony VENICE, BURANO, FX6, and RED (licenses sold separately). Power is supplied via V-Mount battery compatibility for extended runtime in production environments.

Key Features:

• 10.1-inch 1920×1200 IPS display with 2000 nits brightness
• Integrated Teradek Bolt 6 RX for zero-delay wireless video
• Wireless range up to 750 ft via internal V-Antenna system
• IP54-rated for dust and water resistance
• Rugged chassis with shock-absorbing, replaceable bumpers
• Advanced PageOS workflow customization (touch, buttons, rotary control)
• Full professional monitoring tools (waveform, LUTs, vectorscope, focus assist)
• 6G-SDI and HDMI I/O with cross conversion support
• Ethernet and USB ports for optional camera control
• V-Mount battery compatibility for field power
