SmallHD Ultra 10 Bolt 6 RX 1500 V-Mount Kit

The SmallHD Ultra 10 Bolt 6 RX 1500 ft V-Mount is a professional 10.1-inch wireless on-camera monitor with integrated Bolt 6 receiver, offering zero-delay video transmission, ultra-bright 2000-nit display, and rugged IP54 protection for demanding production environments.

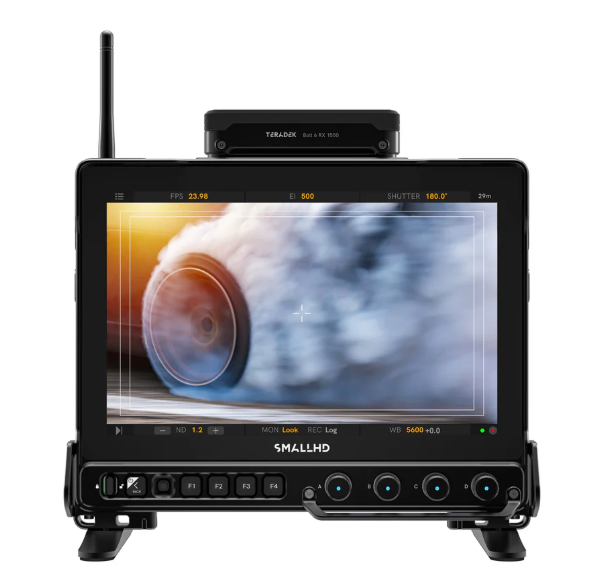

The SmallHD Ultra 10 Bolt 6 RX 1500 ft V-Mount is a high-performance on-set monitor designed for professional filmmakers who need reliable wireless video monitoring, rugged durability, and advanced image analysis tools in a compact form factor. It features an integrated Teradek Bolt 6 receiver, enabling zero-delay wireless video transmission from compatible cameras at ranges up to 1500 feet using the internal V-Antenna system.

Built around a 10.1-inch 1920×1200 IPS LCD panel, the Ultra 10 delivers 2000 nits of ultra-bright output, making it suitable for outdoor and high-ambient-light environments. Its 10-bit processing pipeline ensures accurate color reproduction, while PageOS software provides deep customization with touchscreen control, tactile buttons, and rotary encoder knobs for fast on-set operation.

The monitor is engineered for harsh production conditions with an IP54-rated chassis, protecting it against dust, dirt, and water spray. Reinforced edges and shock-absorbing bumpers further enhance durability, making it ideal for field use. The V-Mount power system ensures long runtime with professional battery compatibility.

This model also supports optional camera control for systems like ARRI, Sony, and RED (via licenses and cables), along with advanced monitoring tools such as waveform, vectorscope, false color, focus peaking, LUT support, and multi-view monitoring.

Key Features:

• 10.1” IPS LCD display (1920×1200 resolution)
• 2000 nits ultra-bright daylight viewable screen
• Integrated Teradek Bolt 6 RX receiver (up to 1500 ft range)
• IP54-rated rugged, weather-resistant chassis
• 6G-SDI, 12G-SDI, and HDMI input/output support
• 10-bit color processing with PageOS workflow system
• Advanced monitoring tools (waveform, vectorscope, LUTs, false color, peaking)
• Multi-control interface: touchscreen, buttons, rotary encoders
• V-Mount battery compatibility for extended field operation
• Optional camera control support (ARRI, Sony, RED systems)
