Datavideo SE-4000 4K Production Switcher
SKU: 2200-4000
The Datavideo SE-4000 is a professional 4K production switcher for live broadcasts, studio broadcasting, and event production. You can select eight active channels from 12 physical video inputs; 8× 12G-SDI and 4× HDMI 2.0 are available. The input scaler helps standardize sources with different resolutions, and the 5-inch touchscreen on the control panel provides…
10 349 € with VAT
8 552.89 € without VAT
Availability
on request
Top accessories for Datavideo SE-4000 4K Production Switcher
PremiumCord Ultra High Speed HDMI 2.1 Optical Fiber Cable 8K@60Hz, Gold-Plated, 30 m
This HDMI 2.1 Ultra High Speed 8K@60Hz or 4K@120Hz optical cable is designed to connect
49 €
In stock 1 pcs
Datavideo HDR-80 4K ProRes Video Recorder
Datavideo HDR‑80 is a desktop recorder and player for UHD 4K and HD video. It records
3 529 €
In stock 1 pcs
Datavideo HDR-90 1RU Rackmountable ProRes 4K Video Recorder
The Datavideo HDR-90 is a rackmount video recorder with LCD that controls and manages
3 529 €
14-30 days
PremiumCord Ultra High Speed HDMI 2.1 optical fiber cable 8K@60Hz, gold-plated 50m
This HDMI 2.1 Ultra High Speed 8K@60Hz or 4K@120Hz optical cable is designed to connect
76 €
on request
Infinitek L-3.3CUHWS 10m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
53 €
on request
Infinitek L-3.3CUHWS 5m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
34 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

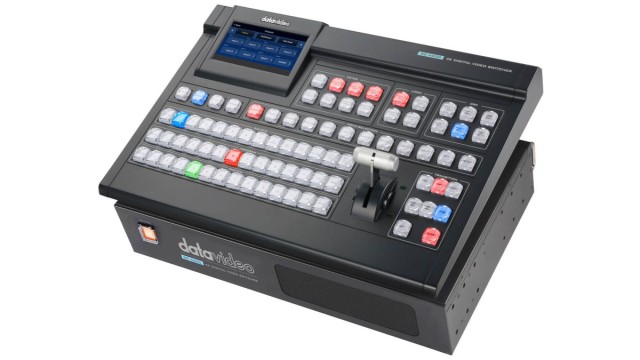

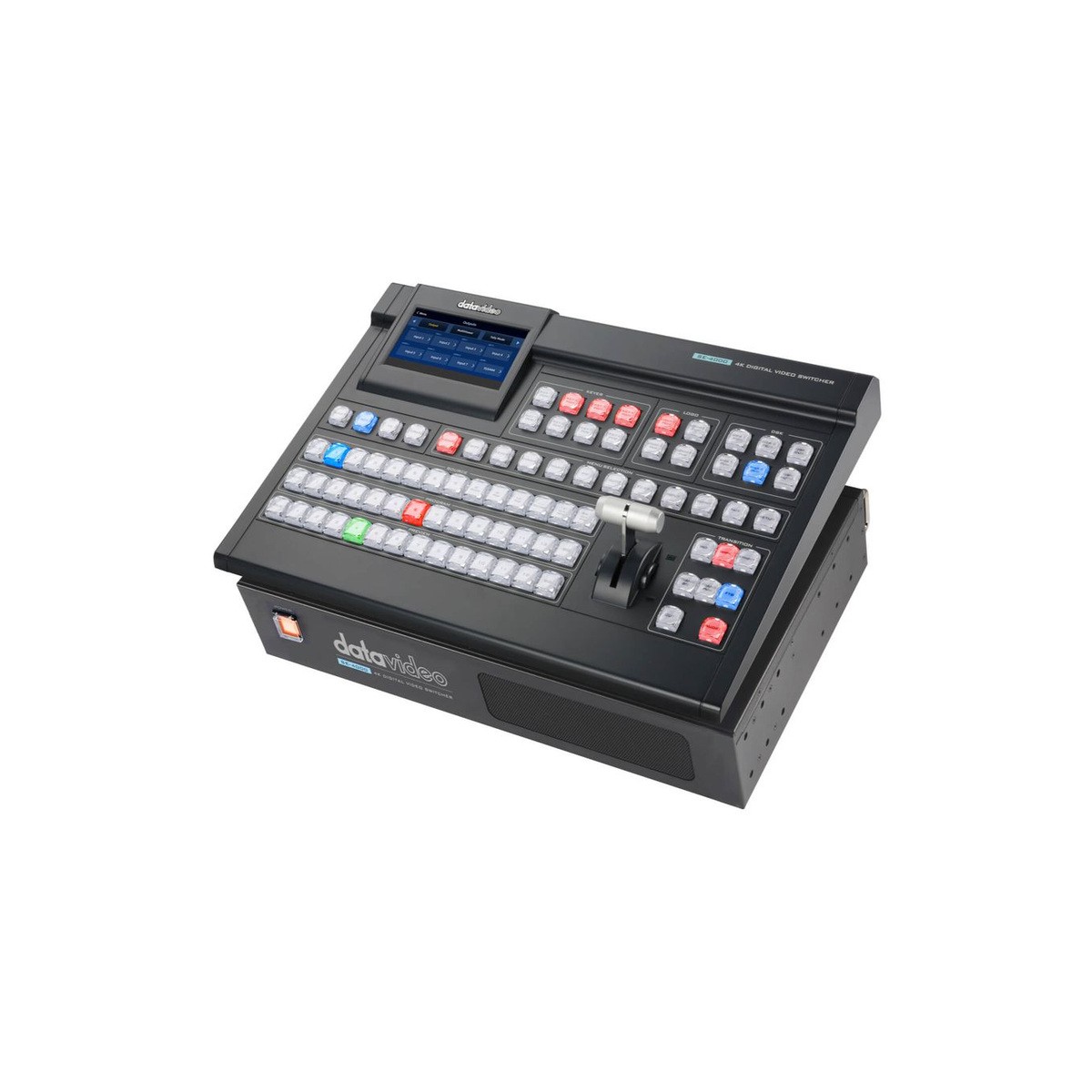

The Datavideo SE-4000 is a professional 4K production switcher for live broadcasts, studio broadcasting, and event production. You can select eight active channels from 12 physical video inputs; 8× 12G-SDI and 4× HDMI 2.0 are available. The input scaler helps standardize sources with different resolutions, and the 5-inch touchscreen on the control panel provides access to settings and direct control of the switcher.
The SE-4000 processes UHD 4K up to 50/60p; at 4K 29.97/30p, up to 12 channels can be utilized. It offers four upstream keyers, two PIP windows, two DSKs, two independent animated logos, stinger transitions, and 2D DVE. It also features a built-in audio mixer, audio delay, multiview, and assignable outputs for program, preview, or AUX. The rugged 2U design can be installed in a standard 19″ rack.
4K LIVE PRODUCTION CONTROL ROOM
Choose from 12 physical inputs and build an eight-channel production with UHD 4K up to 60p. The SE-4000 combines 12G-SDI and HDMI 2.0, touchscreen control, and video and audio tools in a 2U rack-mount system.
INPUTS AND SCALING
Eight 12G-SDI inputs and four HDMI inputs cover a variety of sources in a single setup. At UHD 4K 50/60p, eight channels are processed; UHD 4K 29.97/30p mode allows you to utilize all 12 input channels. The integrated input scaler converts source resolutions according to production needs.
CONTROL AND VISUAL EFFECTS

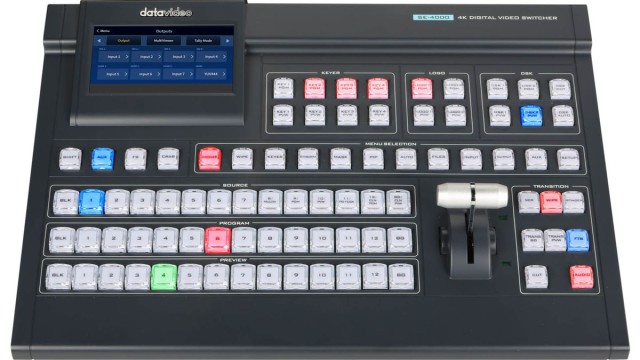

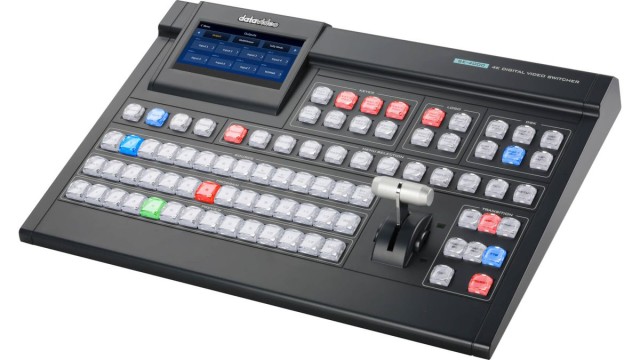

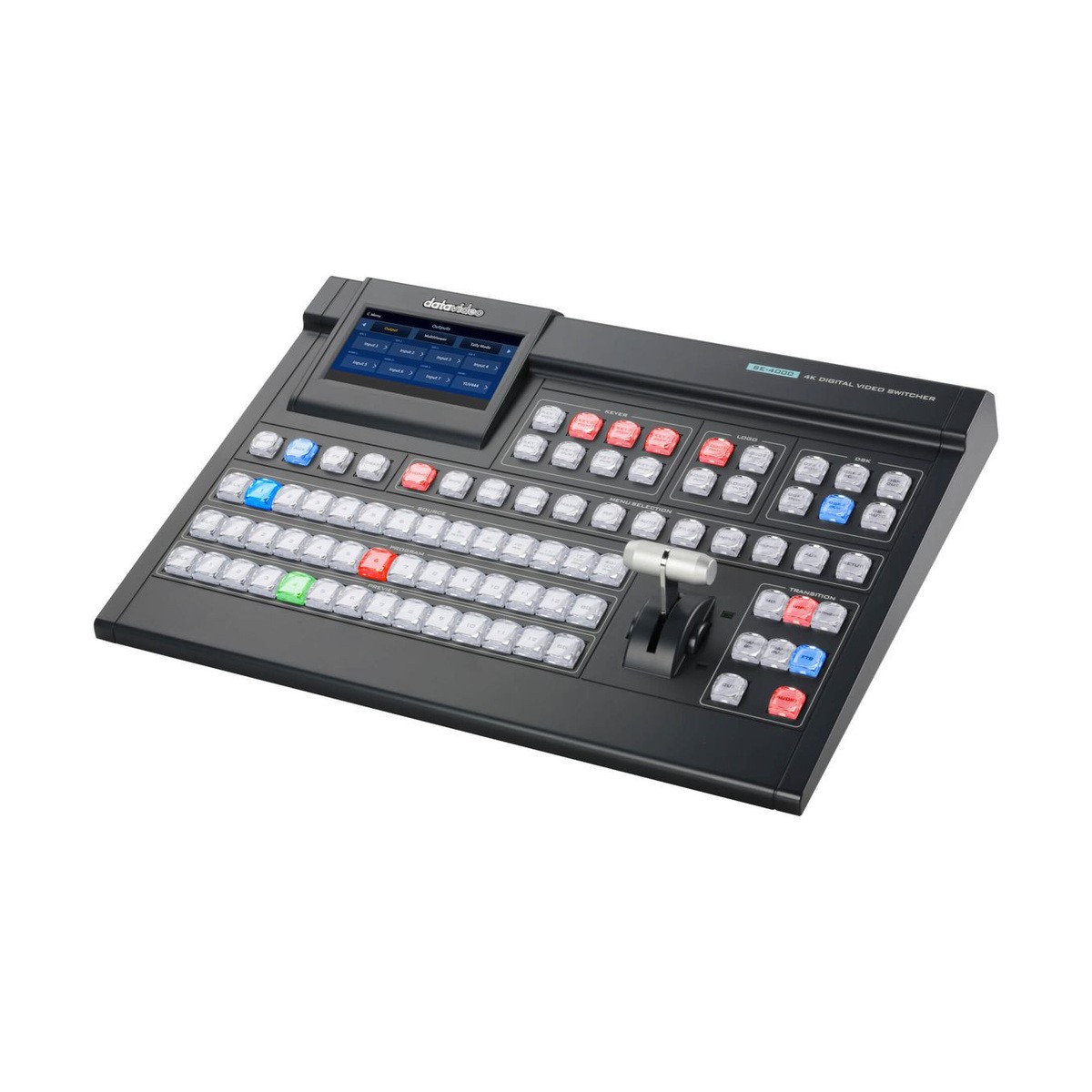

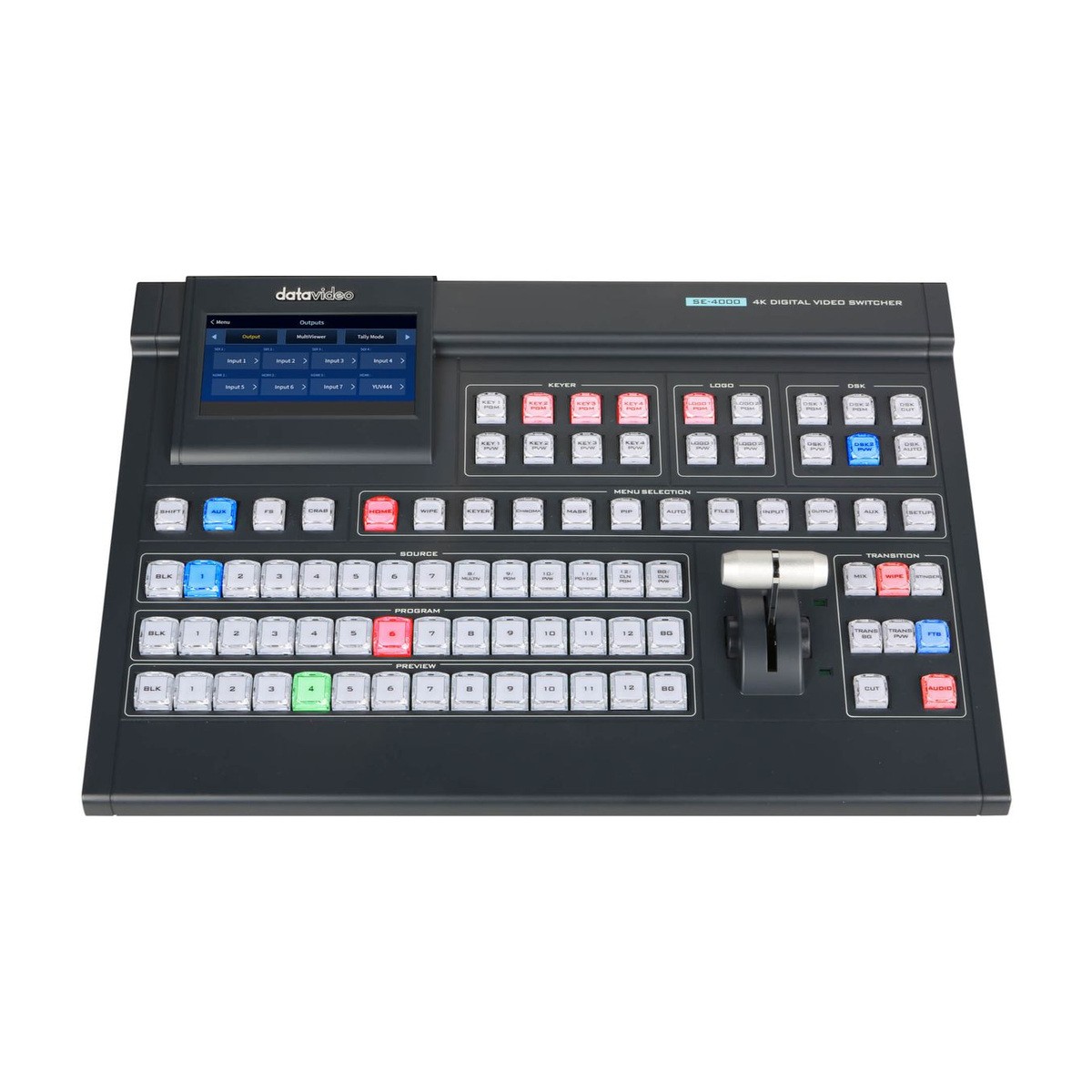

A 5-inch color touchscreen is complemented by direct buttons and input/output assignments (XPT). Four upstream keyers support chroma, luma, and linear keying; two PIP windows, two DSKs, two logos, stinger transitions, and 2D DVE expand the possibilities for live graphics and transitions.
OUTPUTS, AUDIO, AND INTEGRATION

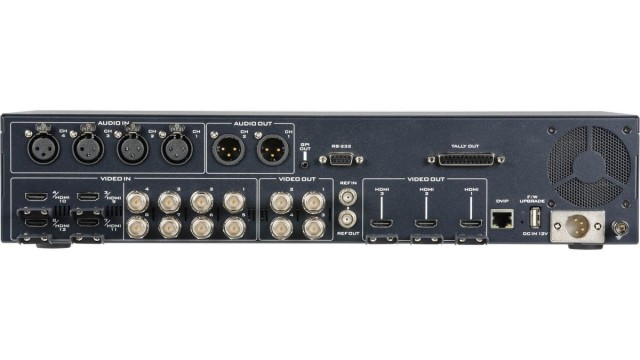

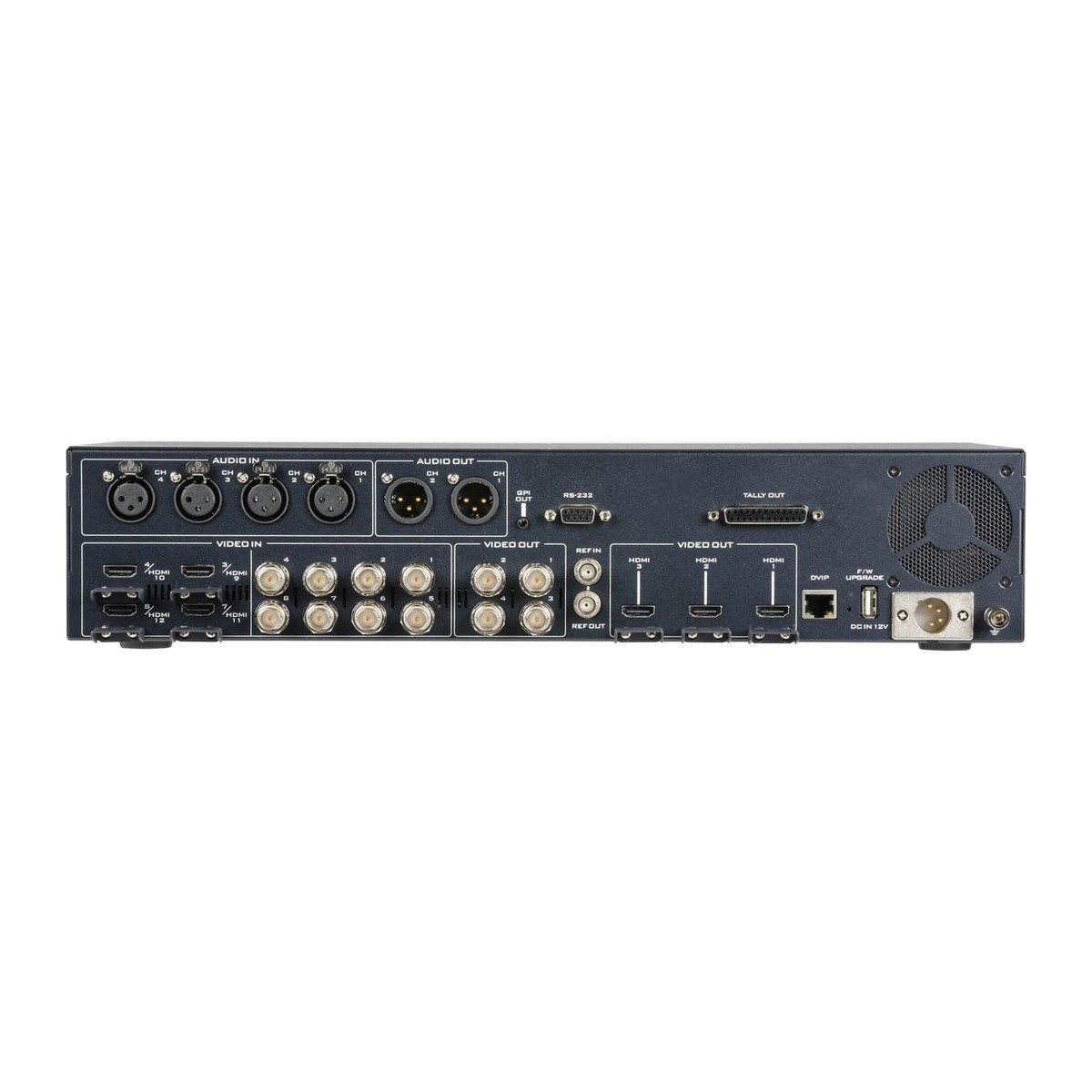

Four 12G-SDI and three HDMI outputs can be assigned for program, preview, multiview, clean program, or AUX. The built-in mixer processes both analog and embedded audio and allows for channel delay adjustment. The DVIP Ethernet interface is used for communication and integration with compatible devices.
PACKAGE CONTENT
- 1× Datavideo SE-4000 main unit
- 1× Datavideo SE-4000 control panel
- 2× 12 V DC power adapters
- 1× power cable
- 1× Ethernet cable
- 12× mounting screws
- 2× 2U rack mounting brackets
SPECIFICATIONS
- Type: 4K 8-channel production switcher
- Inputs: 8× 12G-SDI and 4× HDMI; 8 of the 12 inputs are active at 4K 50/60p
- Video formats: UHD 4K 50/59.94/60p and 25/29.97/30p; supported formats: 1080p and 1080i
- Outputs: 4× 12G-SDI and 3× HDMI, assignable for PGM, PVW, multiview, clean output, and AUX
- Video functions: 4× upstream keyer, 2× DSK, 2× PIP, 2× logo, stinger, 2D DVE, wipe transitions, storage for up to 250 still images
- Audio inputs: 4× analog XLR and 4 channels of embedded audio
- Audio outputs: 2× analog XLR and 4 channels of embedded audio
- Audio mix: built-in; delay of up to 16 fields or 8 frames per channel
- Multiview: HDMI or SDI output, assignable output
- Control: 5″ color touchscreen LCD display; DVIP over Ethernet
- Tally: 1× D-sub 25, two-color
- Firmware updates: USB or Ethernet
- Mounting: 2U main unit in a 19″ rack
- Control unit dimensions: 433 × 312 × 79 mm
- Main unit dimensions: 432 × 250 × 88 mm
- Weight: 7.1 kg
- Main unit power supply: 12 V DC, 126 W
- Control unit power supply: 12 V DC, 17.3 W
- Operating temperature: 0 to 40 °C
WE RECOMMEND
The Datavideo SE-4000 is a professional 4K production switcher with support for 12G-SDI and HDMI 2.0, serving as the heart of modern production facilities. For its effective operation, it must be supplemented with intercom systems for communicating with the crew, signal converters for integrating various sources, and tools for precise audio processing.
Intercom and Communication - Essential systems for two-way communication between the control room and camera operators during live broadcasts.
Video Converters and Distribution - Equipment for converting signals between HDMI and SDI and extending cable reach.
Streaming and IP Video - Accessories for decoding IP streams and capturing control room output for online broadcasting.
Audio accessories - Tools for synchronizing audio with video and advanced audio track mixing.
Monitoring and wireless transmission - Equipment for 4K signal preview and wireless video transmission from mobile cameras.
Teleprompters - Professional teleprompters for presenters, fully compatible with studio control rooms.
Installation and Power - Rack-mount accessories and backup power for on-location productions.
