Datavideo HDR-90 1RU Rackmountable ProRes 4K Video Recorder

  • Free transport
SKU: 2600-0290

The Datavideo HDR-90 is a rackmount video recorder with LCD that controls and manages 10-bit ProRes 422 video files. The HDR-90 supports UHD 12G SDI I/O and 4K HDMI input/output, as well as DVIP (Ethernet), GPI and RS-232.

More information

3 529 € with VAT 2 916.53 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2600-0290
Add to Compare Price history

Datavideo HDR-80 4K ProRes Video Recorder

In stock 1 pcs3 529 €without VAT 2 916.53 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo HDR-90 is a rackmount video recorder with LCD that controls and manages 10-bit ProRes 422 video files. The HDR-90 supports UHD 12G SDI I/O and 4K HDMI input/output, as well as DVIP (Ethernet), GPI and RS-232.

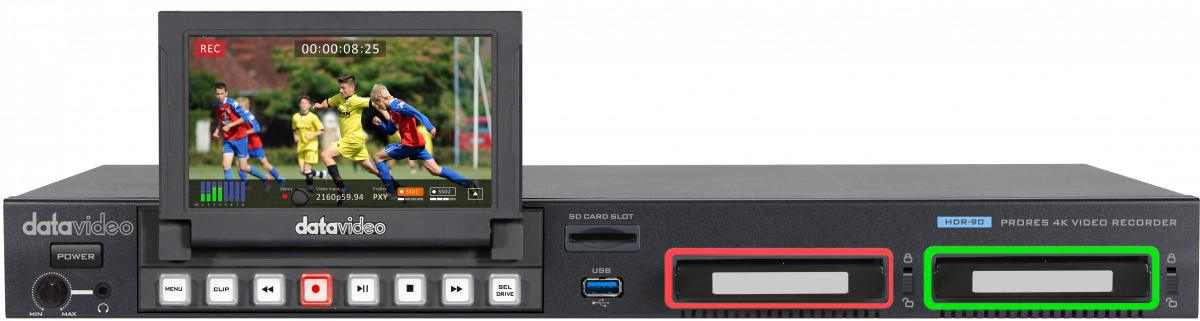

Datavideo HDR-90 ProRes 4K recorder in a rack installation

Four-channel recording in a rack

The Datavideo HDR-90 is a 1RU recorder for OB vans and integrated studios. It records ProRes 422 video at resolutions up to 2160p60. Its 12G-SDI, 3G-SDI and HDMI inputs also support simultaneous recording of up to four HD sources as separate files.

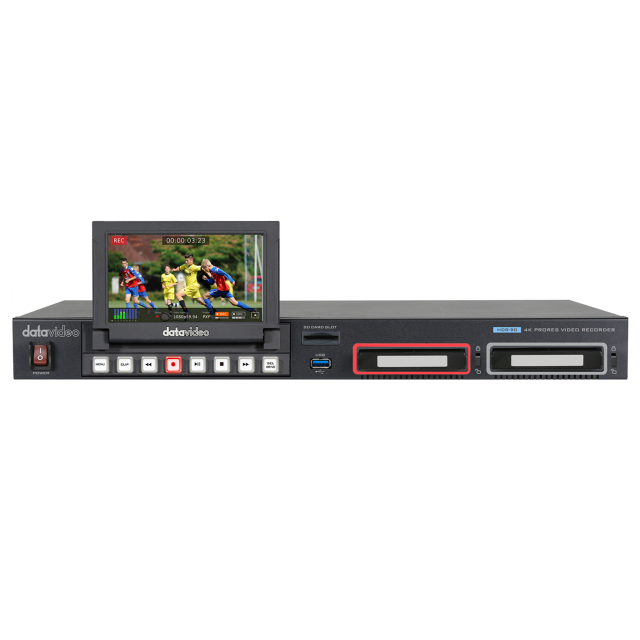

Two removable 2.5-inch SSDs make it easy to expand capacity and swap media. The front 5-inch touch LCD provides monitoring, configuration and recording controls.

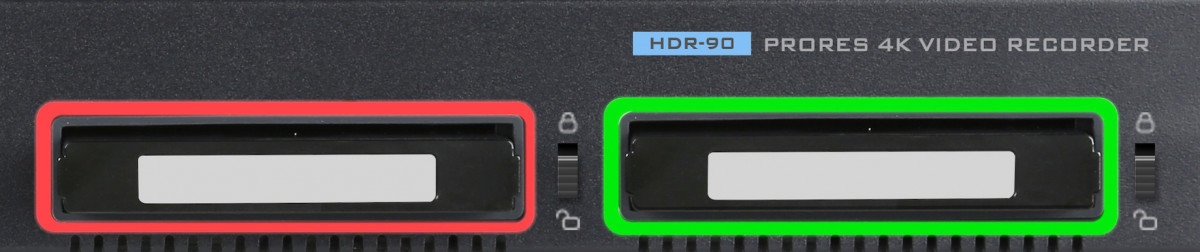

Two drives for longer recording

The HDR-90 records to two 2.5-inch SSDs. When the first drive fills, recording continues on the second; capacity can be expanded by swapping a drive. QuickTime MOV files use exFAT and are ready for the next editing stage in post-production.

Available codecs include ProRes 422 HQ, 422, LT and Proxy. The recorder supports uncompressed 48 kHz/24-bit PCM audio, timecode and external synchronization.

HDR-90 in a multi-camera video production setup

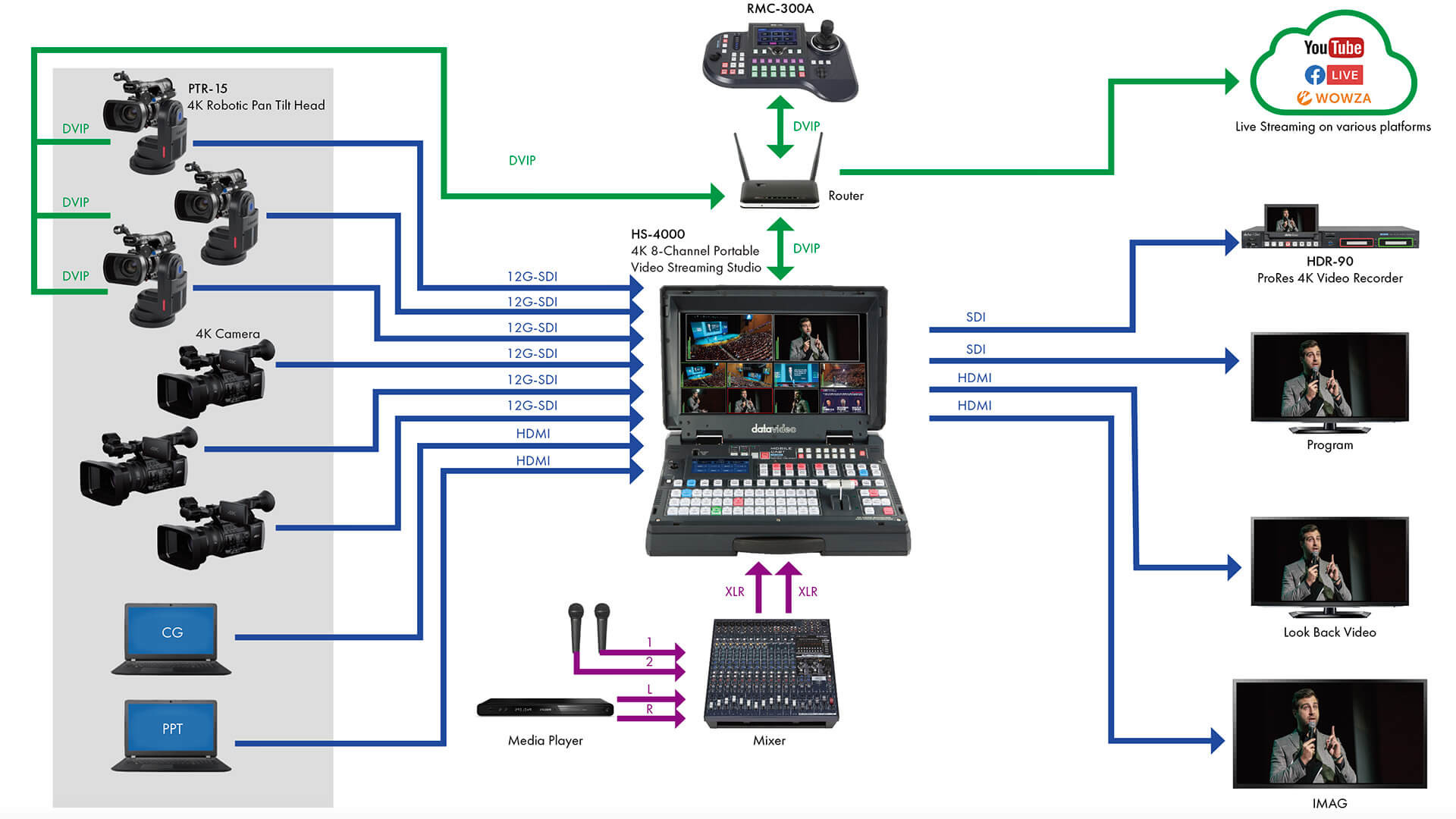

Datavideo HDR-90 in a production workflow

Four HD sources and picture monitoring tools

Alongside single-source 4K recording, the HDR-90 can record up to four 1080p HD channels simultaneously to separate files with shared timecode. The touchscreen provides monitoring tools including waveform, vectorscope, histogram, RGB parade, zebra and focus peaking.

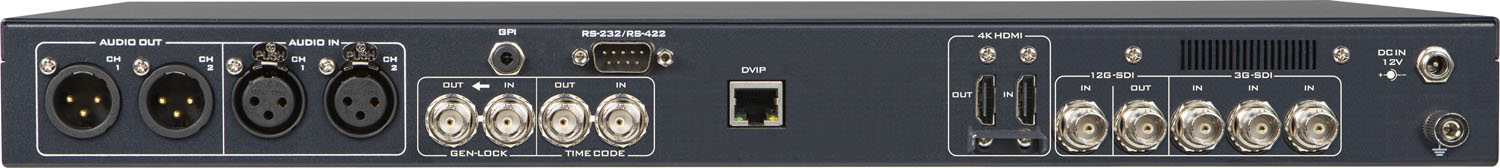

SDI and HDMI outputs carry embedded audio. Timecode, Black Burst/Tri-level Genlock, DVIP over Ethernet, RS-232/422 and GPI support integration into a production control room.

PACKAGE CONTENT

  • 1 × Datavideo HDR-90 main unit
  • 1 × power adapter and AC cord
  • 2 × removable 2.5-inch HDD/SSD enclosures
  • 8 × screws for 2.5-inch removable HDD/SSD enclosure
  • 2 × blank labels
  • 1 × SATA-to-USB cable
  • 2 × rack ear kits
  • 6 × M4 × 8 mm screws

SPECIFICATIONS

  • Video standard: UHD and HD
  • Supported formats: 2160p 23.98/24/25/29.97/30/50/59.94/60 Hz; 1080p 23.98/24/25/29.97/50/59.94/60 Hz; 1080i 50/59.94/60 Hz; 720p 50/59.94/60 Hz
  • Video inputs: 1 × 3G/12G-SDI, 3 × 3G-SDI, 1 × HDMI 2.0, 1 × HDMI 1.4
  • Video outputs: 1 × 3G/12G-SDI, 1 × HDMI 2.0, 3 × HDMI 1.4
  • Analog audio: 2 × balanced XLR inputs and 2 × balanced XLR outputs
  • Embedded audio: 8-channel SDI and HDMI input/output
  • Multi-channel recording: up to 4 HD channels to separate files
  • Recording media: 2 × removable 2.5-inch SSDs; exFAT
  • File format: QuickTime MOV
  • Codecs: ProRes 422 HQ, 422, LT and Proxy
  • Audio recording: uncompressed PCM, 48 kHz/24-bit
  • Monitor: 5-inch touchscreen LCD
  • Timecode: input and output
  • External sync: Black Burst and Tri-level with loop-through
  • External control: RS-232/422, DVIP over Ethernet and GPI, 3.5 mm connector
  • Chassis: 1RU rack-mountable
  • Dimensions (L × W × H): 440 × 300 × 49 mm
  • Weight: 4 kg
  • Operating temperature: 0 to 40 °C
  • Power: DC 12 V
Parameters

Parameters

Manufacturer: Datavideo
Category: Studio recorders

Main parameters

Form factorRack
Format/CodecProRes · MOV
Supported resolutionUHD/50p, 60p · UHD/24p, 25p, 30p · 1080/50p, 60p · 1080/24p, 25p, 30p · 1080/50i, 60i · 720/50p, 60p
InputHDMI · 12G SDI · 6G SDI · 3G SDI · SDI
Recording mediumHDD · SSD · SD card

Other parameters

Diagonal5"
Other featuresSDI Loop
Touchscreen displayYes
Power supply typePower supply
