Datavideo HDR-80 4K ProRes Video Recorder
SKU: 2600-0280

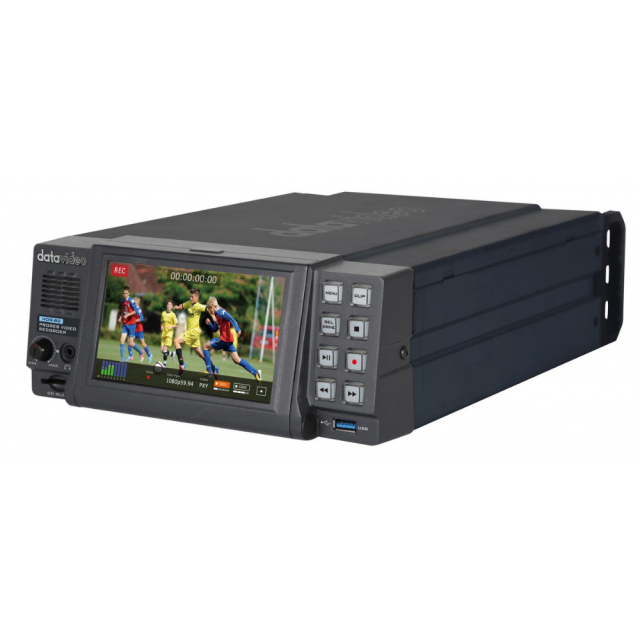

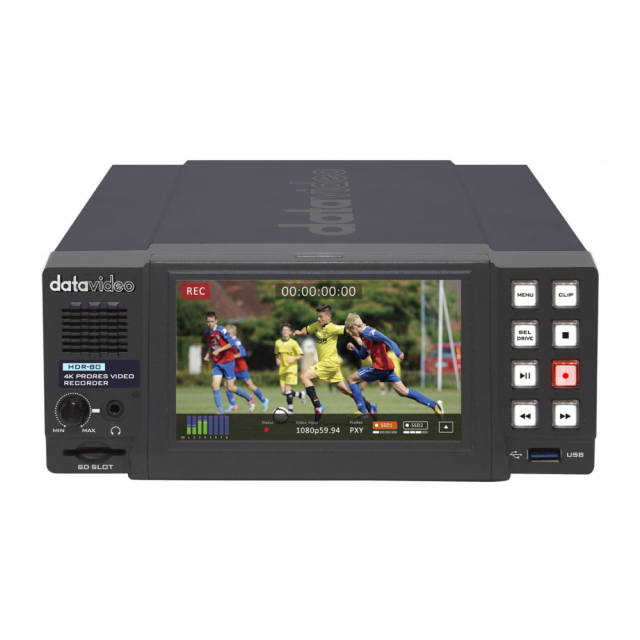

Datavideo HDR‑80 is a desktop recorder and player for UHD 4K and HD video. It records 4K over HDMI or 12G‑SDI and can capture up to four HD/3G‑SDI sources for ISO post‑production. Two removable 2.5-inch SSDs, a touchscreen and a wide range of inputs and outputs make it easy to integrate into a control room, OB van or post-production workflow.
3 529 € with VAT
2 916.53 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Datavideo HDR-80 4K ProRes Video Recorder
Datavideo ShowCast 100 4K Streaming Studio
The ShowCast 100 is a brand new 4K 4-Channel Touch Panel Switcher that features 7
5 749 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Datavideo HDR‑80 is a desktop recorder and player for UHD 4K and HD video. It records 4K over HDMI or 12G‑SDI and can capture up to four HD/3G‑SDI sources for ISO post‑production. Two removable 2.5-inch SSDs, a touchscreen and a wide range of inputs and outputs make it easy to integrate into a control room, OB van or post-production workflow.
Datavideo HDR‑80: UHD 4K and HD recording
HDR‑80 combines recording, playback and monitoring in a desktop unit. Use it for a standalone 4K programme recording or capture up to four HD/3G‑SDI ISO tracks simultaneously for separate post-production.
Recording for post-production

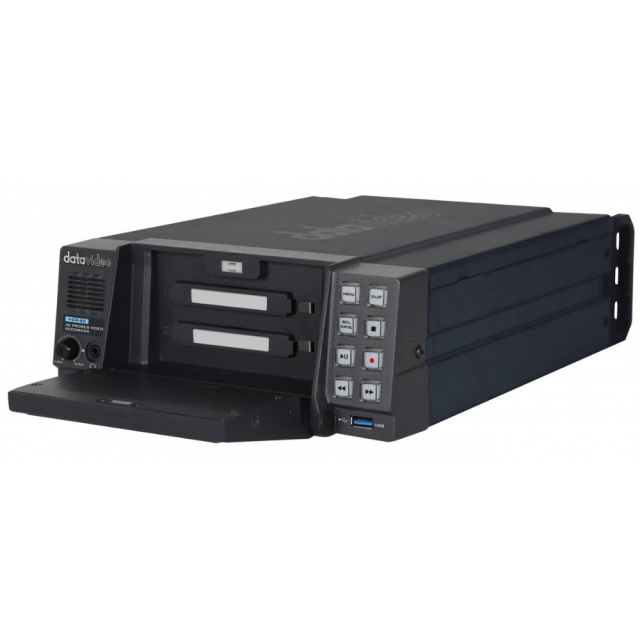

Video is recorded as QuickTime MOV files using Apple ProRes 422 HQ, 422, LT or Proxy. Two removable 2.5-inch SSDs in drive enclosures provide storage; the exFAT file system makes it easy to transfer media between the recorder and a computer.

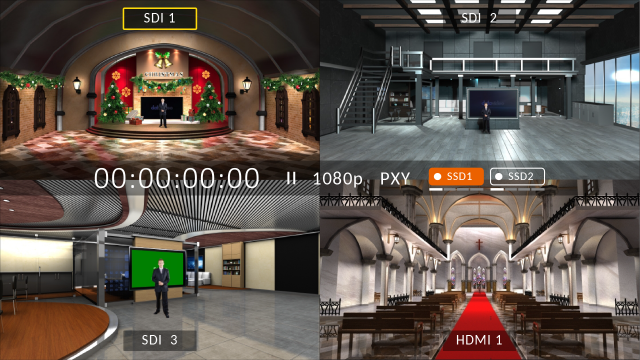

For multi-camera work, record up to four HD streams simultaneously over 3G‑SDI. Each source remains available for separate editing, synchronisation and post-production.
Inputs and outputs for production and monitoring

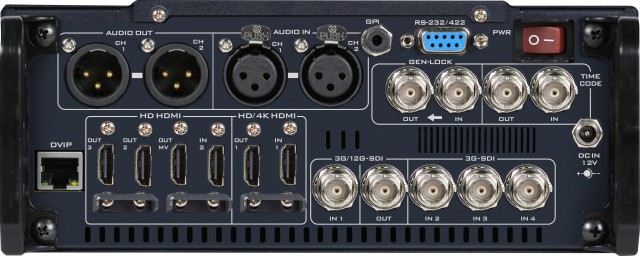

Inputs include 1× 3G/12G‑SDI, 3× 3G‑SDI, HDMI 2.0 and HDMI 1.4. Monitoring and playback outputs comprise 1× 3G/12G‑SDI, HDMI 2.0 and three HDMI 1.4 outputs. Digital audio can be embedded over SDI or HDMI; two balanced analogue XLR inputs and two XLR outputs are also provided.
Control, synchronisation and captions

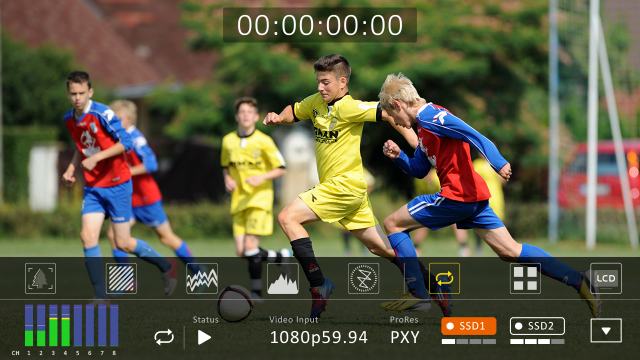

The built-in 5-inch touchscreen is used to configure the recorder and monitor video. External control is available through DVIP over Ethernet, RS‑232/422 and GPI. A dedicated timecode input and output are provided; Black Burst and Tri-Level Sync reference signals support synchronisation with loop-through.
HDR‑80 can store closed captions as metadata in a MOV file for quick post-production. Audio is recorded as uncompressed PCM at 48 kHz / 24-bit.
- Recording: Apple ProRes 422 HQ / 422 / LT / Proxy
- File system: QuickTime MOV, exFAT
- Video: UHD 4K up to 2160p60 and HD
- Audio: PCM, 48 kHz / 24-bit
- Storage: 2× removable 2.5-inch SSD
- Power: DC 12 V / 3 A
PACKAGE CONTENT
- 1× Datavideo HDR‑80 recorder
- 1× power adaptor with AC cord
- 2× removable 2.5-inch HDD/SSD enclosure
- 8× mounting screw
- 2× blank identification label
- 1× SATA-to-USB cable
SPECIFICATIONS
- Typ: desktop UHD 4K/HD ProRes recorder and player
- Video standard: UHD and HD
- Maximum resolution: UHD 3840 × 2160 up to 60p
- Supported formats: 2160p, 1080p, 1080i, 720p
- SDI inputs: 1× 3G/12G‑SDI, 3× 3G‑SDI
- HDMI inputs: 1× HDMI 2.0, 1× HDMI 1.4
- SDI outputs: 1× 3G/12G‑SDI
- HDMI outputs: 1× HDMI 2.0, 3× HDMI 1.4
- Analogue audio: 2× balanced XLR input, 2× balanced XLR output
- Embedded audio: up to 8 channels over SDI and HDMI
- Recording media: 2× removable 2.5-inch SSD
- File system: exFAT
- File format: QuickTime MOV
- Video codecs: ProRes 422 HQ, 422, LT, Proxy
- Audio format: uncompressed PCM, 48 kHz / 24-bit
- Timecode: BNC input and output
- External synchronisation: Black Burst and Tri-Level Sync with loop-through
- Control: DVIP over Ethernet, RS-232/422, GPI
- Display: 5-inch touchscreen LCD
- Operating temperature: 0 to 40 °C
- Power: DC 12 V / 3 A
- Dimensions (W × H × D): 313 × 97 × 220 mm
- Weight: 2.8 kg
WE RECOMMEND
The Datavideo HDR-80 is a professional 4K recorder with support for 12G SDI and HDMI interfaces, designed for recording to SSD drives in ProRes format. To fully utilize it in a production environment, it is recommended to supplement it with rack-mount kits, signal converters for various input types, and high-quality audio components.
Rack Mounting and Installation - Accessories for securely mounting the recorder in standard 19" rack cabinets.
Signal Converters and Distribution - Devices for converting and extending video signals compatible with the recorder’s SDI and HDMI inputs.
- Datavideo DAC-70
- Datavideo DAC-9P
- Datavideo DAC-8PA
- Datavideo VP-634
- Datavideo CAP-1
- DATAVIDEO NVD-35
Audio Accessories - Components for audio processing and monitoring via the recorder's XLR and stereo interfaces.
Monitoring and Control - External monitors and control systems for monitoring and routing 4K/HD signals.
Reading devices and accessories - Teleprompters and their accessories suitable for studio production using HDR-80.
Parameters
| Manufacturer: | Datavideo |
| Category: | Studio recorders |
Main parameters
| Form factor | Desktop |
| Format/Codec | ProRes · MOV |
| Supported resolution | UHD/50p, 60p · UHD/24p, 25p, 30p · 1080/50p, 60p · 1080/24p, 25p, 30p · 1080/50i, 60i · 720/50p, 60p |
| Input | HDMI · 12G SDI · 3G SDI · SDI |
| Recording medium | SSD |
Other parameters
| Diagonal | 5" |
| Other features | Remote control · Ethernet |
| Touchscreen display | Yes |
| Power supply type | Power supply |
