Datavideo HDR-60 HD/SD Digital Video Recorder

  • Free transport
SKU: 2600-0225

The Datavideo HDR-60 is a desktop HD/SD video recorder that records a signal from one HD/SD-SDI input to a removable 2.5-inch hard drive or SSD. After recording, connect the drive enclosure over USB 2.0 to a PC or Mac and continue working with the MPEG-2 MXF OP1A or MOV files in a non-linear editing system. Along with SDI loop-through, the HDR-60 provides…

More information

2 659 € with VAT 2 197.52 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2600-0225
Add to Compare Price history

Top accessories for Datavideo HDR-60 HD/SD Digital Video Recorder

Canare HDMI Cable 0.6 m

  • New
Canare HDMI cable, 0.6 m long, with gold-plated HDMI Type A connectors on both ends.
9.5 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC

  • New
  • LAST PIECE
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo HDR-60 is a desktop HD/SD video recorder that records a signal from one HD/SD-SDI input to a removable 2.5-inch hard drive or SSD. After recording, connect the drive enclosure over USB 2.0 to a PC or Mac and continue working with the MPEG-2 MXF OP1A or MOV files in a non-linear editing system. Along with SDI loop-through, the HDR-60 provides HDMI and SDI outputs, eight-channel embedded audio, timecode, and Black Burst/Tri-level genlock synchronization.

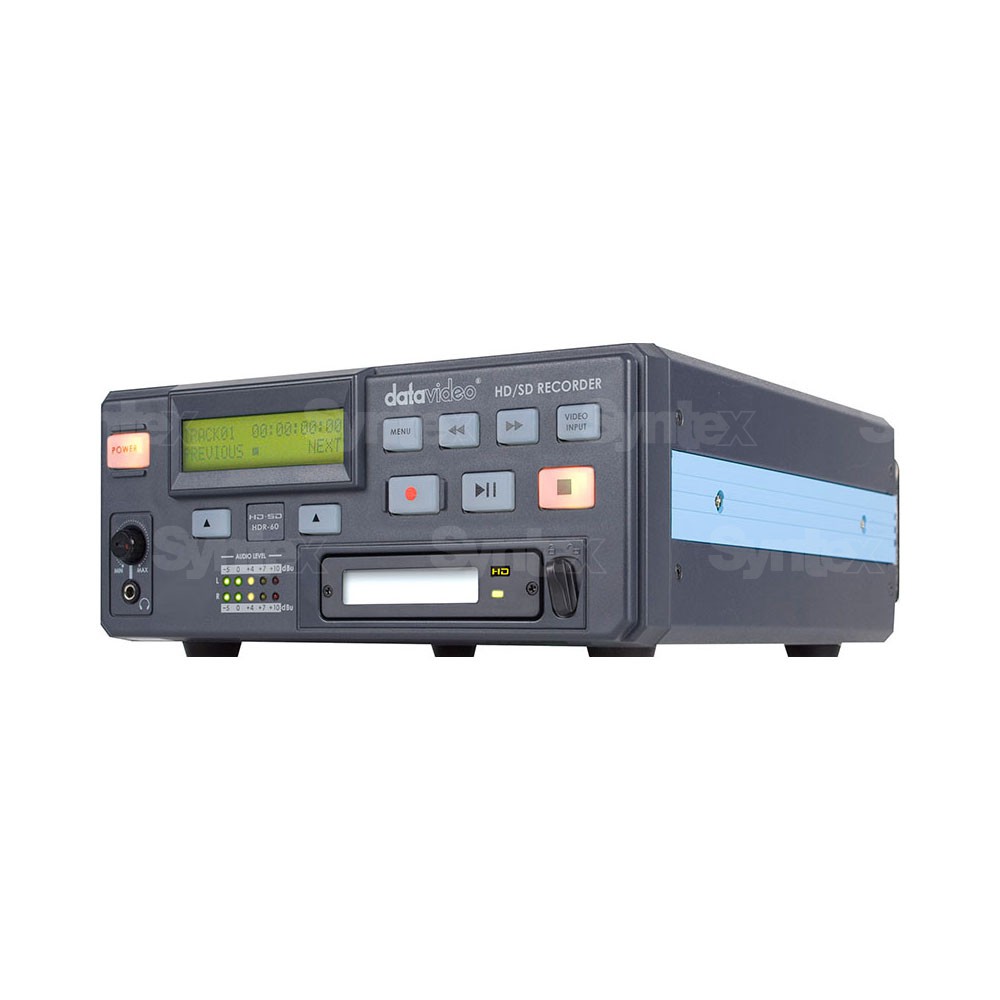

Datavideo HDR-60 HD/SD desktop video recorder

HDR-60 video recorder

The Datavideo HDR-60 records SD and HD video from one HD/SD-SDI input to a removable 2.5-inch hard drive or SSD. Its compact desktop chassis suits studio and location production. When recording is complete, remove the drive enclosure and connect it to a computer over USB 2.0.

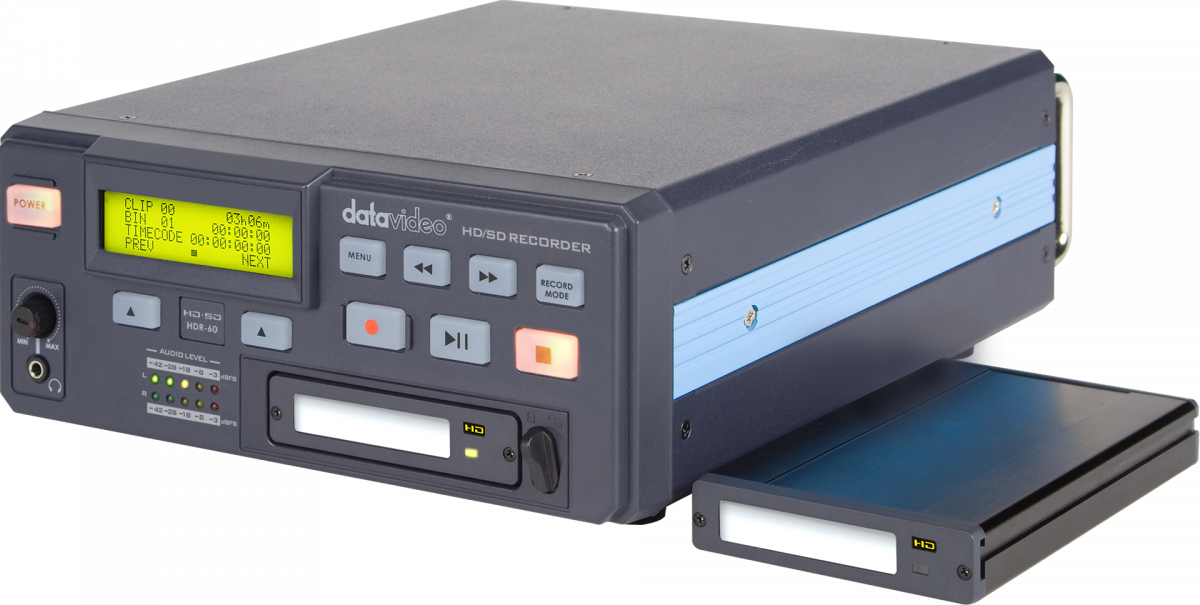

Removable drive enclosure for the Datavideo HDR-60

Removable media for editing and playback

The HDR-60 records to a removable drive enclosure. It accepts a 2.5-inch HDD or SSD with a maximum capacity of 1 TB; a hard drive is not included. After recording, eject the enclosure and connect it by USB 2.0 to a PC or Mac for work in a non-linear editing system.

Recordings use the NTFS file system and are saved as MXF OP1A or MOV files. MPEG-2 recording profiles provide a choice of bit rates and sampling options for the project.

SDI loop-through, video outputs and synchronization

The HD/SD-SDI input accepts the source signal and provides an SDI loop-through output for monitoring. The recorder also has HDMI and a separate SDI output; SDI and HDMI carry embedded audio with up to eight channels.

For synchronization with studio equipment, the HDR-60 provides genlock input and loop-through for Black Burst or Tri-level, plus timecode input and output. Remote control is available over RS-232/422 and GPI.

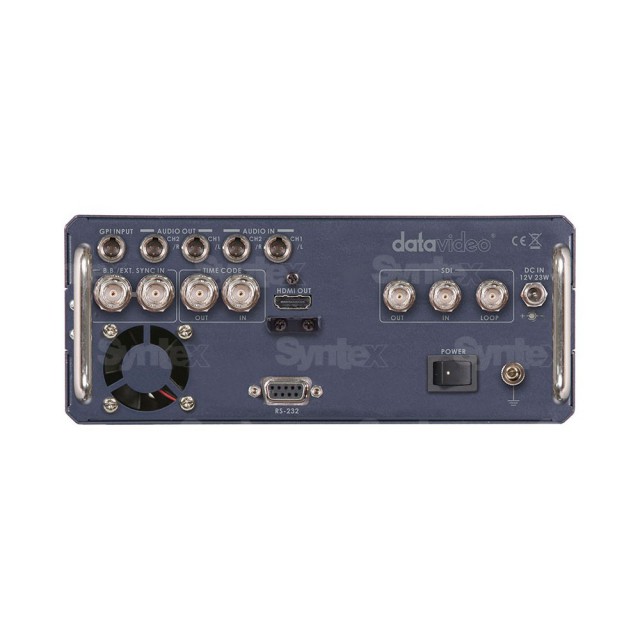

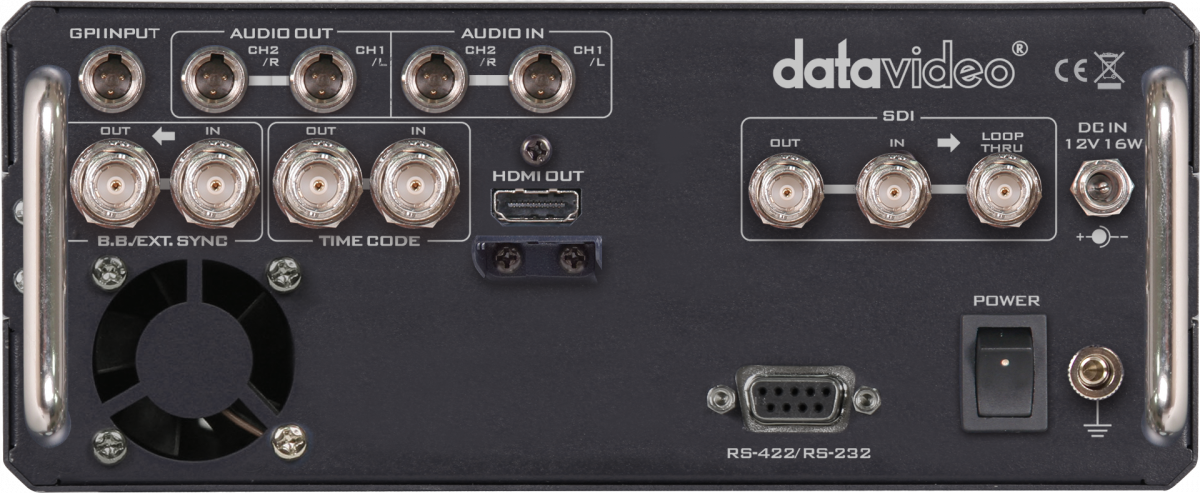

Rear connector panel of the Datavideo HDR-60

PACKAGE CONTENT

  • 1× Datavideo HDR-60 video recorder
  • 1× switched DC 12 V power adapter
  • 1× USB Y-type cable
  • 2× mini-XLR F to XLR M cables
  • 2× mini-XLR F to XLR F cables
  • 2× removable 2.5-inch HDD enclosures (hard drives not included)
  • 10× M3 × 4 mm screws
  • 2× 2.0 × 6 mm screws
  • 2× HD labels
  • 4× labels

SPECIFICATIONS

  • Model: Datavideo HDR-60
  • Chassis: desktop recorder
  • Video standard: SD and HD
  • Input: 1× HD/SD-SDI
  • Video outputs: SDI input loop-through, 1× HDMI and 1× SDI
  • Embedded audio: input and output, up to 8 channels over SDI/HDMI
  • Analog audio input: 2× balanced mini-XLR, stereo pair
  • Analog audio output: 2× balanced mini-XLR
  • Recording media: removable 2.5-inch HDD or SSD
  • Maximum media capacity: 1 TB
  • Multichannel recording: one HD channel
  • File system: NTFS
  • Recorded file formats: MXF OP1A and MOV
  • Supported formats: 1080p 23.97/24 Hz; 1080i 50/59.94/60 Hz; 720p 50/59.94/60 Hz; 576i 50 Hz and 480i 59.94 Hz
  • MPEG-2 HD Long GOP: 10/25 Mbps 4:2:0 at 1440×1080/1280×720; 35/50/65/120 Mbps 4:2:2 at 1920×1080/1280×720
  • MPEG-2 SD Long GOP: 8 Mbps 4:2:0 at 720×480/720×576 (requires a firmware upgrade); 15/30/50 Mbps 4:2:2 at 720×480/720×576
  • MPEG-2 i-Frame: HD 80/100/125 Mbps 4:2:2 at 1920×1080/1280×720; SD 25/50 Mbps 4:2:2 at 720×480/720×576
  • Audio recording: uncompressed PCM, 48 kHz/24-bit
  • Timecode: input and output
  • External synchronization: Black Burst and Tri-level, input with loop-through
  • Remote control: RS-232/422 (D-sub 9-pin) and GPI (mini-XLR)
  • Power failure protection: recorded content is saved up to the final second before a power failure
  • Power: DC 12 V, 2 A
  • Dimensions (L × W × H): 210 × 254 × 96 mm
  • Weight: 2.7 kg
  • Operating temperature: 0 to 40 °C

WE RECOMMEND

The Datavideo HDR-60 is a professional desktop recorder with support for SD/HD-SDI and HDMI interfaces, designed for recording to 2.5" hard drives. To maximize its use in a production environment, it is essential to supplement it with compatible signal converters, preview monitors, and systems for audio and video synchronization.

Converters and Signal Distribution - Devices for converting and stabilizing the video signal before it enters the recorder or for its further distribution.

Audio and Communication - Accessories for audio track management and studio communication during recording.

Monitoring and Control - Production tools for previewing recordings and switching input sources for the recorder.

Readout devices and accessories - Compatible studio equipment to facilitate the work of presenters during filming.

Parameters

Parameters

Manufacturer: Datavideo
Category: Studio recorders

Main parameters

Form factorDesktop
Format/CodecMOV · MXF · MPEG
Supported resolution480i/576i
InputSDI
Recording mediumHDD · SSD

Other parameters

Other featuresSDI Loop
Power supply typePower supply
