Datavideo ITC-300 digital intercom system
SKU: 2205-2030
The Datavideo ITC-300 is an eight-channel wired digital intercom for studio and mobile production. Its Ethernet connection powers up to eight belt packs, while the director can speak to an individual channel, address all channels at once, or mute the talk line. The standard 19-inch, 1U chassis fits a conventional rack.
2 709 € with VAT
2 238.84 € without VAT
Availability
Shipment day: 26. 10.
Shipment day: 26. 10.
To be sent 1 pcs
Bratislava 1 pcs
Bratislava 1 pcs
Top accessories for Datavideo ITC-300 digital intercom system
Datavideo HP-2A Dual-Ear Intercom Headset with 3.5 mm Connector
The Datavideo HP-2A is a professional dual-ear headset for wired intercom systems.
175 €
To be sent 5 pcs
Datavideo CB-68 70 m 2-in-1 Cable (4.5C HD-SDI/CAT 6)
The 70 m Datavideo CB-68 hybrid cable carries 3G/HD/SD-SDI video up to 1080p alongside
1 089 €
14-30 days
Datavideo TD-3 LED Tally Light Set
The Datavideo TD-3 is a set of four LED tally lights for the camera crew and on-camera
127 €
14-30 days
Datavideo ITC-300SL Digital Intercom Belt Pack
The Datavideo ITC‑300SL is a wired digital intercom belt pack that adds an operator
357 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Datavideo ITC-300 is an eight-channel wired digital intercom for studio and mobile production. Its Ethernet connection powers up to eight belt packs, while the director can speak to an individual channel, address all channels at once, or mute the talk line. The standard 19-inch, 1U chassis fits a conventional rack.
8 CHANNELS · WIRED INTERCOM
EIGHT CHANNELS FOR PRODUCTION CREWS
The Datavideo ITC-300 connects the director with up to eight belt packs. A single CAT cable carries two-way talk and tally while Power over Ethernet supplies connected units. The director can select an individual channel, address everyone at once, or mute the talk line.
CONNECT UP TO EIGHT CREW POSITIONS
The ITC-300 base station connects with up to eight ITC-300SL belt packs. A CAT cable can run up to 100 m to each unit; the optional VP-300R repeater extends the cable route to 200 m.
CONTROL COMMUNICATION FROM THE FRONT PANEL
Dedicated buttons let the director call individual channels or everyone at once, use Hold, or mute communication. Bi-colour tally indicators show the status of each crew position.
CONTROL EACH CONVERSATION
The eight-channel digital intercom supports a private call to one crew member, an announcement to the whole team, or muting the line.
TALK AND TALLY OVER ONE CABLE

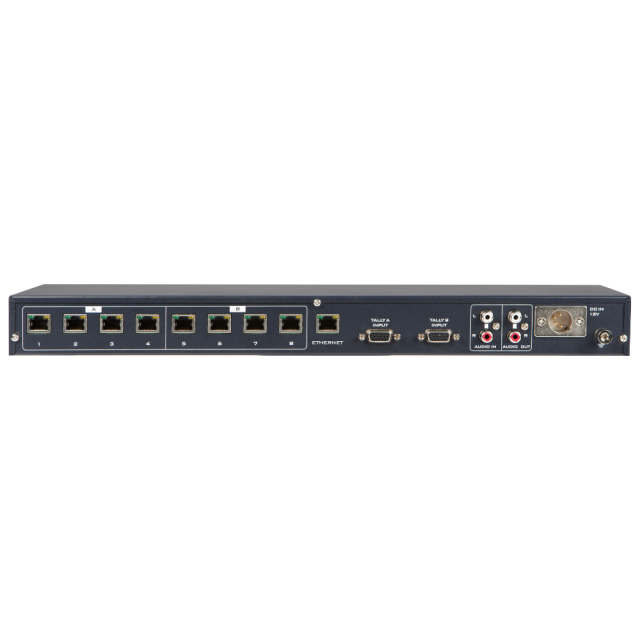

One CAT Ethernet cable connects the base station and belt packs. Tally is bi-colour; two 15-pin D-Sub sockets provide Tally A and Tally B connections.
HEADPHONE AND MICROPHONE OPTIONS
The base station has a built-in 3 W speaker, a 3.5 mm stereo headset/microphone combo jack, a separate 6.3 mm stereo headphone output, and an XLR microphone input. The speaker mutes when headphones or a headset are connected.
READY FOR THE CONTROL ROOM
The 19-inch, 1U chassis fits a studio or field rack. The ITC-300 also works with Datavideo SE-500HD, SE-650, SE-2200, SE-2850 and SE-3200 switchers.

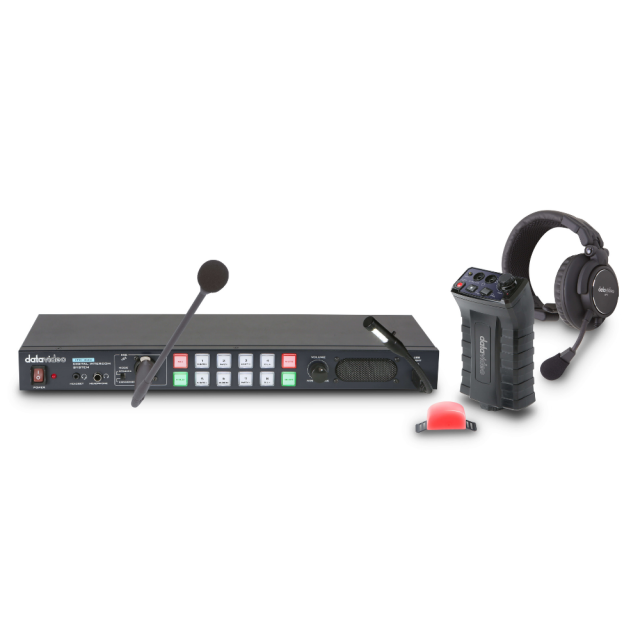

PACKAGE CONTENT
- 1× Datavideo ITC-300 base unit
- 4× Datavideo ITC-300SL belt packs
- 4× Ethernet cables
- 4× earphone cables
- 4× headsets with microphone
- 1× gooseneck microphone
- 4× tally LED indicators
- 4× Velcro straps
- 1× power adapter with AC cord
SPECIFICATIONS
- Type: eight-channel wired digital intercom
- Directly connected belt packs: up to 8
- Range, base station to belt pack: up to 100 m
- Signal and power: two-way talk and tally over one CAT cable; Power over Ethernet
- Frequency response: 300 Hz–7 kHz, < ±3 dB
- Total harmonic distortion: < 0.1% at 1 kHz
- Signal-to-noise ratio: > 70 dB
- Built-in speaker: 3 W
- Tally: 2× 15-pin D-Sub sockets (Tally A and Tally B)
- Headset connection: 3.5 mm stereo headphone/microphone combo jack
- Headphone output: 6.3 mm stereo jack
- Microphone input: 3-pin XLR / 6.3 mm jack; switchable condenser/dynamic
- Operating temperature: 0–40 °C
- Power: DC 12 V, 3 A
- Dimensions (L × W × H): 440 × 126 × 44 mm
- Weight: 1.9 kg
Parameters
Parameters
| Manufacturer: | Datavideo |
| Category: | Intercom/Tally |
Main parameters
| Wireless technology | Wired |
| Number of users | 8 |
| Range | 100m |
| Maximum system users | 8 |
