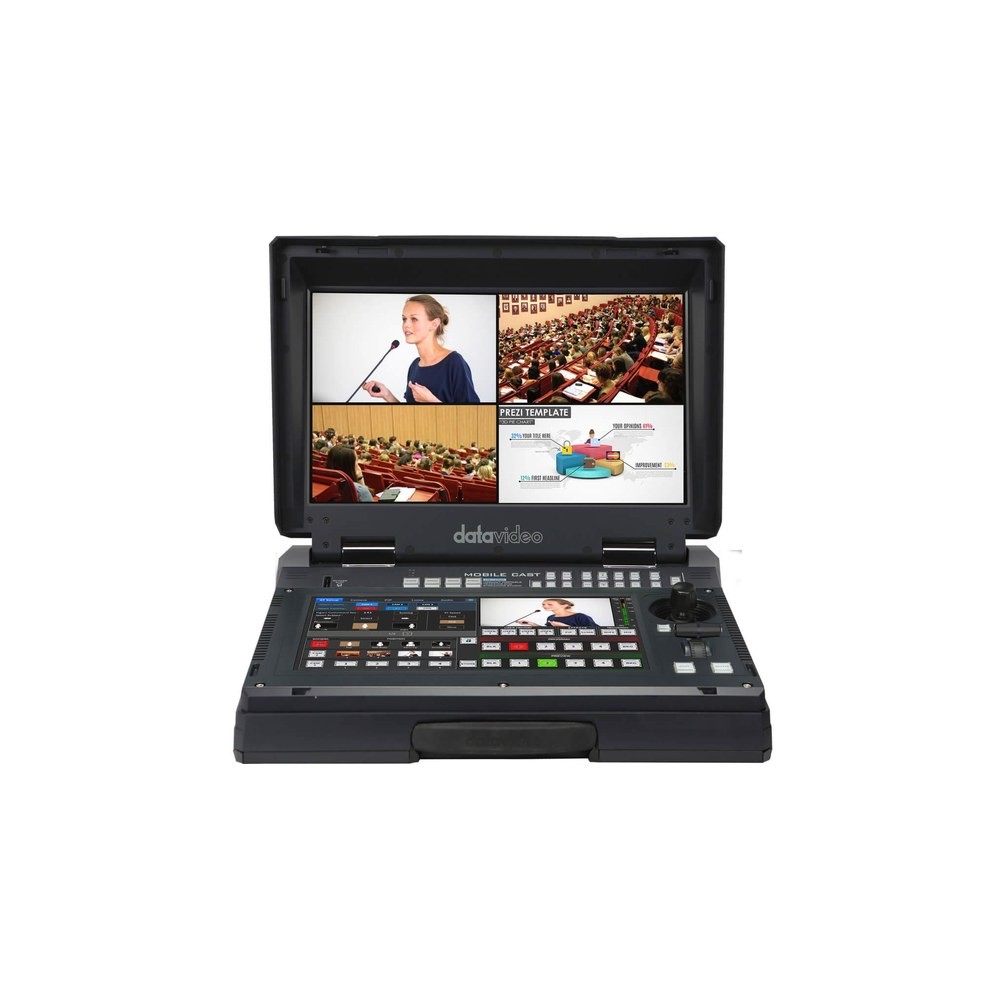

Datavideo HS-1650T HDBaseT Portable Tracking and Streaming Studio

  • Free transport
SKU: 2200-2030

The Datavideo HS-1650T is a portable four-channel HD/SD production studio with HDBaseT for live events, conferences, lectures, and education. Its rugged case combines a video switcher, streaming encoder, SD-card recorder, four-channel audio mixer, multiview monitor, and control for up to three compatible Datavideo PTZ cameras. A 14-inch touchscreen makes scene…

More information

8 659 € with VAT 7 156.2 € without VAT
Add to Compare Price history
Availability
on request
SKU:
2200-2030
Add to Compare Price history

Top accessories for Datavideo HS-1650T HDBaseT Portable Tracking and Streaming Studio

Datavideo PTC-145TW Full HD PTZ Camera (White)

  • Free transport
The Datavideo PTC-145TW is a white Full HD installation PTZ camera with HDBaseT connectivity.
1 909 €
on request

Datavideo PTC-145T HDBaseT PTZ Camera (Dark Blue)

  • Free transport
The Datavideo PTC-145T installation camera in dark blue combines Full HD resolution
1 909 €
on request

Datavideo PTC-155TW Full HD PTZ camera with AI tracking

  • Free transport
The Datavideo PTC-155TW is a white Full HD PTZ camera for live production, corporate
2 669 €
on request

Datavideo PTC-155T Full HD HDBaseT PTZ Camera with AI Tracking

  • Free transport
The Datavideo PTC-155T is an AI-powered Full HD PTZ camera with 30x optical zoom,
2 669 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo HS-1650T is a portable four-channel HD/SD production studio with HDBaseT for live events, conferences, lectures, and education. Its rugged case combines a video switcher, streaming encoder, SD-card recorder, four-channel audio mixer, multiview monitor, and control for up to three compatible Datavideo PTZ cameras. A 14-inch touchscreen makes scene switching and camera control straightforward, while the built-in 17.3-inch Full HD display shows multiple video sources at once. Three HDBaseT inputs and one HDMI/PC input connect cameras and presentation graphics; HDBaseT carries video, power, control, and tally over a single Cat-6A cable for runs up to 100 m. The integrated H.264/AVC encoder streams over common IP protocols while recording MP4 files to an SD card. The HS-1650T streamlines mobile production without requiring separate switching, recording, and audio-mixing units.

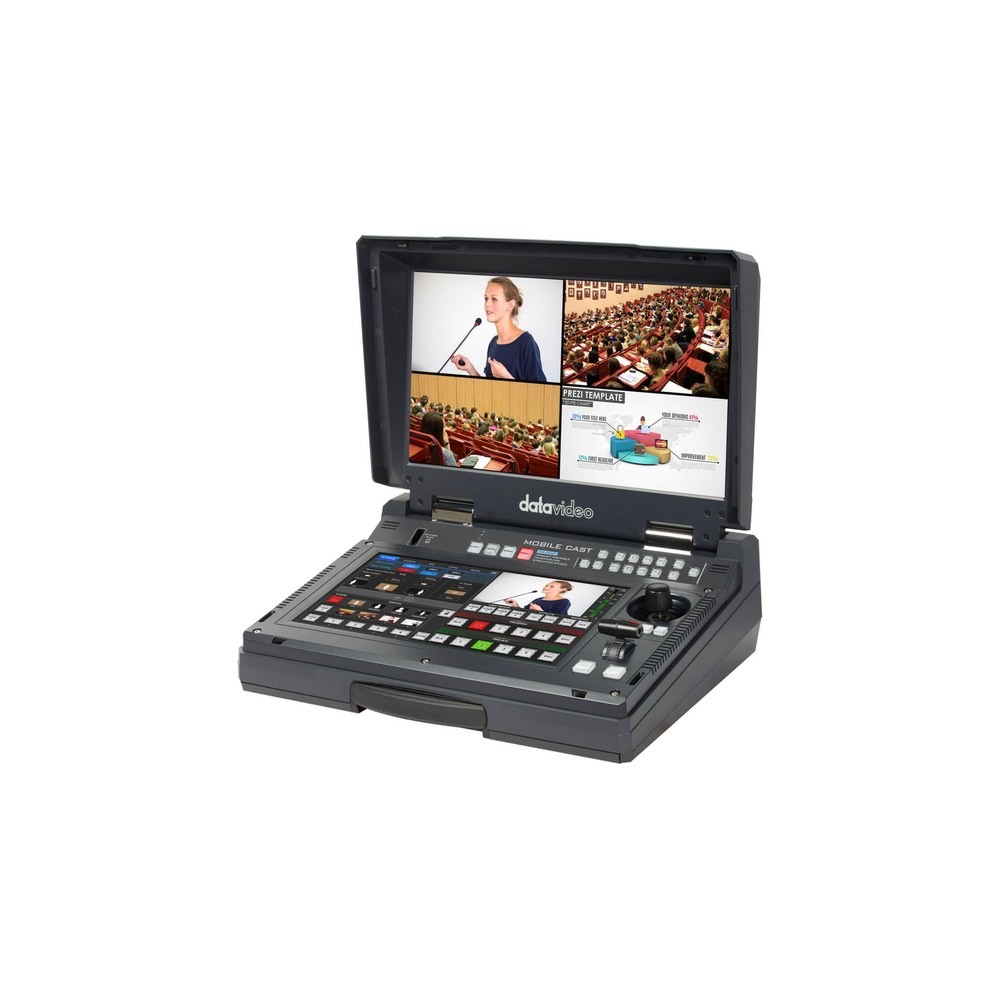

Datavideo HS-1650T portable live production studio

Live production in one portable studio

The Datavideo HS-1650T combines video switching, streaming, recording, audio mixing, multiview monitoring, and camera control in one rugged, portable system. Its 14-inch touchscreen makes it easier to switch scenes, operate PTZ cameras, and access auto tracking with compatible Datavideo cameras. The built-in 17.3-inch Full HD monitor displays multiple sources at once, while HDBaseT simplifies camera connections with a single cable.

For live events, conferences, and education, it provides a compact production setup with video and audio mixing, streaming, and recording in one case.

Live production setup with the Datavideo HS-1650T, PTZ cameras, audio mixer, and streaming platformsMP4 recording to SD cardProjectorProgram monitorLaptopAudio mixerRCA / XLRand

A practical multi-camera production setup

The manufacturer's diagram shows a typical workflow with three PTC-145T PTZ cameras connected over HDBaseT, a computer connected over HDMI, and an external audio mixer connected over RCA or XLR. The HS-1650T can send the program feed to an HDMI monitor and an HDBaseT projector, stream to online services, and record MP4 files to an SD card at the same time.

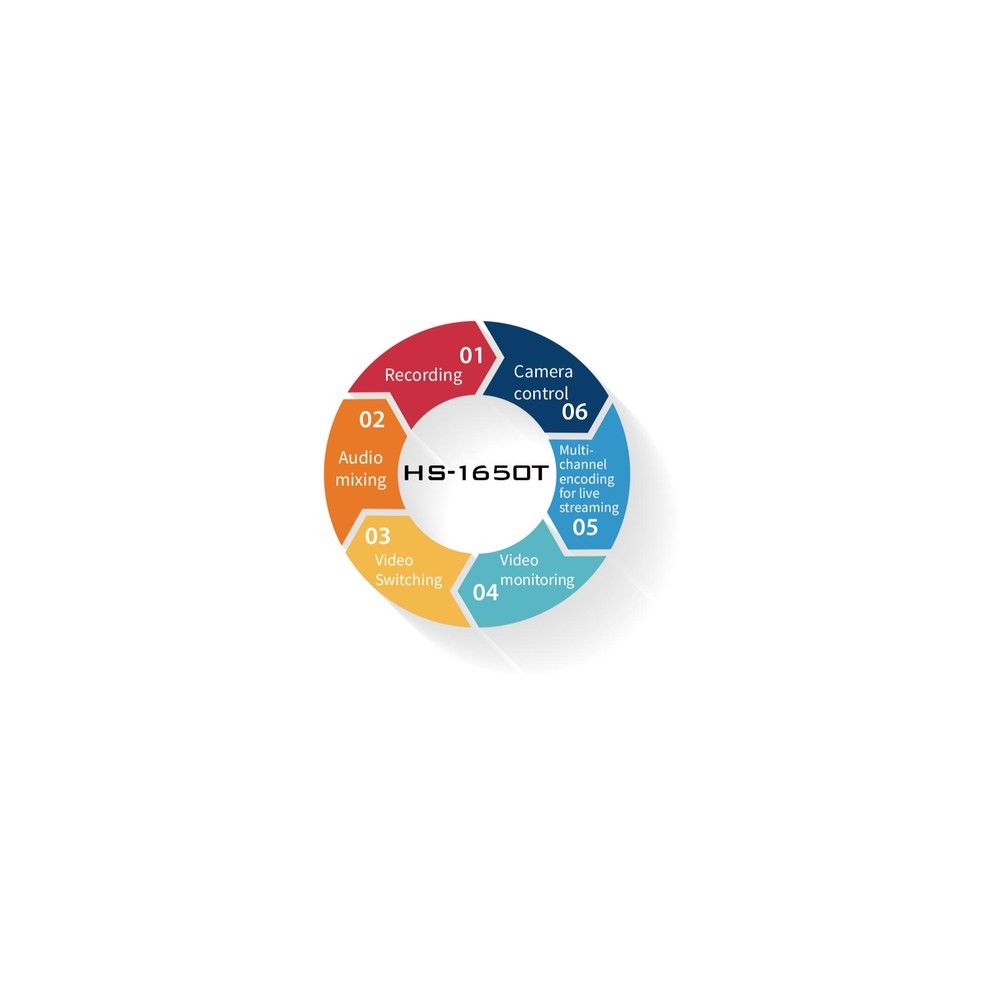

Six Functions in One Portable Case

The HS-1650T combines video switching, streaming, recording, audio mixing, multiview monitoring, and camera control in one portable system. The integrated setup is easy to transport and quick to deploy at live events, conferences, and in education.

Six functions of the Datavideo HS-1650T production studio: recording, audio mixing, video switching, video monitoring, live-stream encoding, and PTZ camera control with intelligent tracking.01
RECORD02
AUDIO MIX03
SWITCHING04
MONITOR05
LIVE CODEC06
PTZ + AI

HDBaseT carries video, power, control, and tally over one Cat-6A cable for runs up to 100 m. The cameras, projector, external monitor, computer, audio mixer, and SD card shown in the diagram are not included with the HS-1650T.

  • 3 HDBaseT inputs and 1 HDMI/PC input
  • Control for up to 3 Datavideo PTZ cameras, including auto tracking with compatible models
  • Built-in H.264 recording to an SD card and IP streaming

Video, audio, and control in one place

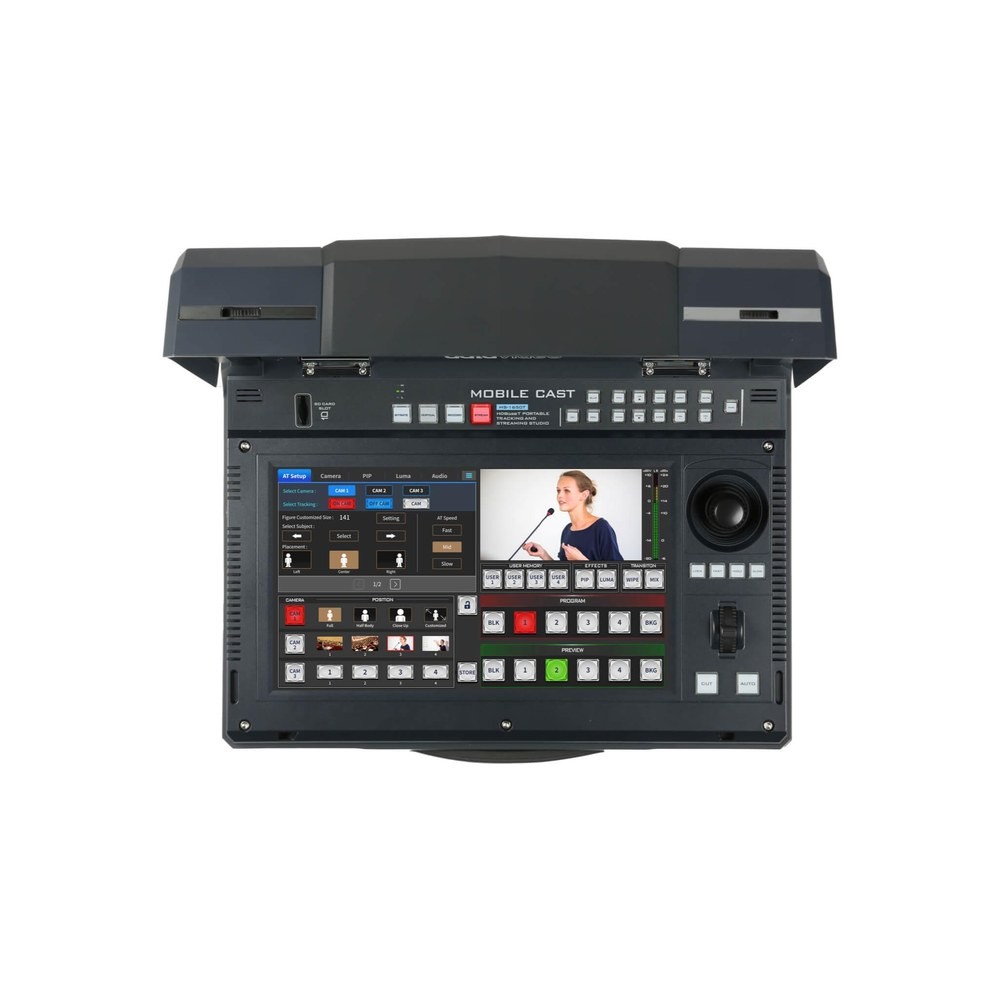

The built-in 4-channel audio mixer handles analogue sources from two balanced XLR connectors and a stereo RCA input. The Picture-in-Picture function lets you display a selected source in an adjustable sub-window; its size, position, and border can be tailored to the composition. The touchscreen provides direct PTZ camera controls for focus, shutter, iris, and white balance, while the built-in joystick supports manual pan, tilt, and zoom.

The internal recorder saves MP4 files to an SD card. The built-in H.264/AVC encoder supports simultaneous streaming to two platforms; it supports RTMP/RTMPS, HLS, RTSP, SRT, and TS over TCP/UDP. Stream audio uses AAC-LC encoding.

PACKAGE CONTENT

  • 1× Datavideo HS-1650T production studio
  • 1× 56 V DC power adapter (AD Switch) with AC cord
  • 3× Ethernet cables

SPECIFICATIONS

  • Type: portable 4-channel HD/SD production studio with HDBaseT
  • Video formats: 1080p, 1080i, 720p, 576i/p at 50 Hz, and 480i/p at 59.94 Hz

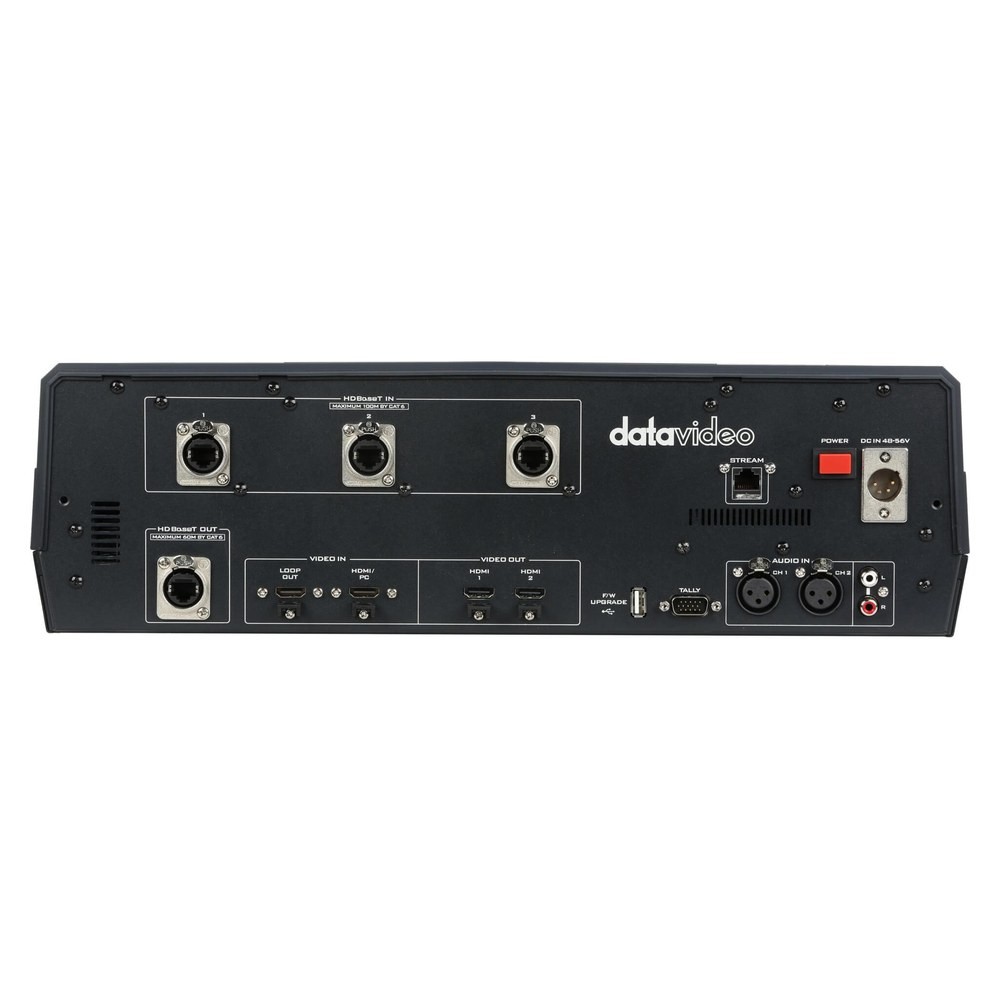

  • Video inputs: 3× HDBaseT and 1× HDMI/PC
  • Video outputs: 2× HDMI program, 1× HDMI loop-out, and 1× HDBaseT program; separate RJ-45 streaming port
  • Video sampling: 4:4:4, 10-bit
  • Multiview monitor: 17.3-inch TFT LED, 1920 × 1080 pixels
  • Touch control panel: 14-inch; PTZ, focus, shutter, iris, and white-balance control
  • PTZ control: up to 3 compatible Datavideo cameras; up to 4 presets per camera
  • Audio inputs: 2× balanced XLR, 1× stereo RCA (L/R), and de-embedded digital audio
  • Audio output: 1× stereo headphone output; built-in 4-channel mixer
  • Video functions: 1× Picture-in-Picture with adjustable size, position, and border; USK with Lumakey
  • Streaming codec: H.264/AVC, configurable bit rate up to 10 Mbps
  • Streaming protocols: TS over TCP/UDP, RTSP, RTMP/RTMPS, HLS, and SRT
  • Streaming audio: AAC-LC, 32–384 kb/s, 48 kHz/16-bit
  • Recording: MP4 to SD card; FAT, exFAT, and NTFS file systems
  • HDBaseT: up to 100 m over Cat-6A cable
  • Dimensions (L × W × H): 455 × 355 × 134 mm
  • Weight: 7.8 kg; reinforced plastic case
  • Operating temperature: 0 to 40 °C
Parameters

Parameters

Manufacturer: Datavideo
Category: Switchers

Main parameters

Number of inputs4
Switcher inputsHDMI
Streaming servicesYouTube Live · Facebook Live
Switcher inputsHDBaseT
Streaming servicesRTMP · Twitch · SRT
Switcher outputsHDMI · HDBaseT
Internal recordingYes
ResolutionHD
FeaturesRecording · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing · Multiviewer
Control panelYes
