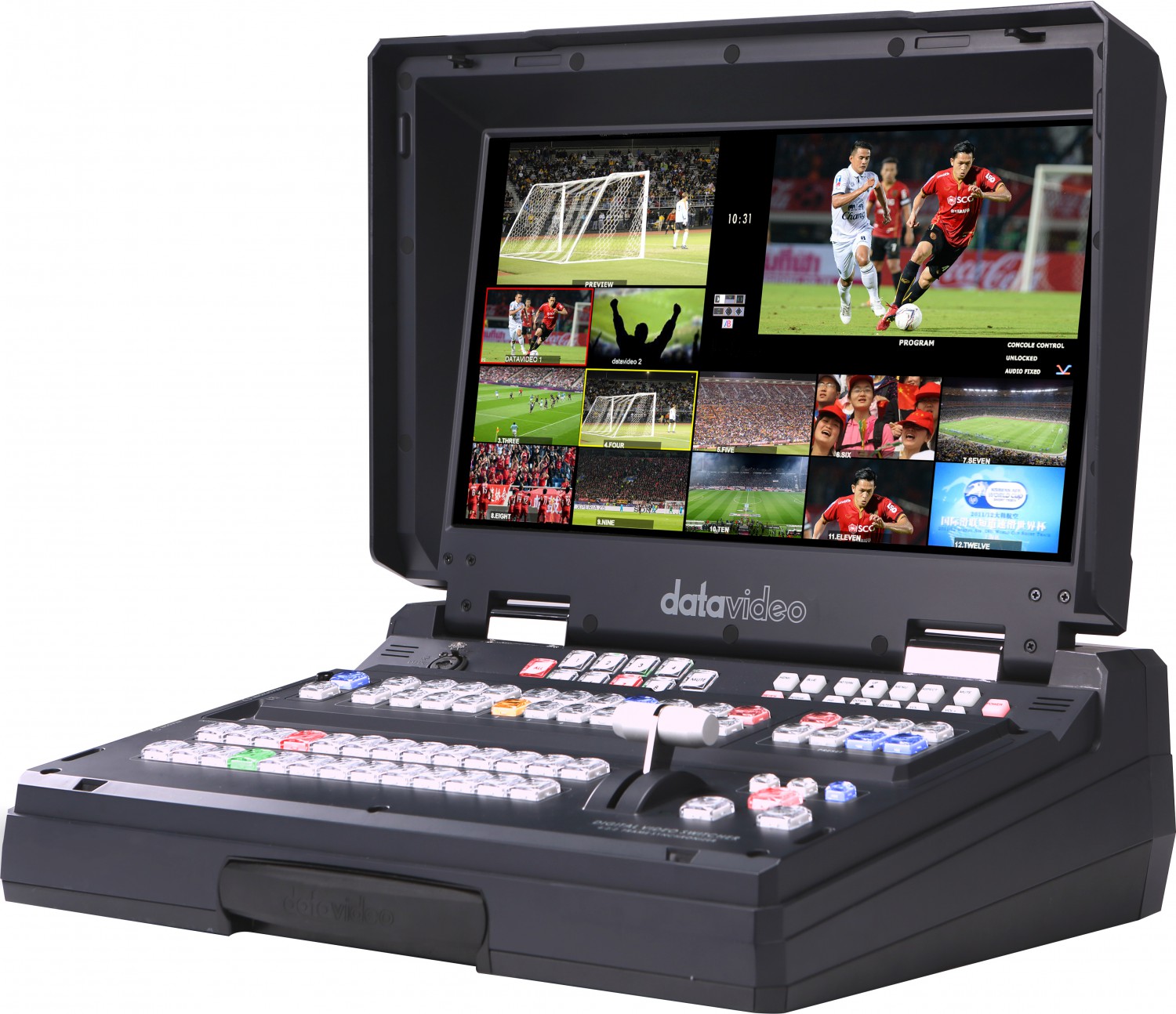

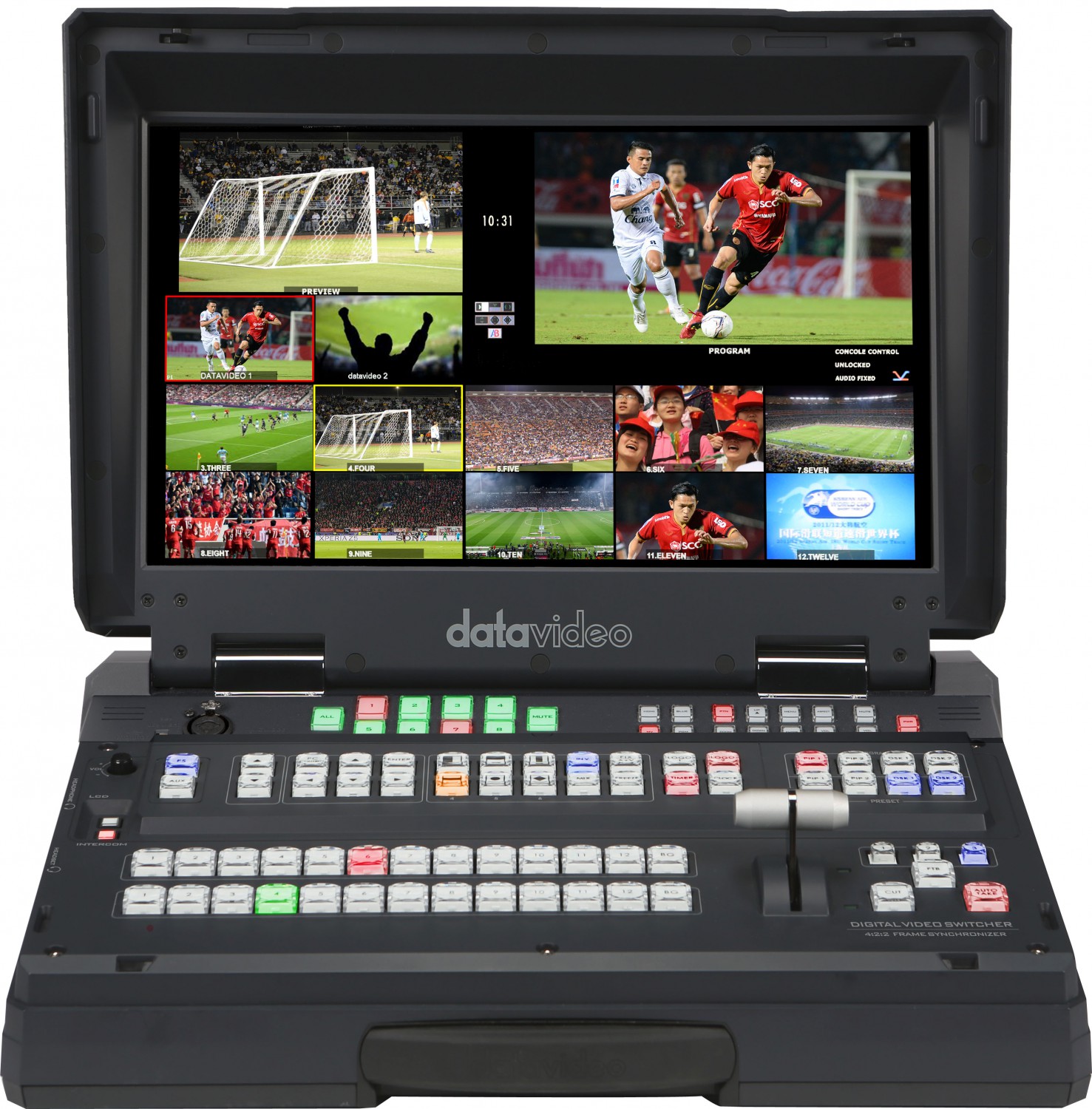

Datavideo HS-2850-8 8-Channel HD/SD Portable Video Studio
SKU: 2200-2061
Datavideo HS-2850-8 is a portable HD/SD video studio with a built-in 17.3-inch monitor, 8-channel intercom and tally. It switches and routes up to 12 HD/SD input sources, depending on configuration, and provides picture-in-picture, graphic keying and audio delay for lip-sync. It is designed for multi-camera live production where operators…
10 349 € with VAT
8 552.89 € without VAT
Availability
14-30 days
Top accessories for Datavideo HS-2850-8 8-Channel HD/SD Portable Video Studio
Datavideo AD-100M Audio Delay Box with Microphone Input
Promotion: -12%
The Datavideo AD-100M is a single-channel analog audio delay box for synchronizing
477.24 €
539.54 €
In stock 3 pcs
Datavideo ITC-100SL Belt Pack for ITC-100/200 Intercom
Datavideo ITC-100SL is a one-user expansion kit for the ITC-100/200 wired intercom.
272 €
14-30 days
Datavideo AM-100 Audio Mixer
The AM-100 is a 1U 19" rackmountable professional audio mixer. Supports both Line
919 €
In stock 1 pcs
Datavideo TD-3 LED Tally Light Set
The Datavideo TD-3 is a set of four LED tally lights for the camera crew and on-camera
127 €
14-30 days
Datavideo DAC-60 SDI to VGA Converter
The Datavideo DAC-60 converts professional 3G/HD/SD-SDI video to VGA for a projector
509 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Datavideo HS-2850-8 is a portable HD/SD video studio with a built-in 17.3-inch monitor, 8-channel intercom and tally. It switches and routes up to 12 HD/SD input sources, depending on configuration, and provides picture-in-picture, graphic keying and audio delay for lip-sync. It is designed for multi-camera live production where operators need to monitor several sources and coordinate the crew.
Portable studio for live production
HS-2850-8 combines a video switcher, built-in monitor, intercom and tally in a portable system. Operators can monitor several video sources, route inputs and manage a multi-camera production from one position. Four belt packs with headset microphones support communication with the crew.
Monitoring and picture tools for live production

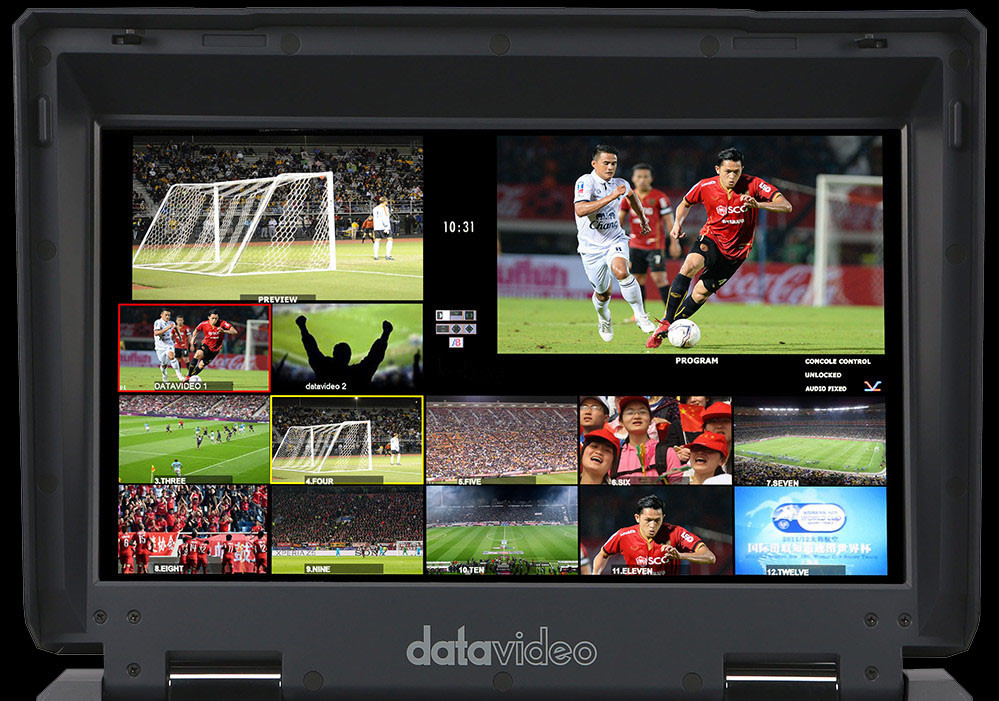

The built-in 17.3-inch HD TFT monitor lets the operator check the production at the switcher. HS-2850-8 handles HD and SD signals, and all 12 inputs can be routed repeatedly; depending on configuration, it supports up to 12 SDI and 3 HDMI inputs. Its picture tools include two PIP channels, two DSK keys, logo or clock insertion and CG-200 title creation.
Intercom and tally for crew coordination
The built-in 8-channel intercom with talkback connects the operator with the four supplied ITC-100SL belt packs. The tally light indicates which camera is live. Audio delay can be adjusted by up to eight frames to align sound with picture.
PACKAGE CONTENT
- 1× HS-2850 unit
- 1× AD 12 V power adapter with AC cord
- 1× CB-41 XLR-to-XLR cable
- 4× CB-3 XLR cables
- 1× gooseneck microphone
- 4× headphone microphones
- 4× ITC-100SL belt packs
- 1× tally light
- 4× Velcro straps
SPECIFICATIONS
- Video standard: HD and SD
- Supported formats: 1080p 25/29/30/50/59.94/60 Hz; 1080i 50/59.94/60 Hz; 720p 50/59.94/60 Hz; 576i 50 Hz; 480i 59.94 Hz
- Standard video inputs: 8× SDI, 2× HDMI
- Maximum video inputs: 12× SDI, 3× HDMI; configuration varies by mode
- Input routing: Each of the 12 inputs can be routed to multiple output paths
- Computer graphics input: Up to 3 via HDMI
- Down-converted outputs: 3× SDI
- Video outputs: 3× assignable SDI (PGM, PVW, AUX and Clean Out); 1× assignable HDMI (PGM or multiview)
- Analogue audio inputs: 4× balanced XLR
- Analogue audio outputs: 2× balanced XLR
- Embedded digital audio: Up to 16 input channels; 4 output channels
- Audio delay calibration: Up to 8 frames
- DSK: 2; luma and linear key (Key/Fill)
- Picture-in-picture (PIP): 2
- Logo insertion: 2 logos, or 1 logo and clock
- Title creation: CG-200
- Built-in monitor: 17.3-inch HD TFT with LED backlight
- Intercom and tally: 8 channels; 4 belt packs included
- Graphics interface: Built-in TC-200 CG interface
- Dimensions (L × W × H): 455 × 355 × 134 mm
- Weight: 8.5 kg
- Power: 12 V DC, 6 A
- Operating temperature: 0 to 40 °C
- A+V switching: Yes
WE RECOMMEND
The Datavideo HS-2850-8 is a professional mobile production switcher that combines an 8-channel switcher, a 17.3" monitor, and an intercom in a single portable case. To fully utilize the system in both field and studio environments, it is essential to supplement it with compatible signal converters, audio processors, and communication accessories for the crew.
Intercom and Audio - Accessories for ensuring communication between the production truck and camera operators and for advanced audio processing.
Signal Conversion and Distribution - Tools for converting between HDMI, SDI, and VGA formats and for amplifying signals over long distances.
Streaming and External Monitoring - Devices that enable the digitization of output for streaming or preview on external panels.
Reading devices and remote controls - Compatible teleprompters and their accessories for professional hosting.
Installation Accessories - Accessories for rack mounting and protecting camera equipment within the system.
