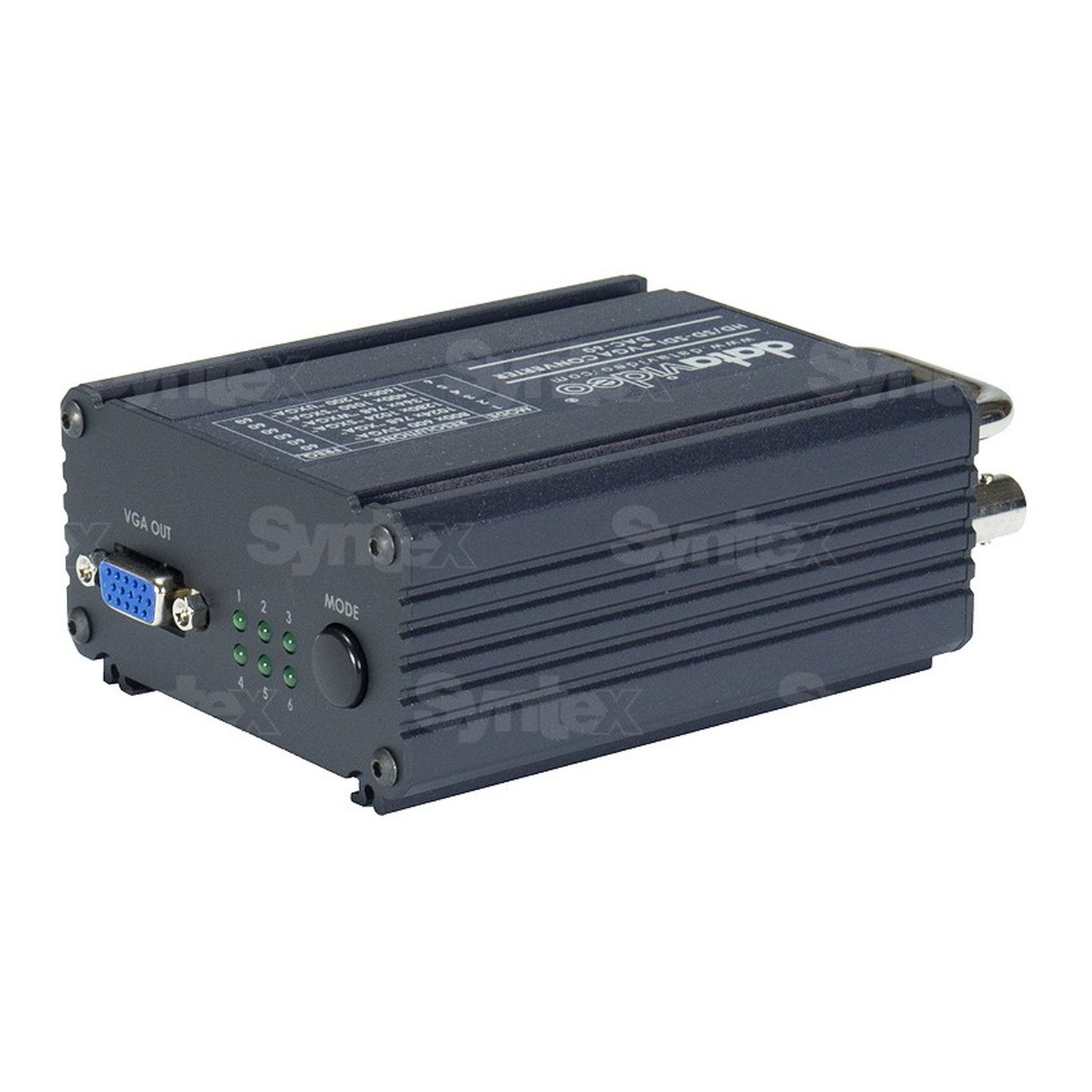

Datavideo DAC-60 SDI to VGA Converter

The Datavideo DAC-60 converts professional 3G/HD/SD-SDI video to VGA for a projector or monitor with a VGA input. It accepts 480i, 576i, 720p, 1080i and 1080p formats and scales the picture to resolutions up to 1920 × 1200 at 60 Hz.

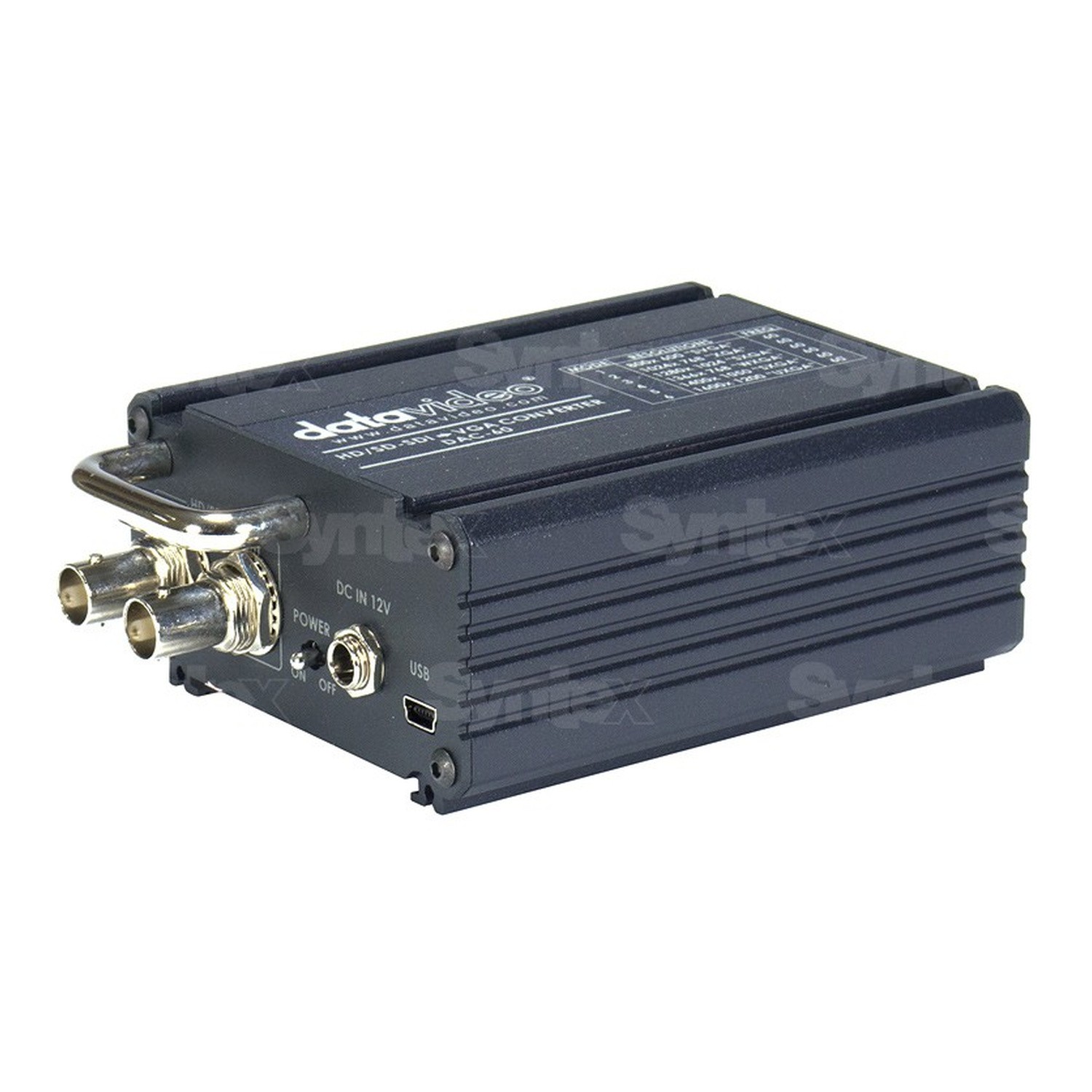

A separate SDI loop-through preserves the original video signal for another device and is unaffected by the VGA resolution setting. The DAC-60 connects newer SDI equipment to a legacy display while keeping the rest of the SDI signal chain intact.

3G/HD/SD-SDI to VGA converter

SDI TO VGA FOR LEGACY DISPLAYS

The Datavideo DAC-60 converts professional 3G/HD/SD-SDI video to VGA for a projector or monitor. Its separate SDI loop-through keeps the original signal available to another device in the chain.

SDI inputVGA 1920 × 1200SDI loop-through

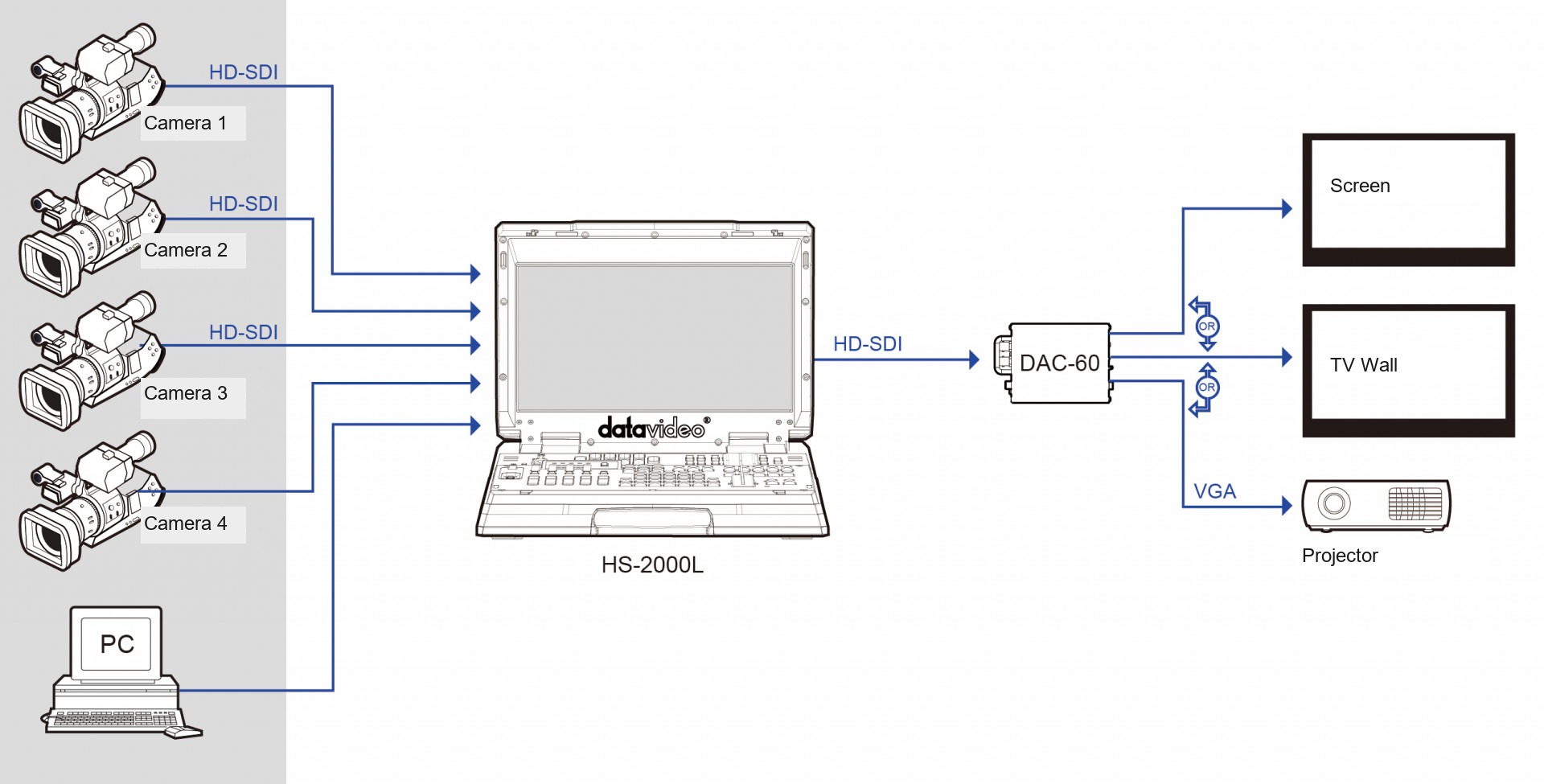

VGA IN AN SDI CHAIN

Between the HS-2000L switcher and a projector, the DAC-60 converts SDI to VGA. Its independent loop-through keeps the original signal available to another screen or video wall.

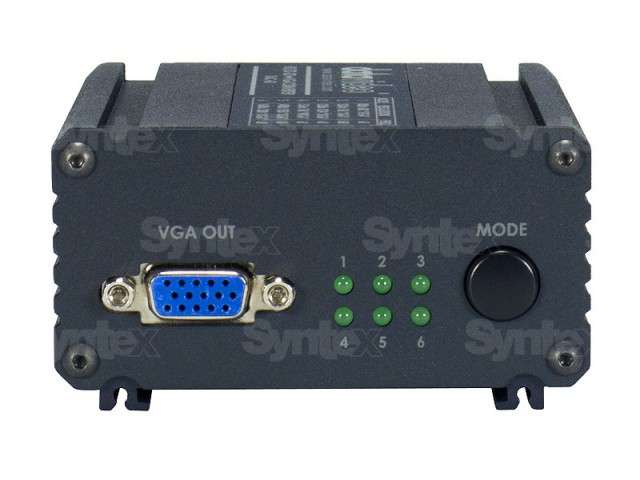

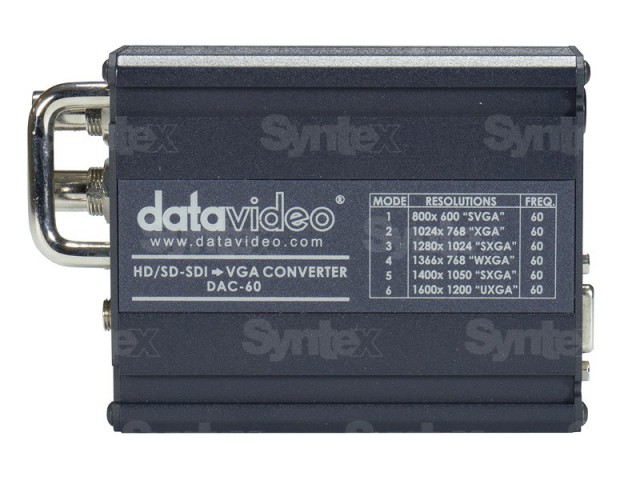

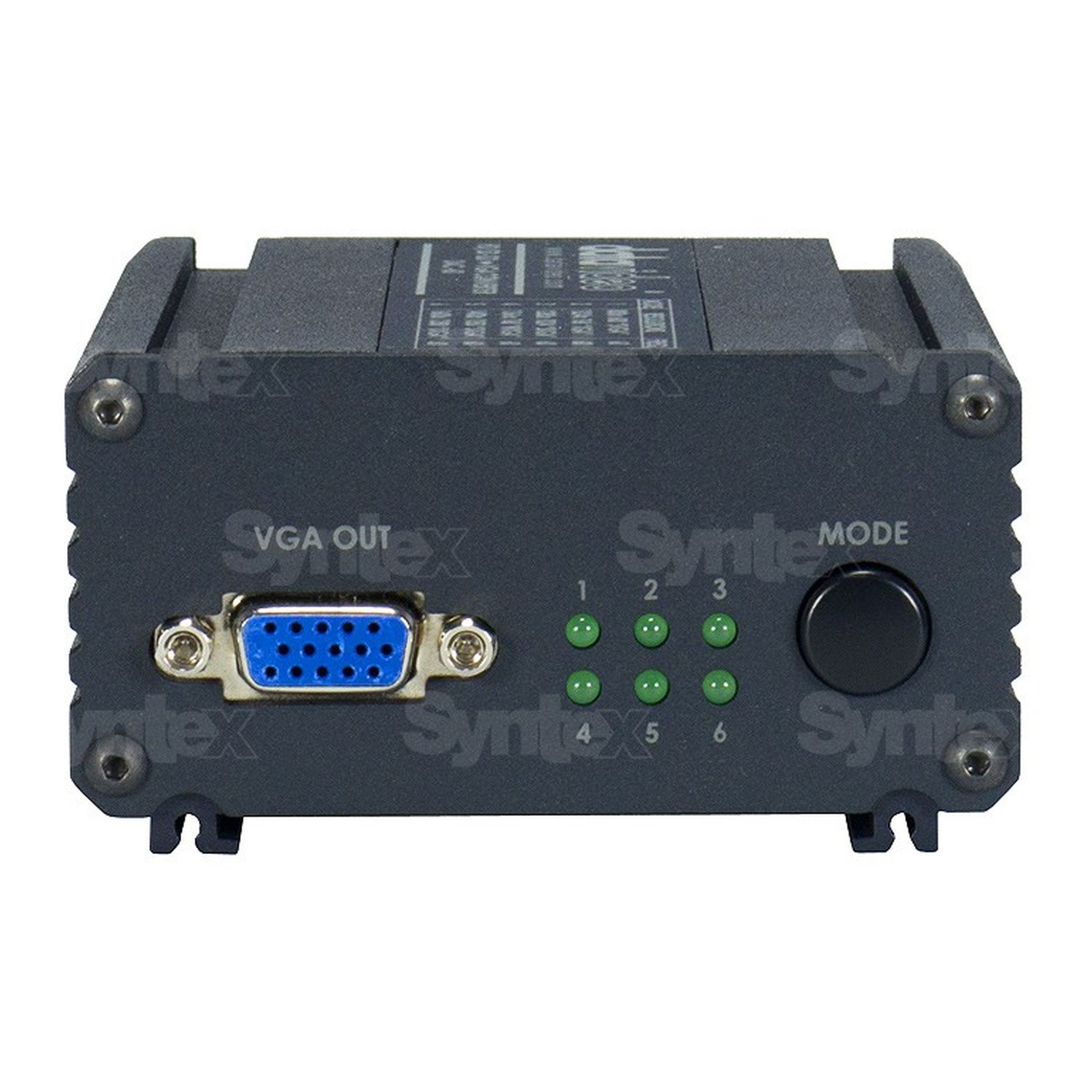

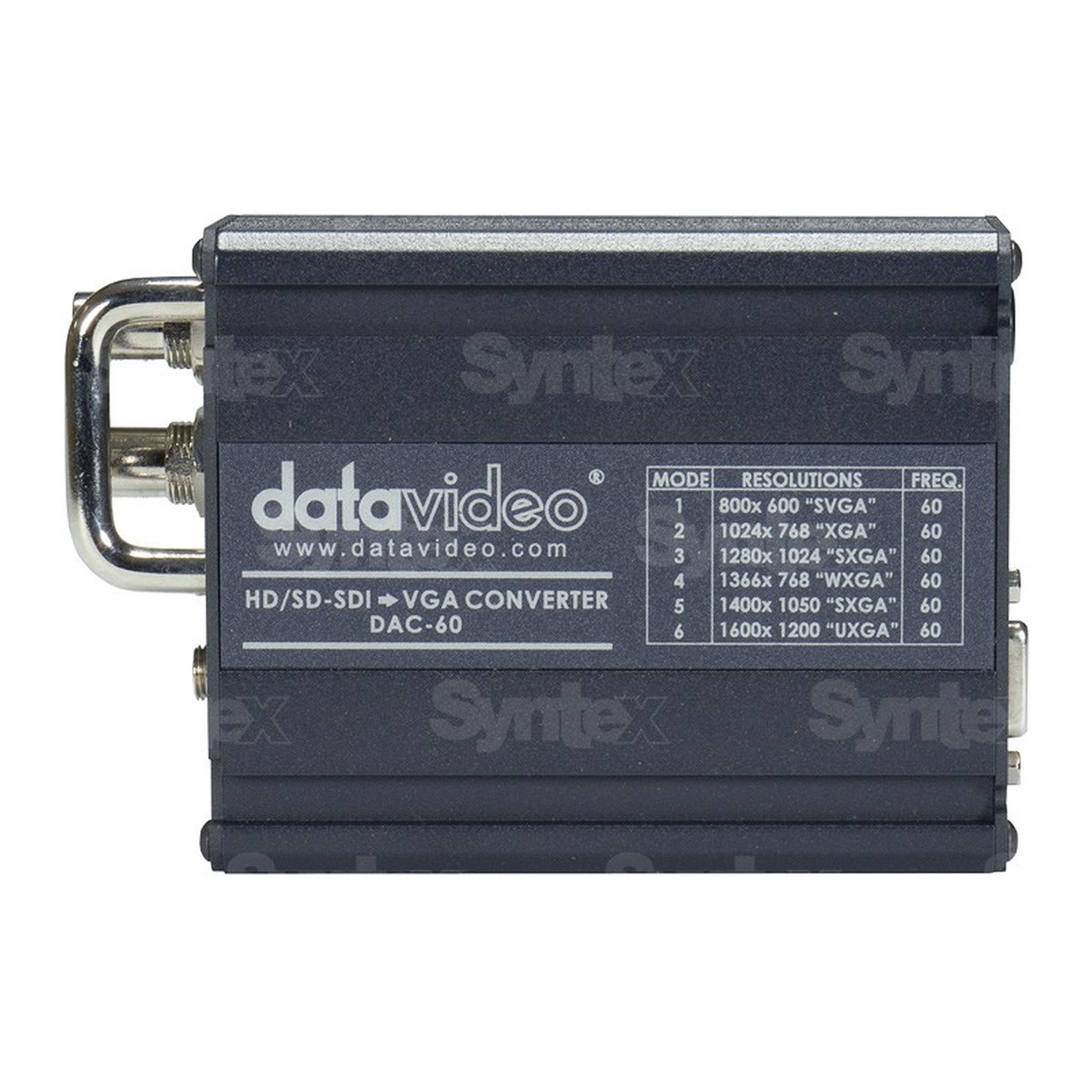

SCALING UP TO 1920 × 1200

The VGA output supports resolutions up to 1920 × 1200 at 60 Hz, along with common modes such as 1920 × 1080, 1280 × 1024 and 1024 × 768. Choose the output mode to match the connected display.

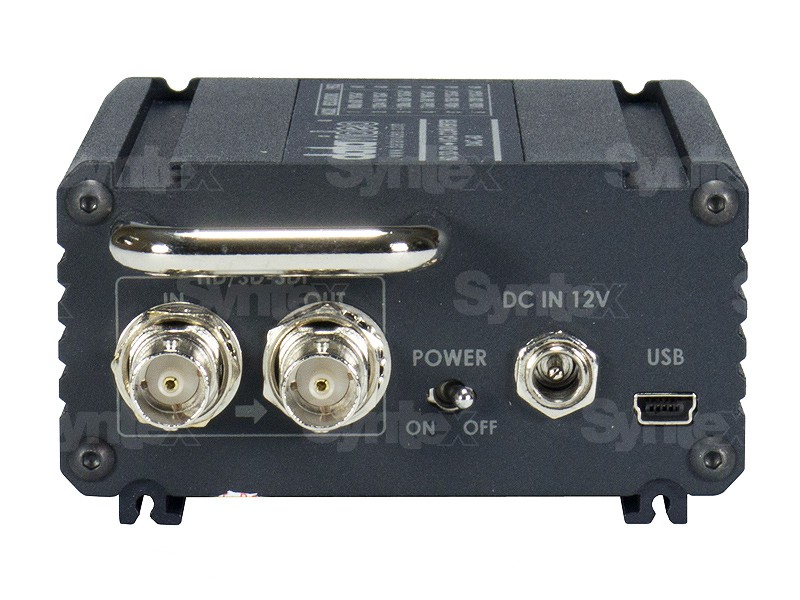

KEEP THE SDI SIGNAL MOVING

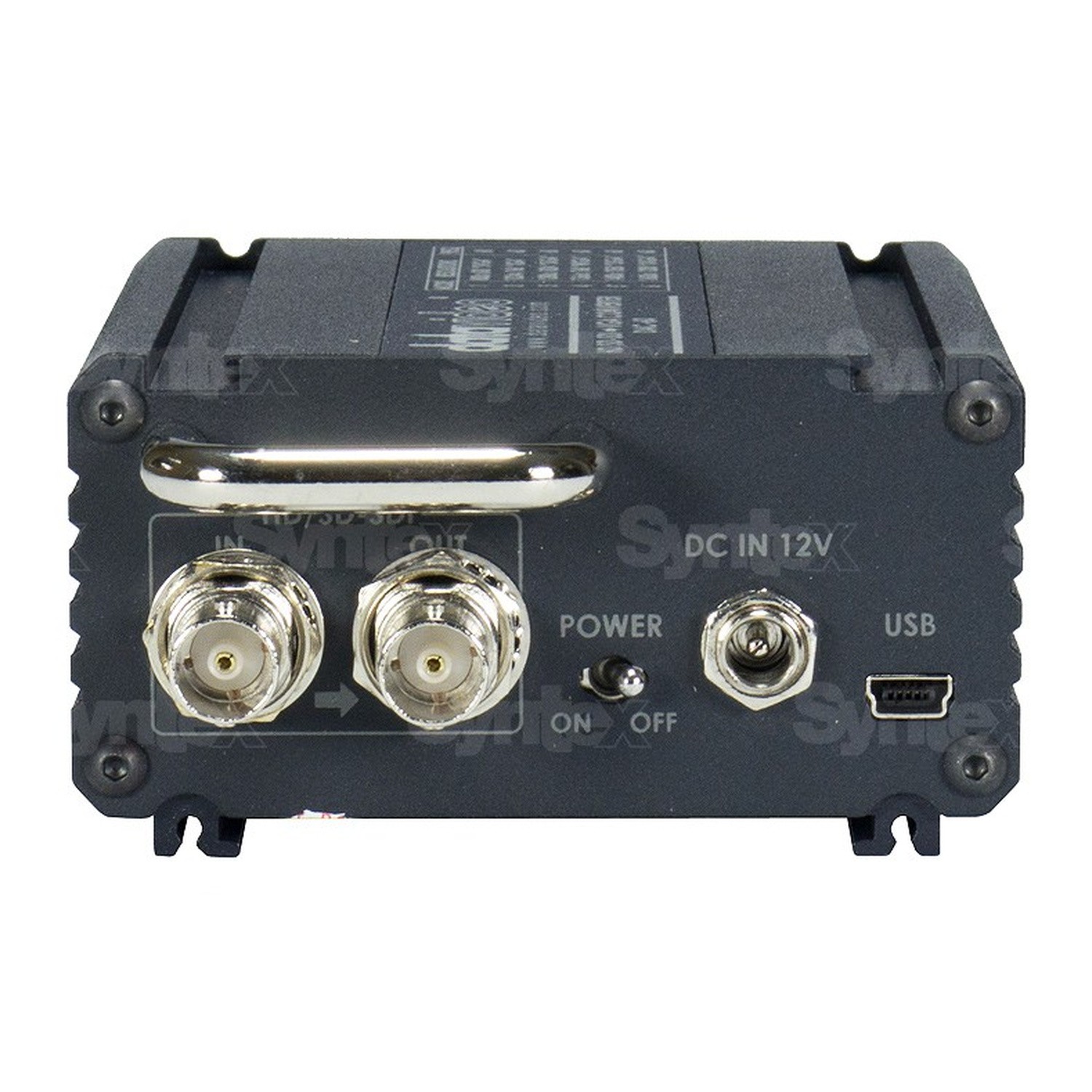

The DAC-60 accepts 3G-SDI, HD-SDI and SD-SDI. Its loop-through preserves the original signal for another device and is unaffected by the VGA resolution setting. Mini USB is used for configuration and updates.
