Datavideo PTC-155TW Full HD PTZ camera with AI tracking
SKU: 7000-3038
The Datavideo PTC-155TW is a white Full HD PTZ camera for live production, corporate events, classrooms and houses of worship. Its dual-lens system automatically tracks a selected subject, while 30x optical zoom moves from a wide view to a close-up. Connect through HDMI, 3G-SDI, UVC, IP or HDBaseT; HDBaseT carries video, audio, power and control over a single…
2 669 € with VAT
2 205.79 € without VAT
Availability
on request
Top accessories for Datavideo PTC-155TW Full HD PTZ camera with AI tracking
Infinitek L-2.5CHWS 3m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
18 €
In stock > 5 pcs
Infinitek L-2.5CHWS 10m FLEX 3G/HD-SDI cable BNC-BNC
Canare L-2.5CHWS je tenký "Low Loss" flexibilný a odolný 75 ohm 4,2 mm koaxiálny
33 €
In stock 5 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Datavideo WM-1 Black Wall Mount for PTZ Cameras
The Datavideo WM-1 is a three-piece wall-mount kit for fixed installation of compatible
139 €
To be sent 1 pcs
Datavideo RMC-180 MARK II PTZ Camera Controller
The Datavideo RMC-180 MARK II is a hardware controller for up to four compatible
1 289 €
In stock 1 pcs
Datavideo IP68 PTZ Camera Housing (D2-BASE-EXT)
The Datavideo D2-BASE-EXT protective housing is compatible with PTC-140, PTC-145,
769 €
on request
Datavideo HS-1600T Mark II HDBaseT Portable Video Streaming Studio
The Datavideo HS-1600T Mark II is a portable four-channel HD/SD production studio
7 209 €
14-30 days
Datavideo VP-929 4K HDMI Repeater
Datavideo VP-929 is a 4K HDMI repeater for extending cable runs in fixed installations.
108 €
14-30 days
Datavideo WM-1W White Wall Mount for PTZ Cameras
Professional Wall Mount for PTC Video Camera WHITE
139 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

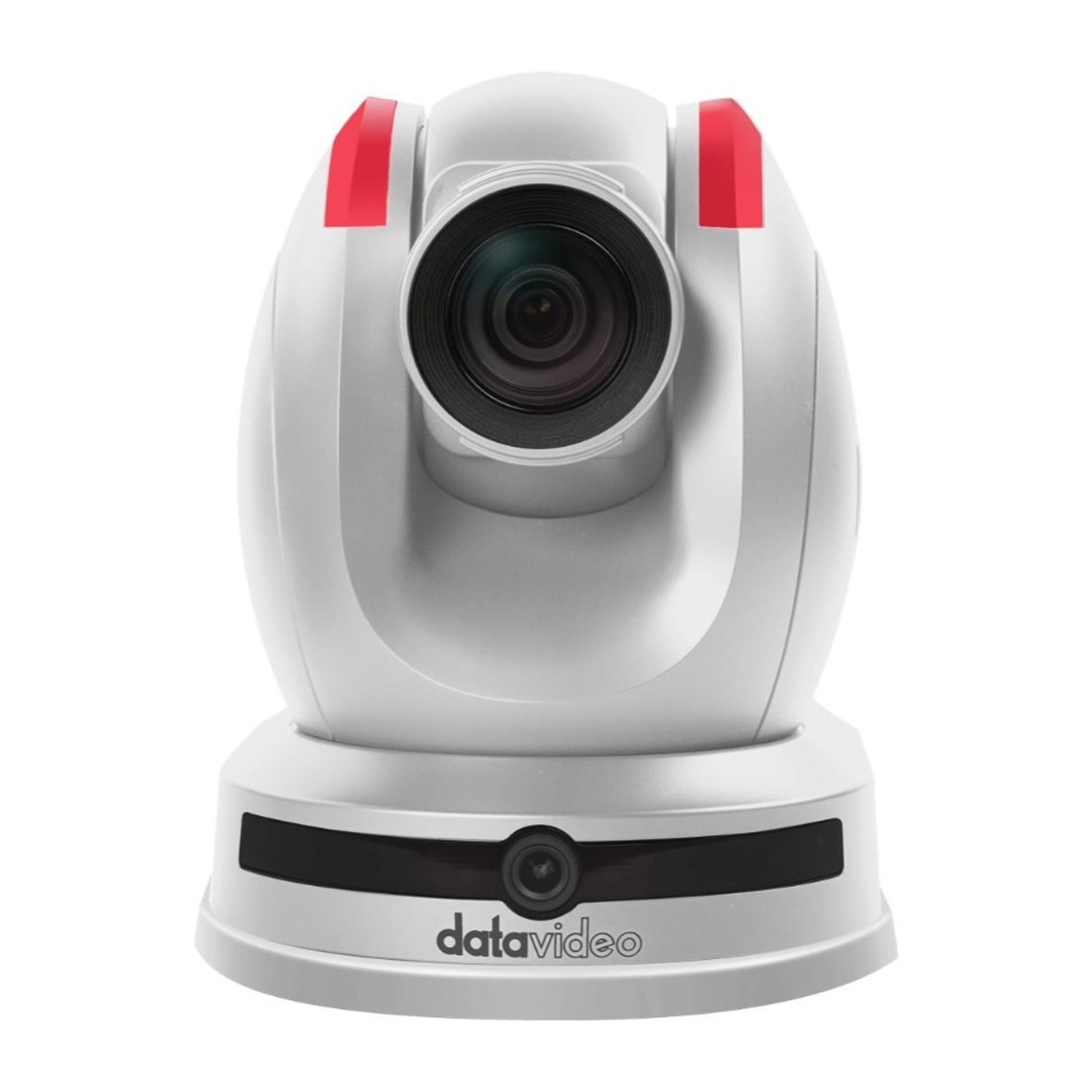

The Datavideo PTC-155TW is a white Full HD PTZ camera for live production, corporate events, classrooms and houses of worship. Its dual-lens system automatically tracks a selected subject, while 30x optical zoom moves from a wide view to a close-up. Connect through HDMI, 3G-SDI, UVC, IP or HDBaseT; HDBaseT carries video, audio, power and control over a single cable up to 100 m.
AI-Powered Automatic Tracking
The dual-lens system combines a wide-angle view of the scene with automatic tracking of a selected object. Tracking can be activated with a single command, and the camera responds with PTZ movement without the need to stand next to it.
The 30× optical zoom allows you to switch from a wide-angle view to close-ups. A 16× digital zoom and 255 preset positions are also available.
Video and Control in a Single Production System

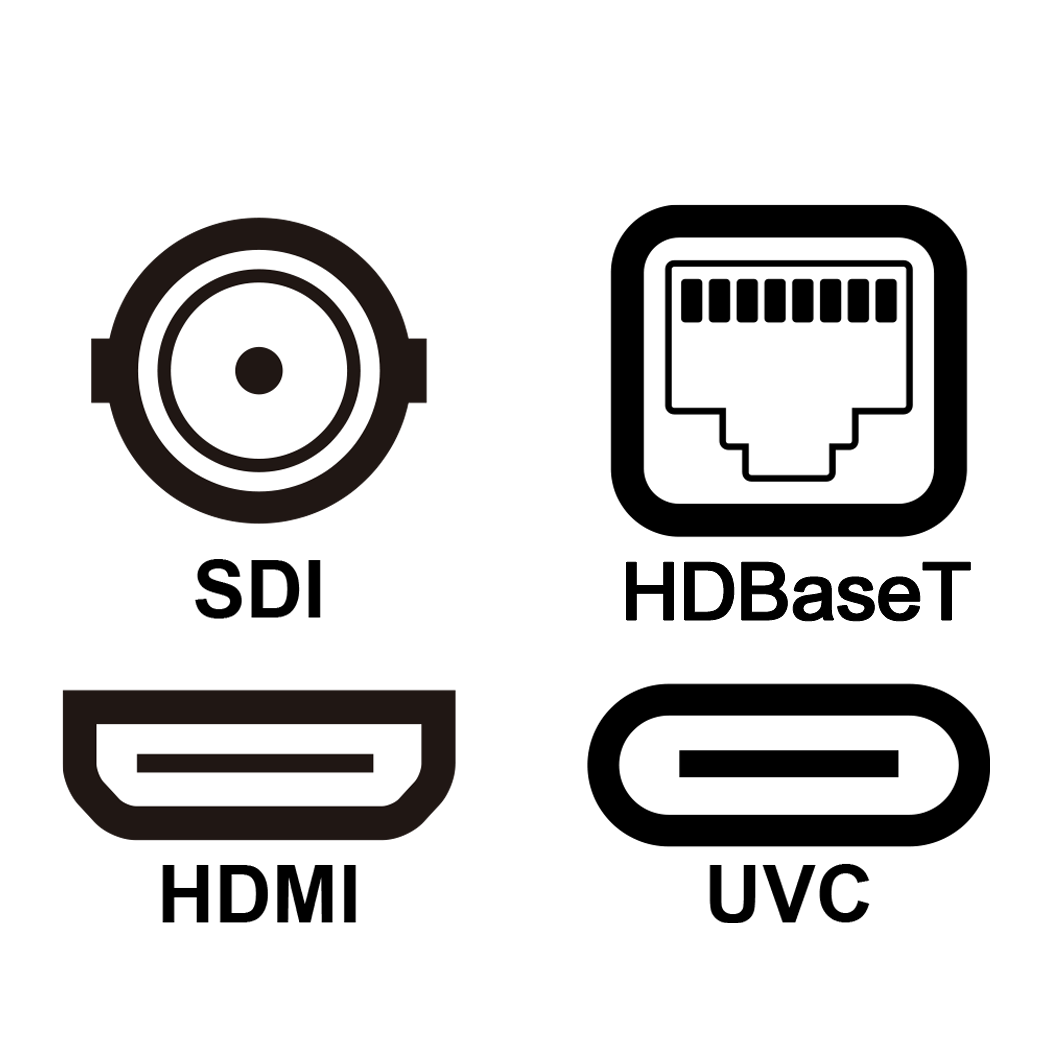

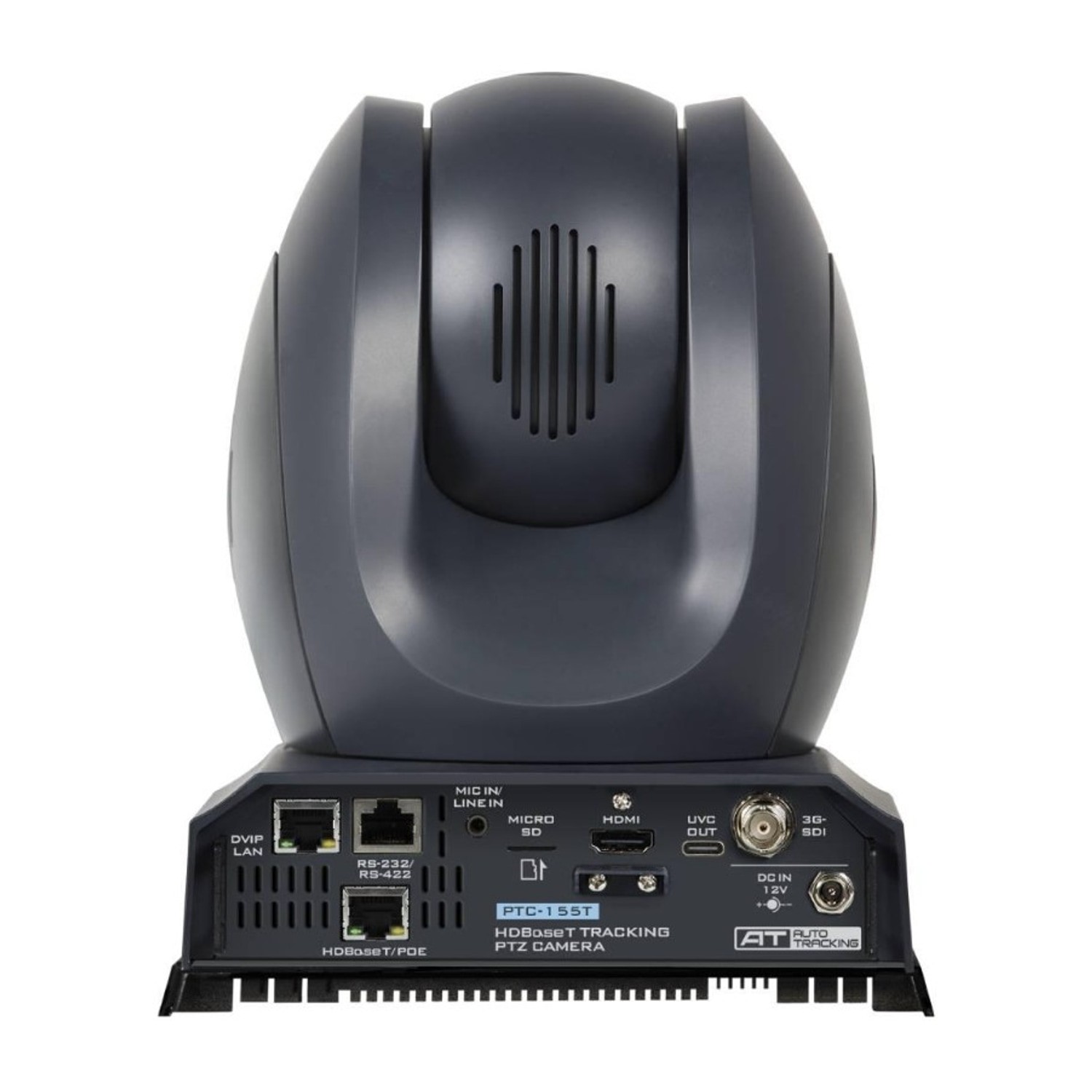

HDMI 1.3, 3G-SDI, UVC, and HDBaseT outputs enable integration into various production setups. The RJ-45 network interface supports IP transmission and NDI|HX3; the camera can be controlled via RS-422, DVIP, VISCA, VISCA over IP, or ONVIF.
HDBaseT transmits video, audio, power, and control over a single cable up to 100 m. The camera also supports RTSP, RTMP/RTMPS, and SRT streaming, SD card recording, and H.264/H.265 compression.
PACKAGE CONTENT
- Datavideo PTC-155TW White PTZ Camera ×1
- Infrared remote control ×1
- Type B ceiling mount bracket ×1
- M3 × 4 mm screws ×6
- DC 12 V power adapter ×1
- Security cable ×1
SPECIFICATIONS
- Color: white
- Image sensor: Sony CMOS, 1/2.8″
- Effective resolution: 2.14 MP
- Maximum output resolution: Full HD 1080p/60
- Zoom: 30× optical, 16× digital
- Wide-angle field of view: 54°; panoramic view: 86°
- Pan/tilt range: 300° / +130° to −15°
- Pan/tilt speed: 0.1–60°/s / 0.1–30°/s
- Preset positions: 255
- Video outputs: HDMI 1.3, 3G-SDI, UVC, HDBaseT, RJ-45/IP
- Audio: 3.5 mm line-in or microphone input; AAC/G.711
- Video compression: H.264/H.265, dual stream
- Control protocols: Pelco-D/P, VISCA, VISCA over IP, NDI, DVIP, ONVIF
- Streaming protocols: RTSP, RTMP/RTMPS, ONVIF, multicast, SRT
- Power supply/power consumption: 12 V DC / 19 W
- Operating temperature: 0–40 °C
- Dimensions (W × H × D): 184 × 228.5 × 194 mm
- Weight: 2.8 kg
Parameters
Parameters
| Manufacturer: | Datavideo |
| Category: | PTZ |
Main parameters
| Camera Sensor size | Sony 1/2.8" CMOS |
| Resolution | 1080p 50/60 fps · 2.14 MP |
| Output | HDBaseT · HDMI 1.3 · 3G-SDI · Ethernet / IP · UVC |
| Maximum video resolution | Full HD |
| Optical zoom | 30× |
| Video outputs | HDMI · SDI · Ethernet / IP |
| Network protocols | SRT · RTMP / RTMPS · RTSP / RTP · NDI|HX3 |
Other parameters
| Record format | H.264 / H.265 (IP & USB streaming) |
