RGBlink RGB12X-UNAI-TLY (12G)

The RGBlink RGB12X-UNAI-TLY (12G) is a professional 4K UHD PTZ camera featuring 12× optical zoom, NDI®|HX, and Dante AV-H for seamless IP-based video and audio workflows. With simultaneous HDMI 2.0, 12G-SDI, USB-C, and LAN outputs plus AI-powered auto-tracking, it is ideal for studios, classrooms, houses of worship, and live production environments.

The RGBlink TLY series PTZ camera with 12× optical zoom shoots 3840 × 2160 at up to 60 frames per second. It outputs simultaneously over 12G-SDI, HDMI 2.0, USB-C and the network – including NDI|HX, follows the presenter on its own using AI, and is powered by a single Ethernet cable with PoE+. It suits studios, halls, churches and live productions.

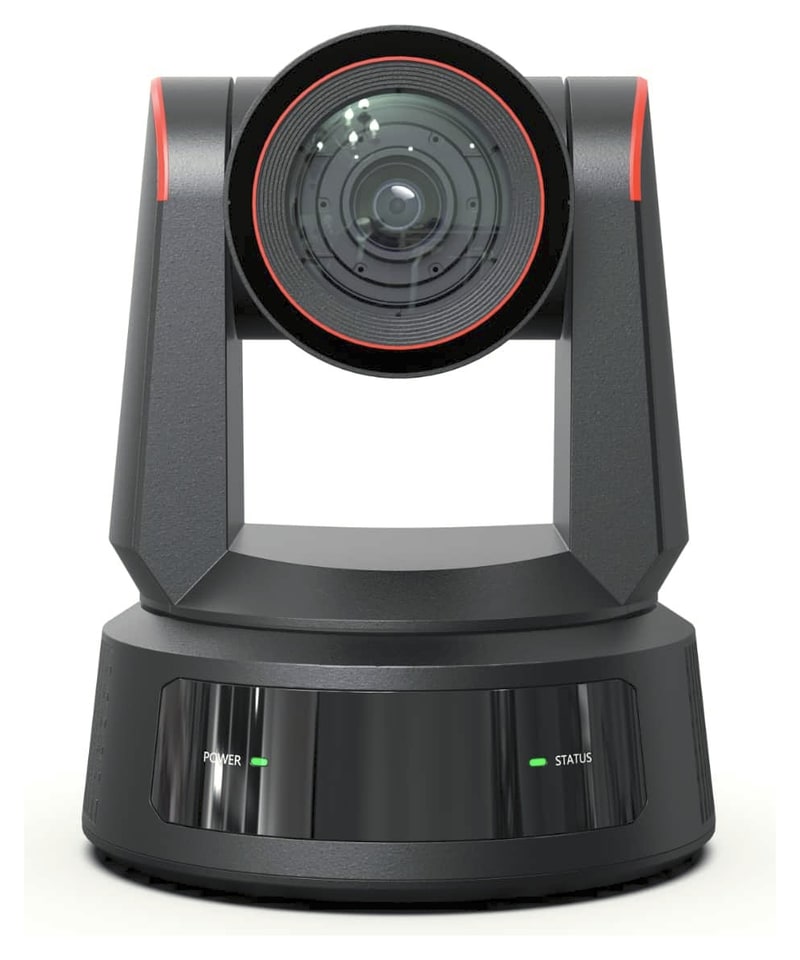

4K at 60 frames per second

The Sony CMOS sensor with an image processor and 3D noise reduction delivers a clean 3840 × 2160 picture at up to 60 frames per second. The 12× optical zoom covers the whole scene as well as a close-up of the presenter's face, and autofocus keeps the picture sharp.

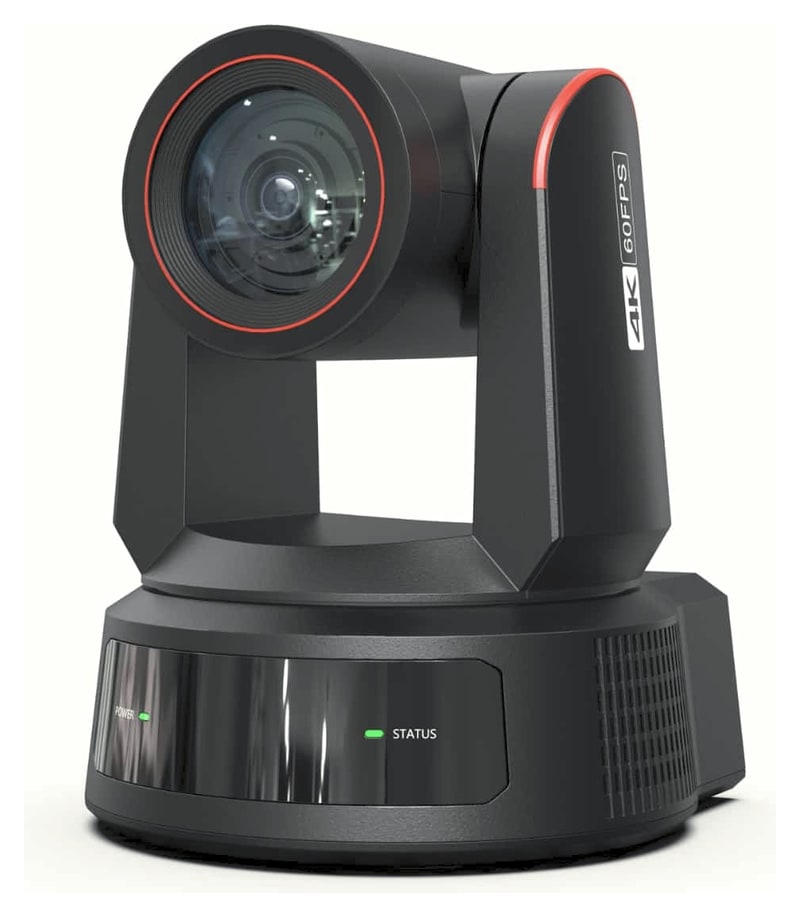

Four outputs at once

The camera outputs its picture over 12G-SDI, HDMI 2.0, USB-C and the network at the same time. 12G-SDI carries a 4K60 signal over a single coaxial cable to a switcher or recorder, USB-C with USB 3.0 (UVC) connects it to a computer as a webcam, and over the network it streams H.264/H.265 via RTSP, RTMP, SRT and ONVIF, and on this UNAI model also as NDI|HX. A microphone or line signal plugs into the 3.5 mm input and the audio is embedded in the outputs.

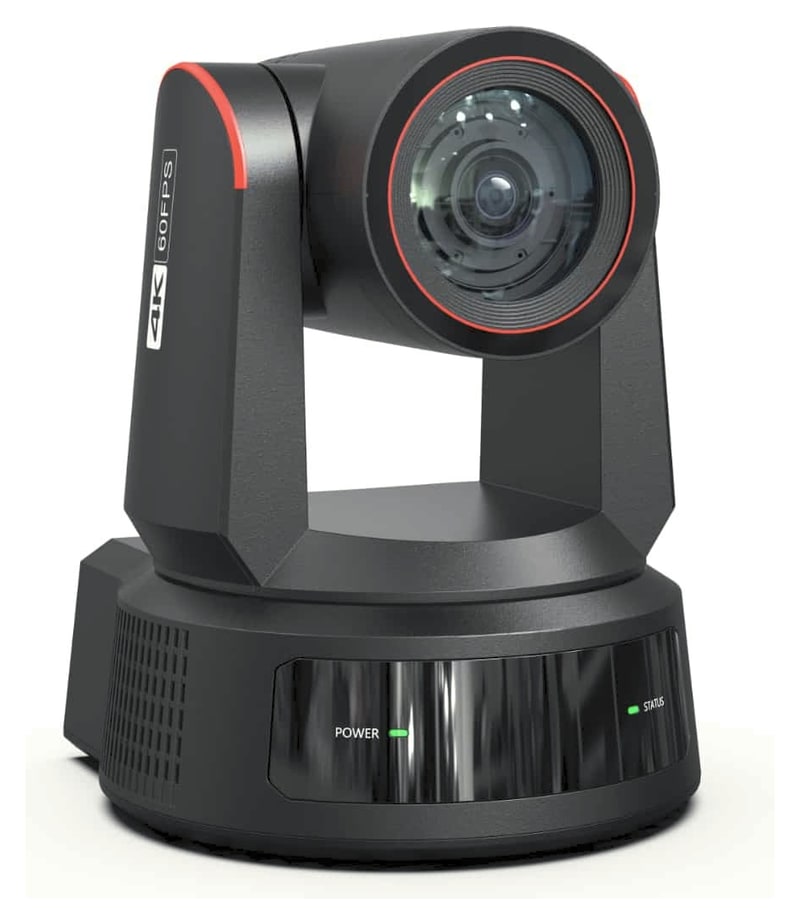

Follows the presenter on its own

AI tracking keeps a face or figure in shot and adjusts the framing by itself. The camera is controlled via VISCA and Pelco-D/P over RS-232 and RS-422 or over the network, stores up to 255 presets and supports tally signalling. It is powered by a 12 V supply or over PoE+ and switches to a low-power standby mode when idle.

More information

The RGBlink RGB12X-UNAI-TLY (12G) is a broadcast-grade PTZ camera designed to deliver exceptional 4K UHD video up to 3840×2160 at 60 fps. Built around a 1/2.5″ Sony CMOS sensor with advanced ISP and 3D digital noise reduction, it produces clean, low-noise images with high signal-to-noise performance suitable for professional production.

Equipped with a 12× optical zoom lens, the camera provides flexible framing from wide-angle to telephoto, making it ideal for classrooms, studios, conference halls, and worship venues. It supports simultaneous HDMI 2.0, 12G-SDI, USB 3.0 (UVC/UAC), and IP streaming, allowing seamless integration into SDI, HDMI, USB, and network-based workflows.

Integrated NDI®|HX and Dante AV-H enable efficient IP video and audio transmission over standard networks, while AI dynamic tracking and auto-framing ensure subjects remain perfectly framed during live productions. The camera supports a wide range of streaming and control protocols including RTSP, RTMP, SRT, ONVIF, FreeD, VISCA, Pelco-D, and Pelco-P, with up to 255 preset positions for fast, repeatable camera moves.

With smooth pan/tilt operation, low-power standby mode, PoE+ support, and robust professional connectivity, the RGB12X-UNAI-TLY delivers a reliable, future-proof solution for modern broadcast and AV-over-IP environments.

Key Features:

• 4K UHD video up to 3840×2160 at 60 fps
• 12× optical zoom with digital zoom support
• Simultaneous HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), and LAN outputs
• Built-in NDI®|HX and Dante AV-H for IP video and audio
• AI dynamic tracking and auto-framing (face/human)
• H.264/H.265 IP streaming via RTSP, RTMP, SRT, ONVIF, FreeD
• Professional control via RS-232, RS-422, VISCA, Pelco-D/P, Network VISCA
• Up to 255 preset positions
• 3D DNR and high SNR imaging
• Low-power standby and PoE+ support
