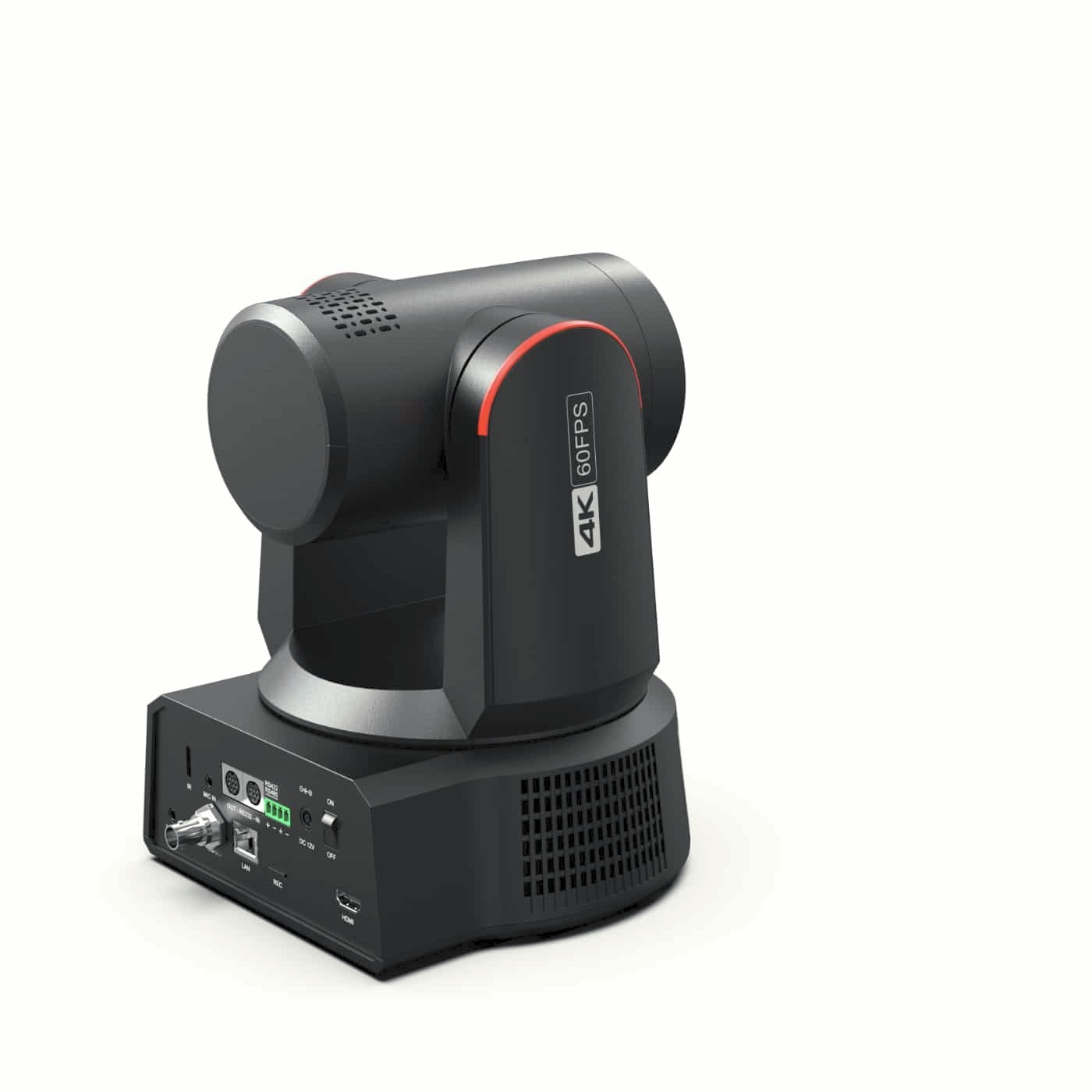

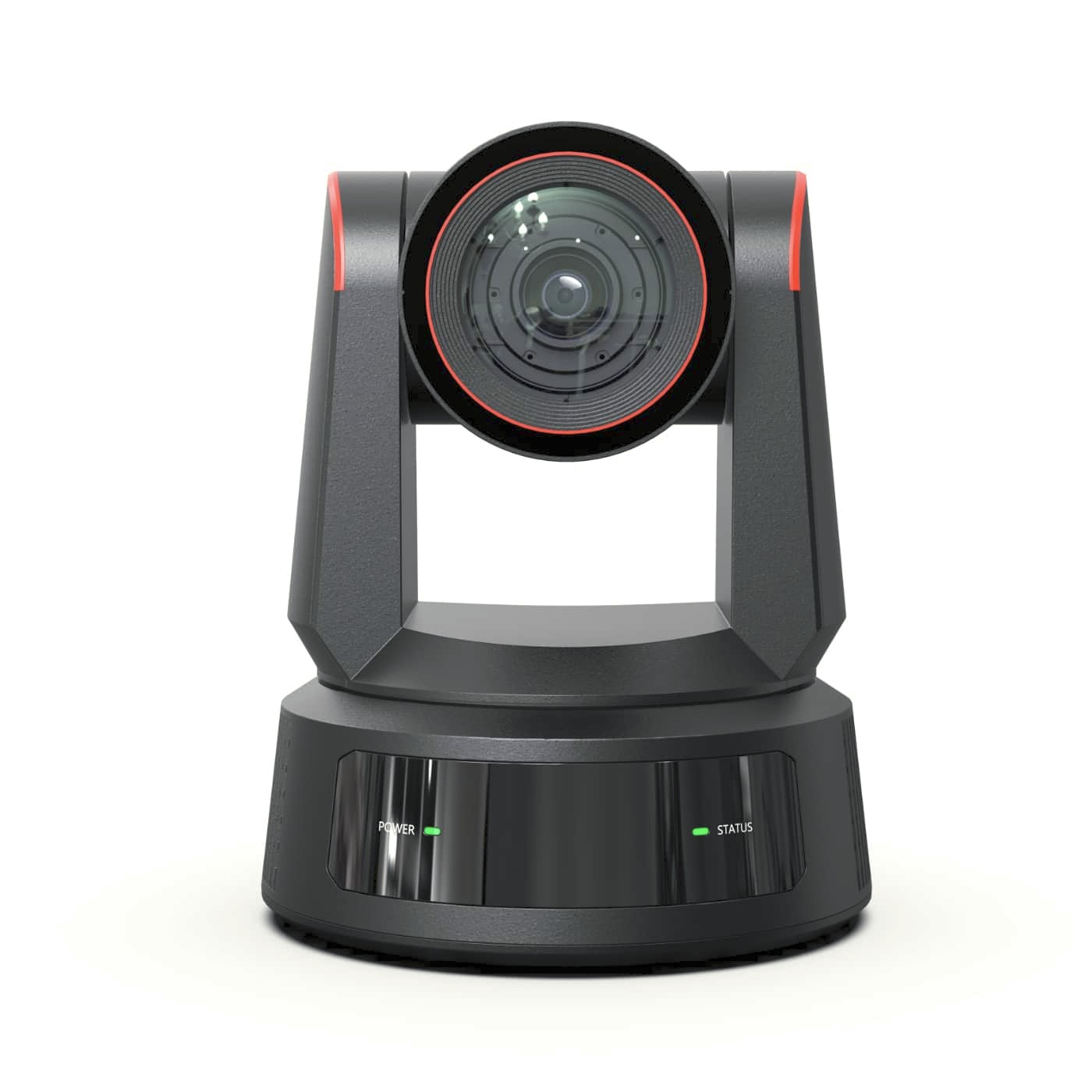

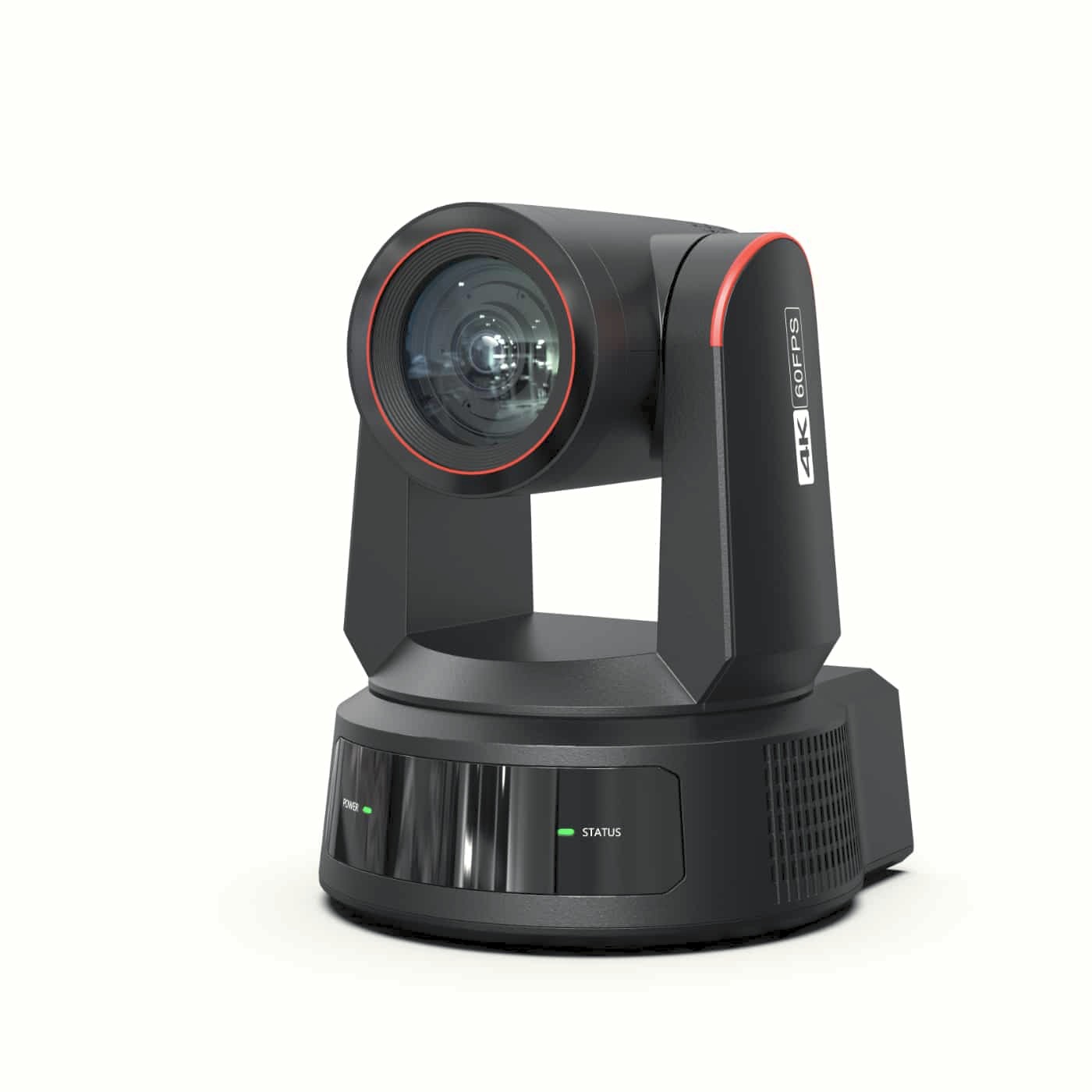

RGBlink RGB30X-UPAI-TLY (12G)

The RGBlink RGB30X-UPAI-TLY (12G) is a professional 4K UHD PTZ camera featuring 30× optical zoom, AI auto-tracking, and simultaneous HDMI 2.0, 12G-SDI, USB-C, and IP outputs. Designed for broadcast, live events, education, and corporate AV, it delivers clean 4K60 video with advanced ISP processing and broad protocol support.

The RGBlink TLY series PTZ camera with 30× optical zoom shoots 3840 × 2160 at up to 60 frames per second. It outputs simultaneously over 12G-SDI, HDMI 2.0, USB-C and the network, follows the presenter on its own using AI, and is powered over PoE+ (optional) or from DC 12 V. It suits studios, halls, churches and live productions.

4K at 60 frames per second

The Sony CMOS sensor with an image processor and 3D noise reduction delivers a clean 3840 × 2160 picture at up to 60 frames per second. The 30× optical zoom covers the whole scene as well as a close-up of the presenter's face, and autofocus keeps the picture sharp.

Four outputs at once

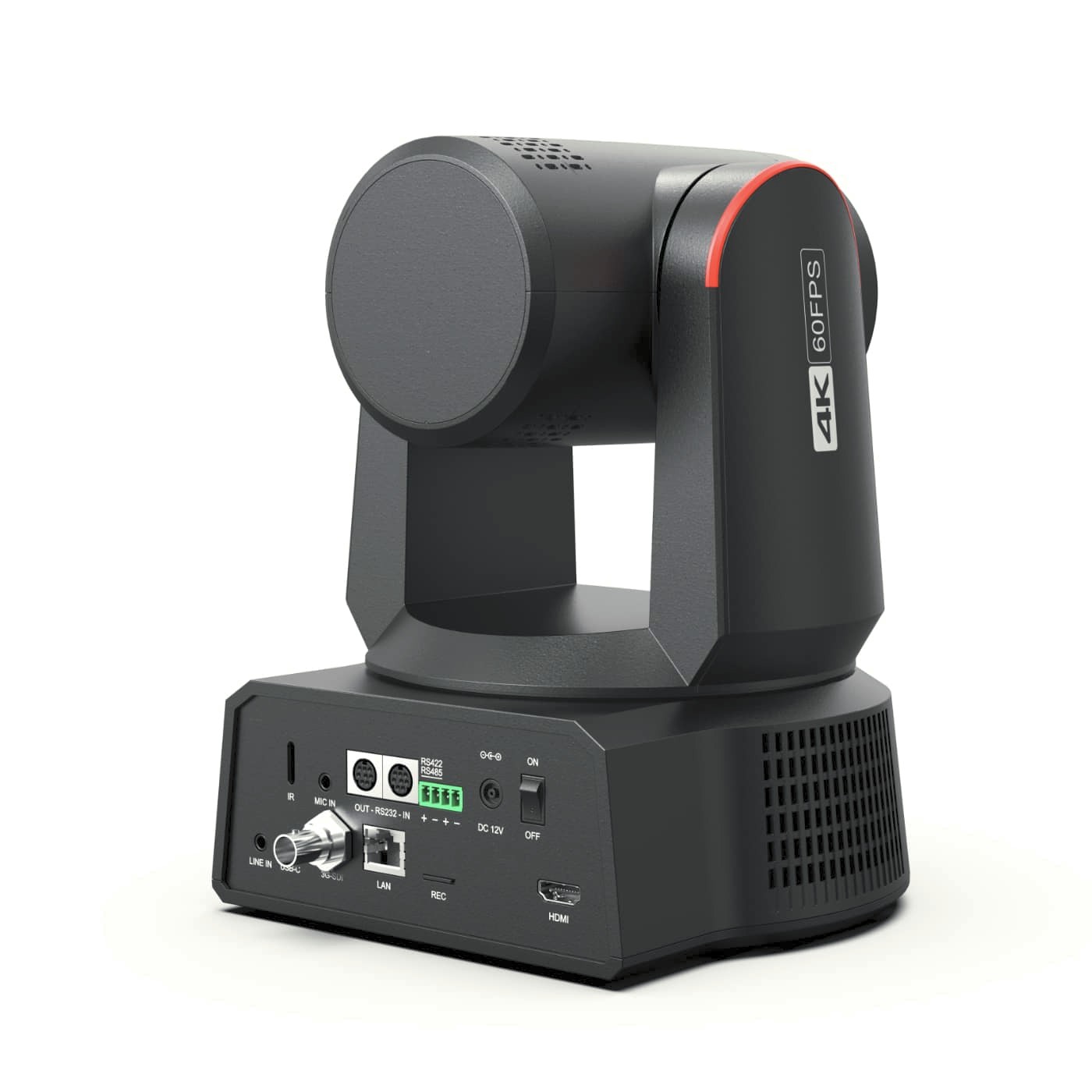

The camera outputs its picture over 12G-SDI, HDMI 2.0, USB-C and the network at the same time. 12G-SDI carries a 4K60 signal over a single coaxial cable to a switcher or recorder, USB-C with USB 3.0 (UVC) connects it to a computer as a webcam, and over the network it streams H.264/H.265 via RTSP, RTMP, SRT and ONVIF. A microphone or line signal plugs into the 3.5 mm input and the audio is embedded in the outputs.

Follows the presenter on its own

AI tracking keeps a face or figure in shot and adjusts the framing by itself. The camera is controlled via VISCA and Pelco-D/P over RS-232 and RS-422 or over the network, stores up to 255 presets and supports tally signalling. It is powered by a 12 V supply or over PoE+ and switches to a low-power standby mode when idle.

More information

The RGBlink RGB30X-UPAI-TLY (12G) is a broadcast-grade PTZ camera engineered for demanding professional environments that require long-reach zoom, smooth motion, and flexible system integration. Built around a 1/1.8″ Sony CMOS sensor with advanced ISP and 3D digital noise reduction, the camera delivers 4K UHD resolution up to 3840×2160 at 60 fps, producing clean, detailed images even in challenging lighting conditions.

A powerful 30× optical zoom lens allows precise framing from wide shots to tight close-ups, making it ideal for large venues such as auditoriums, houses of worship, lecture halls, and live production stages. The camera supports simultaneous HDMI 2.0, 12G-SDI, USB 3.0 (UVC), and IP streaming outputs, ensuring seamless compatibility with broadcast switchers, capture devices, and network-based workflows.

With AI dynamic tracking and auto-framing, the RGB30X-UPAI-TLY automatically follows people, keeping them centered and in focus without manual operation. It supports professional streaming and control protocols including RTSP, RTMP, SRT, ONVIF, FreeD, VISCA, Pelco-D, and Pelco-P, along with RS-232 and RS-422 hardware control and up to 255 preset positions.

Designed for reliability and efficiency, the camera features low-power standby, PoE+ support (optional), smooth pan/tilt movement, and embedded audio over HDMI, SDI, USB, and IP—making it a versatile solution for modern broadcast and AV-over-IP installations.

Key Features:

• 4K UHD video up to 3840×2160 at 60 fps
• 30× optical zoom with digital zoom support
• Simultaneous HDMI 2.0, 12G-SDI, USB-C (USB 3.0), and LAN outputs
• AI dynamic tracking and auto-framing (face/human)
• H.264 / H.265 IP streaming
• RTSP, RTMP, SRT, ONVIF, Network VISCA, FreeD support
• RS-232 / RS-422, VISCA, Pelco-D, Pelco-P control
• Up to 255 preset positions
• Advanced ISP with 3D DNR and high SNR imaging
• Low-power standby mode; PoE+ optional
