RGBlink RGB20X-UNAI-TLY (12G)

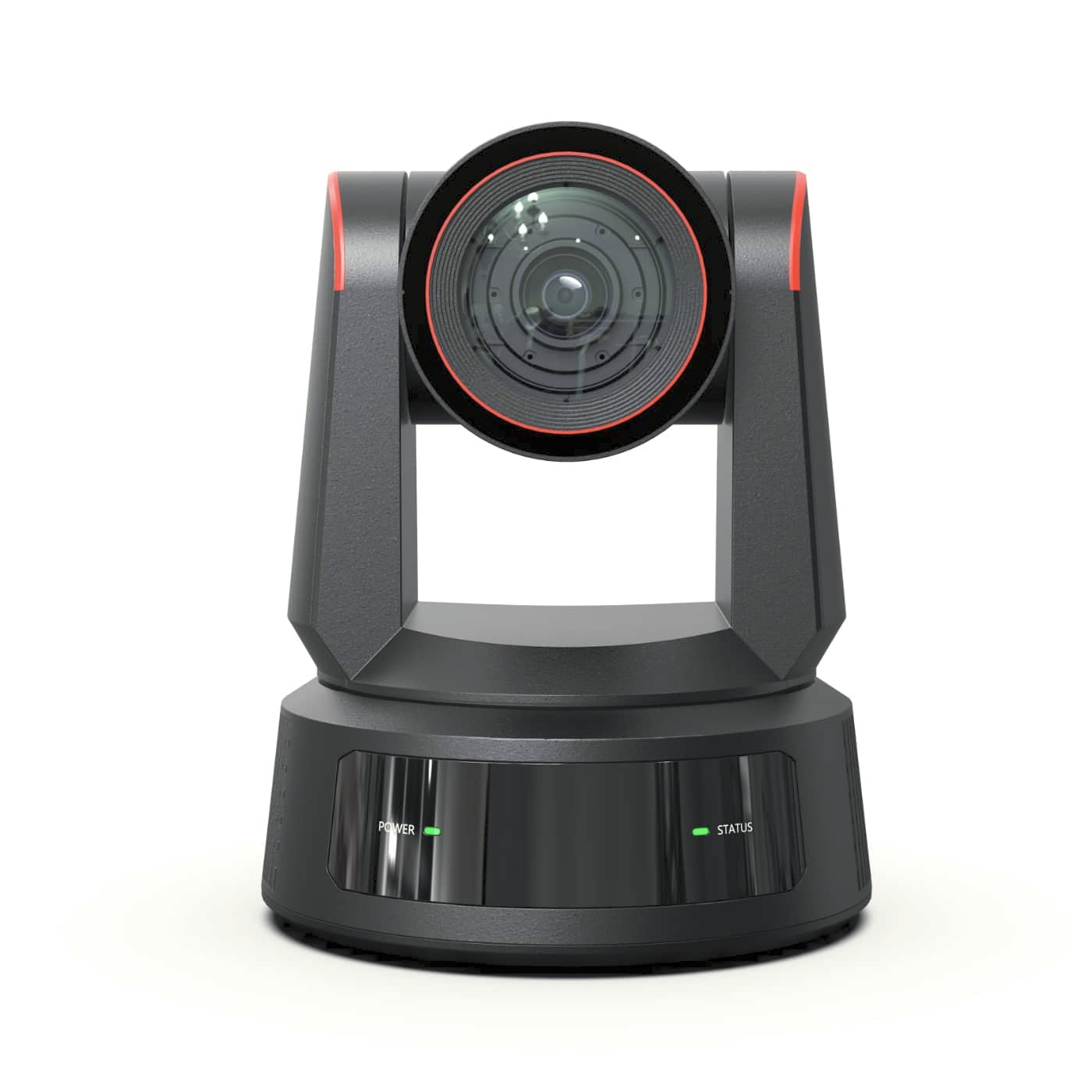

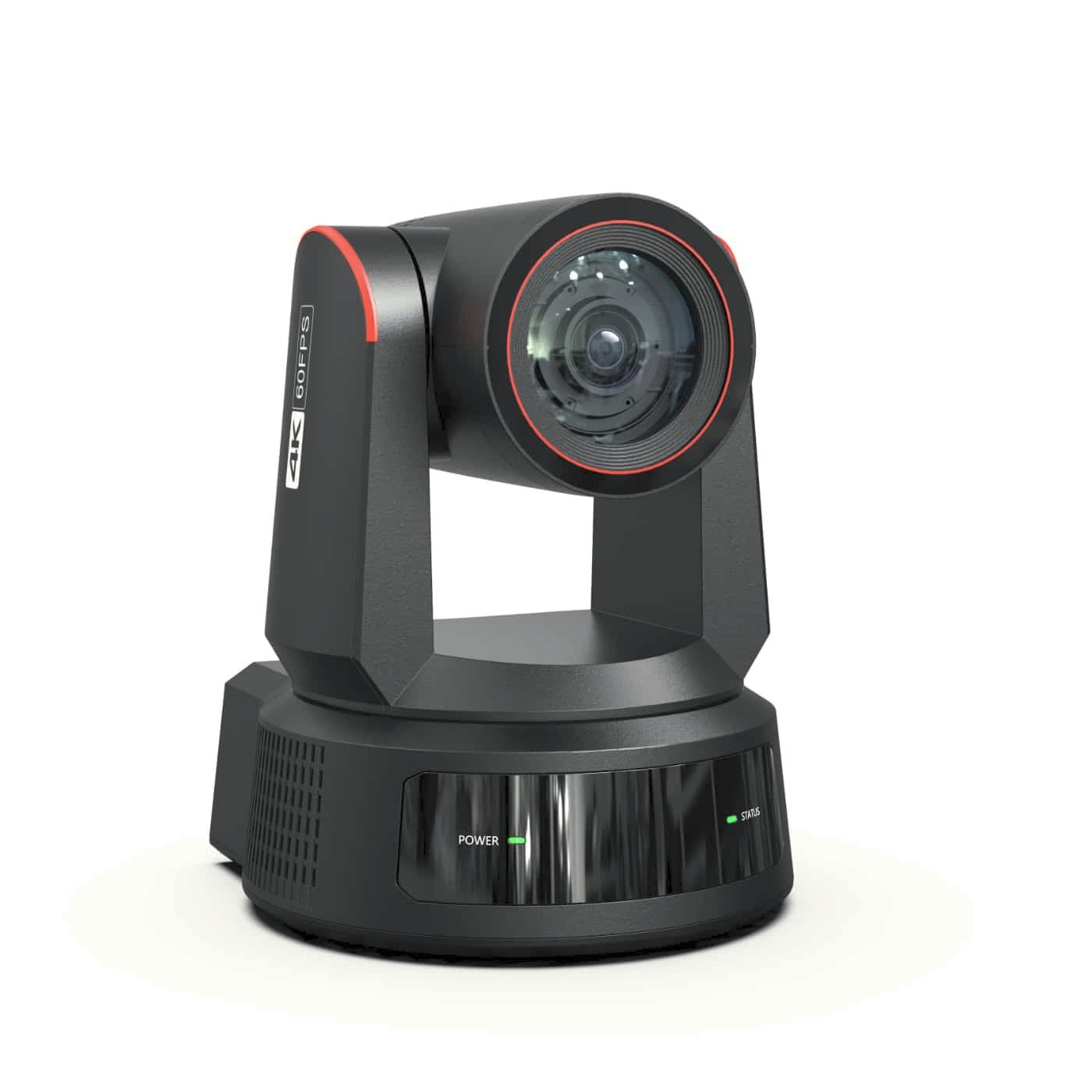

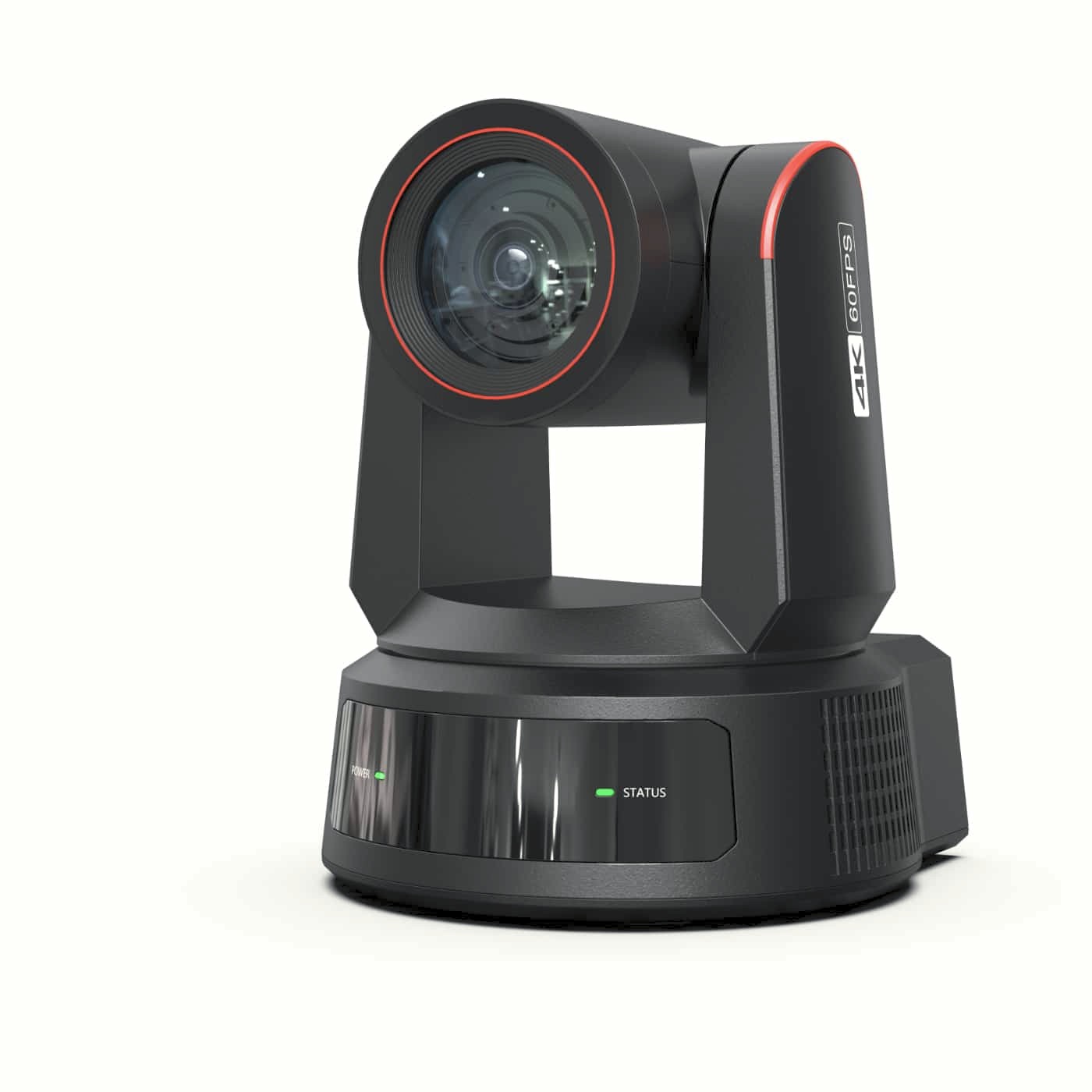

The RGBlink RGB20X-UNAI-TLY is a professional 4K60 broadcast PTZ camera with 20× optical zoom and 16× digital zoom, designed for studios, live streaming, and AV networked workflows. Featuring HDMI 2.0, 12G-SDI, USB-C, LAN, NDI®|HX, and Dante AV-H, plus AI-powered dynamic tracking and auto-framing, it offers complete flexibility for high-end production environments.

The RGBlink TLY series PTZ camera with 20× optical zoom shoots 3840 × 2160 at up to 60 frames per second. It outputs simultaneously over 12G-SDI, HDMI 2.0, USB-C and the network – including NDI|HX, follows the presenter on its own using AI, and is powered by a single Ethernet cable with PoE+. It suits studios, halls, churches and live productions.

4K at 60 frames per second

The Sony CMOS sensor with an image processor and 3D noise reduction delivers a clean 3840 × 2160 picture at up to 60 frames per second. The 20× optical zoom covers the whole scene as well as a close-up of the presenter's face, and autofocus keeps the picture sharp.

Four outputs at once

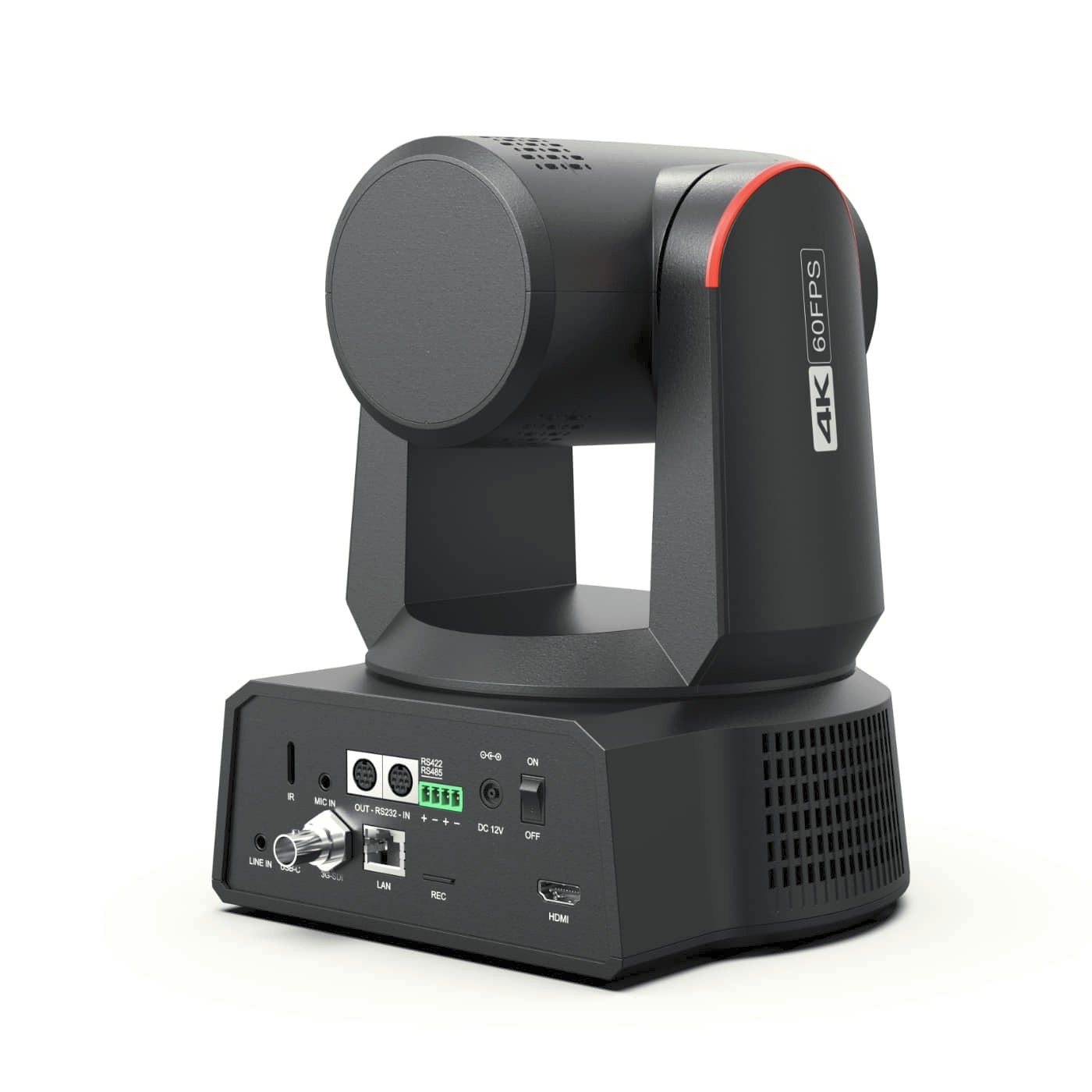

The camera outputs its picture over 12G-SDI, HDMI 2.0, USB-C and the network at the same time. 12G-SDI carries a 4K60 signal over a single coaxial cable to a switcher or recorder, USB-C with USB 3.0 (UVC) connects it to a computer as a webcam, and over the network it streams H.264/H.265 via RTSP, RTMP, SRT and ONVIF, and on this UNAI model also as NDI|HX. A microphone or line signal plugs into the 3.5 mm input and the audio is embedded in the outputs.

Follows the presenter on its own

AI tracking keeps a face or figure in shot and adjusts the framing by itself. The camera is controlled via VISCA and Pelco-D/P over RS-232 and RS-422 or over the network, stores up to 255 presets and supports tally signalling. It is powered by a 12 V supply or over PoE+ and switches to a low-power standby mode when idle.

More information

The RGBlink RGB20X-UNAI-TLY (12G) is a studio-ready, broadcast-grade PTZ camera that delivers ultra-high-definition 4K60 video (3840×2160) with rich, low-noise imaging thanks to its 1/1.8″ Sony CMOS sensor and advanced ISP with 3D DNR. Its 20× optical zoom paired with 16× digital zoom allows precise long-range framing from wide-angle to extreme telephoto, ideal for large venues, sports, or lecture capture.

This camera supports multiple video outputs, including HDMI 2.0, 12G-SDI, USB 3.0 (UVC/UAC), and LAN, making it compatible with SDI, HDMI, USB, and network-based IP workflows. Integrated NDI®|HX and Dante AV-H enable seamless video and audio streaming over the network, while AI-powered dynamic tracking and auto-framing ensure people are always in perfect view.

Pan and tilt ranges of −125° to +125° (pan) and −30° to +30° (tilt), with speeds up to 65°/s (pan) and 35°/s (tilt), provide smooth, precise camera movement, and the camera supports 255 preset positions for repeatable shots. Professional control protocols include RS-232, RS-422, VISCA, Pelco-D/P, and Network VISCA, while IP streaming supports H.264/H.265, RTSP, RTMP, SRT, ONVIF, and FreeD.

Compact, energy-efficient, and PoE+ compatible, the RGB20X-UNAI-TLY is designed for reliable, continuous operation with low-power standby support. Its sturdy construction and advanced imaging make it a versatile choice for any high-end studio or live production.

Key Features:

• 4K60 UHD video (3840×2160 up to 60 fps)
• 20× optical zoom + 16× digital zoom
• Video outputs: HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), LAN
• Built-in NDI®|HX & Dante AV-H for IP video and audio streaming
• AI dynamic tracking and auto-framing (face/human)
• Pan/Tilt: −125°~+125° / −30°~+30°; Pan speed 0.1–65°/s, Tilt 0.1–35°/s
• 255 preset positions for repeatable shots
• Audio: 3.5 mm Mic In / Line In; embedded on HDMI/SDI/IP/USB
• IP streaming: H.264/H.265, RTSP, RTMP, SRT, ONVIF, FreeD
• Control: RS-232/RS-422, VISCA, Pelco-D/P, Network VISCA
• Low-power standby, PoE+ support
