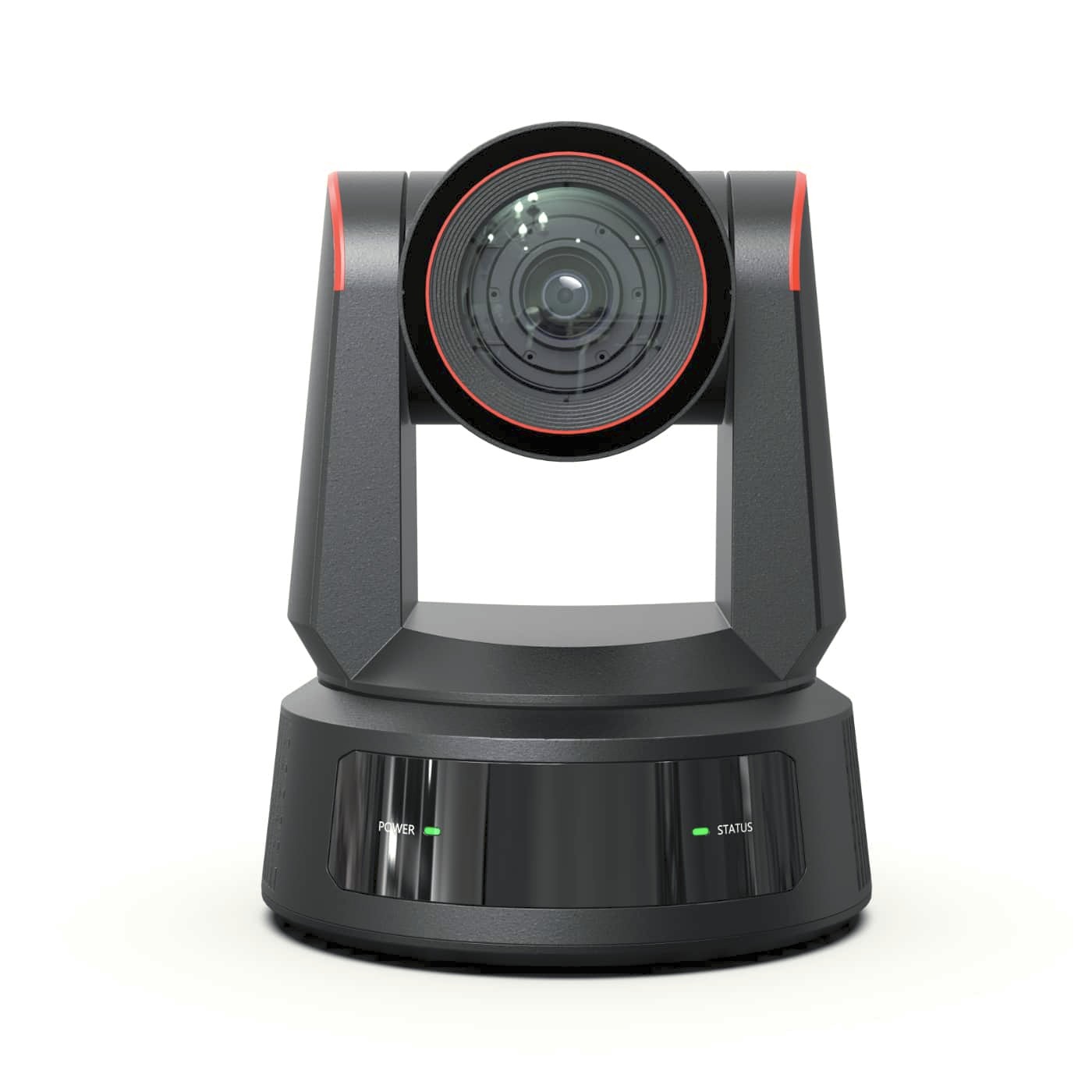

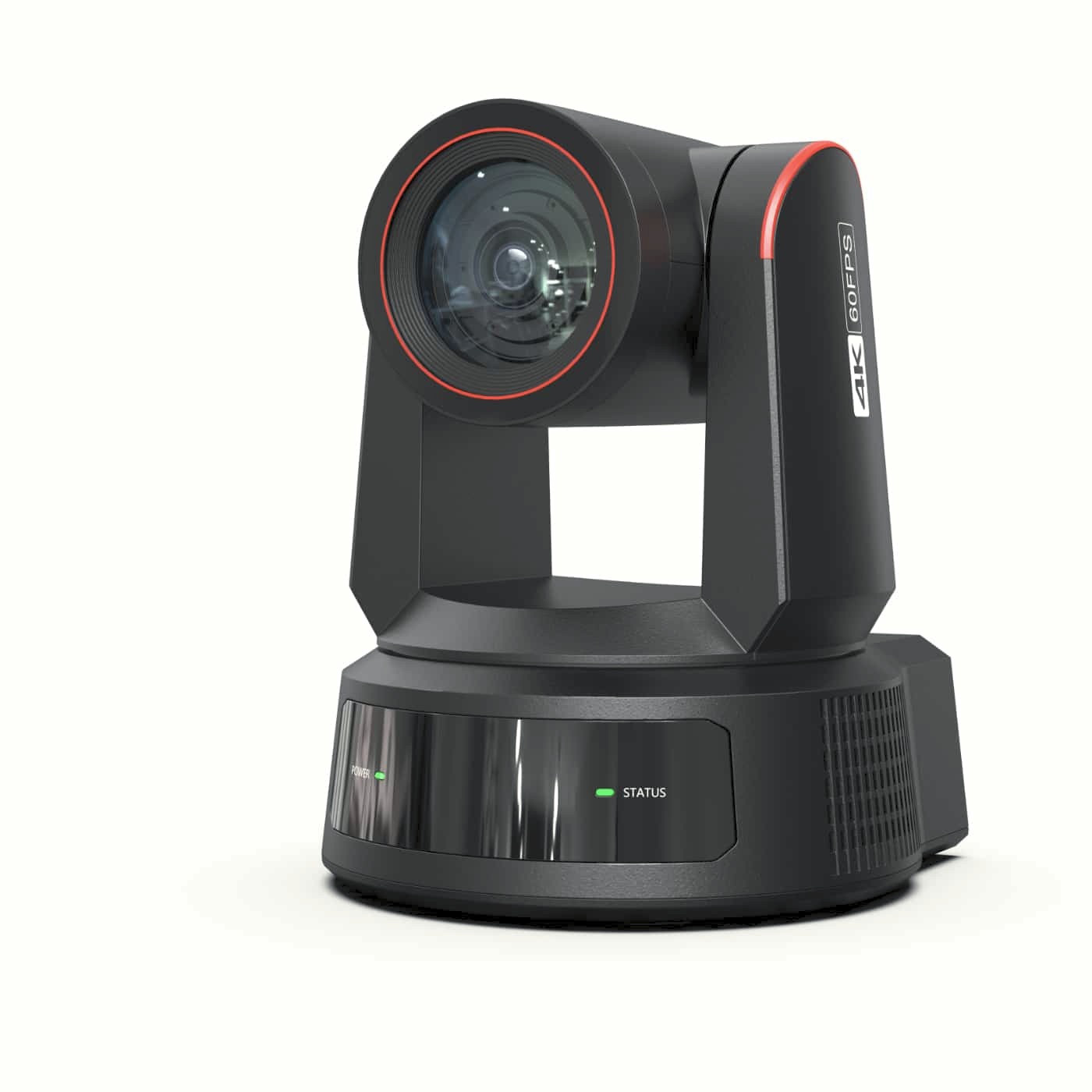

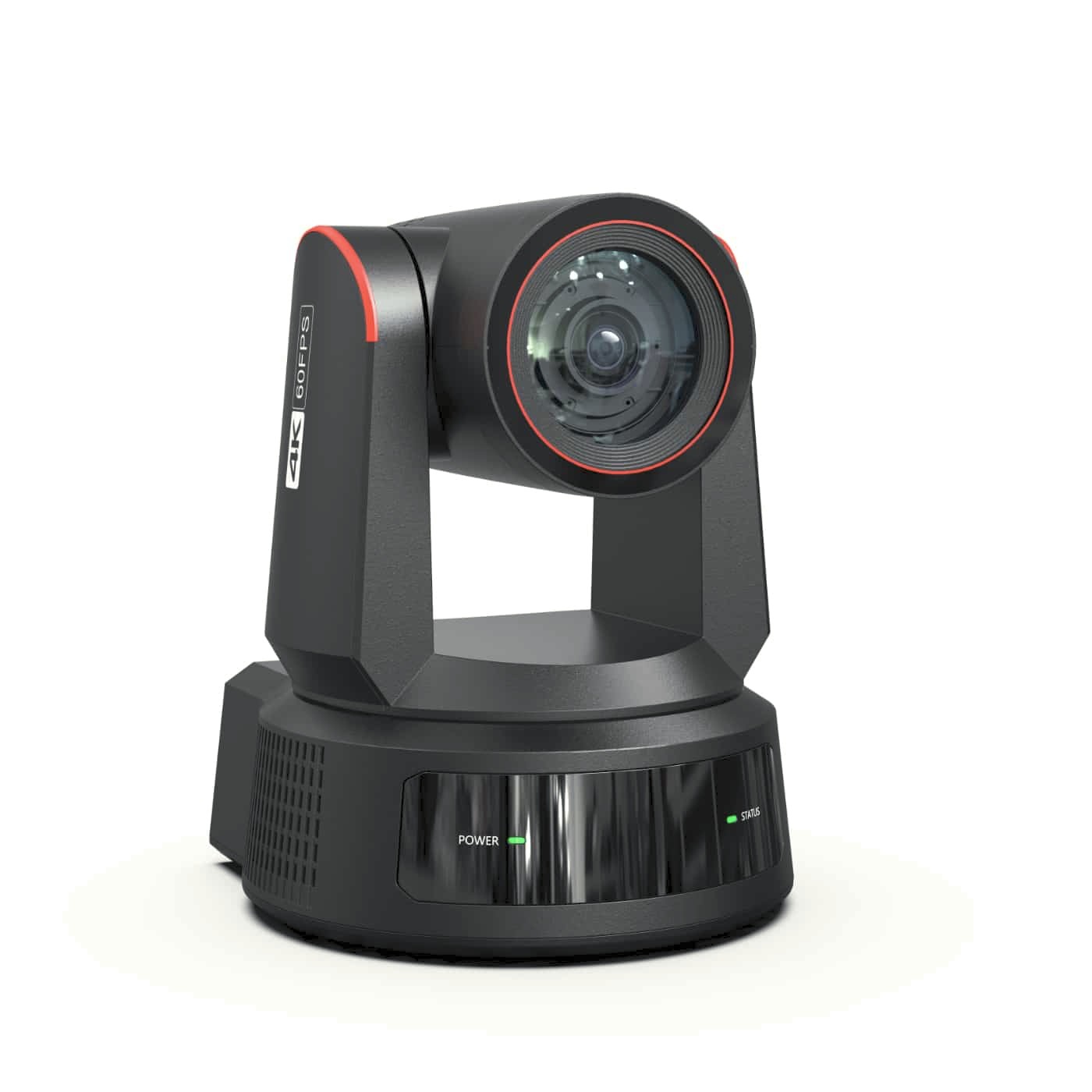

RGBlink RGB12X-UPAI-TLY (12G)

The RGBlink RGB12X-UPAI-TLY is a professional 4K60 broadcast PTZ camera with 12× optical zoom and 8× digital zoom. Featuring HDMI 2.0, 12G-SDI, USB-C, and LAN outputs, plus AI-powered dynamic tracking and auto-framing, it is designed for studios, live events, and AV networked workflows without the NDI®|HX and Dante AV-H options.

The RGBlink TLY series PTZ camera with 12× optical zoom shoots 3840 × 2160 at up to 60 frames per second. It outputs simultaneously over 12G-SDI, HDMI 2.0, USB-C and the network, follows the presenter on its own using AI, and is powered by a single Ethernet cable with PoE+. It suits studios, halls, churches and live productions.

4K at 60 frames per second

The Sony CMOS sensor with an image processor and 3D noise reduction delivers a clean 3840 × 2160 picture at up to 60 frames per second. The 12× optical zoom covers the whole scene as well as a close-up of the presenter's face, and autofocus keeps the picture sharp.

Four outputs at once

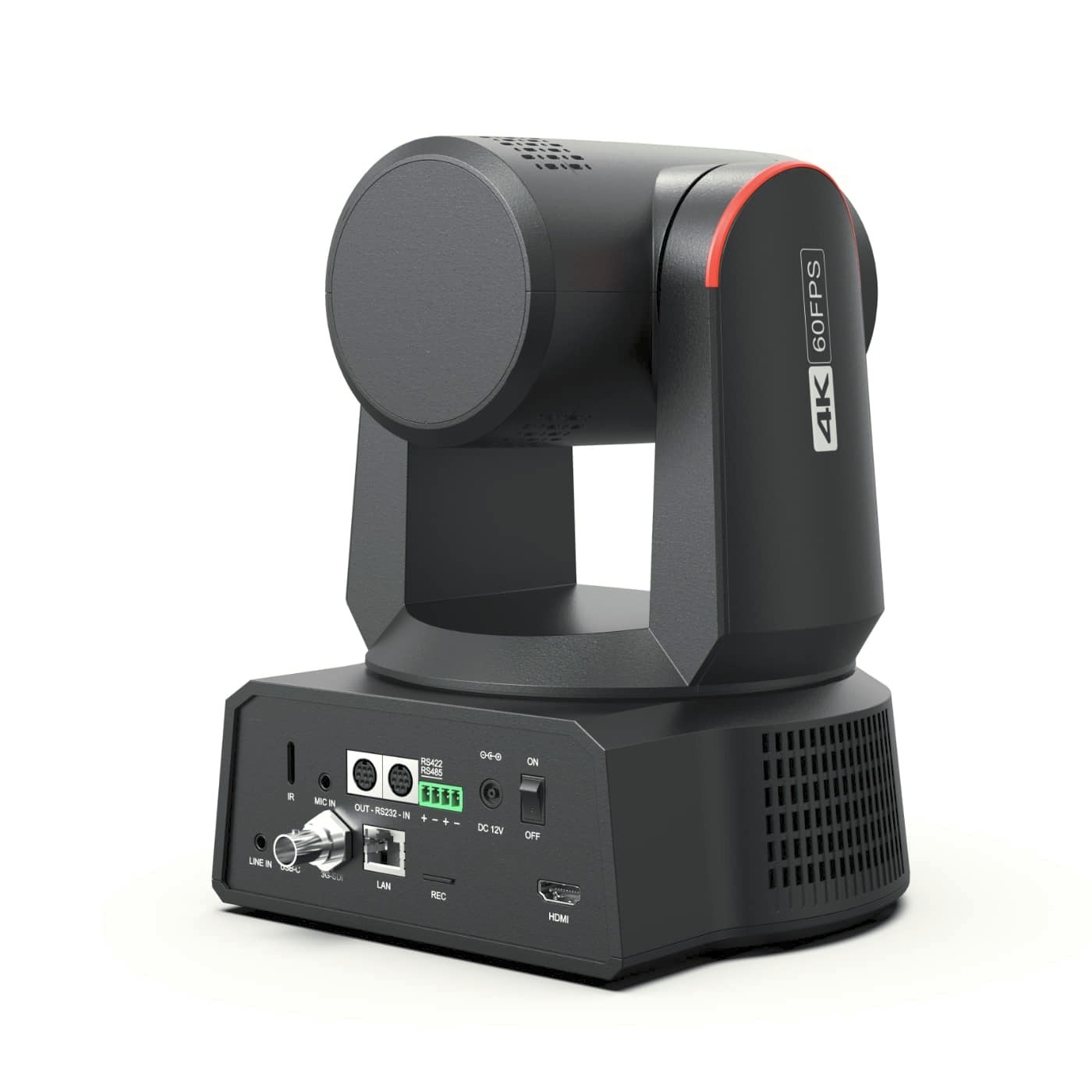

The camera outputs its picture over 12G-SDI, HDMI 2.0, USB-C and the network at the same time. 12G-SDI carries a 4K60 signal over a single coaxial cable to a switcher or recorder, USB-C with USB 3.0 (UVC) connects it to a computer as a webcam, and over the network it streams H.264/H.265 via RTSP, RTMP, SRT and ONVIF. A microphone or line signal plugs into the 3.5 mm input and the audio is embedded in the outputs.

Follows the presenter on its own

AI tracking keeps a face or figure in shot and adjusts the framing by itself. The camera is controlled via VISCA and Pelco-D/P over RS-232 and RS-422 or over the network, stores up to 255 presets and supports tally signalling. It is powered by a 12 V supply or over PoE+ and switches to a low-power standby mode when idle.

More information

The RGBlink RGB12X-UPAI-TLY (12G) is a broadcast-grade PTZ camera designed for professional studios, corporate events, houses of worship, and live streaming productions. With a 1/2.5″ Sony CMOS sensor and advanced ISP for low-noise, high-SNR imaging, it captures crisp, detailed 4K60 (3840×2160) video with natural color reproduction.

Equipped with 12× optical zoom (4.81–57.8 mm EFL) and 8× digital zoom, the camera allows precise framing from wide-angle to tight telephoto shots. Multiple outputs, including HDMI 2.0, 12G-SDI, USB 3.0 (UVC), and LAN for streaming, make integration into SDI, HDMI, USB, and IP-based workflows straightforward.

The RGB12X-UPAI-TLY features AI dynamic tracking and auto-framing, ensuring that people are always in focus and framed perfectly, while 3D digital noise reduction, advanced AF/AE/AWB, and wide white balance range (2400–7100K) maintain image clarity in varied lighting conditions. Pan and tilt ranges of −125° to +125° and −30° to +30° with speeds up to 65°/s (pan) and 35°/s (tilt), plus 255 presets, give operators full control over camera movement.

Designed for professional control, the camera supports RS-232, RS-422, VISCA, Pelco-D/P, and Network VISCA protocols. IP streaming supports H.264/H.265 with RTSP, RTMP, SRT, ONVIF, and FreeD. Compact, reliable, and capable of running on PoE+ or DC 12V, it offers a low-power standby mode to save energy during production downtime.

Key Features:

• 4K60 Ultra HD output (3840×2160)
• 12× optical zoom + 8× digital zoom (HFOV 80.09° → 7.54°)
• Outputs: HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), LAN
• AI dynamic tracking & auto-framing for face/people
• IP streaming: H.264/H.265, RTSP, RTMP, SRT, ONVIF, FreeD, VISCA over IP
• Audio: 3.5 mm Mic In / Line In; AAC/MP3/G.711A
• Professional control: RS-232/RS-422, VISCA, Pelco-D/P; up to 255 presets
• Advanced 3D DNR, SNR > 50 dB; AF/AE/AWB; WB 2400–7100K
• PoE+ and low-power standby support
