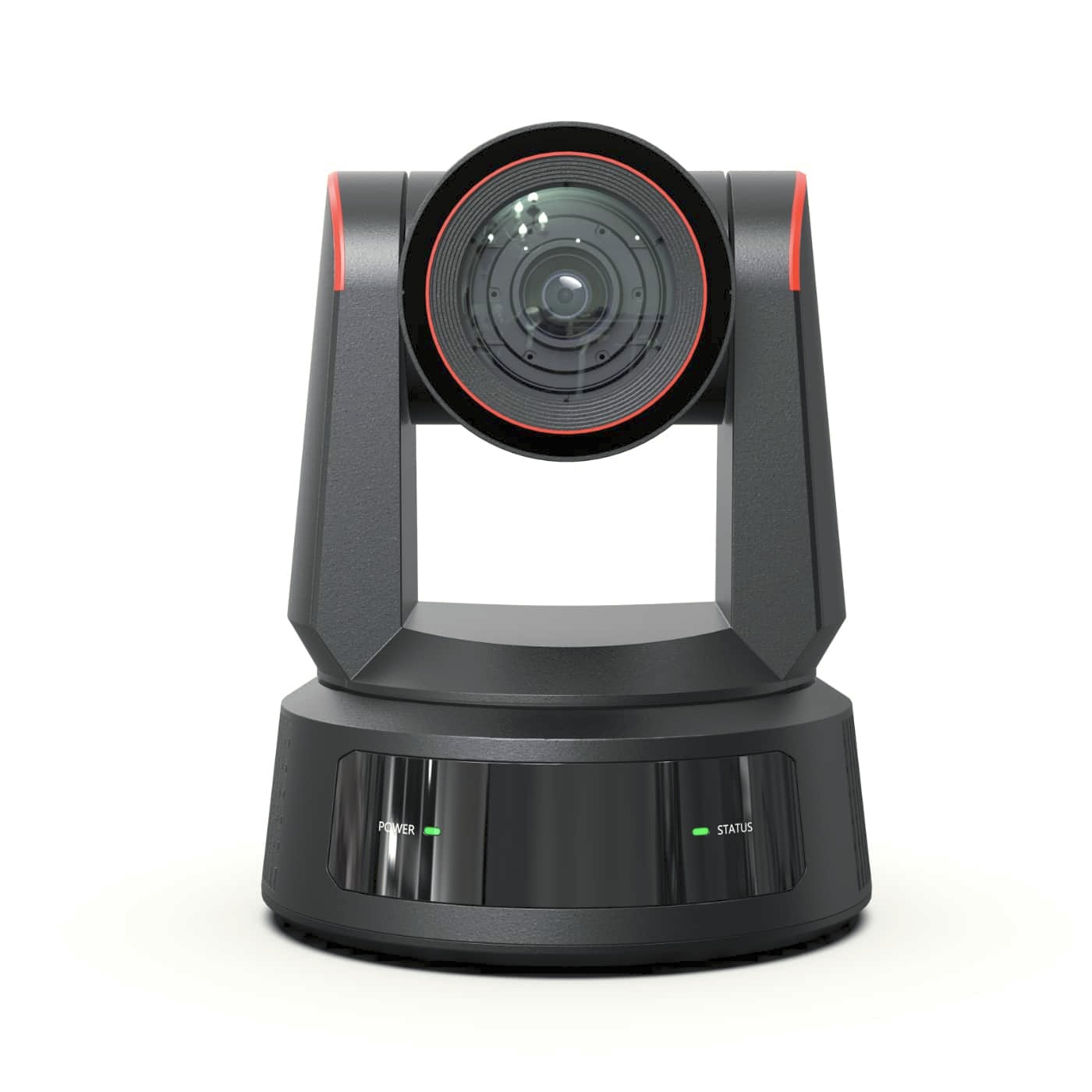

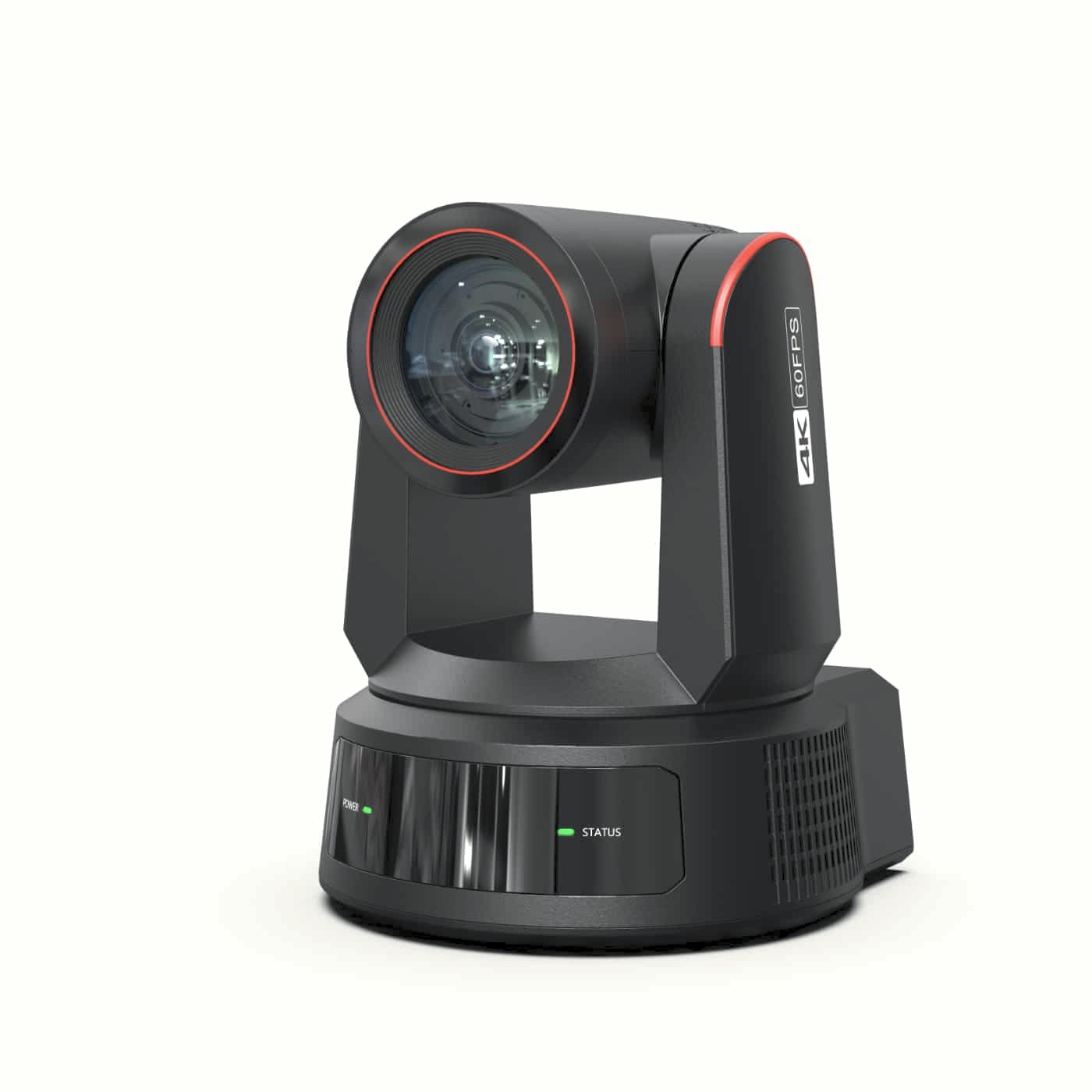

RGBlink RGB20X-UPAI-TLY (12G)

The RGBlink RGB20X-UPAI-TLY (12G) is a professional 4K60 broadcast PTZ camera featuring 20× optical zoom (16× digital), simultaneous HDMI 2.0, 12G‑SDI, USB‑C, and LAN outputs, AI dynamic face/human tracking, and broad IP streaming and control support—perfect for studios, events, and live productions.

More information

Call us for pricing information
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink RGB20X-UPAI-TLY (12G) is a professional 4K60 broadcast PTZ camera featuring 20× optical zoom (16× digital), simultaneous HDMI 2.0, 12G‑SDI, USB‑C, and LAN outputs, AI dynamic face/human tracking, and broad IP streaming and control support—perfect for studios, events, and live productions.

The RGBlink RGB20X-UPAI-TLY (12G) delivers high-quality Ultra HD video with crisp, low-noise imaging thanks to its 1/1.8″ Sony CMOS sensor and advanced ISP with 3D DNR. It supports 3840×2160 up to 60 fps via HDMI 2.0, 12G-SDI, USB‑C, and LAN, making it ideal for professional video production, live streaming, and broadcast environments.

The camera’s 20× optical zoom with 16× digital zoom provides long-reach framing without sacrificing clarity, while AI dynamic tracking and auto-framing automatically keep subjects centered. It supports IP streaming with RTSP, RTMP, SRT, ONVIF, and FreeD, and features comprehensive control protocols including RS-232, RS-422, VISCA, Pelco-D/P, and Network VISCA, with up to 255 preset camera positions.

Additional professional features include low-power standby, embedded audio on all outputs, and PoE+ support via LAN. Compact and reliable, the RGB20X-UPAI-TLY is designed for versatile, high-quality capture in studios, classrooms, houses of worship, conference halls, and live production setups.

Key Features:
  • Ultra HD 4K60 video output (3840×2160) & H.264/H.265 compression
  • 20× optical zoom + 16× digital zoom for long-reach framing
  • Multiple outputs: HDMI 2.0, 12G‑SDI, USB‑C (USB 3.0), LAN; PoE+ optional
  • AI dynamic tracking & auto-framing (face/human)
  • IP streaming: RTSP, RTMP, SRT, ONVIF; Network VISCA; FreeD
  • Audio: 3.5 mm Mic In + Line In; AAC/MP3/G.711A; embedded on all outputs
  • Control: RS-232, RS-422, VISCA, Pelco-D/P; up to 255 presets
  • Low-power standby; 3D DNR; high SNR (>50 dB)
  • Compact form factor for studios, events, and classrooms

PACKAGE CONTENT

  • RGBlink vue 4K UHD Broadcast PTZ 20× camera
  • DC 12 V Power Supply
  • User Documentation

SPECIFICATIONS

  • Sensor: UHD 1/1.8″ Sony CMOS, ~8.42 MP, advanced ISP & 3D DNR
  • Optical Zoom: 20× optical + 16× digital zoom
  • Field of View (H): Wide to telephoto (manufacturer HFOV not specified)

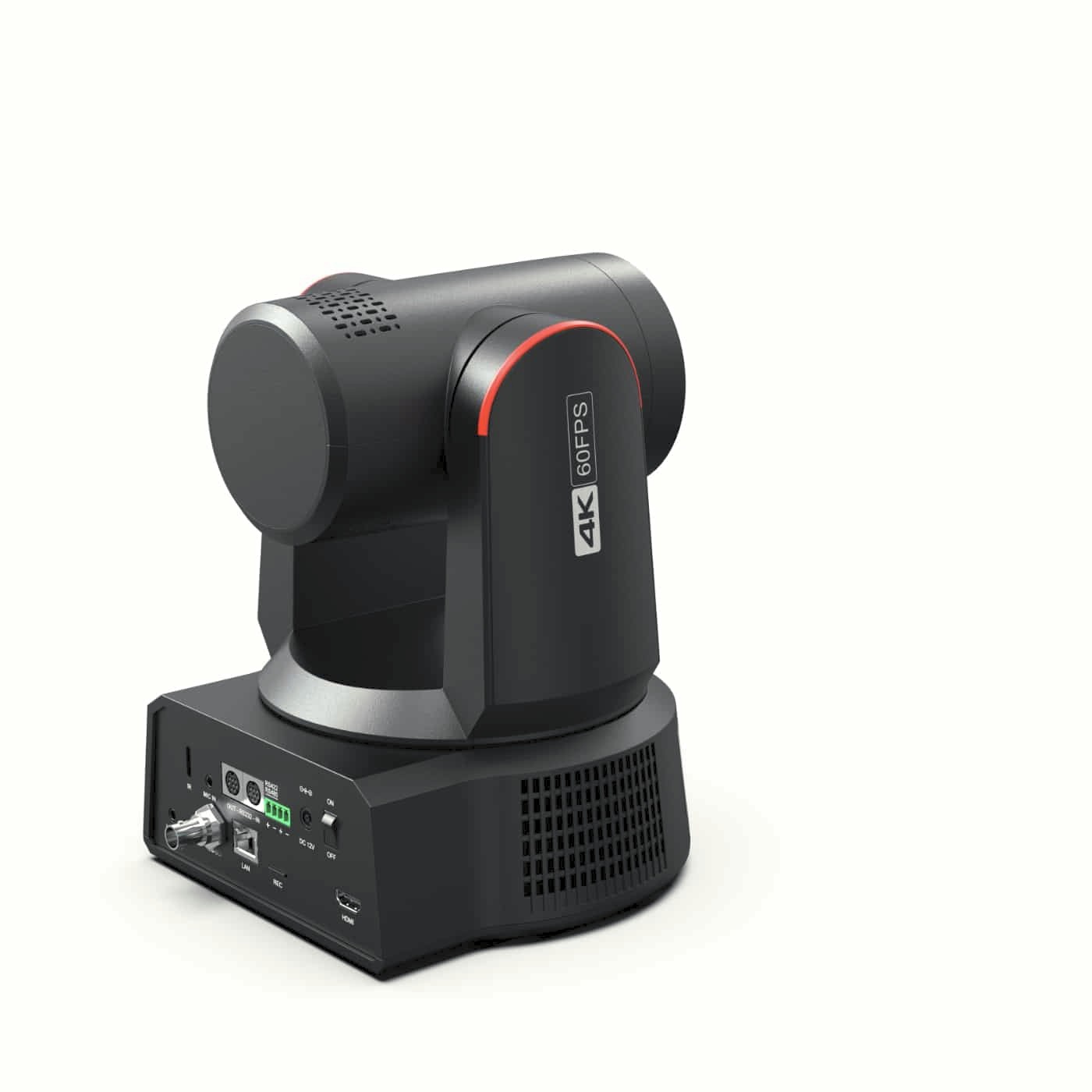

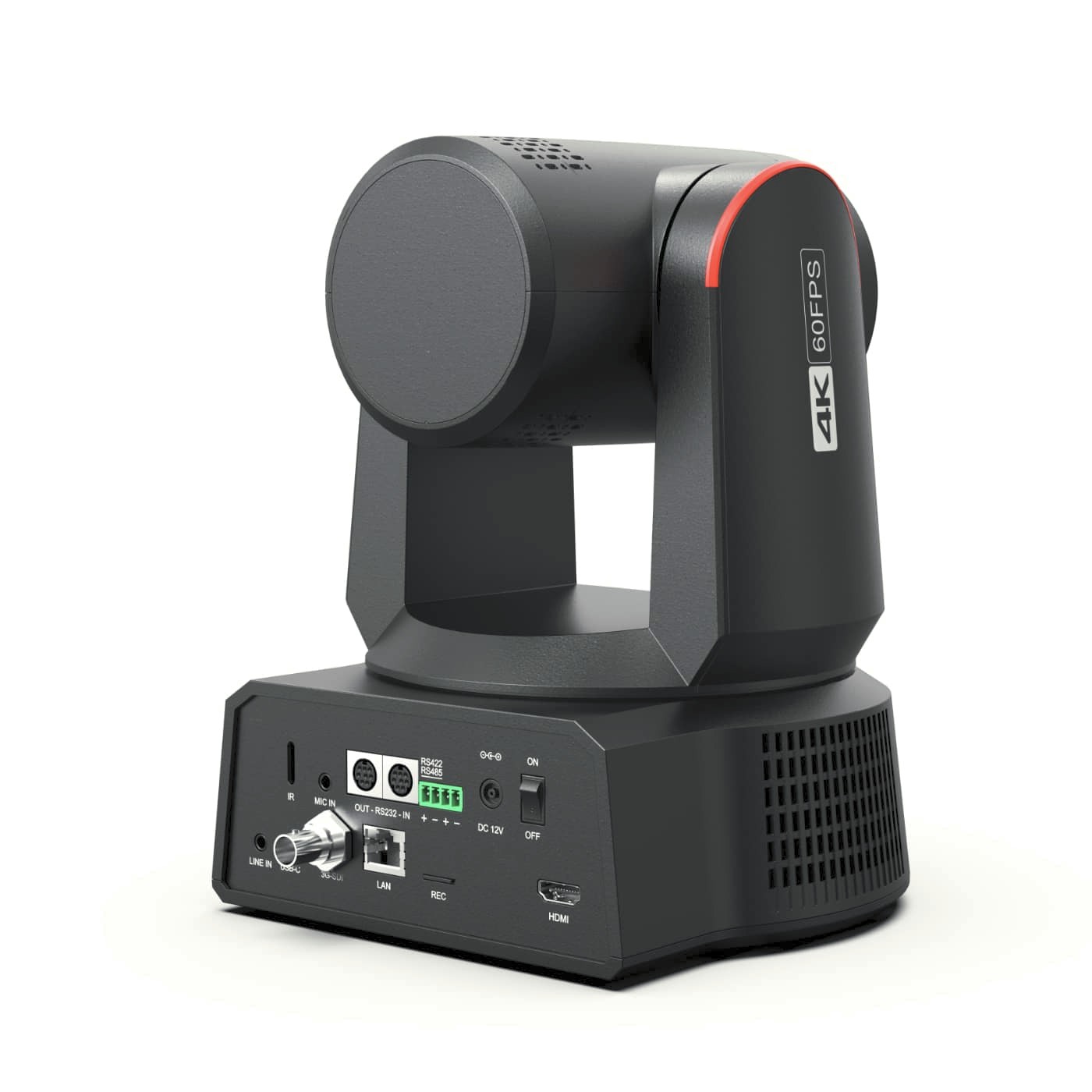

  • Video Outputs: 1 × HDMI‑A (HDMI 2.0), 1 × 12G‑SDI (BNC), 1 × USB‑C (USB 3.0), 1 × RJ‑45 (LAN; PoE+ optional)
  • Max Output Formats: 2160p@60/59.94/50/30/29.97/25; 1080p@60/59.94/50/30/29.97/25; 1080i@60/59.94/50; 720p@60/59.94/50
  • Streaming (LAN): Main up to 4K60 (H.264/H.265); Sub up to SD/VGA modes
  • USB Video: USB 3.0 (YUY2/NV12 up to 1080p60; MJPEG/H.264/H.265 profiles)
  • Audio I/O: Mic In (3.5 mm), Line In (3.5 mm); embedded on HDMI/SDI/IP/USB
  • Control I/O: RS-232 In/Out, RS-422 In/Out; VISCA, Pelco-D/P; Network VISCA; remote upgrade/reboot/reset
  • Pan/Tilt: Pan −125°~+125°, Tilt −30°~+30°; Pan speed 0.1–65°/s, Tilt speed 0.1–35°/s; 255 presets
  • Network Protocols: RTSP, RTMP, SRT, ONVIF, FreeD; Network VISCA
  • Power: DC 12 V (12 V⎓1.5 A), <18 W; low-power standby; PoE+ optional
  • Environment: −10 °C ~ +50 °C; 20% ~ 80% RH
  • Dimensions / Weight: 188 × 164 × 236 mm; 2.0 kg
Parameters

Parameters

Manufacturer: RGBlink
Category: PTZ

Main parameters

Camera Sensor size1/1,8"
Resolution3840 × 2160 (4K UHD)
Zoom20x
Type of bayonetFixed lens
Type of bayonetFixed integrated zoom lens
OutputHDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), LAN

Other parameters

VersionRGB20X-UPAI-TLY (12G)
Record formatH.264 / H.265
FPSUp to 60 fps
Lens lens aperture1.8f
Min. focal length4.8mm
Max. focal length57.8mm
Media typeNetwork / USB / external recorder
Other featuresRTSP
Control protocolRS-232, RS-422, VISCA, Pelco-D/P, Network VISCA
