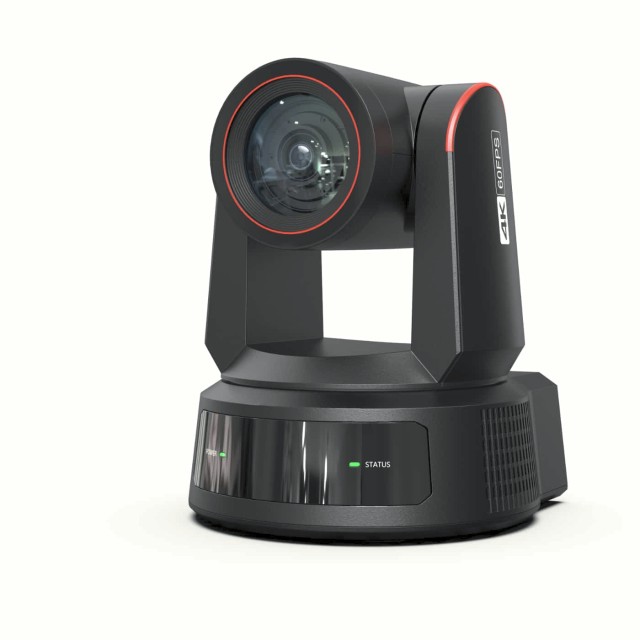

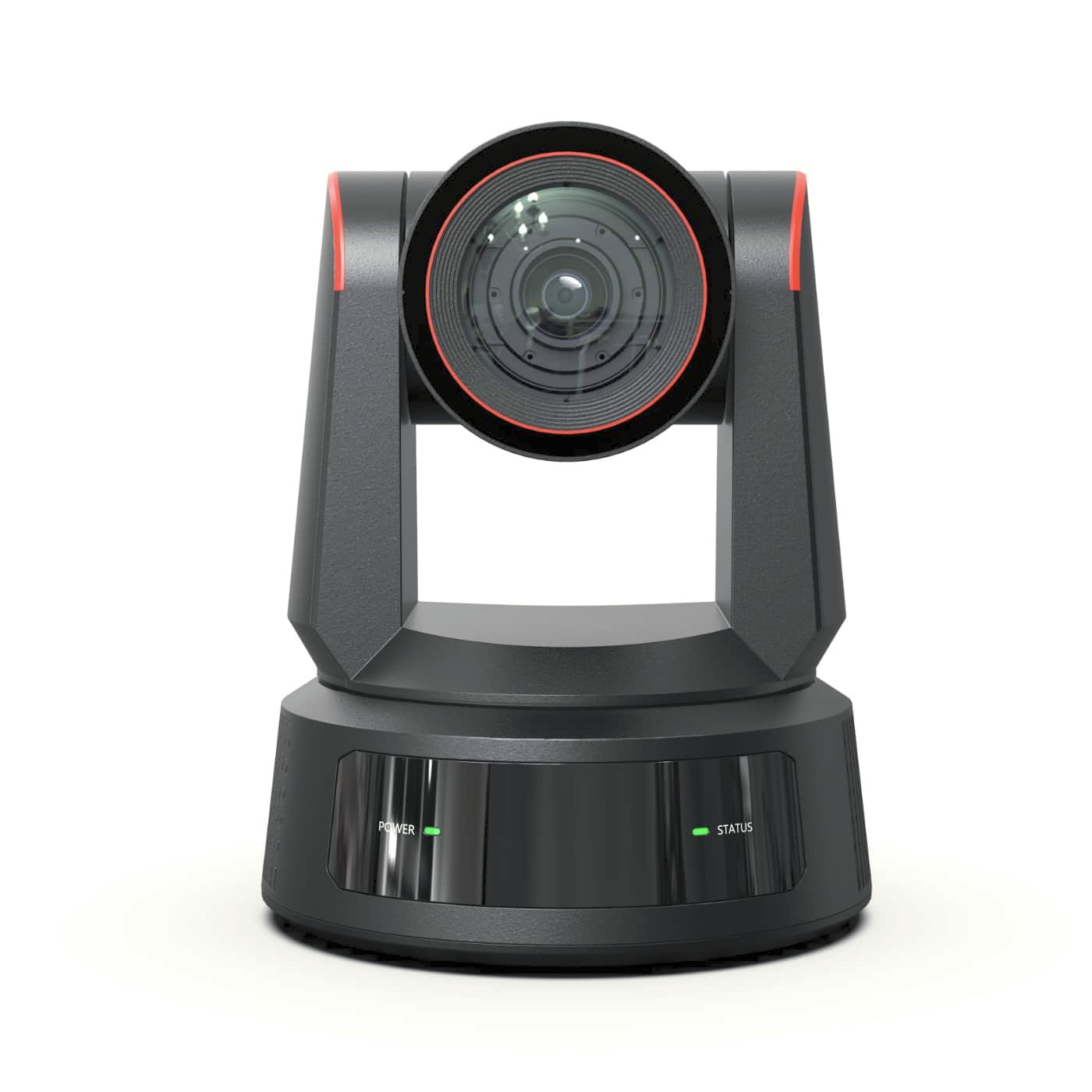

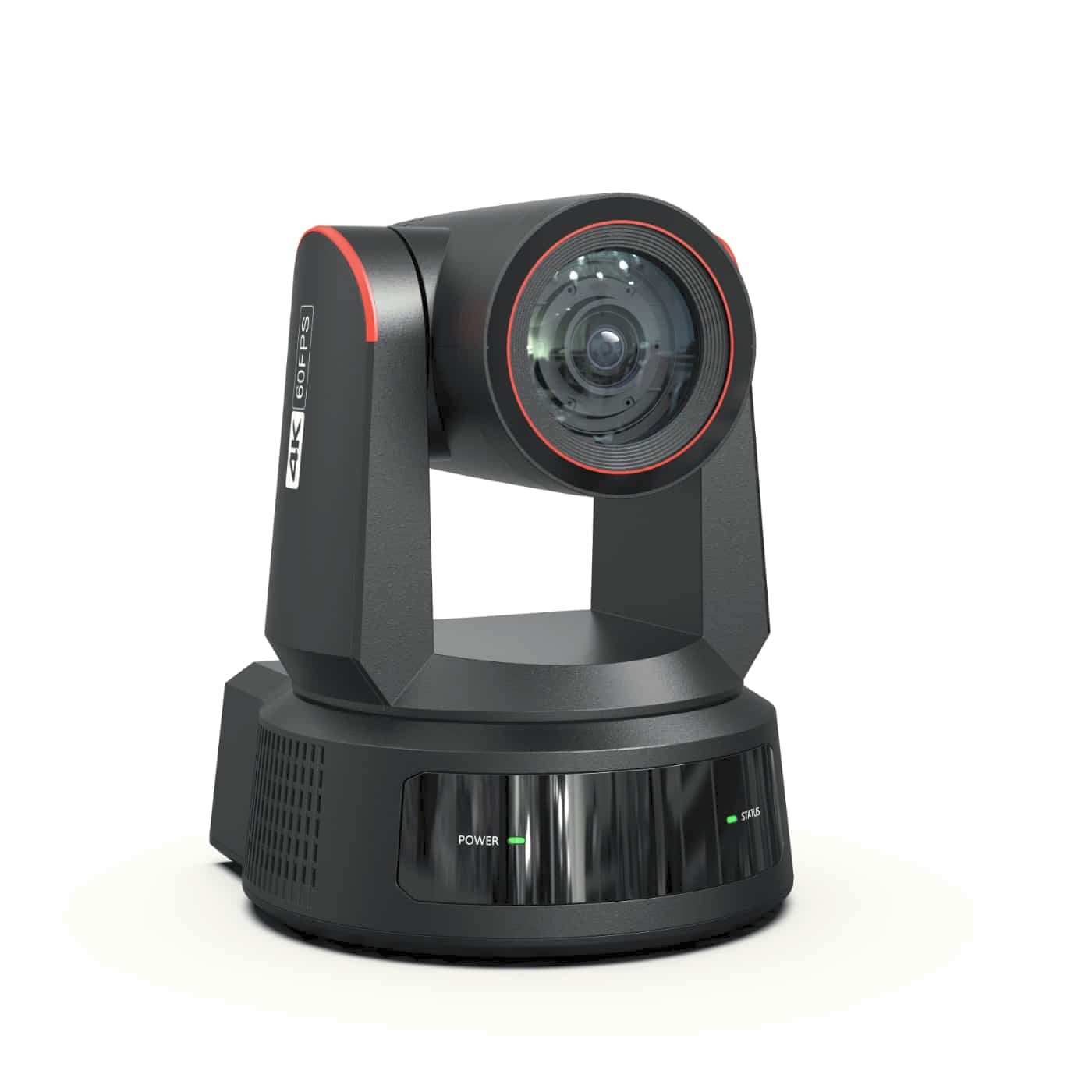

RGBlink RGB30X-UNAI-TLY (12G)
SKU: 981-0101-90-1
The RGBlink RGB30X-UNAI-TLY is a professional 4K UHD PTZ camera delivering up to 3840×2160 at 60 fps with simultaneous HDMI 2.0, 12G-SDI, USB 3.0, and IP outputs. Featuring 30× optical zoom, integrated NDI®|HX and Dante AV-H, and AI-powered auto-tracking, it is designed for broadcast studios, live events, education, and high-end AV workfl…
Call us for pricing information
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The RGBlink RGB30X-UNAI-TLY is a professional 4K UHD PTZ camera delivering up to 3840×2160 at 60 fps with simultaneous HDMI 2.0, 12G-SDI, USB 3.0, and IP outputs. Featuring 30× optical zoom, integrated NDI®|HX and Dante AV-H, and AI-powered auto-tracking, it is designed for broadcast studios, live events, education, and high-end AV workflows.
The RGBlink RGB30X-UNAI-TLY (12G) is a studio-ready Ultra HD PTZ camera engineered for modern broadcast, live production, and networked AV environments. Built around a UHD Sony CMOS sensor and advanced low-noise ISP with 3D digital noise reduction, it captures crisp, high-SNR video up to 4K60 (3840×2160) with outstanding clarity and color fidelity.
Equipped with a 30× optical zoom lens, the camera enables precise long-range framing while maintaining image quality. Simultaneous video outputs via HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), and IP (LAN/PoE+) ensure seamless integration into SDI, HDMI, USB, and IP-based workflows. Built-in NDI®|HX and Dante AV-H support efficient video and audio over IP, greatly simplifying networked production.
AI-powered auto-tracking and auto-framing intelligently follow human subjects, making the RGB30X-UNAI-TLY ideal for lectures, houses of worship, conferences, and live streaming. Comprehensive protocol support—including VISCA, Pelco-D/P, ONVIF, FreeD, SRT, RTSP, and RTMP—ensures compatibility with professional control systems. With smooth pan/tilt motion, up to 255 presets, low-power standby, and PoE+ support, this PTZ camera delivers reliable, broadcast-grade performance in demanding production environments.
Key Features:
- Ultra HD video up to 4K60 (3840×2160)
- 30× optical zoom with digital zoom support
- Simultaneous HDMI 2.0, 12G-SDI, USB 3.0 (UVC), and IP outputs
- Built-in NDI®|HX and Dante AV-H for IP video & audio
- AI auto-tracking and intelligent auto-framing
- H.264 / H.265 streaming over IP
- Professional control: VISCA, Pelco-D/P, ONVIF, FreeD
- Low-noise imaging with 3D DNR
- PoE+ support and low-power standby
PACKAGE CONTENT
- RGBlink RGB30X-UNAI-TLY 4K UHD PTZ Camera
- DC 12 V Power Supply
- IR Remote Controller / Control Cable
- User Documentation
SPECIFICATIONS
- Sensor: UHD 1/1.8" Sony CMOS (~8.42 MP)
- Max Resolution: 3840 × 2160
- Frame Rates: Up to 60 fps (4K)
- Zoom: 30× optical (+ digital)

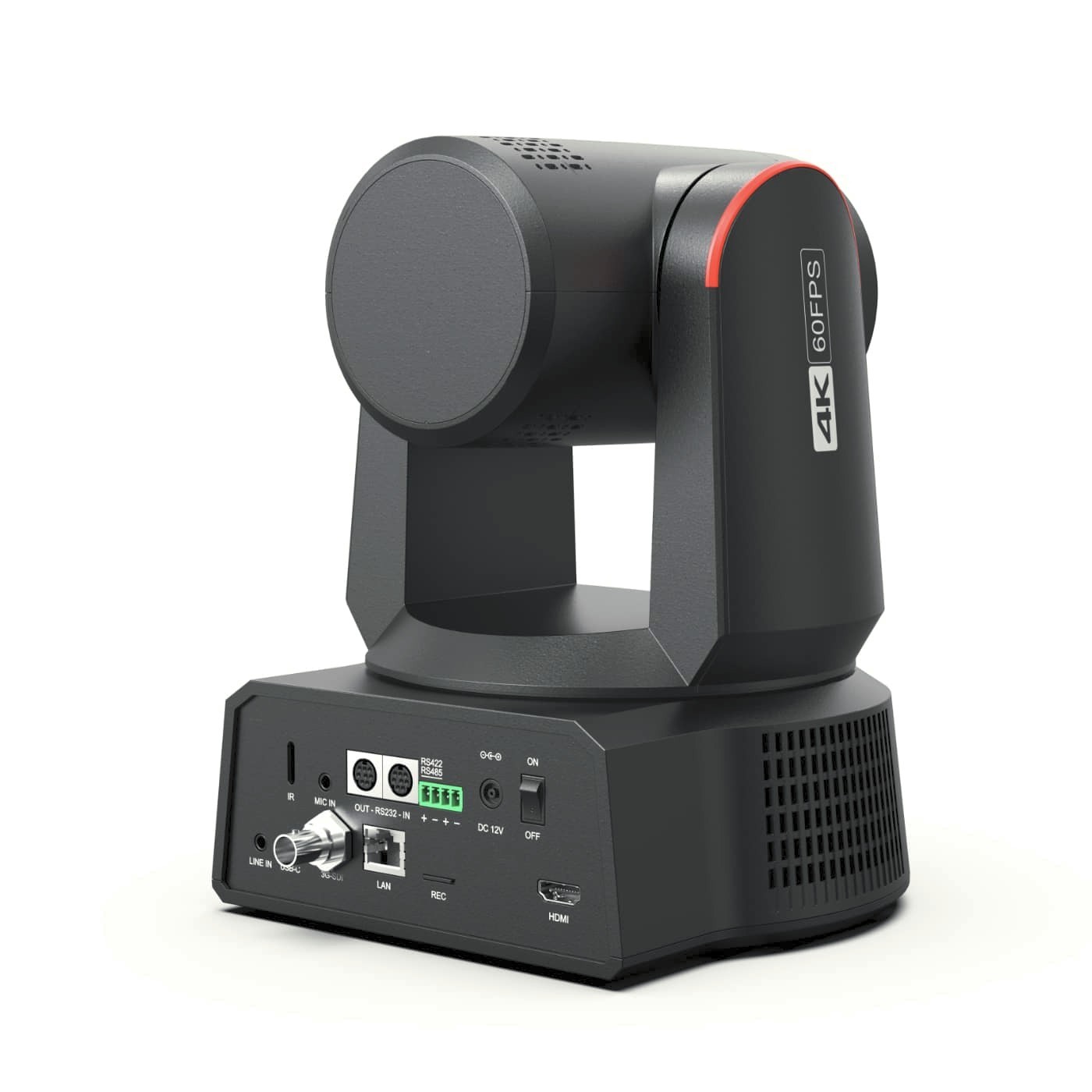

- Video Outputs: HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), LAN (PoE+)
- Streaming: NDI®|HX, Dante AV-H, SRT, RTSP, RTMP, ONVIF
- Audio I/O: 3.5 mm Mic In, 3.5 mm Line In; embedded audio on all outputs
- Pan/Tilt Range: Pan −125° to +125°, Tilt −30° to +30°
- Presets: Up to 255
- Power: DC 12 V / PoE+, <18 W
- Dimensions: Approx. 188 × 164 × 236 mm
- Weight: Approx. 2.0 kg
WE RECOMMEND
The RGBlink RGB30X-UNAI-TLY is a high-end 4K PTZ camera with a 12G-SDI interface and NDI support, which requires a robust infrastructure for control and signal distribution. Recommended accessories include specialized PTZ controllers, mounting brackets, and advanced control systems that fully support 4K resolution and professional SDI connectivity.
Control and Mounting - Accessories for precise remote control of camera movement and secure installation.
- RGBlink RGBCTL-PTZ-BKPTZ Controller
- RGBlink PTZ & NDI Camera Suction Top Flip Bracket
- RGBlink Universal wall mount bracket for PTZ
- RGBlink RGBCTL-PNDI-OL
Production and Streaming - Equipment for processing multiple camera inputs and professional live broadcasting in 4K resolution.
- RGBlink mini-max
- RGBlink mini-edge SDI
- RGBlink mini-pro
- RGBLink mini-ISO
- RGBLink bond 7 UHD 5G bonding encoder
Wireless Transmission and Converters - Tools for flexible video signal transmission without the need for cabling and UVC signal conversion.
Monitors and Recording - External devices for real-time image preview and local production recording.
Parameters
| Manufacturer: | RGBlink |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/1,8" |
| Resolution | 3840 × 2160 (4K UHD) |
| Zoom | 30x |
| Type of bayonet | Fixed lens (non-interchangeable) |
| Output | HDMI 2.0, 12G-SDI, USB-C (USB 3.0/UVC), IP (LAN/PoE+) |
Other parameters
| Version | RGB30X-UNAI-TLY (12G) |
| Record format | H.264 / H.265 (IP & USB streaming) |
| FPS | Up to 60 fps |
| Media type | Network / USB / external recorder |
| Other features | NDI® |
| Control protocol | VISCA, Pelco-D, Pelco-P, Network VISCA, ONVIF, FreeD |
