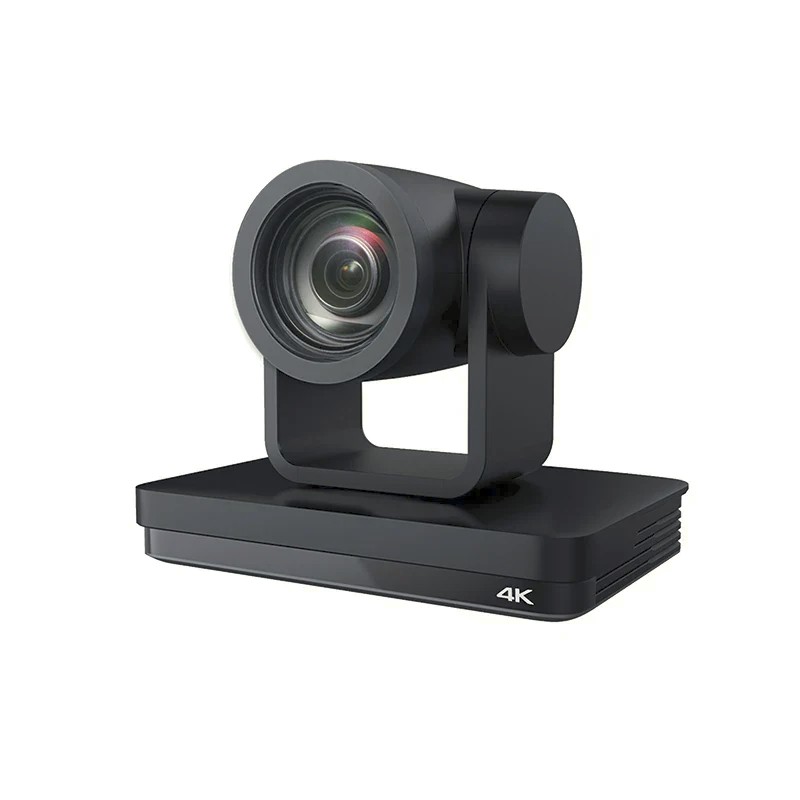

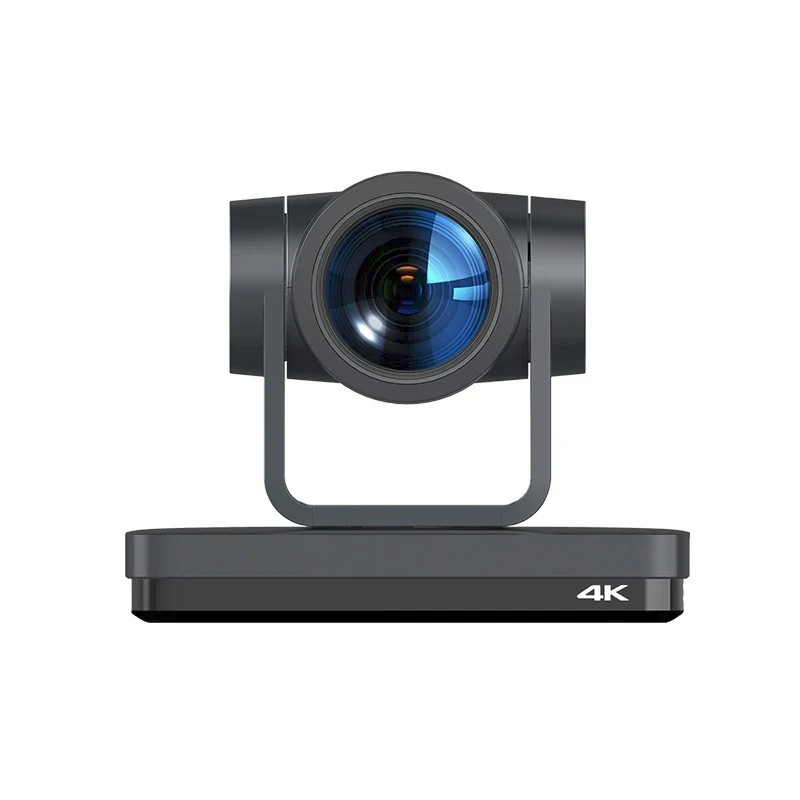

RGBlink RGB30X-UNAI-BK 30X 4K AI PTZ with NDI

The RGBlink RGB30X-UNAI-BK is a professional 4K AI tracking PTZ camera with 30× optical zoom designed for live streaming, education, and broadcasting applications. Featuring NDI HX3, PoE support, and multiple video outputs including HDMI, SDI, and USB, it delivers high-quality, low-noise 4K video with intelligent real-time and area tracking.

The RGBlink BK series PTZ camera with 30× optical zoom shoots 4K at 60 frames per second and follows the presenter on its own using AI. It outputs simultaneously over HDMI, SDI, USB and the network – including NDI|HX3, and it can be powered by a 12 V adapter or over PoE+. It suits classrooms, meeting rooms, halls and live productions.

Lens with 30× optical zoom

Focal length 6.91–214.64 mm, aperture F1.35–F4.6 and horizontal field of view 59°–1.98° – from the whole room down to a close-up of a face. The 1/1.8″ Sony CMOS sensor with 8.51 MP and 3D noise reduction delivers a picture with a signal-to-noise ratio above 50 dB, and the camera focuses automatically, manually or at one press.

Follows the presenter using AI

The built-in processor recognises a person and keeps them in shot – continuously, or only within a zone you define in the web interface. The camera pans from −110° to +110° at up to 100°/s and tilts ±30° at up to 70°/s, stores 255 presets, and 10 of them can be recalled directly from the supplied remote control.

More information

The RGBlink RGB30X-UNAI-BK 4K AI PTZ Camera is a cutting-edge PTZ camera engineered for professional live production, lecture capture, and broadcast environments. Equipped with a 1/1.8″ Sony CMOS sensor, it supports 30× optical zoom and 8× digital zoom to capture detailed footage across large venues. The camera’s AI-powered tracking ensures smooth, real-time subject tracking and area tracking, keeping presenters centered and focused without manual intervention.

Designed for versatile workflows, the RGB30X-UNAI-BK offers multiple video outputs including HDMI, 3G-SDI, USB, and LAN streaming, supporting H.264/H.265 video compression and AAC audio. With NDI HX3 support, this camera seamlessly integrates into IP-based production systems for high-quality 4K video distribution. Advanced pan-and-tilt motors allow precise positioning with up to 255 preset positions, controlled via VISCA, Pelco-D/P, or RS-232/RS-422/RS-485 protocols. PoE support simplifies installation by combining power and network connectivity over a single cable.

Compact and robust, the RGB30X-UNAI-BK weighs only 1.7 kg and supports operation in environments from -10°C to 50°C with 20–80% humidity. Ideal for studios, lecture halls, houses of worship, and corporate live streaming, this camera offers professional-grade features in a reliable, easy-to-deploy package.

Key Features:

• 4K Ultra HD resolution, up to 3840×2160@60fps
• 30× optical zoom, 8× digital zoom
• AI-powered real-time and area tracking
• Multiple outputs: HDMI, SDI, USB, LAN
• NDI HX3 streaming support
• H.264/H.265 video compression
• AAC audio compression
• PoE+ support
• Pan: −110°~+110°, Tilt: −30°~+30°
• Up to 255 preset positions, 10 via remote
• VISCA, Pelco-D/P, RS-232/RS-422/RS-485 control protocols
• Low-noise, high SNR imaging ≥50 dB
