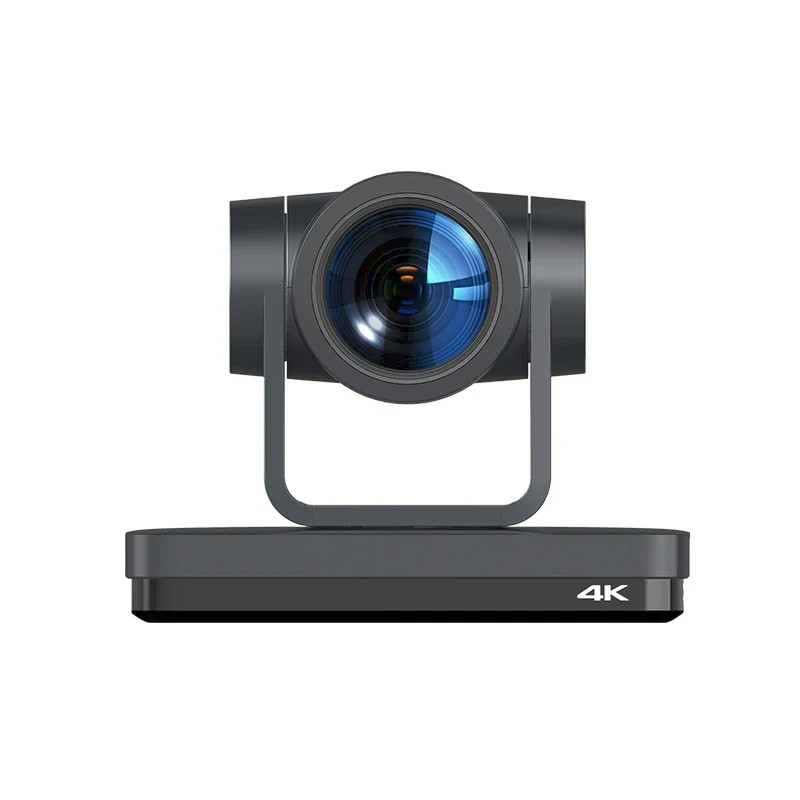

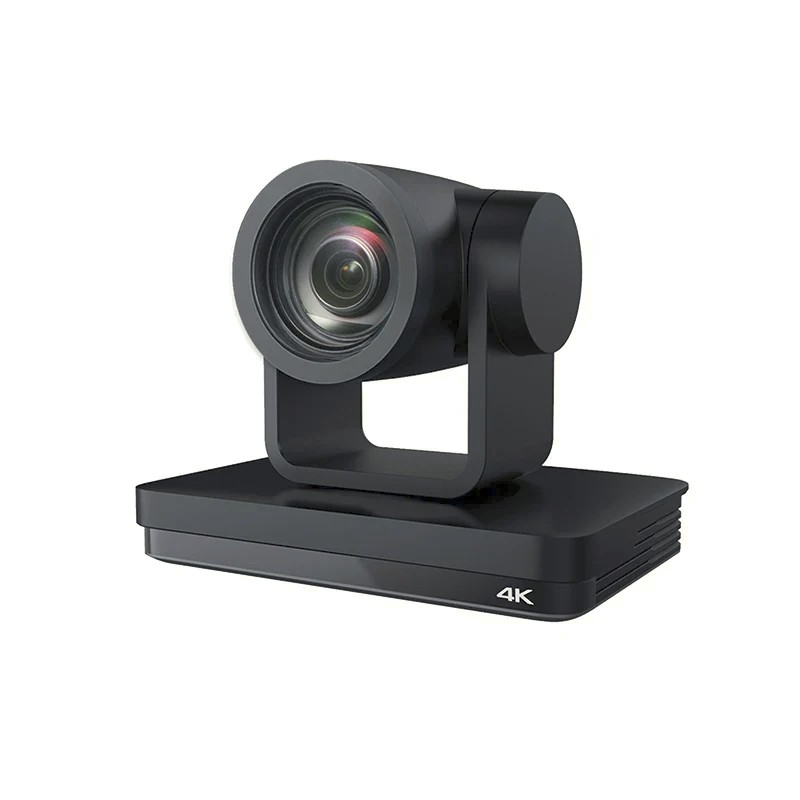

RGBlink RGB12X-UPAI-BK 12X 4K AI PTZ

The RGBlink RGB12X-UPAI-BK is a compact 4K Ultra HD AI PTZ camera featuring a 12× optical zoom lens, PoE support, and advanced AI tracking, delivering smooth 4K@60fps video via HDMI, SDI, USB, and IP outputs for professional broadcast, education, and live streaming applications.

More information

1 539 € with VAT 1 271.9 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink RGB12X-UPAI-BK is a compact 4K Ultra HD AI PTZ camera featuring a 12× optical zoom lens, PoE support, and advanced AI tracking, delivering smooth 4K@60fps video via HDMI, SDI, USB, and IP outputs for professional broadcast, education, and live streaming applications.

The RGBlink RGB12X-UPAI-BK 12X 4K AI PTZ Camera is designed for modern production environments requiring high-resolution imaging, intelligent tracking, and flexible connectivity. Powered by a 1/2.5″ Sony CMOS sensor with 8.51 million effective pixels, the camera delivers crisp 4K Ultra HD video up to 3840×2160 at 60 fps, combined with low-noise performance and a high signal-to-noise ratio for excellent image clarity in varied lighting conditions.

Its 12× optical zoom lens (with up to 8× digital zoom) provides precise framing from wide-angle room coverage to detailed close-ups, supported by fast and accurate autofocus. Integrated AI tracking enables real-time subject following and optional area-based tracking, making it ideal for lectures, presentations, houses of worship, and live events.

The camera supports HDMI, SDI, USB, and LAN (PoE) outputs simultaneously and offers broad compression options including H.264 and H.265, ensuring compatibility with both IP-based and traditional workflows. Network protocols such as RTSP, RTMP, ONVIF, VISCA, and NDI HX allow seamless integration into streaming platforms, video mixers, and control systems.

Professional PTZ performance includes smooth pan and tilt motion, up to 255 preset positions, and support for VISCA, Pelco-D, and Pelco-P control protocols via RS-232 or RS-422/RS-485. With compact dimensions, low power consumption, and PoE capability, the RGB12X-UPAI-BK is a powerful and efficient solution for fixed installations and mobile productions alike.

Key Features:
  • 4K Ultra HD resolution up to 3840×2160 @ 60fps
  • 12× optical zoom with fast, stable autofocus
  • Advanced AI real-time and area tracking
  • 1/2.5″ Sony CMOS sensor, 8.51 MP
  • HDMI, SDI, USB, and IP video outputs
  • NDI HX support for IP production workflows
  • Dual compression H.264 / H.265
  • PoE (Power over Ethernet) support
  • Low noise, high SNR (≥50 dB)
  • Up to 255 PTZ presets
  • VISCA, Pelco-D, Pelco-P control protocols

PACKAGE CONTENT

  • RGBlink RGB12X-UPAI-BK 4K AI PTZ Camera
  • Power adapter
  • User documentation

SPECIFICATIONS

  • Image Sensor: 1/2.5″ Sony CMOS
  • Effective Pixels: 8.51 MP (16:9)
  • Optical Zoom: 12×
  • Digital Zoom: 8×
  • Aperture: f/1.8 – f/3.56
  • Focal Length: 3.85 – 43.06 mm
  • Minimum Illumination: 0.05 lux (F1.8, AGC ON)
  • SNR: ≥50 dB
  • Video Compression: H.264 / H.265
  • Audio Compression: AAC, MP3, G.711A
  • Pan Range: −110° to +110°
  • Tilt Range: −30° to +30°
  • Presets: Up to 255
  • Power Input: DC 12 V
  • Max Power Consumption: <12 W
  • Weight (Net): 1.7 kg
Parameters

Parameters

Manufacturer: RGBlink
Category: PTZ

Main parameters

Camera Sensor size1/2.5"
Resolution3840 × 2160 (4K UHD)
Zoom12x
Type of bayonetFixed integrated zoom lens
OutputHDMI, SDI, USB, LAN (IP / PoE)

Other parameters

VersionRGB12X-UPAI-BK
Record formatH.264 / H.265
FPSUp to 60 fps
Lens lens aperture1.8f
Min. focal length3.9mm
Max. focal length43.1mm
Media typeIP streaming / USB
Other featuresAI tracking
