RGBlink RGB30X-UPAI-BK 30X 4K AI PTZ

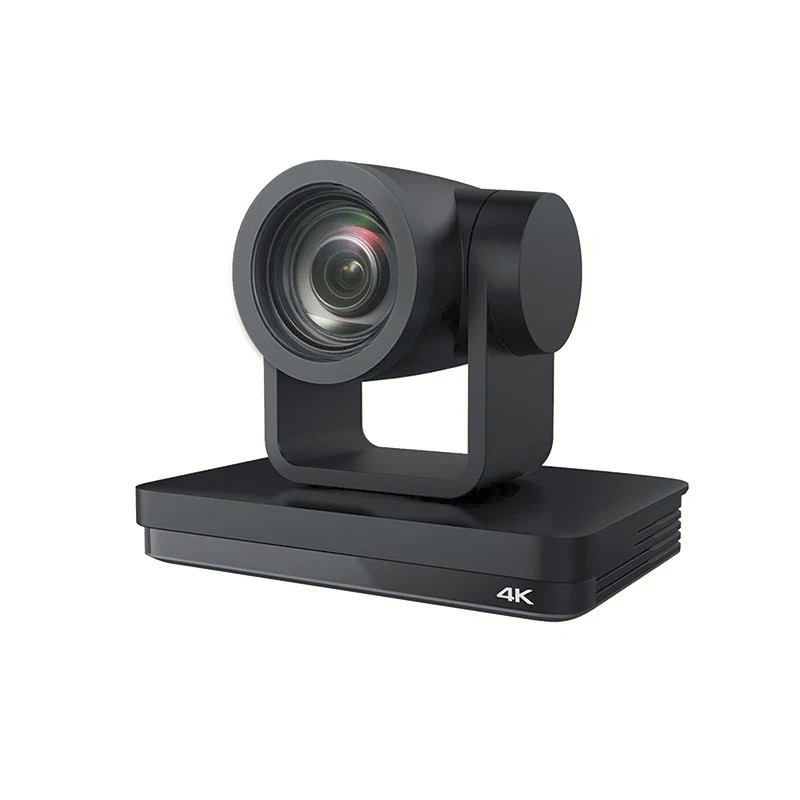

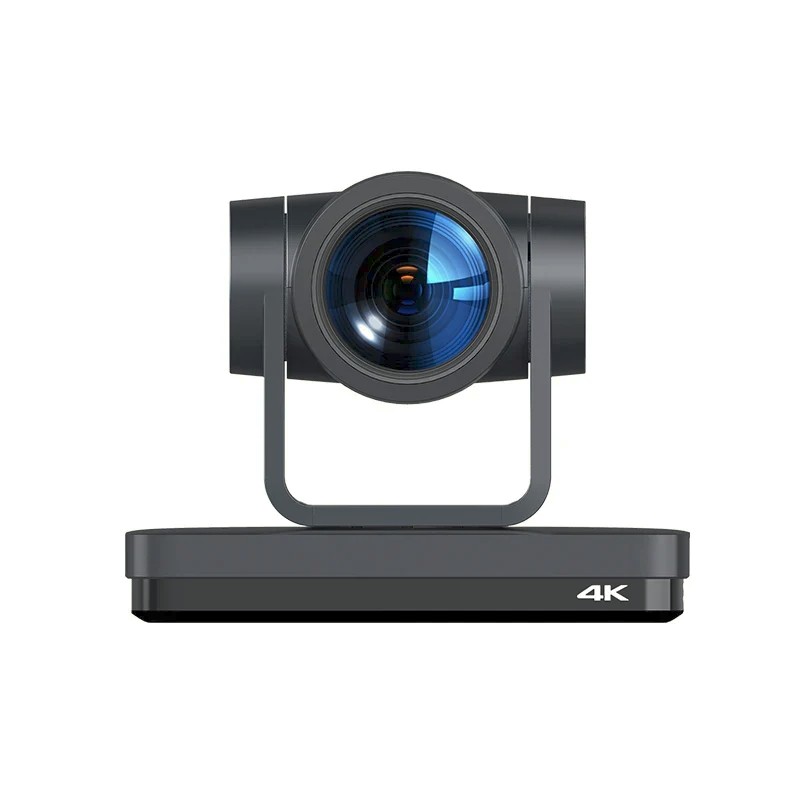

The RGBlink RGB30X-UPAI-BK is a professional 4K Ultra HD AI tracking PTZ camera featuring a powerful 30× optical zoom, PoE support and multi-interface connectivity, making it ideal for broadcast, live streaming, conferencing, education, and worship environments.

The RGBlink BK series PTZ camera with 30× optical zoom shoots 4K at 60 frames per second and follows the presenter on its own using AI. It outputs simultaneously over HDMI, SDI, USB and the network, and it can be powered by a 12 V adapter or over PoE+. It suits classrooms, meeting rooms, halls and live productions.

Lens with 30× optical zoom

Focal length 6.91–214.64 mm, aperture F1.35–F4.6 and horizontal field of view 59°–1.98° – from the whole room down to a close-up of a face. The 1/1.8″ Sony CMOS sensor with 8.51 MP and 3D noise reduction delivers a picture with a signal-to-noise ratio above 50 dB, and the camera focuses automatically, manually or at one press.

Follows the presenter using AI

The built-in processor recognises a person and keeps them in shot – continuously, or only within a zone you define in the web interface. The camera pans from −110° to +110° at up to 100°/s and tilts ±30° at up to 70°/s, stores 255 presets, and 10 of them can be recalled directly from the supplied remote control.

More information

The RGBlink RGB30X-UPAI-BK 30× 4K AI PTZ Camera delivers exceptional Ultra HD video quality with resolutions up to 3840×2160 at 60 fps, powered by a 1/1.8″ Sony CMOS sensor and advanced low-noise image processing. Designed for professional AV and broadcast workflows, it integrates AI-based real-time and area tracking, ensuring subjects stay perfectly framed during live productions.

Equipped with a 30× optical zoom lens and fast, accurate autofocus, the camera captures fine detail even at long distances. Multiple video outputs—including HDMI, SDI, USB, and LAN with PoE—enable seamless integration into both IP-based and traditional production systems. H.264 and H.265 compression allows efficient video transmission over standard networks.

Advanced PTZ mechanics provide smooth, precise pan and tilt control with up to 255 preset positions, while support for VISCA, Pelco-D, Pelco-P, ONVIF, RTSP, and RTMP ensures compatibility with industry-standard controllers and platforms. With professional audio embedding, multiple compression formats, and robust environmental tolerance, the RGB30X-UPAI-BK is a reliable, broadcast-grade solution for demanding production environments.

Key Features:

• 4K Ultra HD video up to 60 fps
• 30× optical zoom with fast, accurate autofocus
• AI tracking (real-time and area tracking)
• HDMI, SDI, USB, and LAN (PoE) outputs
• Low noise, high SNR imaging with 3D DNR
• Broad protocol support: VISCA, Pelco-D/P, ONVIF
• Up to 255 PTZ presets
• Compact, lightweight broadcast design
